How to Remove Background Noise Using Signal Processing Techniques in MALMIJAL Drag and Drop mode?
This tutorial explains how to remove background noise from a whistle sound using a High-Pass Filter and analyze the result with Fast Fourier Transform (FFT) in MALMIJAL Drag and Drop mode. The process demonstrates how filtering and spectral analysis help isolate useful signal frequencies.

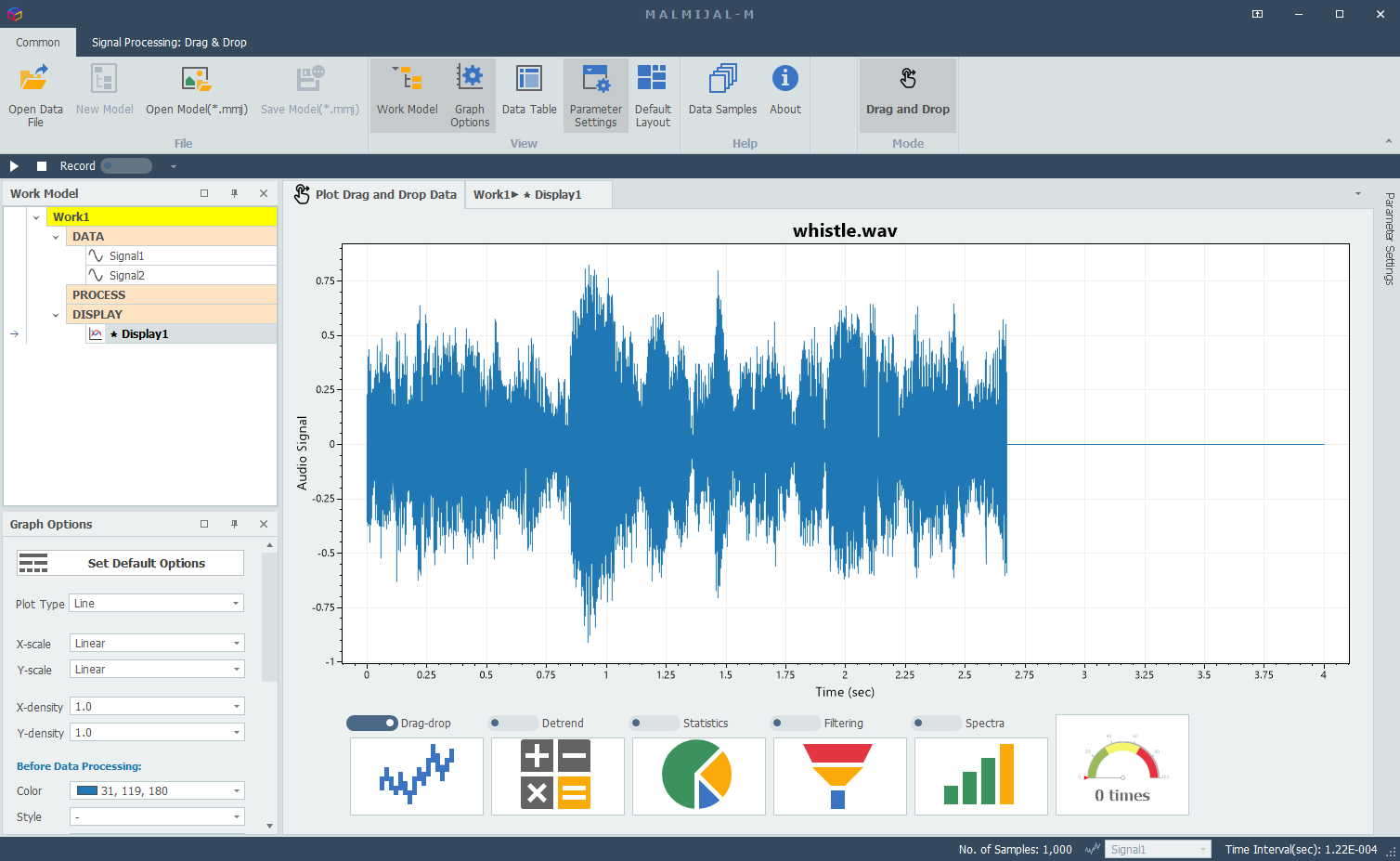

1. Load Data Samples
Start by loading the audio data sample.
Steps
Click the Data Samples button
Drag and drop the Data Sample file into the workspace
Click the Play button to listen to the original sound
At this stage, you can hear the whistle sound along with background noise.

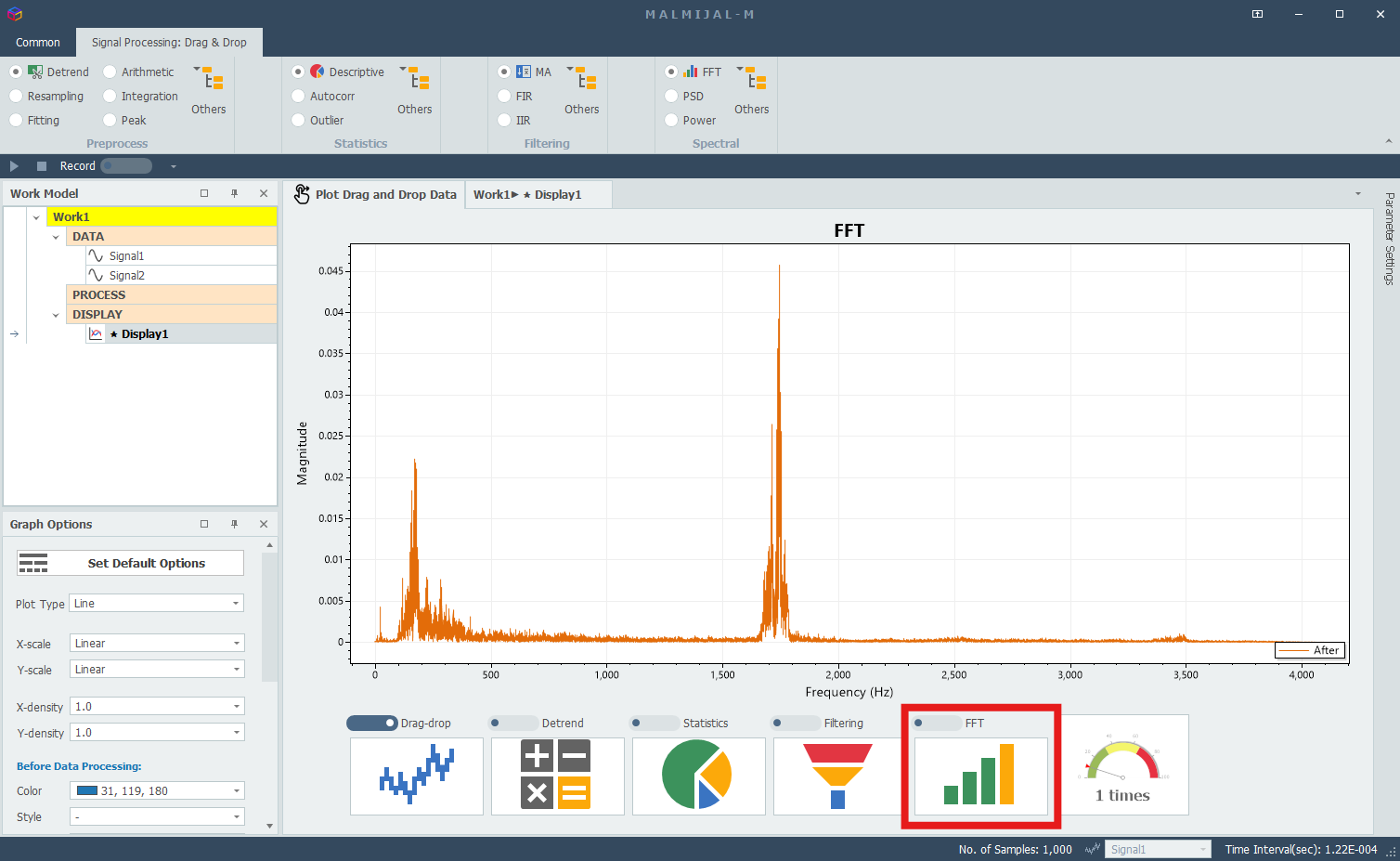

2. Analyze the Signal with Fast Fourier Transform (FFT)
Next, analyze the frequency distribution of the sound.
Steps
Select "FFT" in Signal Processing: Drag and Drop Tab
Click Spectra(FFT) button in the bottom
The FFT graph shows the frequency spectrum of the signal, including both the whistle tone and low-frequency background noise.

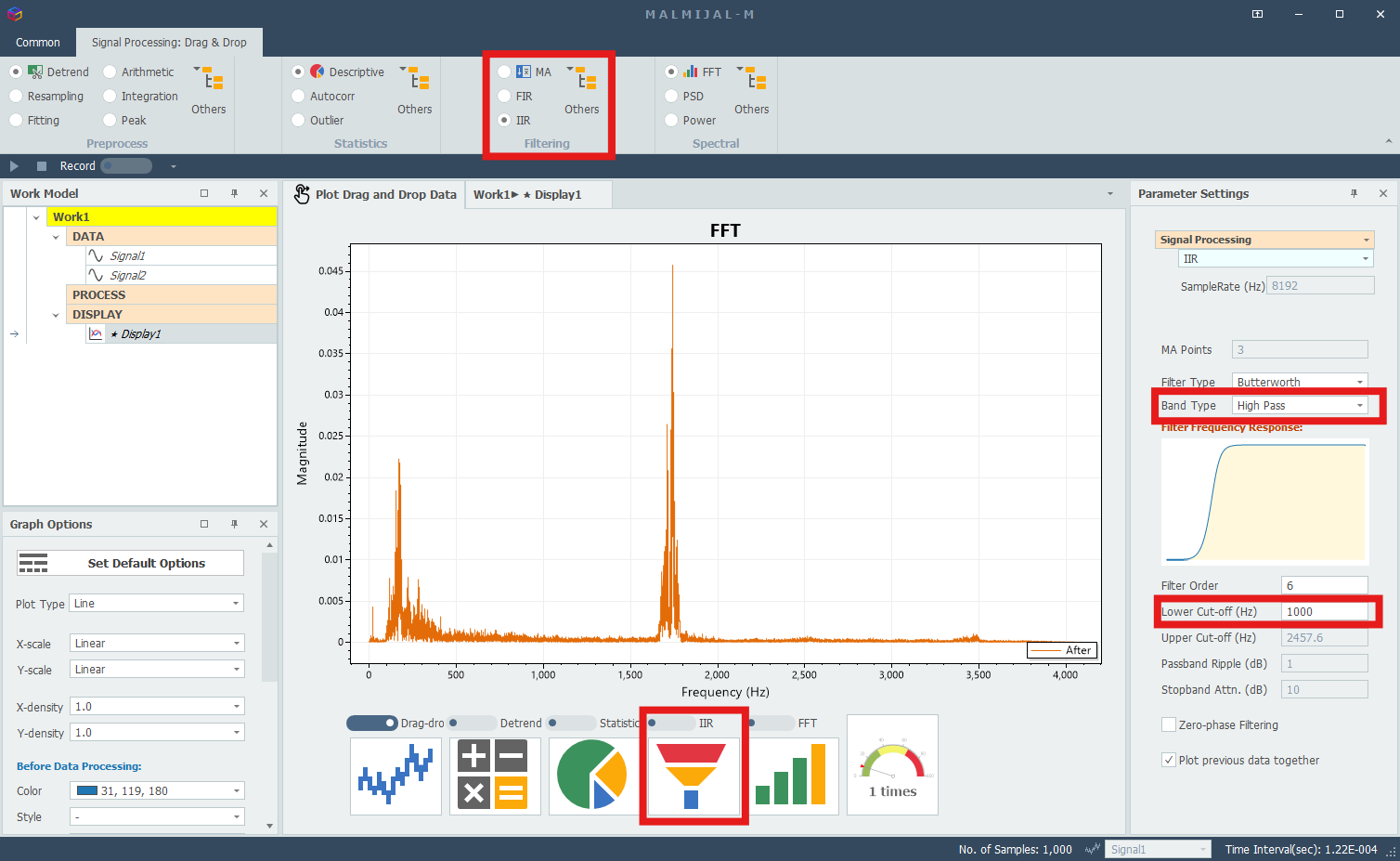

3. Apply a High-Pass Filter to Remove Noise
To remove unwanted background noise, apply a High-Pass Filter.
Steps
Select the Infinite Impulse Response (IIR) filter option
Set Band Type → High Pass
Set Lower Cutoff Frequency → 1000 Hz
Click the Filtering button to apply the filter
This filter removes low-frequency components below 1000 Hz, which typically contain background noise.

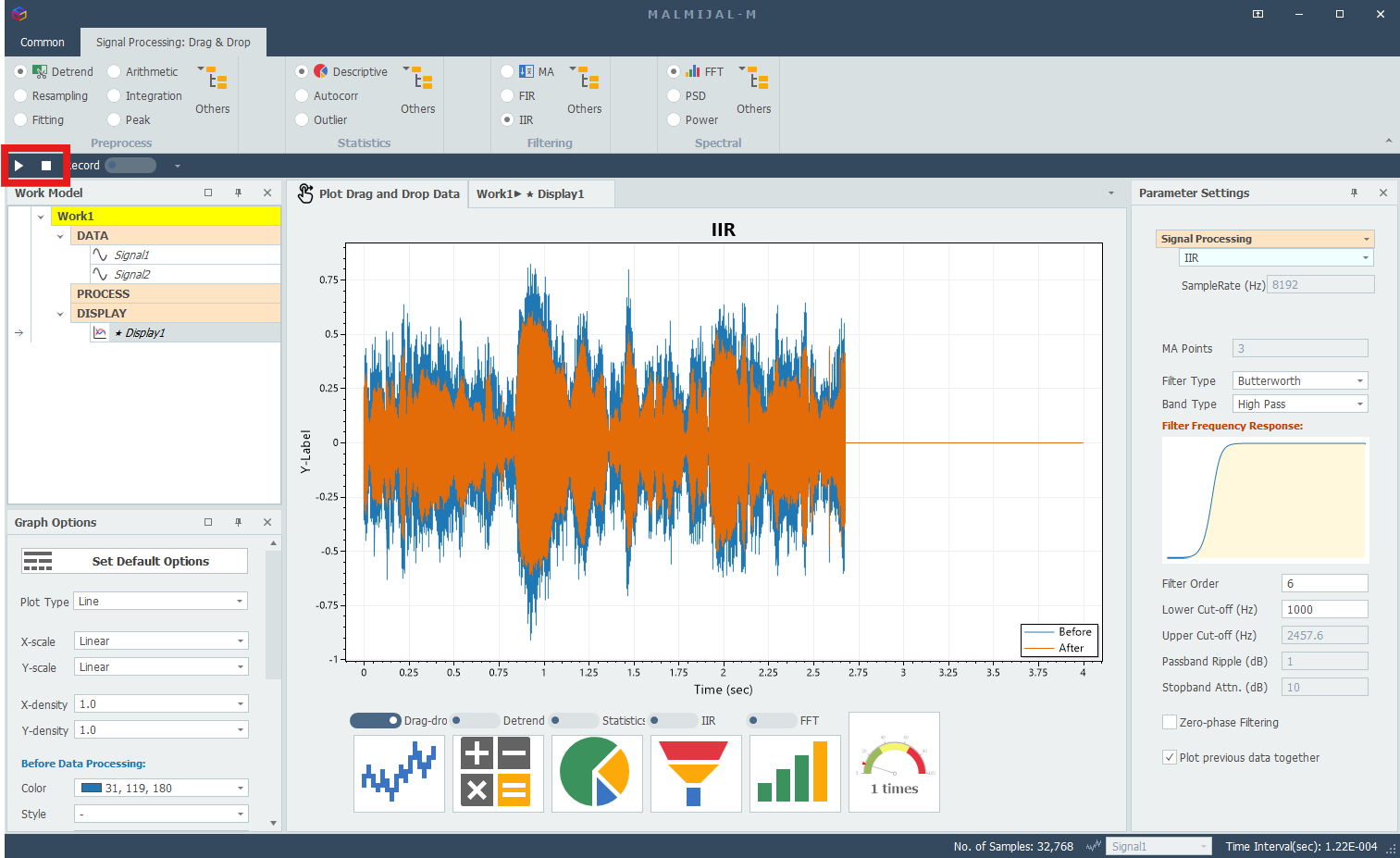

4. Listen to the Filtered Signal
Click the Play button again.
Whistle with background noise
Filtered whistle sound
Result
The background noise disappears
Only the clean whistle sound remains
This confirms that the high-pass filter successfully removed low-frequency noise.

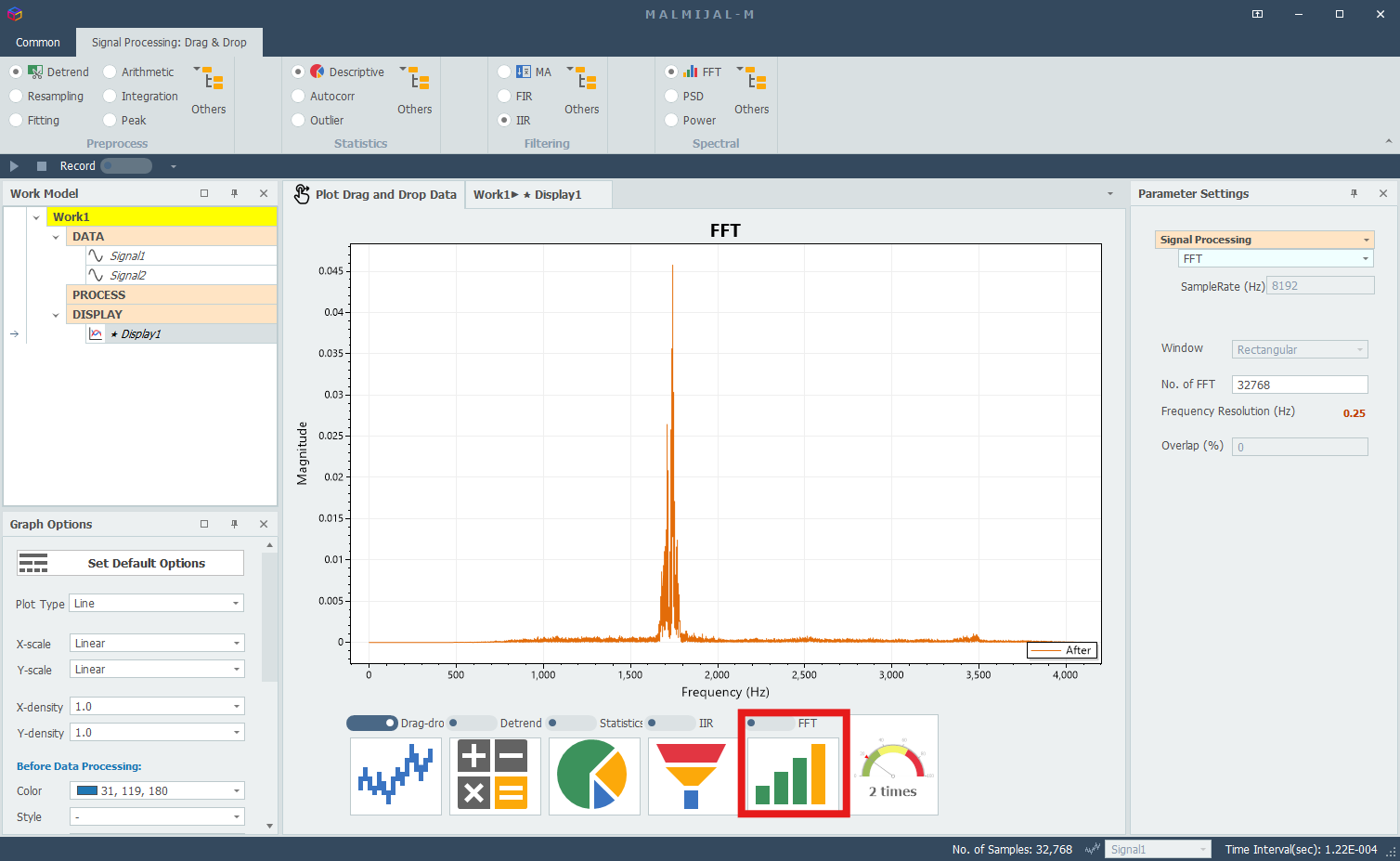

5. Verify the Result Using FFT
To confirm the filtering effect
Click the Spectra button again
Check the FFT frequency distribution
Observation
Frequency components below 1000 Hz are removed
Only the whistle frequency components remain
This demonstrates how FFT analysis helps visualize the effect of filtering in signal processing.
Summary
This workflow shows how to perform noise reduction and spectral analysis in MALMIJAL
Load audio data samples
Analyze the frequency spectrum with FFT
Apply a High-Pass Filter (IIR)
Remove low-frequency background noise
Verify results using FFT again
This method is commonly used in audio signal processing, noise reduction, and frequency analysis workflows.

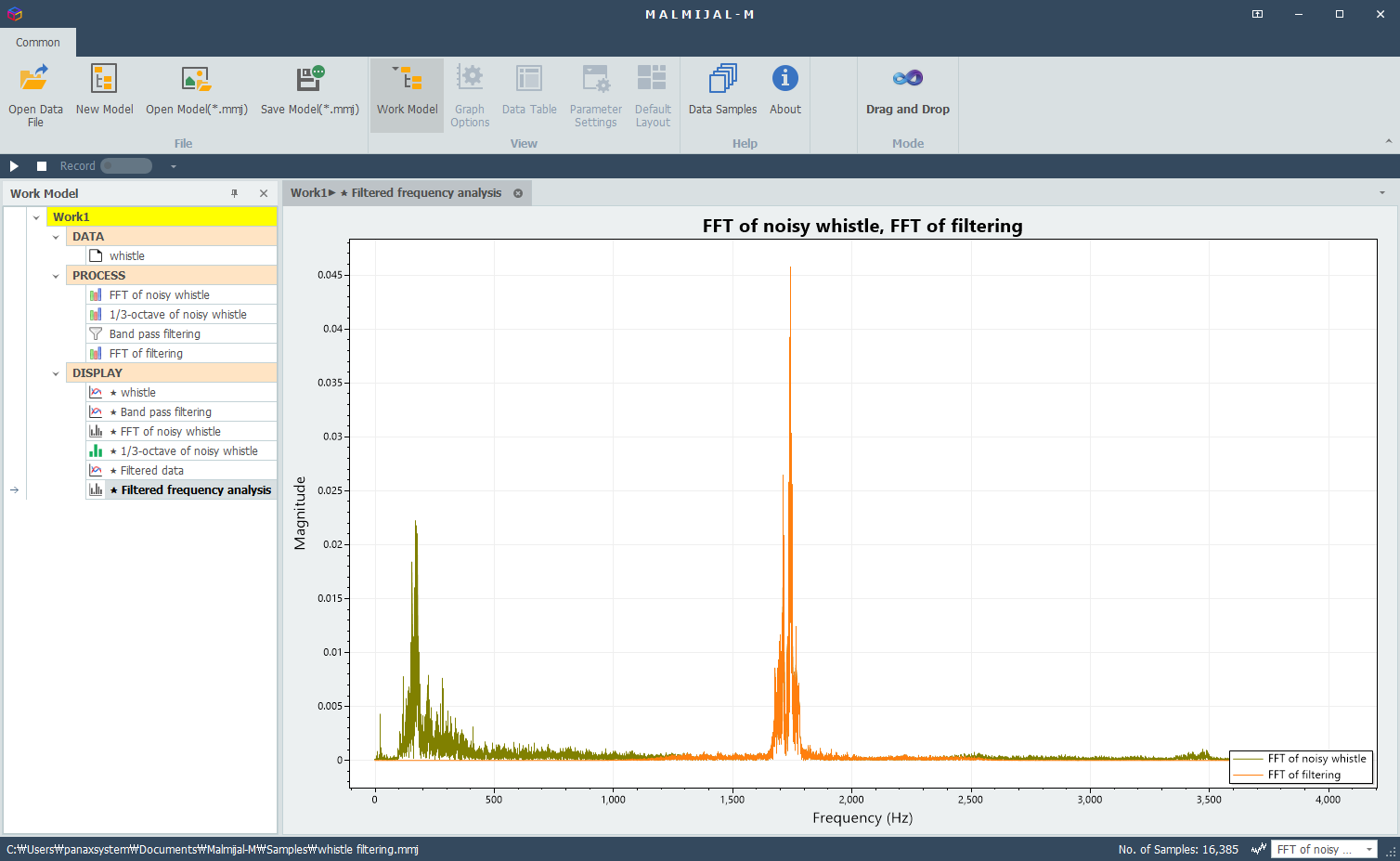

Same processing in modeling mode
Refer to the attached "whistle filtering.mmj" file
Remove background noise in MALMIJAL Modeling mode
Watch how to remove background noise using signal processing techniques
