What Is Sampling? A Simple Explanation with Examples
In signal processing, one of the most important concepts is sampling. If you’ve ever worked with audio, vibration data, or sensor signals, you’ve already used sampling—whether you realized it or not.
But what exactly does sampling do?
Sampling converts a continuous signal into a digital form that computers can process.
In this article, we’ll explain sampling in a simple, intuitive way, and show how it is applied in real workflows using MALMIJAL.
What Is Sampling?
Sampling is the process of converting a continuous-time signal into discrete data points.
In simple terms, Sampling = taking snapshots of a signal at regular time intervals
Example (Intuition)
Imagine recording a sound
- Analog signal → continuous waveform
- Sampling → capturing values at fixed intervals
The result becomes a digital (sampled) signal, Continuous signal → ● ● ● ● ● (sample points)

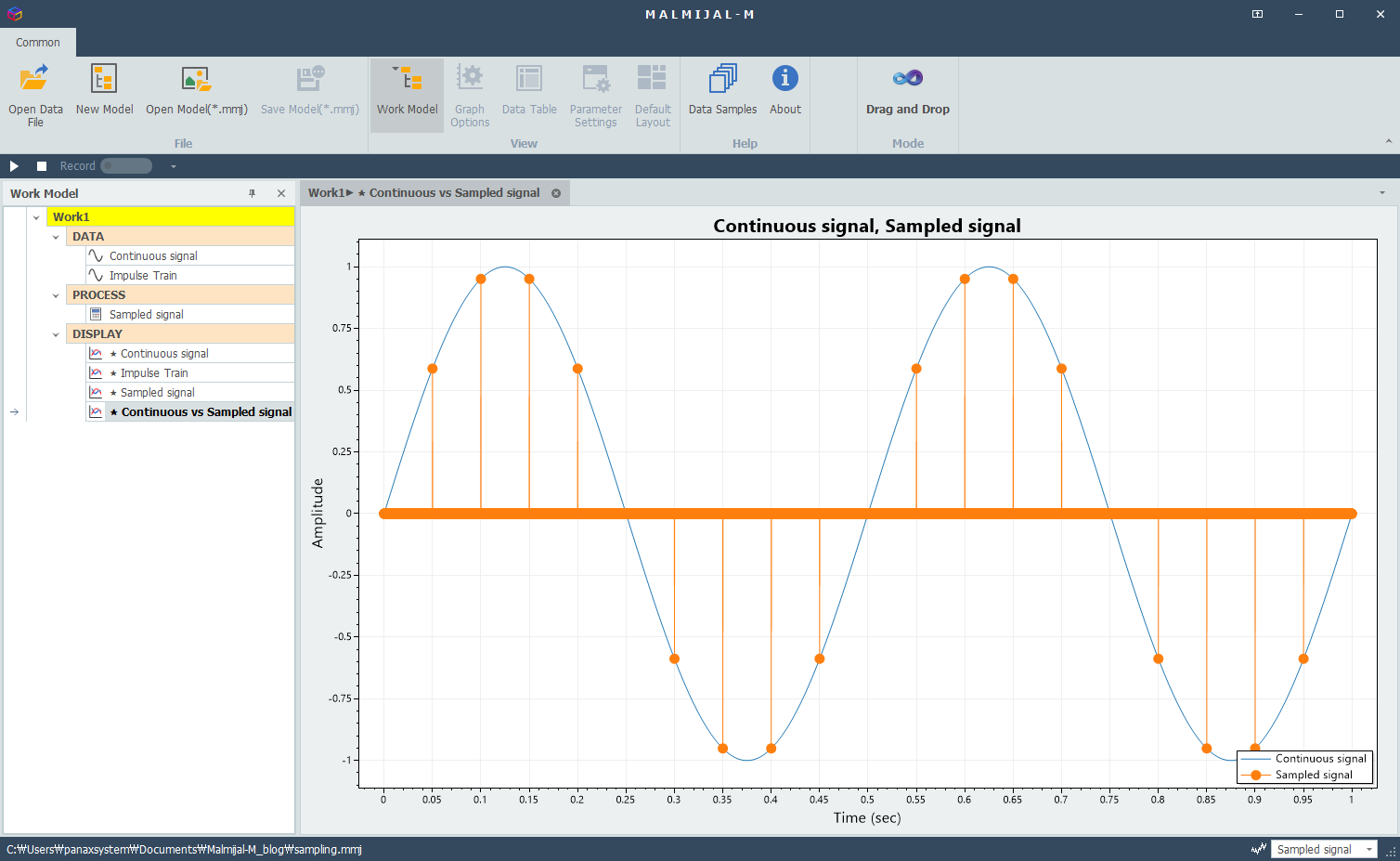

Conceptual representation of continuous time and its sampled signal by sampling (Ts = 0.05sec, Fs = 20Hz)
Key Parameter: Sampling Frequency (Fs)
The most important parameter in sampling is
Sampling Frequency (Fs) — how many samples are taken per second
- Unit: Hz (Samples per second, Sa/s)
- Example
- 1000 Hz → 1000 samples per second
- 44,100 Hz → CD-quality audio
- 1 / Fs = Sampling time (Δt)
Why Sampling Matters
If sampling is done incorrectly, the signal becomes distorted.
Common Problems
- Aliasing (false frequencies appear)
- Loss of information
- Poor frequency analysis
To avoid this, we follow
Nyquist Rule
Sampling frequency must be at least 2× the highest signal frequency
Example: Good vs Bad Sampling
Correct Sampling

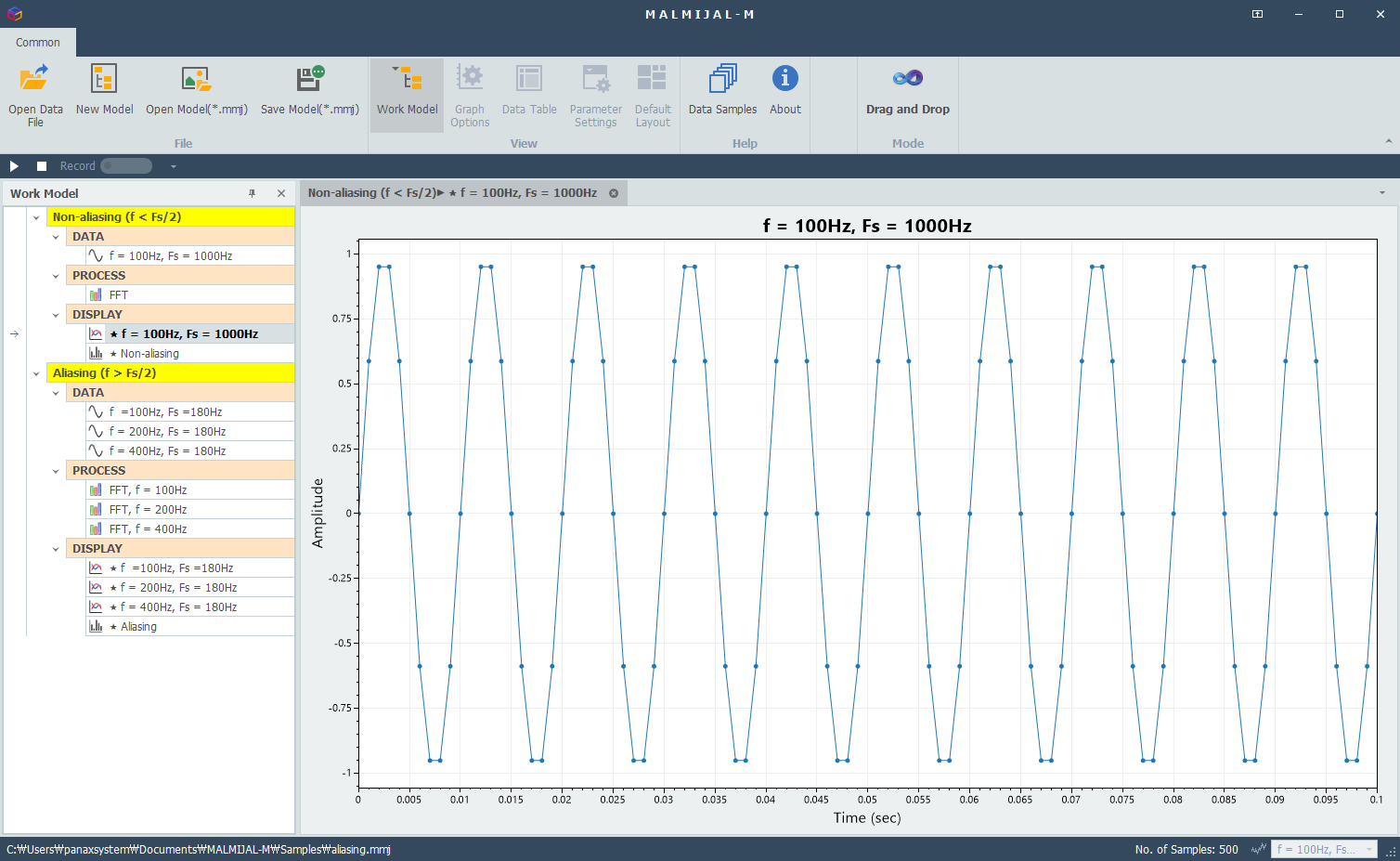

Properly sampled sine wave (refer to Samples/aliasing.mmj)
Incorrect Sampling (Aliasing)
- Sampling rate too low
- Signal appears distorted

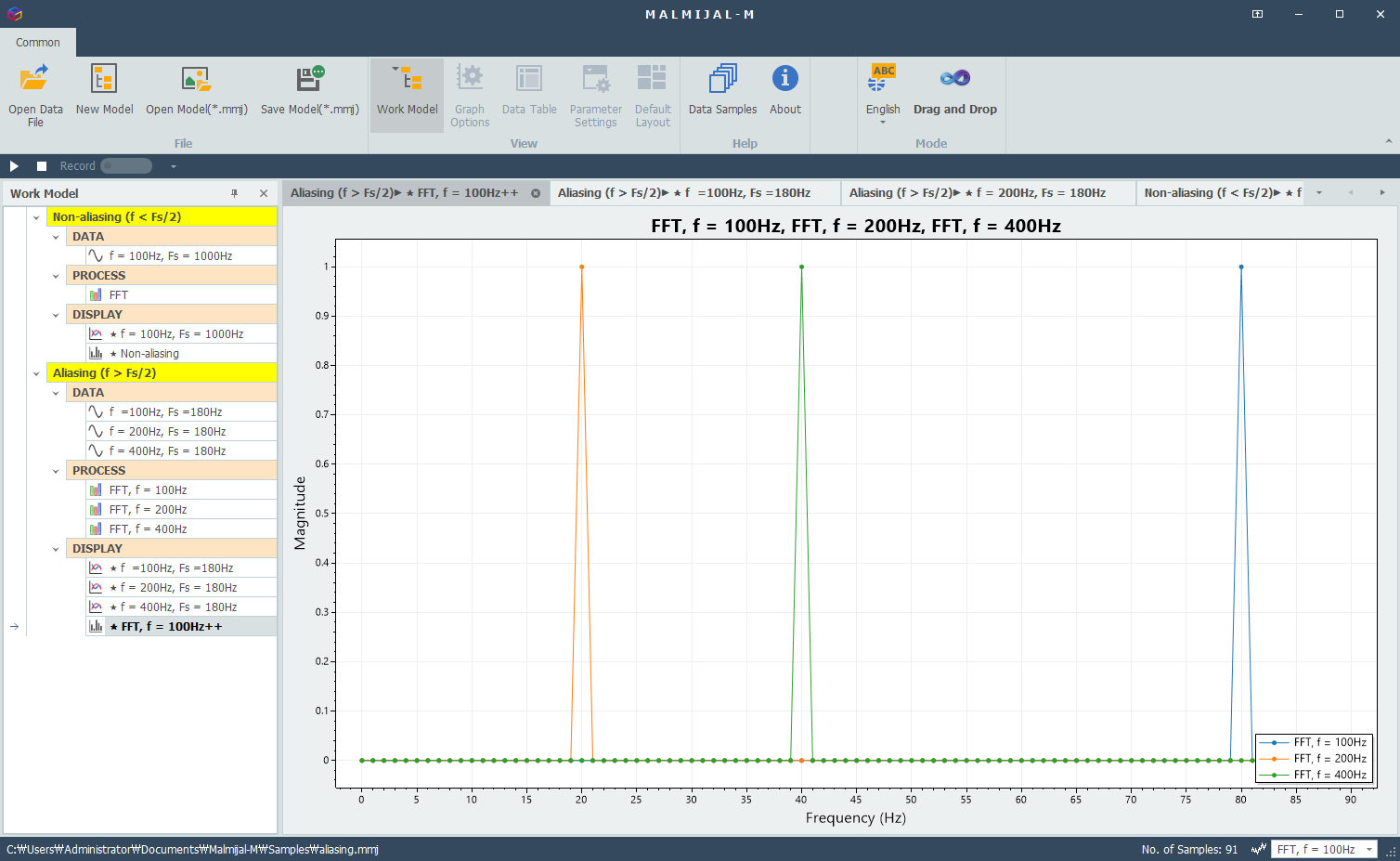

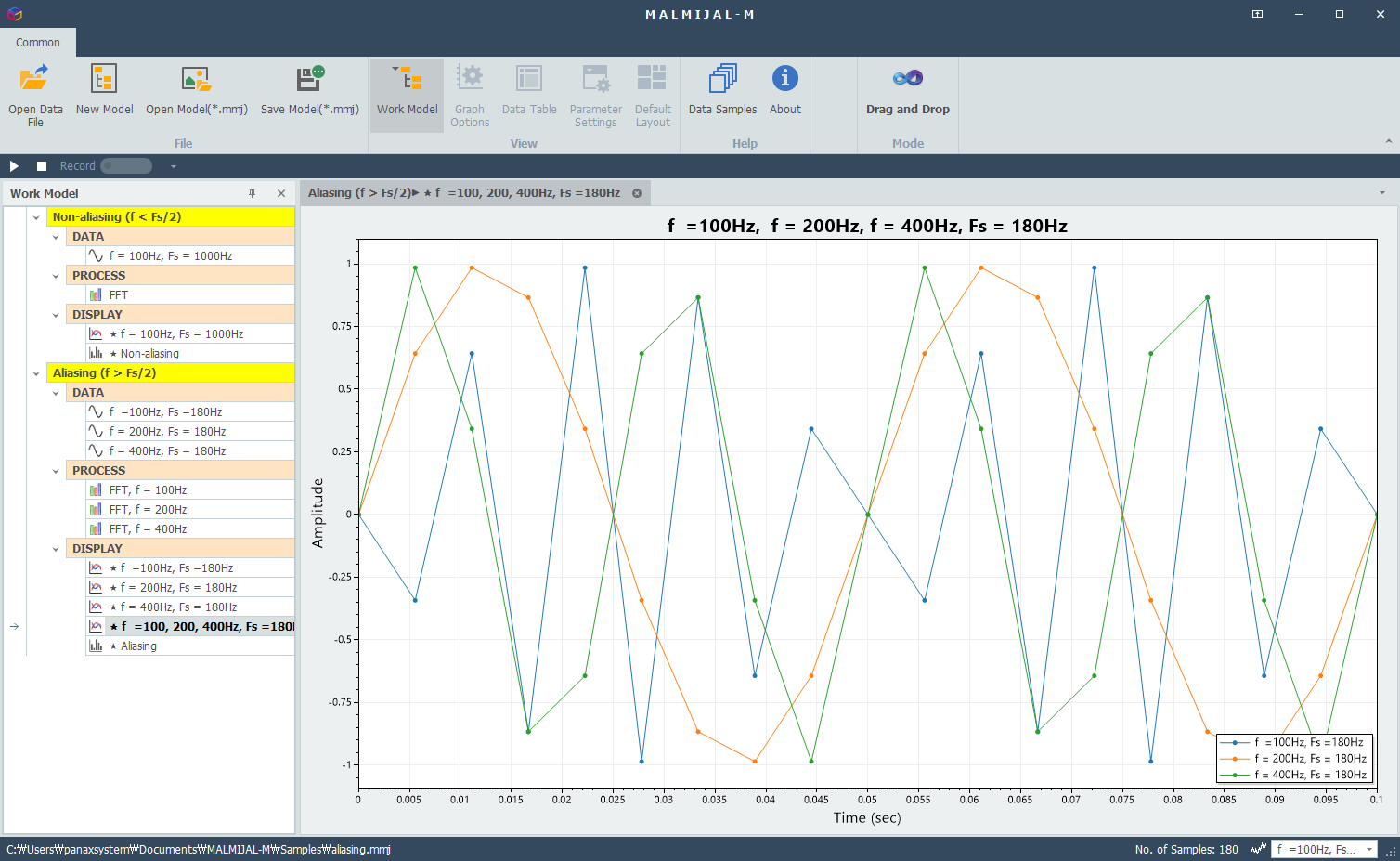

Aliased waveform showing incorrect frequency (refer to Samples/aliasing.mmj)
Real Example Workflow
Here’s a typical signal processing pipeline about Downsampling
Raw Signal
↓
Filtering (anti-aliasing)
↓
Downsampling
↓
Spectral Analysis (FFT)
Using MALMIJAL, this entire workflow can be done visually without coding.
Key Takeaways
- Sampling converts analog signals into digital data
- Sampling frequency (Fs) determines accuracy
- Nyquist rule prevents aliasing
- Filtering is essential before downsampling
- FFT validates sampling quality
- MALMIJAL enables visual signal processing workflows
Conclusion
Sampling is the foundation of all digital signal processing
Without proper sampling:
- FFT results become incorrect
- Signal interpretation fails
- Engineering decisions can be wrong
The key idea:
Good sampling = accurate signal analysis
With tools like MALMIJAL, you can:
- Visualize sampling effects
- Detect aliasing instantly
- Build reliable signal processing pipelines
