What Is Amplitude, Frequency, and Phase? (Basic Signal Components)
Every signal—whether it’s audio, vibration, or sensor data—can be described using three fundamental components:
Amplitude, Frequency, and Phase
Understanding these three elements is essential for
- Signal processing
- FFT analysis
- Vibration diagnostics
- Audio engineering
In this tutorial, we’ll explain each concept clearly and show how to analyze them using MALMIJAL.
The Basic Signal Model

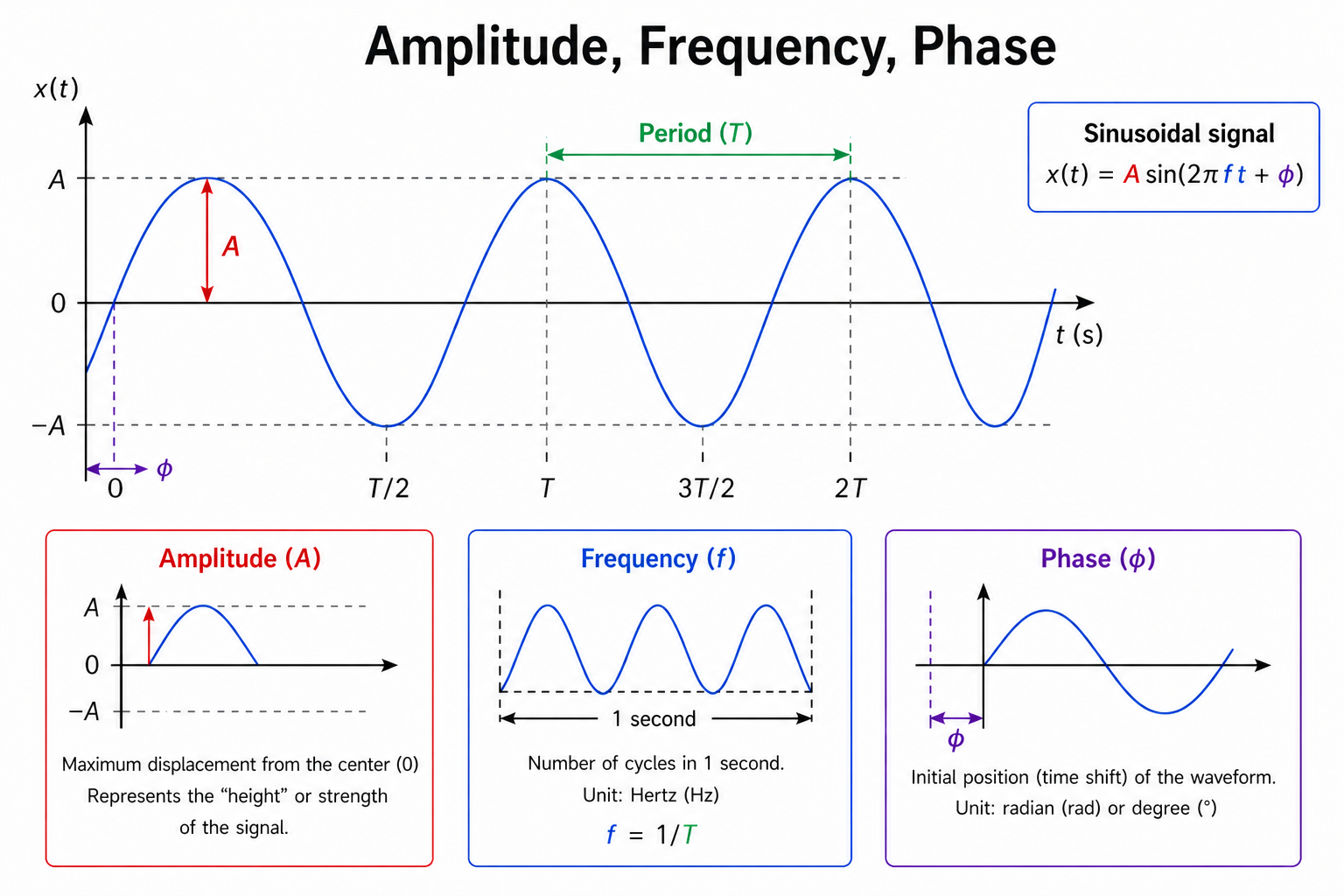

A simple sinusoidal signal can be written as
Where,
- A : Amplitude
- f : Frequency
- φ (phi) : Phase
These three parameters completely define a basic signal.

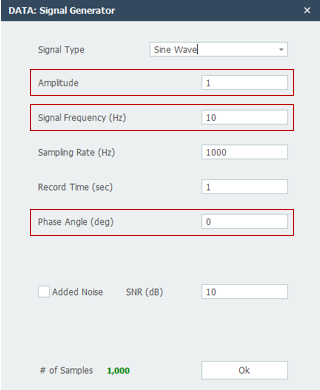

MALMIJAL Signal Generator defining sine wave
1. What Is Amplitude?
Definition
Amplitude represents the strength or magnitude of a signal.
It tells us “How big is the signal?”
Key Characteristics
- Peak value of the waveform
- Measured in units (e.g., volts, displacement)
- Directly observable in time domain
Example
A larger amplitude means
- Louder sound
- Stronger vibration

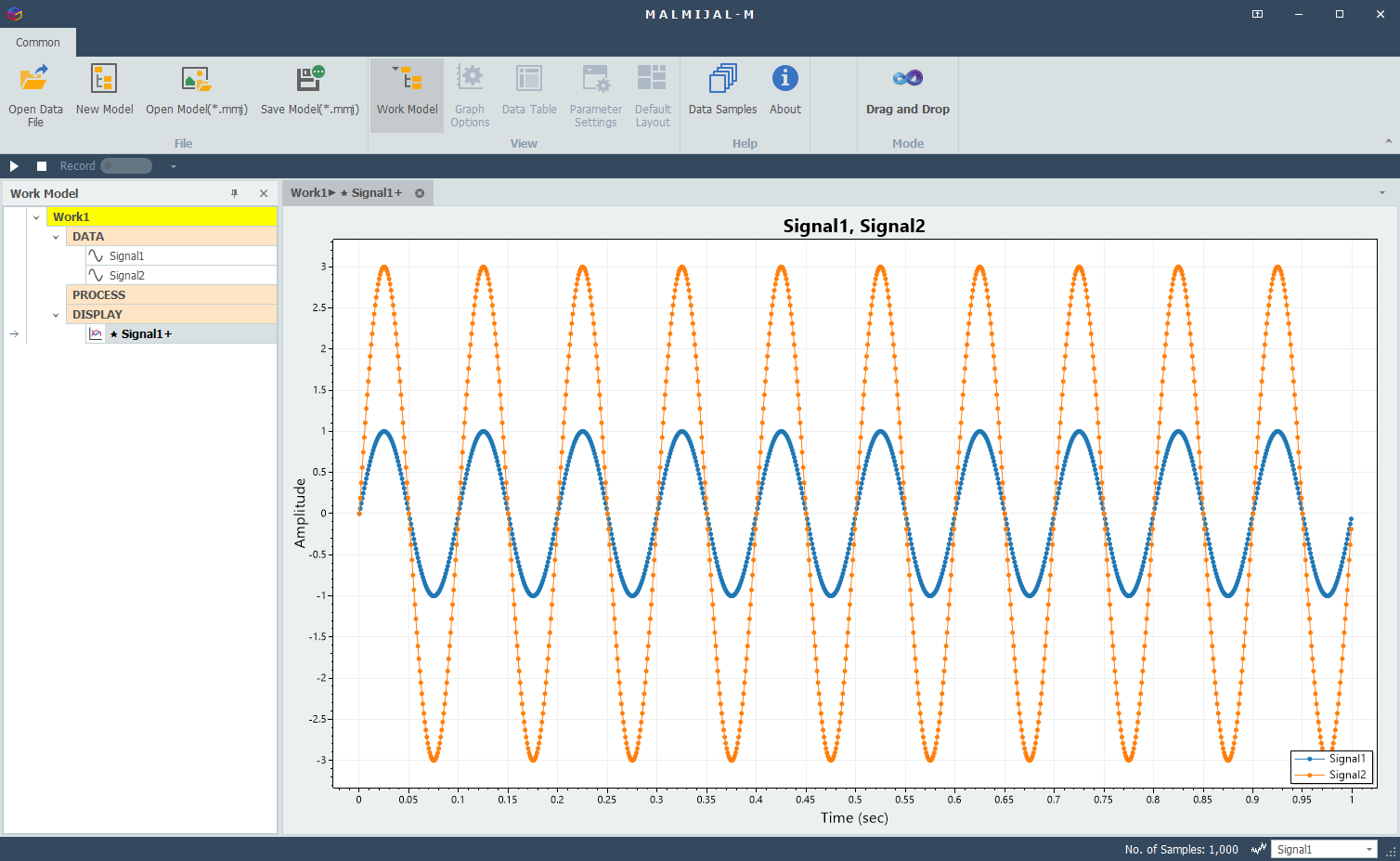

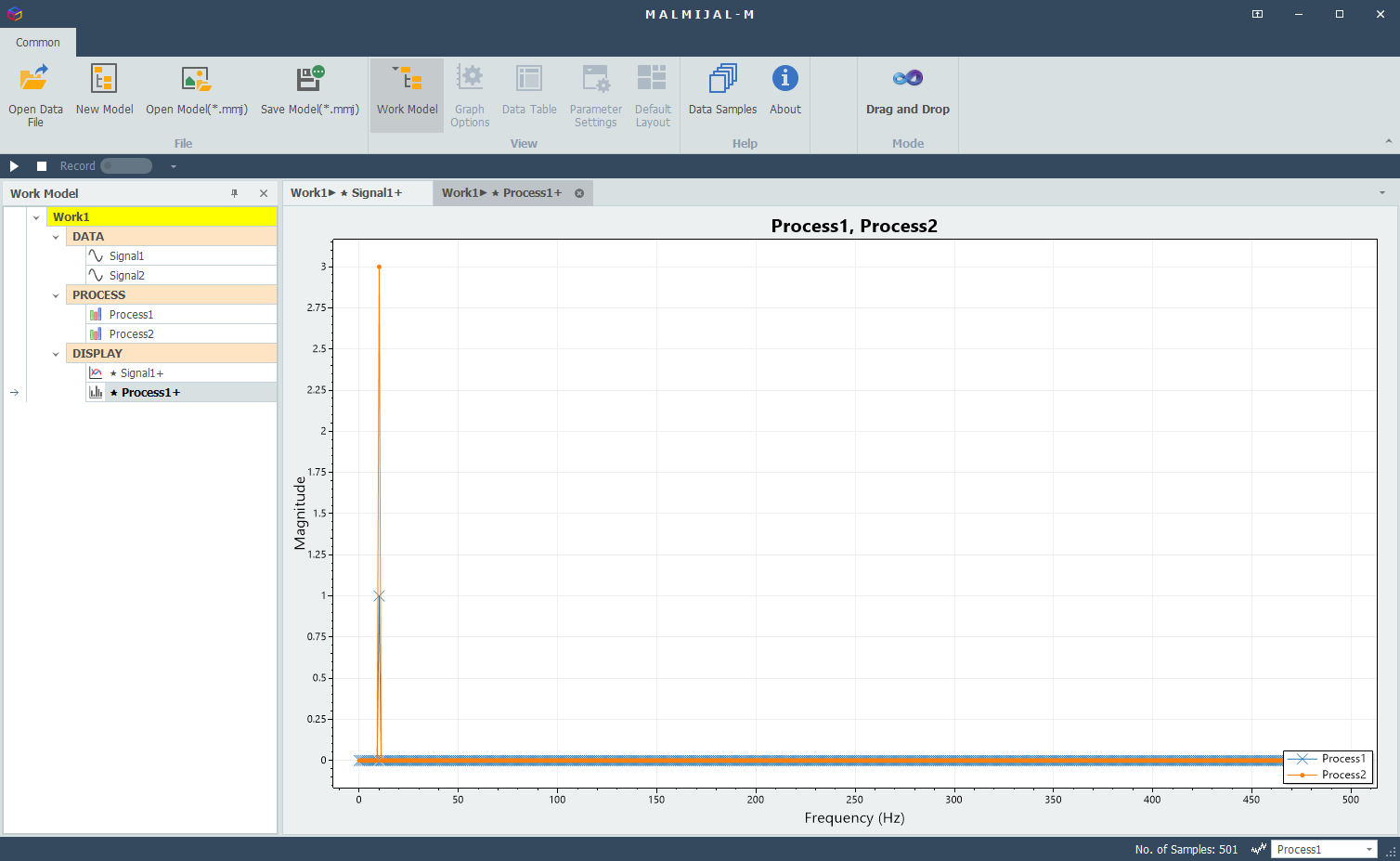

Two sine waves with different amplitudes (Amplitude 1 vs. 3) and its FFT (different magnitudes)
2. What Is Frequency?
Definition
Frequency describes how fast a signal oscillates.
It answers “How often does the signal repeat?”
Key Characteristics
- Measured in Hz (cycles per second)
- Frequency = 1/Period
- Determines signal speed
- Easily identified using FFT
Example
- Low frequency → slow oscillation
- High frequency → fast oscillation

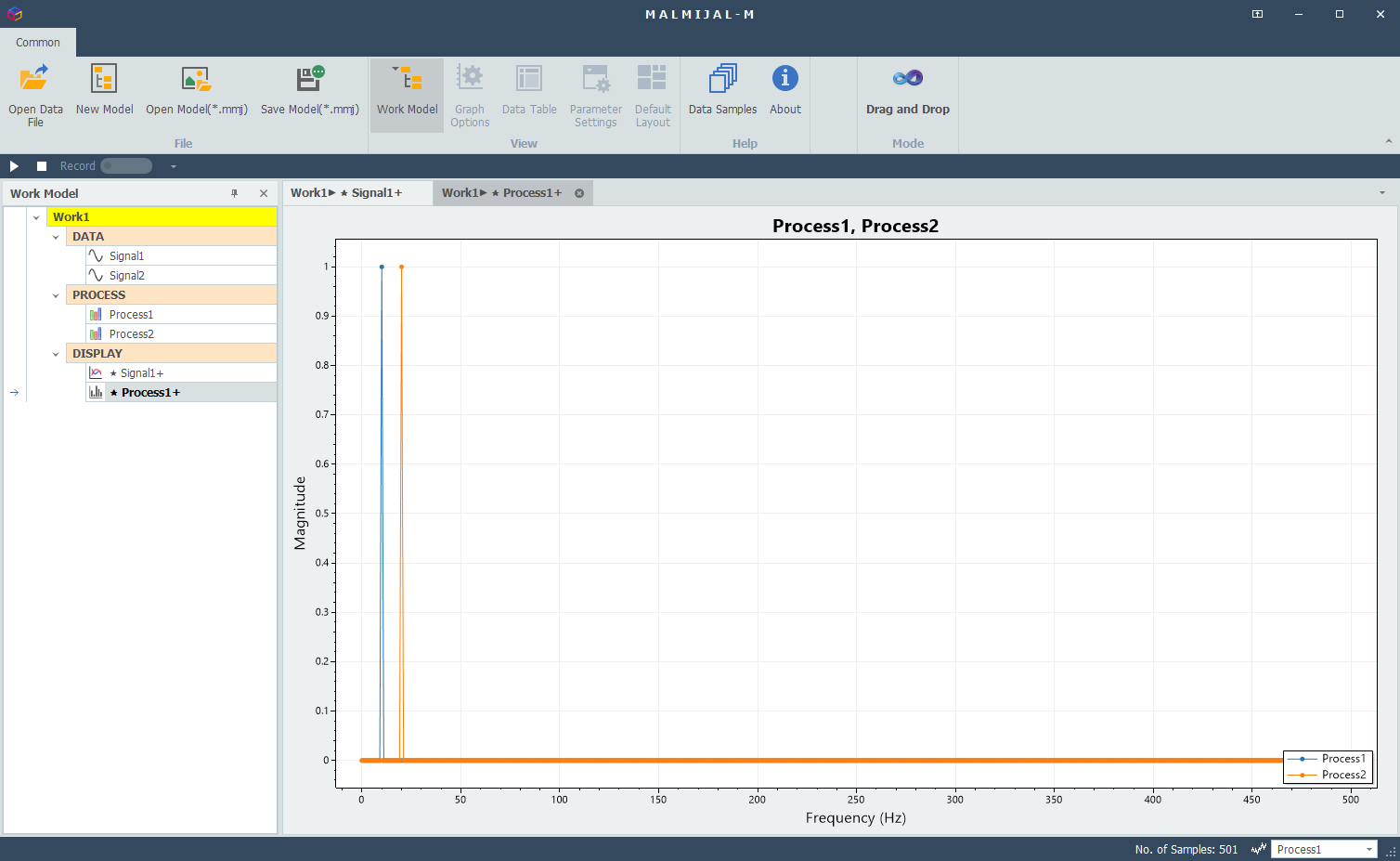

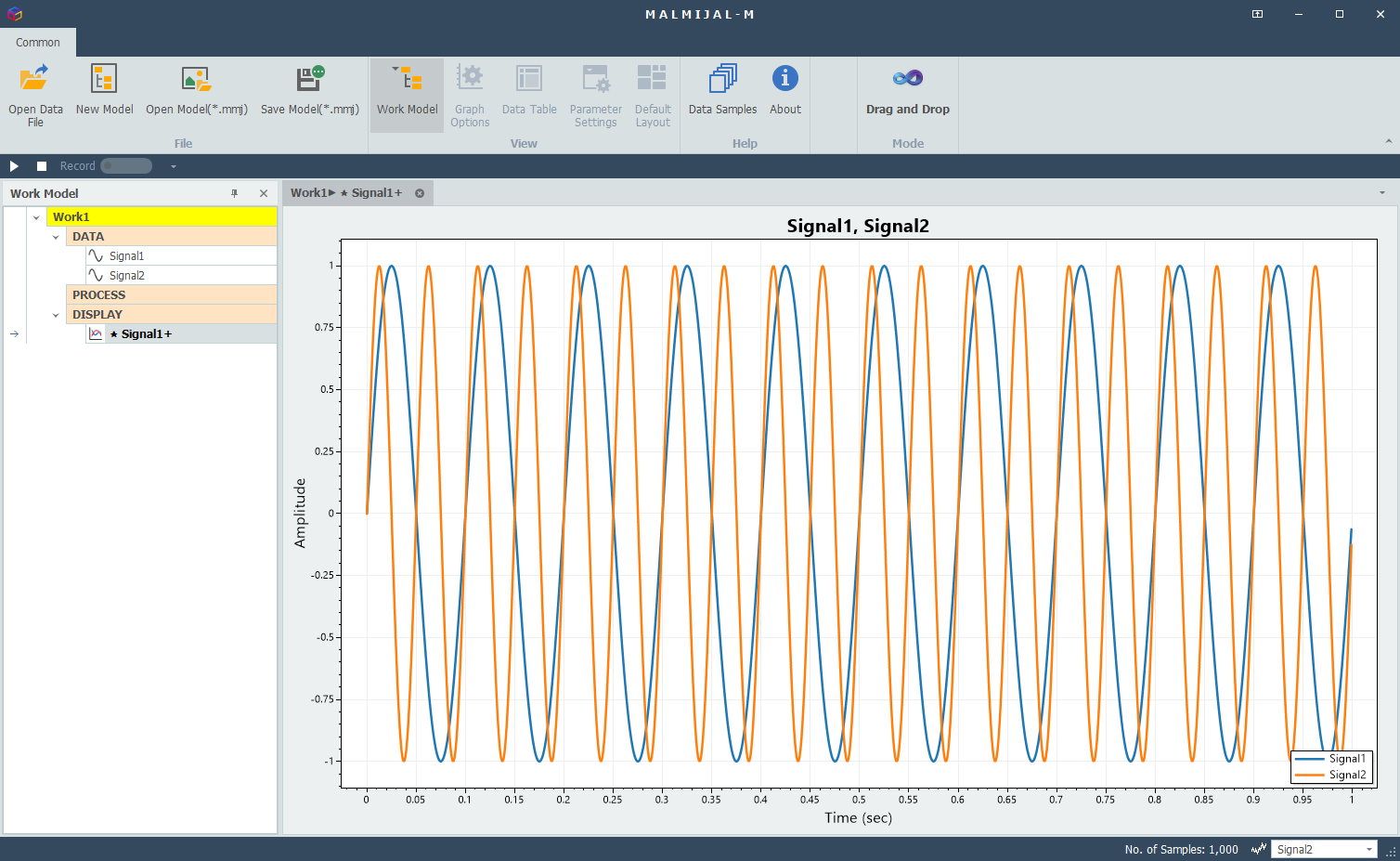

Two sine waves with different frequencies (Signal Frequency 10Hz vs. 20Hz) and its FFT (distinguish frequencies)
3. What Is Phase?
Definition
Phase represents the shift of a signal in time.
It answers “When does the signal start?”
Key Characteristics
- Measured in degrees(MALMIJAL use degree) or radians
- Indicates time alignment
- Important in system analysis
Example
Two signals with same frequency but different phase
- Peaks occur at different times

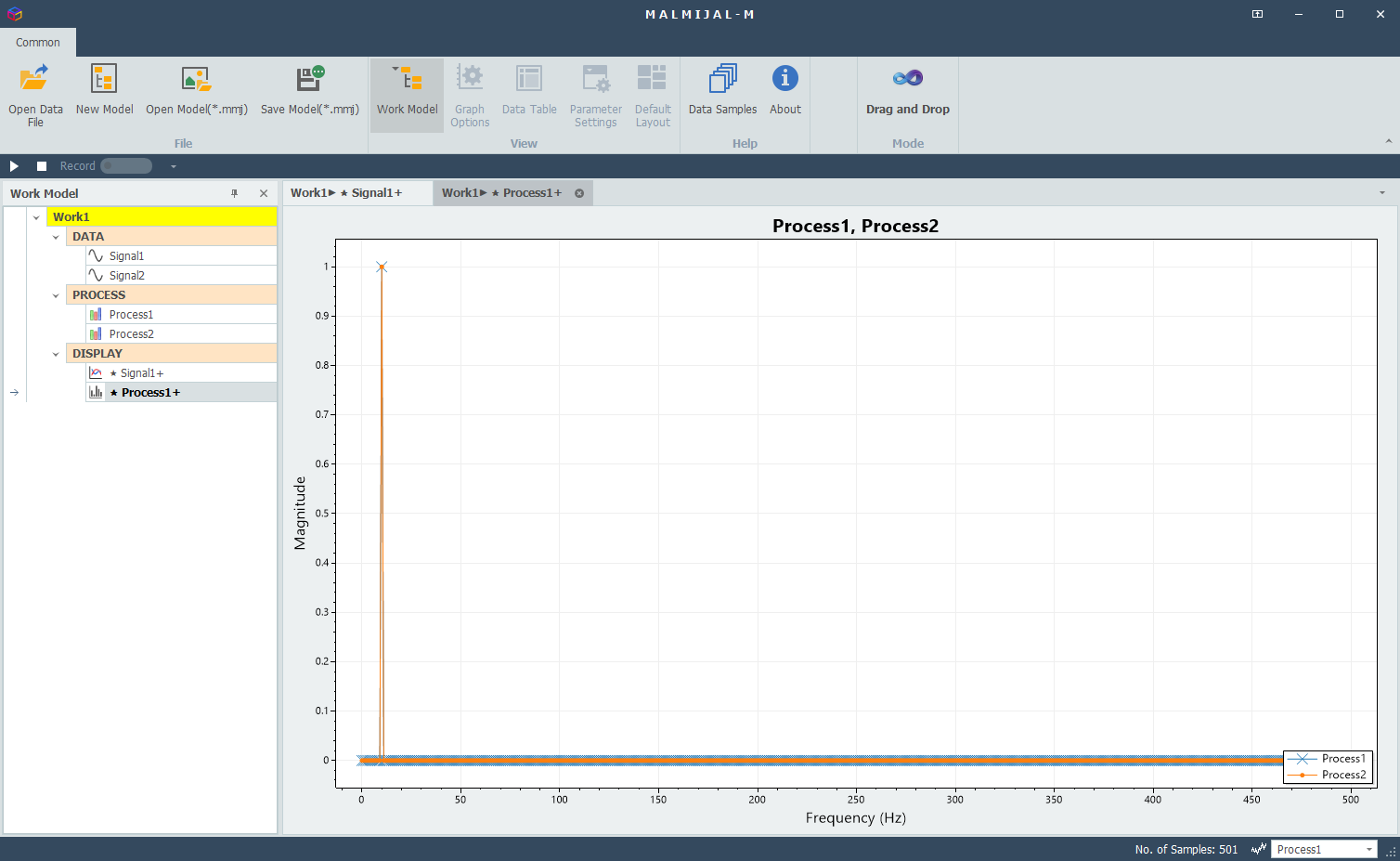

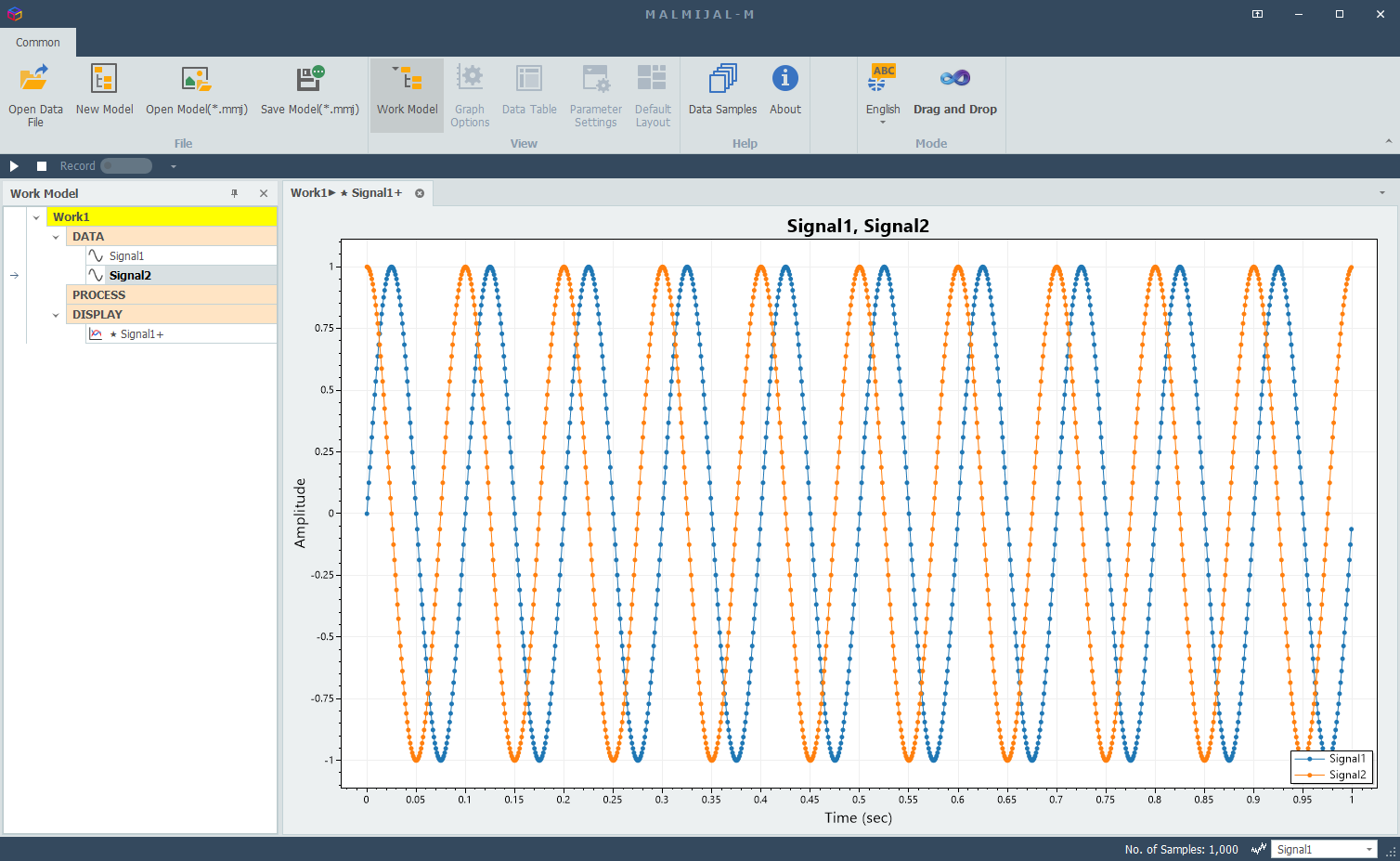

Two sine waves with phase shift (Phase 0 vs. 90˚) and its FFT (identical results)
Why These Three Matter Together
These components define signal behavior. Together, they fully describe a signal.
Component | Meaning | Real Impact |
Amplitude | Strength (Intensity) | Loudness, vibration intensity |
Frequency (Hz) | Speed | Tone, oscillation rate |
Phase (degree) | Timing | Alignment, delay |
Key Takeaways
- Amplitude = signal strength
- Frequency = oscillation speed
- Phase = timing shift
- All three define signal behavior
- FFT separates these components
- MALMIJAL enables intuitive analysis
Why This Matters in Practice
These concepts are critical in
- Vibration analysis → detect faults
- Audio processing → identify tones
- Communication systems → decode signals
- Sensor data → interpret patterns
Misunderstanding these leads to incorrect analysis.
Conclusion
Amplitude, frequency, and phase are the foundation of signal processing.
The key idea
- Amplitude → how strong
- Frequency → how fast
- Phase → when
Once you understand these three, all advanced topics like FFT, filtering, and FRF become much easier.
With tools like MALMIJAL, you can
- Visualize signals instantly
- Analyze components clearly
- Build reliable workflows
