Signal Processing for Noise Reduction in Audio Signals
Audio signals recorded in real environments often contain unwanted noise.
This noise can originate from various sources, including
In many applications such as speech processing, music analysis, and acoustic measurements, reducing noise is essential for obtaining accurate signal information.
Signal processing techniques provide powerful tools for removing noise while preserving the important characteristics of the original signal.
In this article, we explore how noise reduction can be achieved using basic signal processing techniques such as frequency analysis and filtering.
Understanding Noise in Audio Signals
Noise is typically defined as any unwanted component that interferes with the desired signal.
For example, consider a simple sine wave signal that represents an audio tone.
If random noise is added to the signal, the waveform becomes distorted and difficult to interpret.
This situation is illustrated in the following example.
Example: Noisy Audio Signal

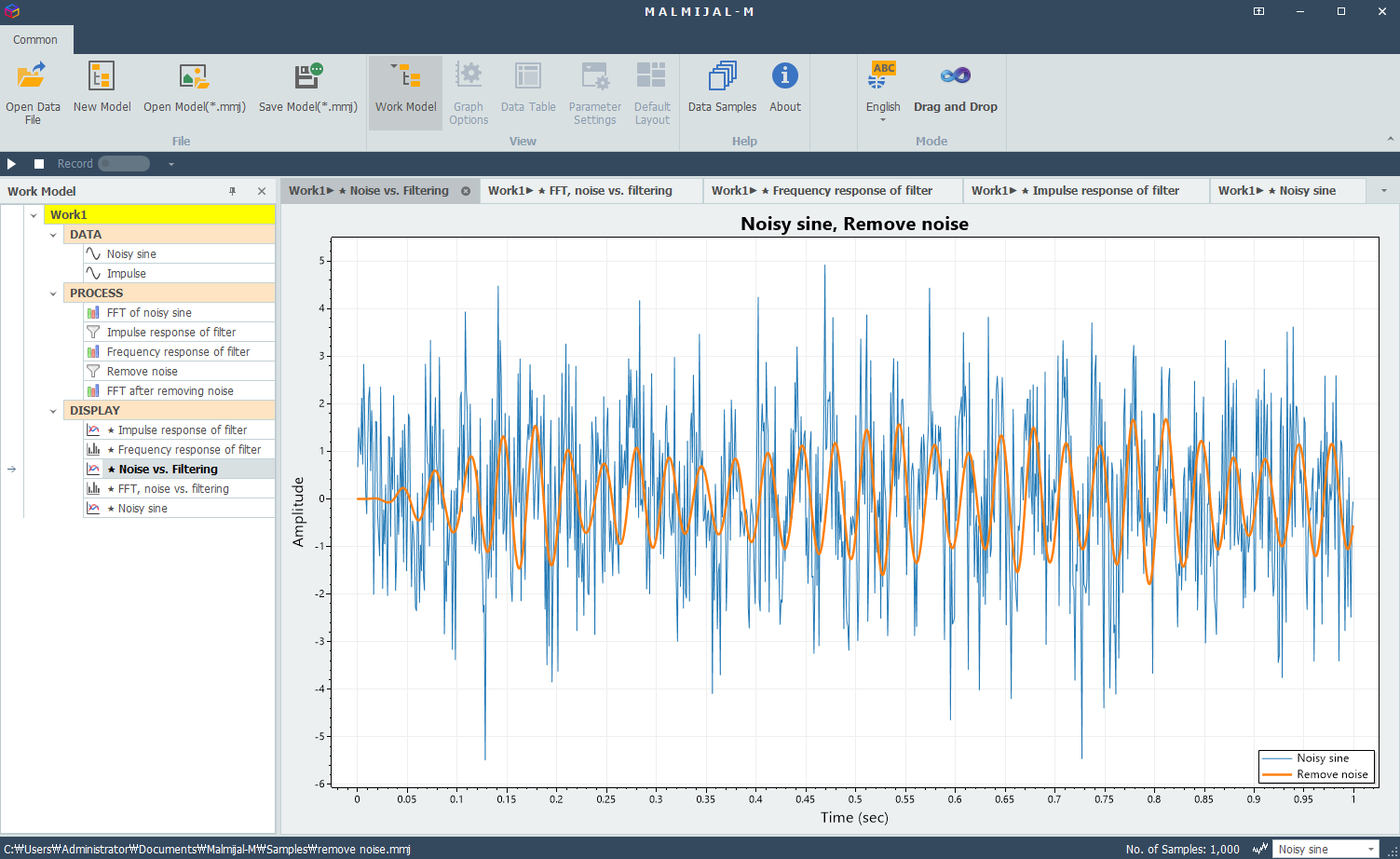

Example of a noisy sine signal and the filtered signal after noise reduction (refer to Samples/remove noise.mmj)
In this example
The filtering process removes high-frequency noise components while preserving the main sinusoidal structure of the signal.
Frequency Analysis of Noisy Signals
To effectively remove noise, it is important to understand the frequency characteristics of the signal and the noise.
A common approach is to analyze the signal using the Fast Fourier Transform (FFT).
The FFT converts a time-domain signal into its frequency-domain representation.
By examining the frequency spectrum, we can identify
Once these components are identified, appropriate filtering techniques can be applied.
Removing Noise Using Digital Filters
One of the most common noise reduction techniques is digital filtering.
Filters allow us to selectively remove unwanted frequency components while preserving the desired signal.
Common types of filters include
| Filter Type | Purpose |
|---|
| Low-pass filter (LPF) | Removes high-frequency noise |
| High-pass filter (HPF) | Removes low-frequency drift |
| Band-pass filter (BPF) | Passes a specific frequency range |
| Band-stop filter (BSF, Notch filter) | Removes a specific frequency range |
For audio noise reduction, a low-pass or band-pass filter is often used depending on the characteristics of the signal.
Example: Noise Reduction Using Filtering
The following workflow illustrates a typical noise reduction process in signal processing.
Record or load the noisy signal
Analyze the signal using FFT
Design an appropriate filter
Apply the filter to remove unwanted frequencies
Compare the original and filtered signals
Using tools such as MALMIJAL, these steps can be easily visualized and applied to real signals.
Example Processing Workflow
1. Load the noisy signal

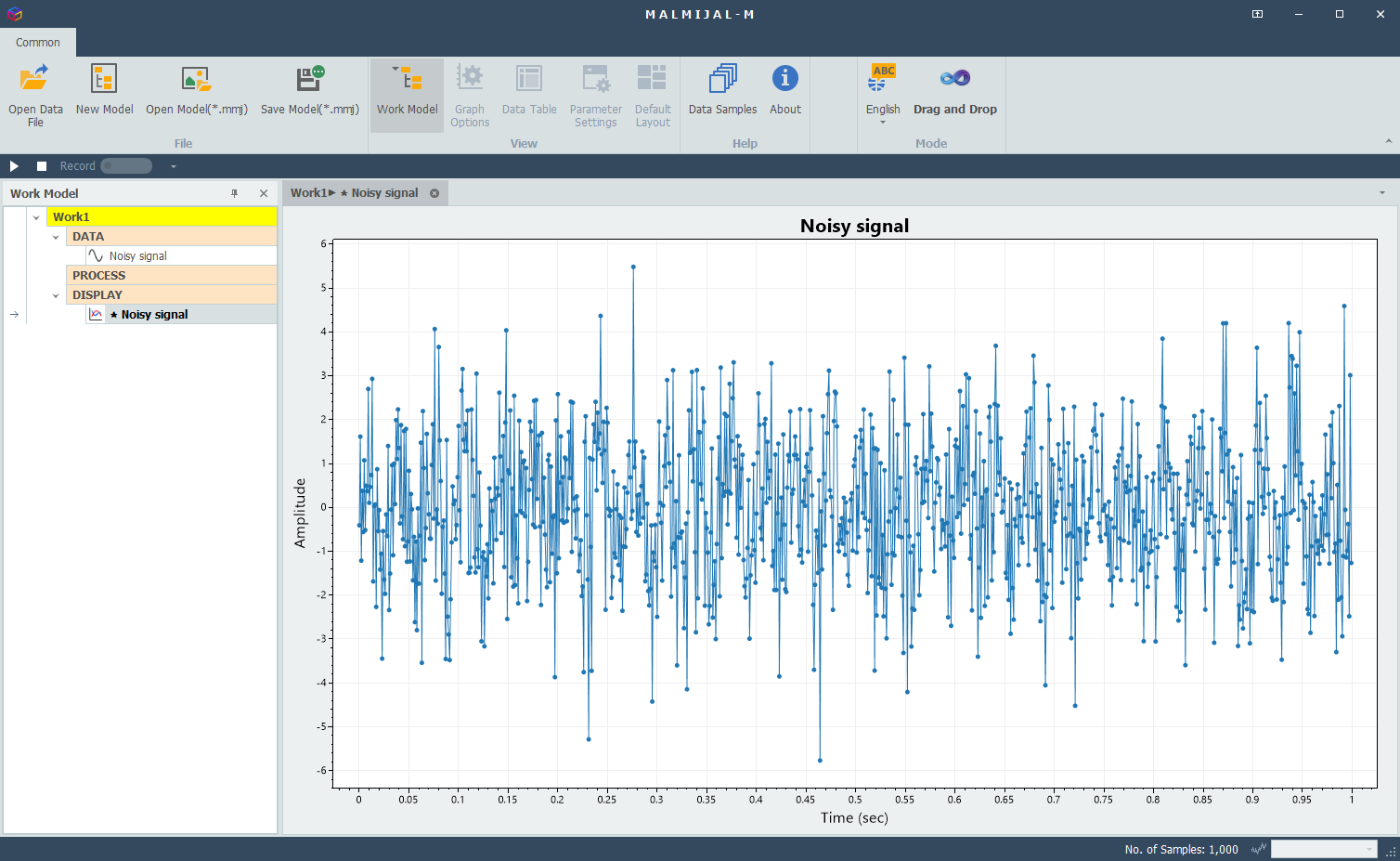

Time-domain waveform of a noisy audio signal
2. Analyze the signal using FFT

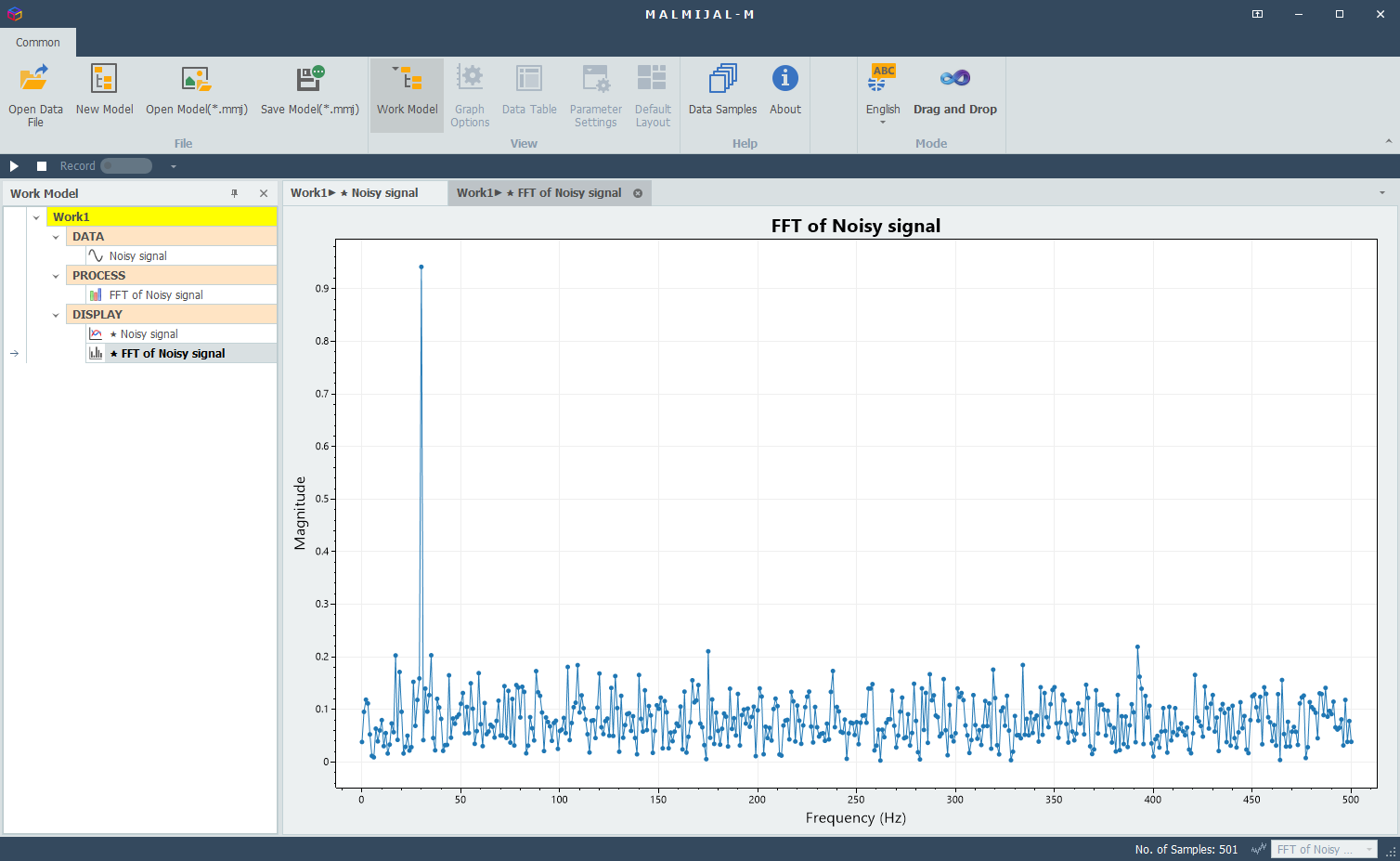

Frequency spectrum of the noisy signal showing 30Hz peak
3. Design an appropriate filter

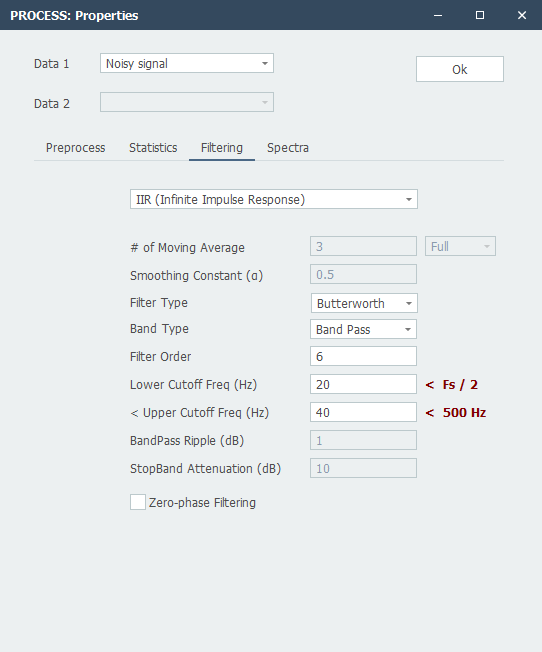

Set parameters of Butterworth IIR band-pass filter with cutoff frequencies from 20Hz to 40Hz
4. Apply the filter to remove unwanted frequencies

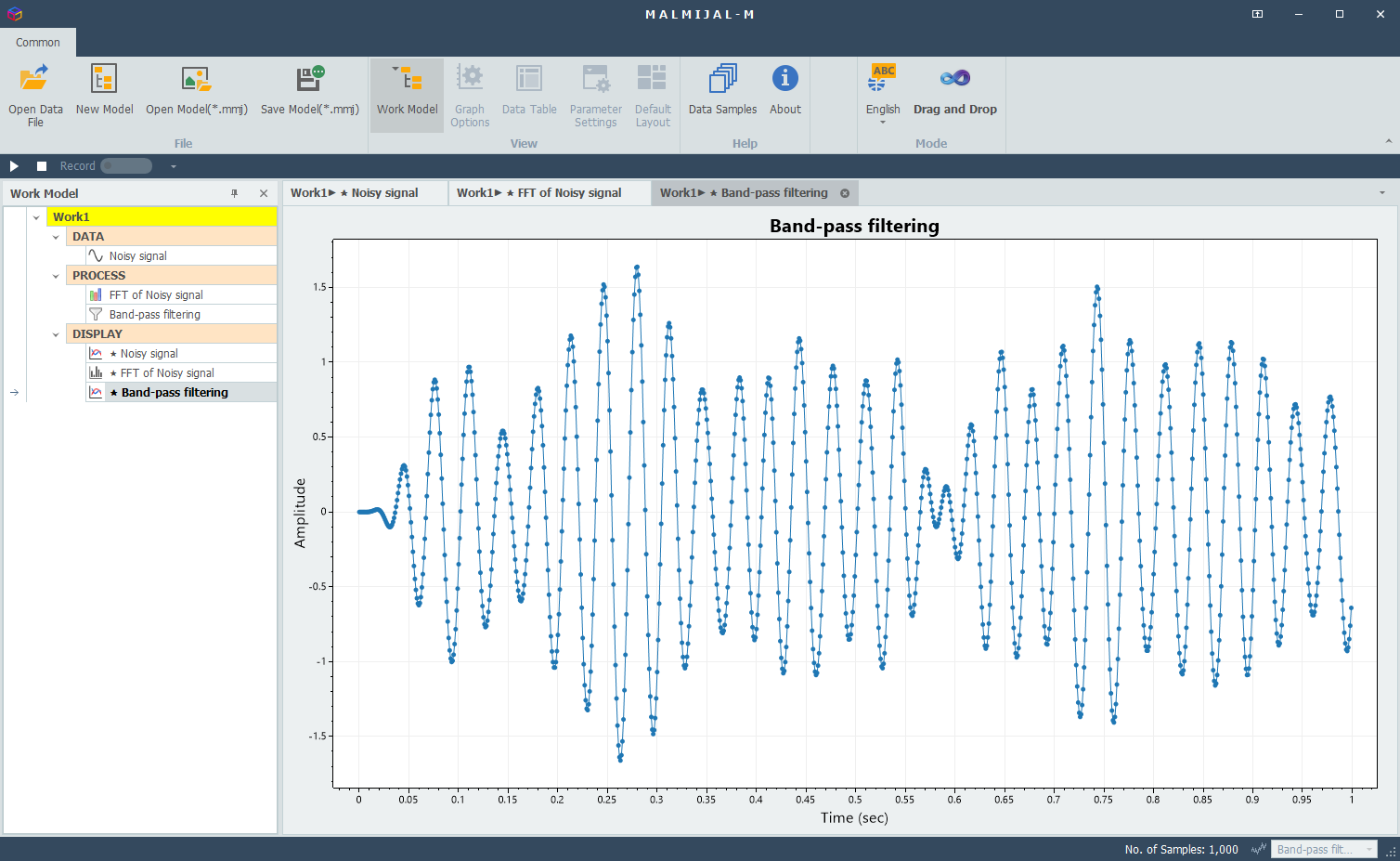

Filtered signal after applying band-pass filter
5. Compare the original and filtered signals

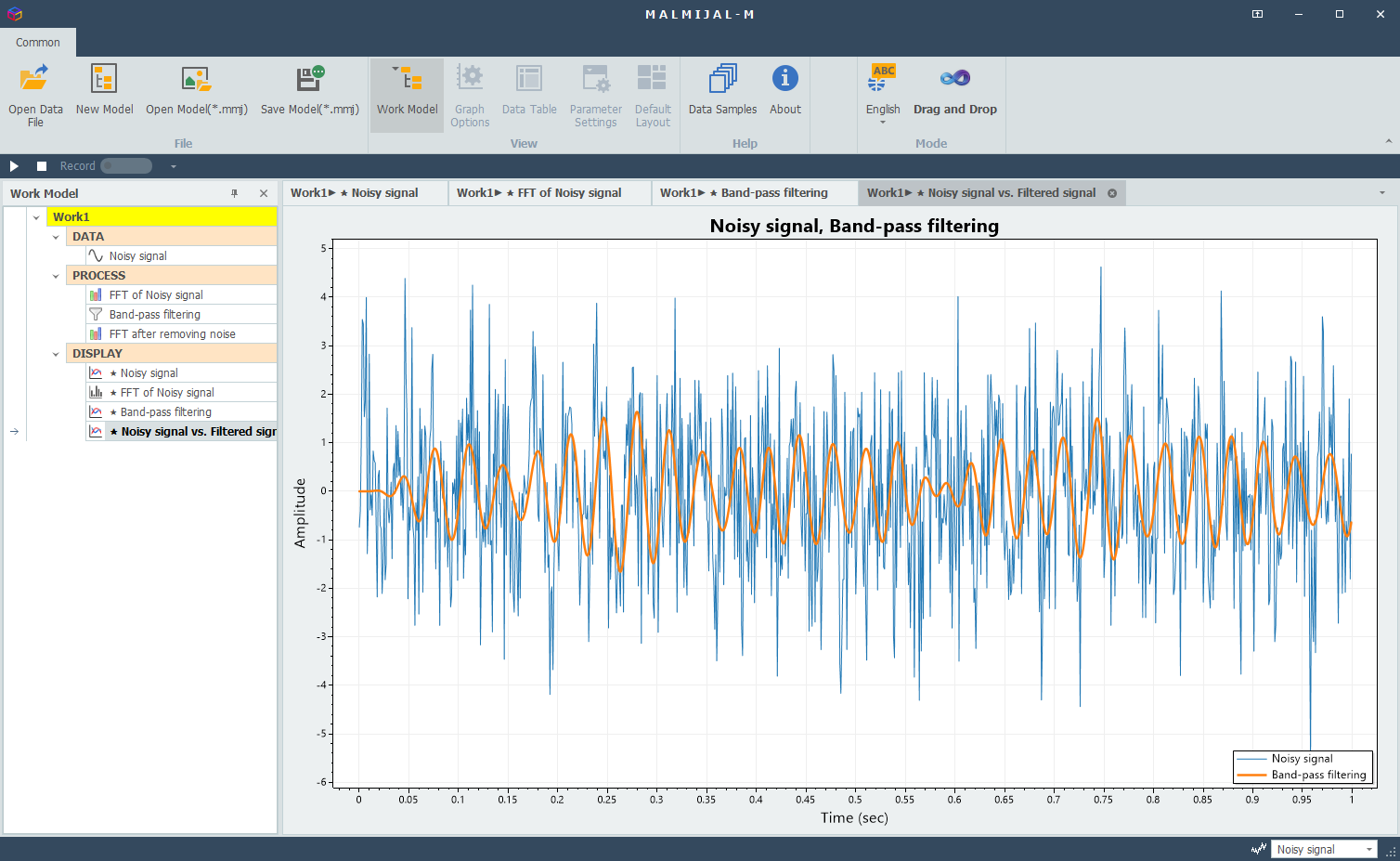

Compare noisy and filtered signal in time domain

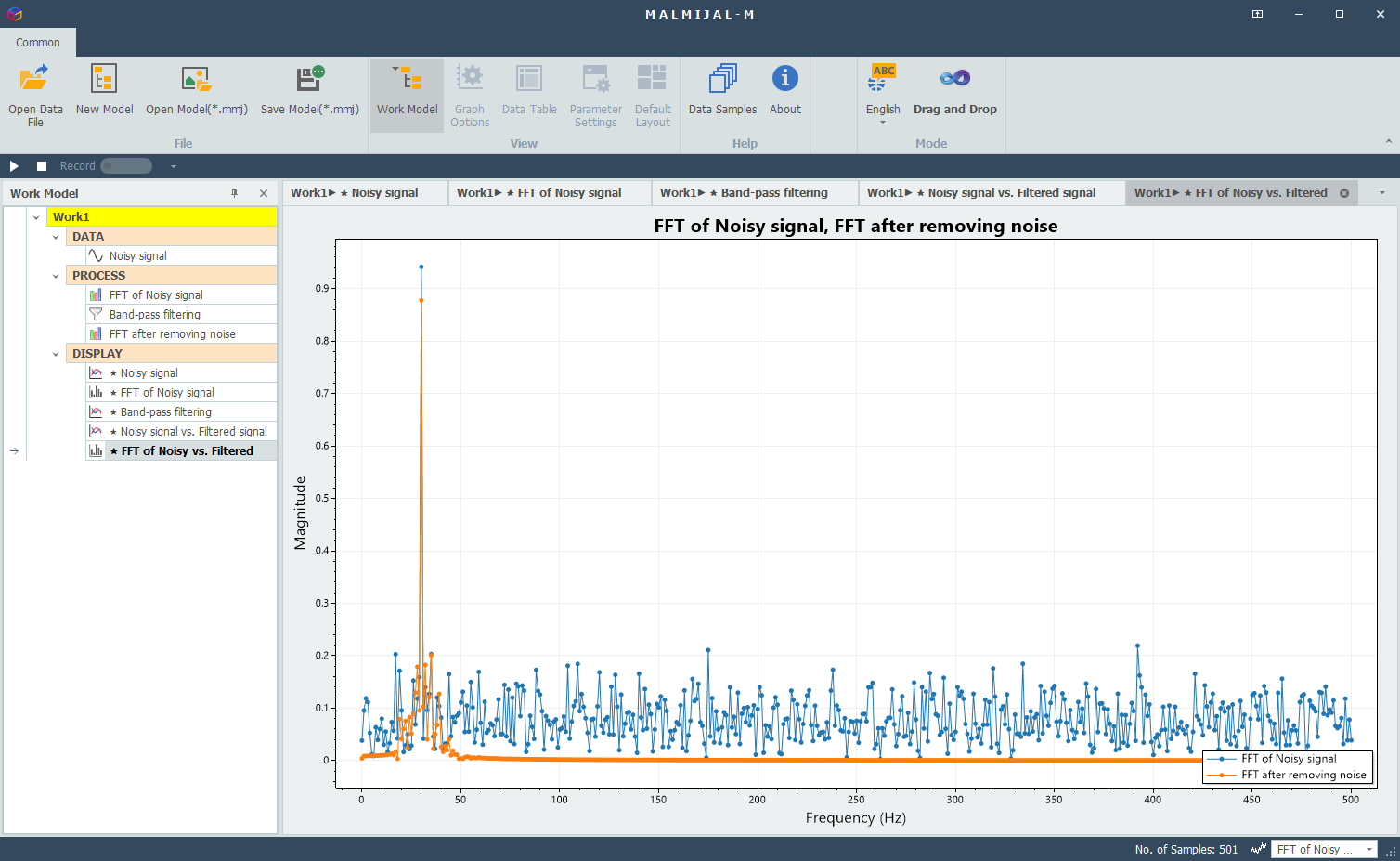

Compare FFT of noisy and filtered signal in frequency domain
Why Frequency-Based Noise Reduction Works
Noise reduction techniques often rely on the assumption that
Noise and signal occupy different frequency ranges.
For example
By applying an appropriate filter, unwanted frequencies can be attenuated while the main signal components remain intact.
However, excessive filtering can distort the signal, so careful filter design is important.
Considerations
In many real-world situations, however, the signal and noise overlap in the same frequency range. In such cases, simple frequency-domain filtering is no longer sufficient because removing the noise may also remove important signal components. More advanced techniques such as adaptive filtering, Wiener filtering, spectral subtraction, or machine-learning-based denoising may be required.
Practical Applications
Noise reduction techniques are widely used in many fields.
Audio Engineering
Reducing background noise in recordings.
Speech Processing
Improving speech recognition accuracy.
Acoustic Measurements
Removing environmental noise during measurements.
Vibration Analysis
Filtering sensor noise from mechanical signals.
Signal processing tools such as MALMIJAL make it possible to quickly visualize both time-domain and frequency-domain signals and evaluate the effectiveness of filtering techniques.
Conclusion
Noise is an unavoidable component of many real-world audio signals. Signal processing techniques provide powerful tools for identifying and removing noise while preserving the important characteristics of the original signal.
By combining frequency analysis using FFT with digital filtering techniques, engineers can effectively reduce noise and improve signal clarity.
Understanding how noise appears in both the time domain and the frequency domain is essential for designing effective noise reduction strategies in audio and signal processing applications.
