What Does Signal Smoothing Mean? A Visual Explanation
In signal processing, signal smoothing is used to reduce noise and make patterns easier to see.
It helps reveal the true shape of a signal.
What Is Signal Smoothing?
Signal smoothing is the process of reducing rapid fluctuations in a signal.
This makes the signal
- Less noisy
- Easier to interpret
Intuition
“Remove the small wiggles, keep the main trend”

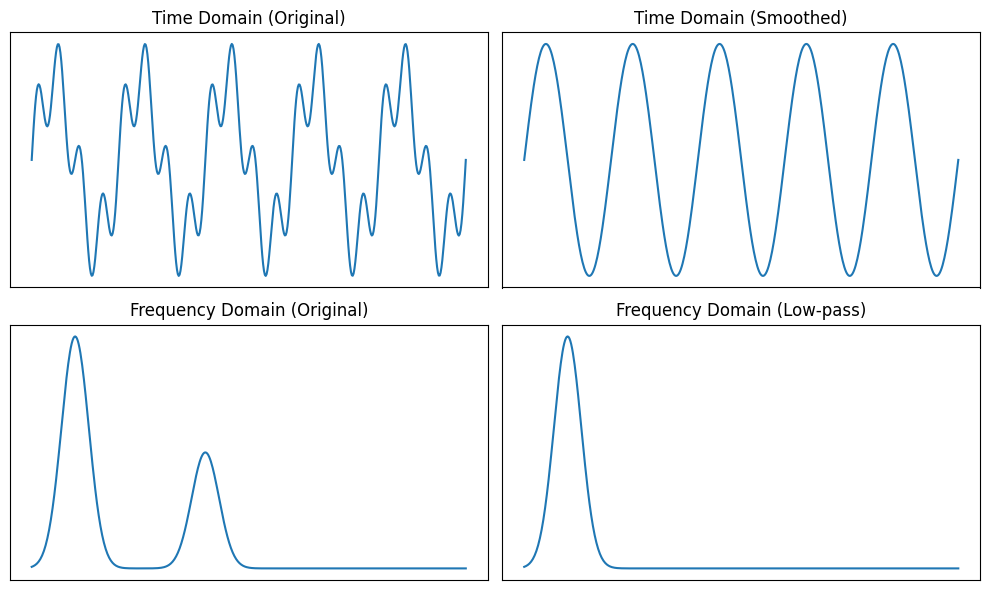

Signal smoothing = Low-pass filtering
Why Do We Need Smoothing?
Real-world signals often contain
- Noise
- Measurement errors
- High-frequency fluctuations
Smoothing helps
- Identify trends
- Detect peaks
- Improve analysis accuracy
How Signal Smoothing Works
Smoothing works by averaging nearby values. Instead of using one point, it uses neighbors
Example (Concept)

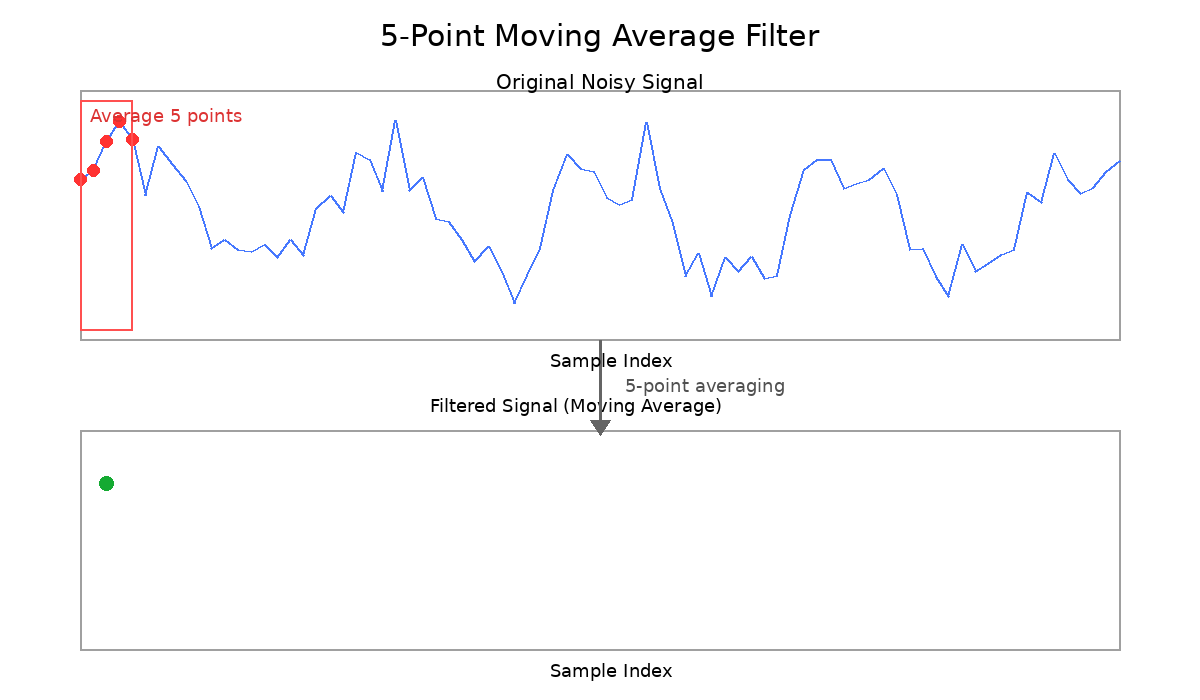

This is a M-point Moving Average.
Common Smoothing Methods
- Simple averaging
- Smooth but may blur details
- Kind of low-pass FIR filter
- Impulse response is exponential decay
- More weight on recent values
- Faster response
- Kind of 1st order low-pass IIR filter
3. Low-Pass Filtering (FIR / IIR)

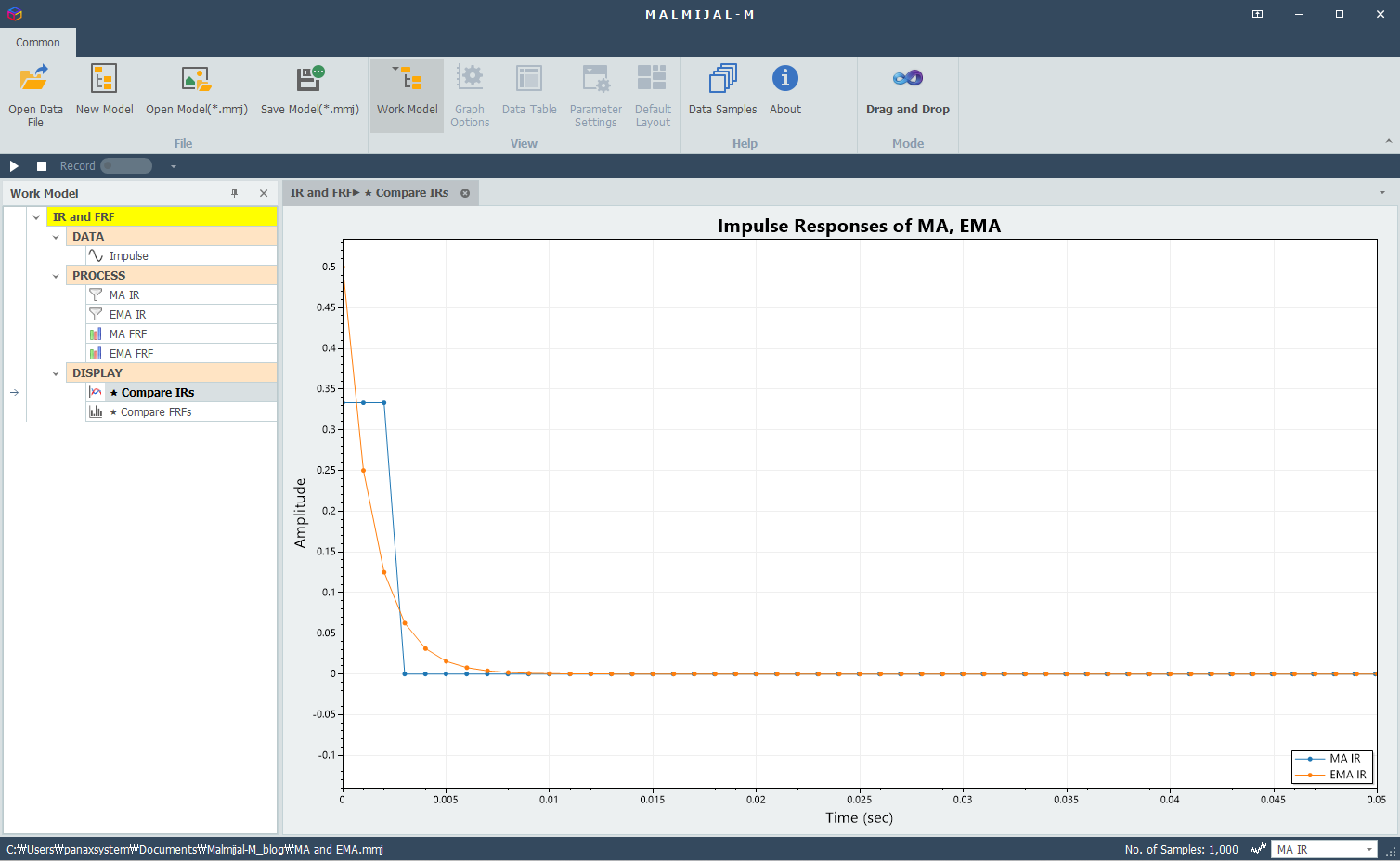

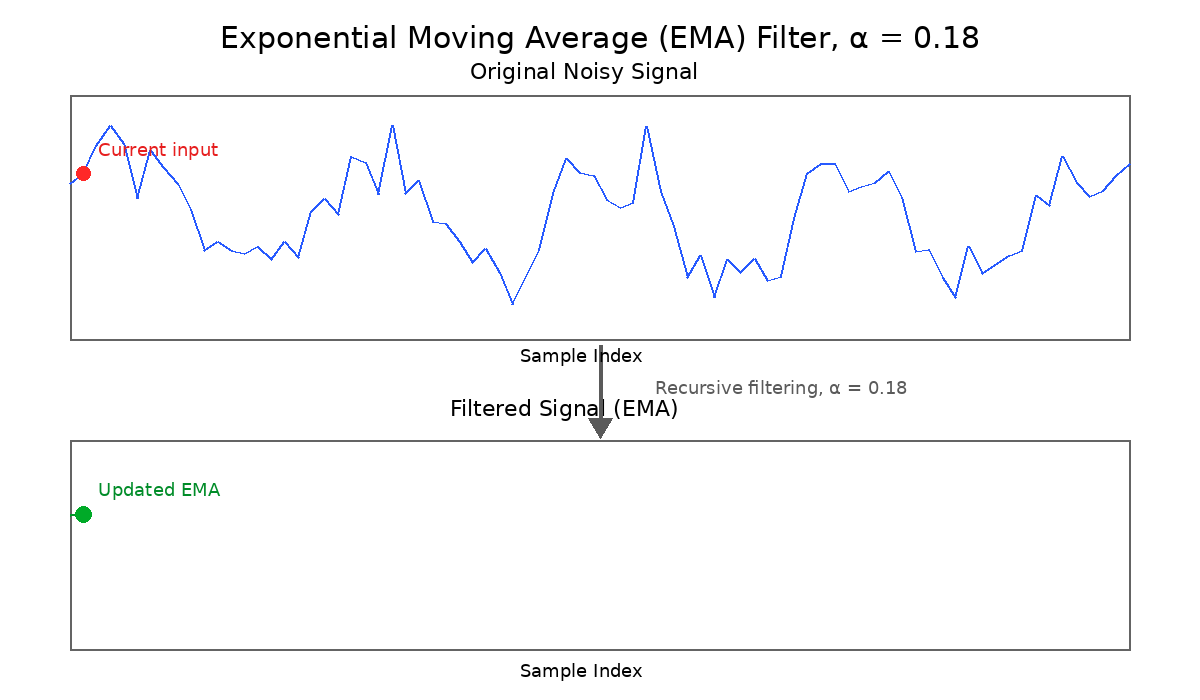

Comparison of impulse responses of MA and Exponential MA
Trade-Off in Smoothing
Smoothing reduces noise but also removes detail — that is the fundamental trade-off:
More Smoothing | Less Smoothing |
|---|
Cleaner signal | Noisier signal |
Less noise | More noise |
| Less detail | More detail |
Less accurate shape | More accurate shape |
Key Insight
Too much smoothing can remove important features
MALMIJAL Workflow
Signal Smoothing
- Generate/Load a signal
- Apply MA / EMA / FIR / IIR
- Adjust parameters
- Compare results

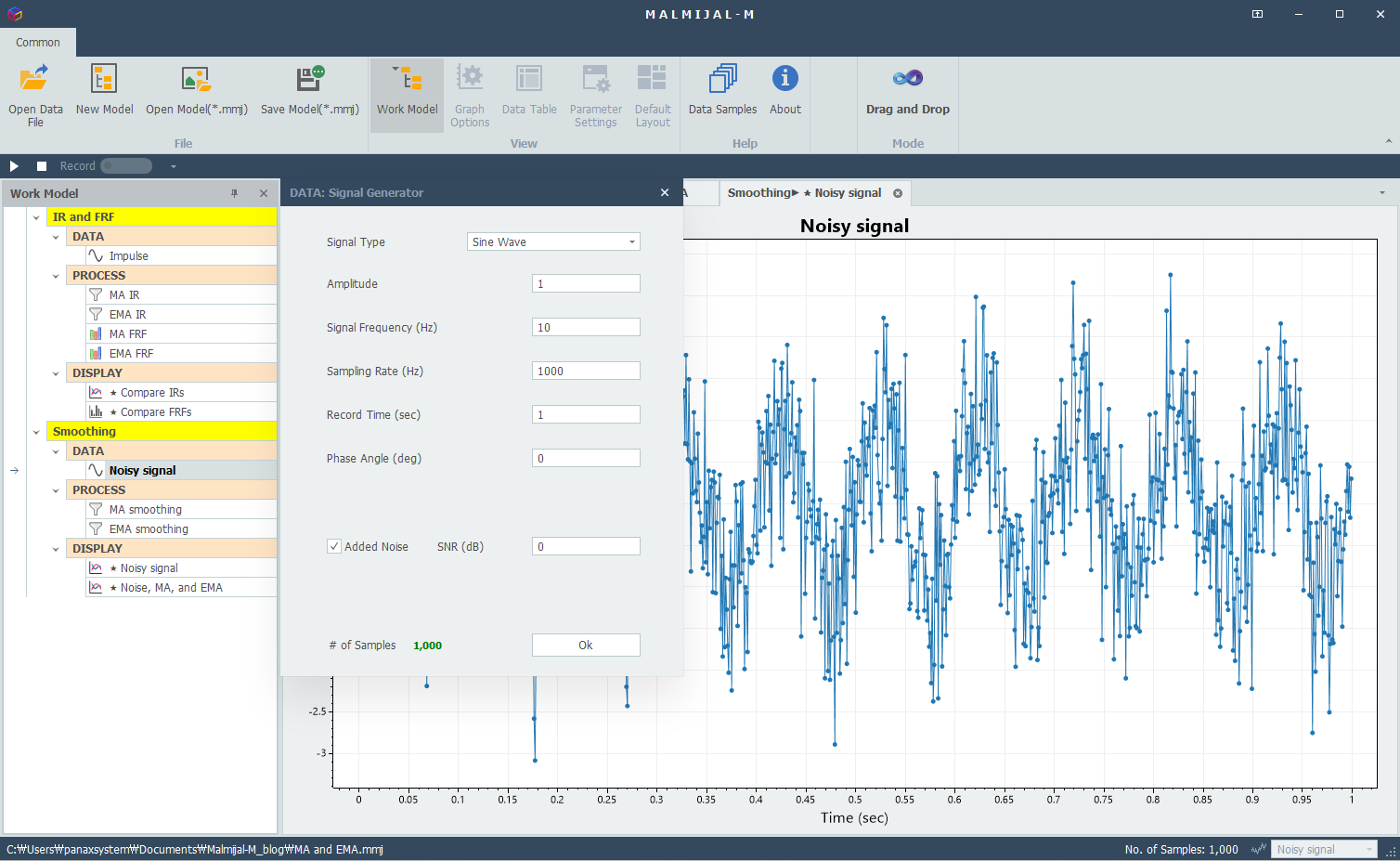

Generate/Load a noisy signal, SNR 0dB

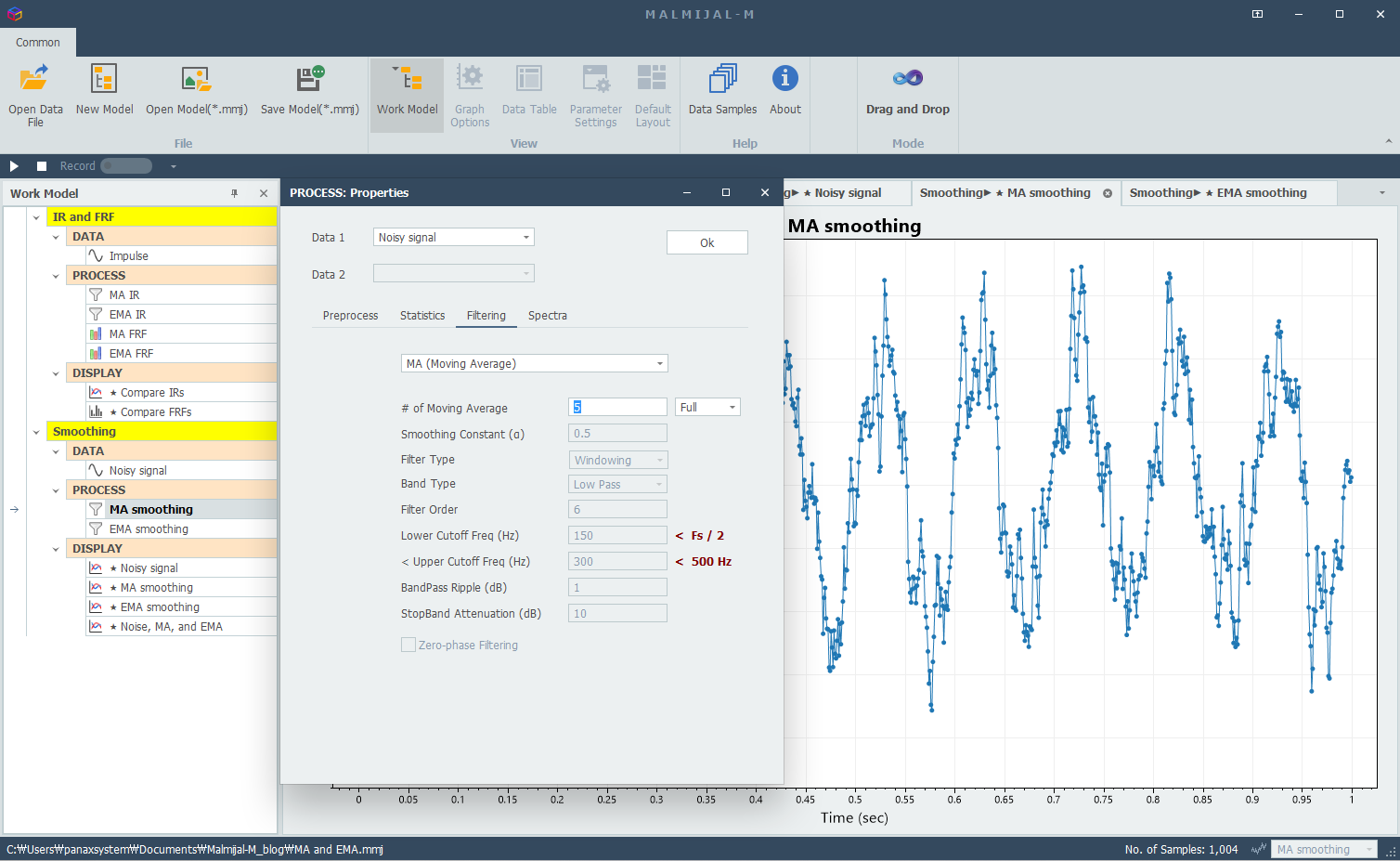

Smoothing using 5-point MA

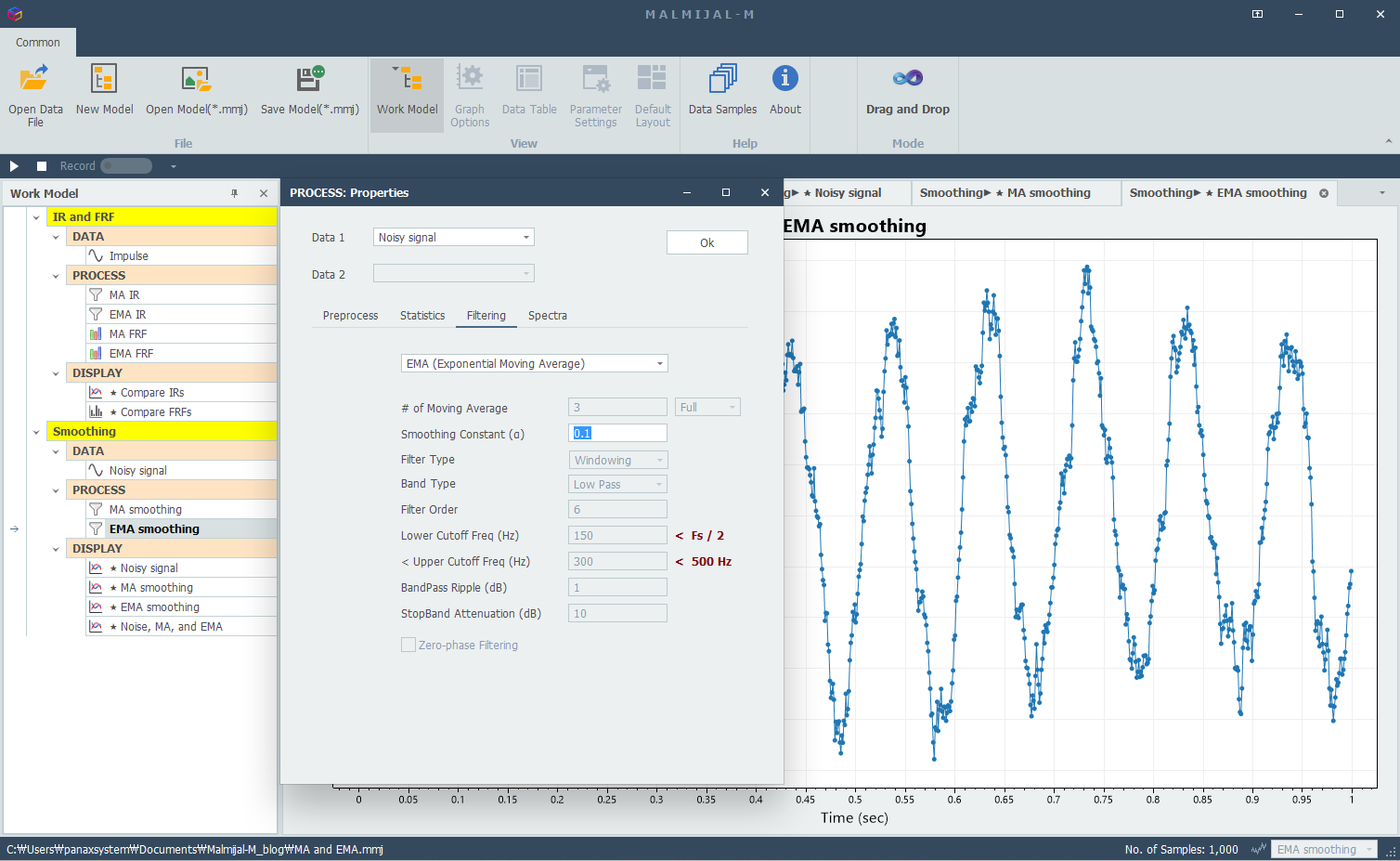

Smoothing using EMA, more past weight: smoothing constant 0.1

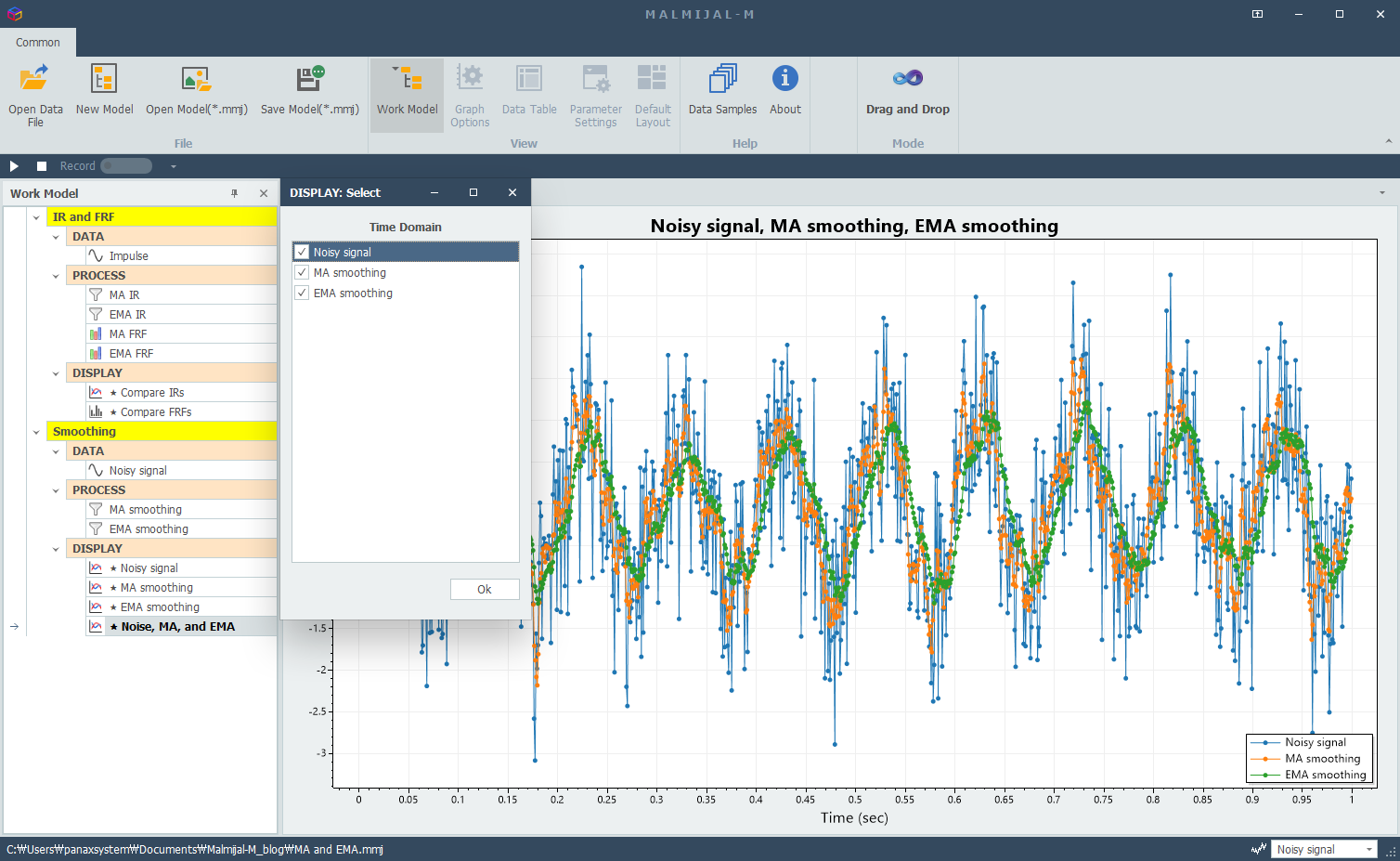

Compare results (noisy signal and smoothed signals)

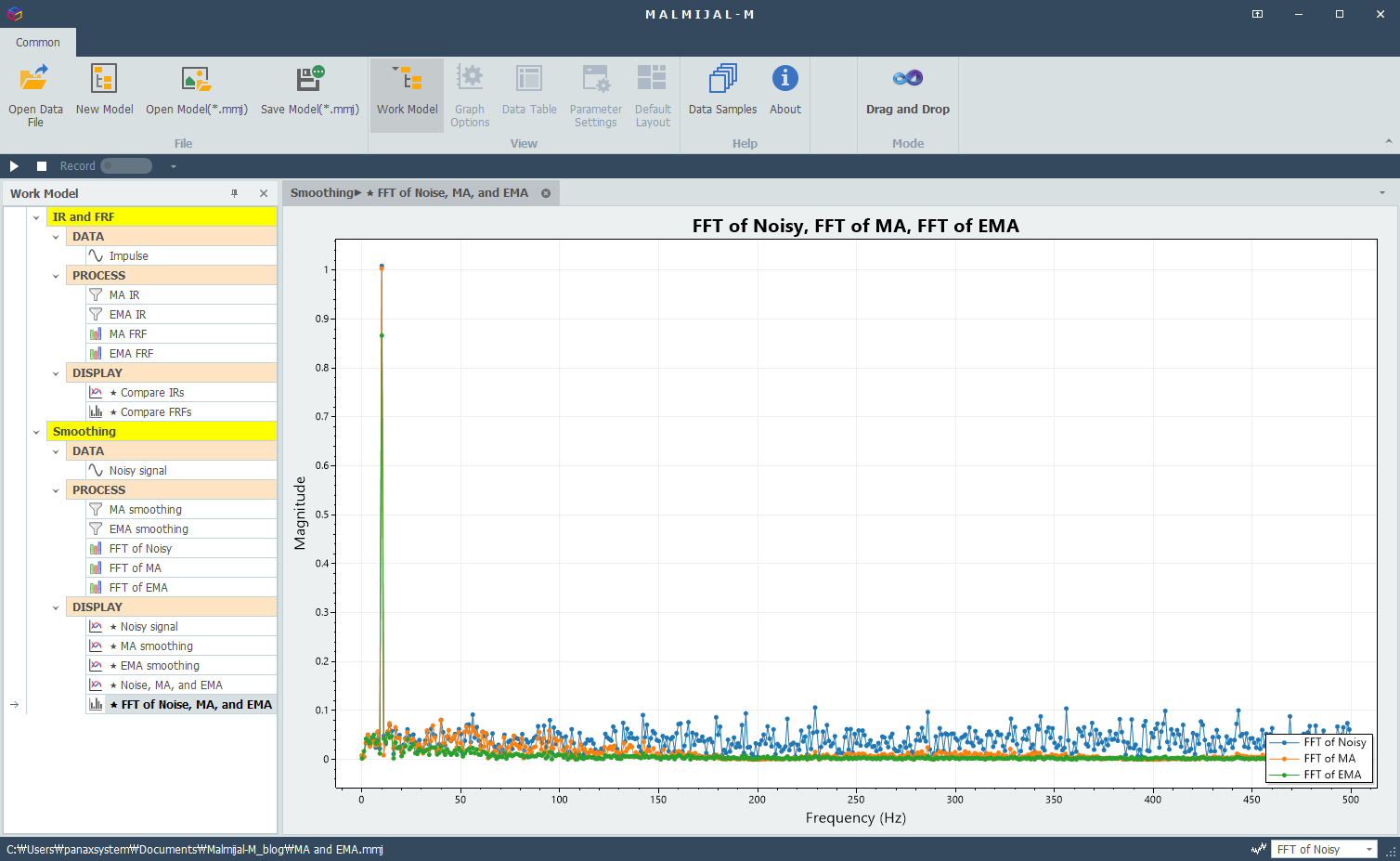

Compare FFT results (noisy signal and smoothed signals)
Practical Applications
- Noise reduction
- Peak detection improvement
- Trend analysis
- Preprocessing before FFT
Key Takeaways
- Smoothing reduces noise
- Based on averaging or low-pass filtering
- Essential for real-world signals
- Balance between noise reduction and detail
Conclusion
Signal smoothing is a fundamental technique used to reduce noise and reveal the underlying structure of a signal.
- It improves readability, trend detection, and analysis accuracy by minimizing rapid fluctuations.
- Common methods such as MA, EMA, and FIR/IIR low-pass filtering provide different levels of smoothing and responsiveness.
- However, smoothing involves a trade-off:
increasing smoothing reduces noise but may also distort or remove important signal features.
In summary,
effective smoothing requires balancing noise reduction and signal detail to preserve meaningful information while improving clarity.
