What Is Dynamic Range in Signals? (Simple Explanation)
In signal processing, dynamic range describes the difference between theย largest and smallest signal levels.
It tells us how much range a system can handle.
What Is Dynamic Range?

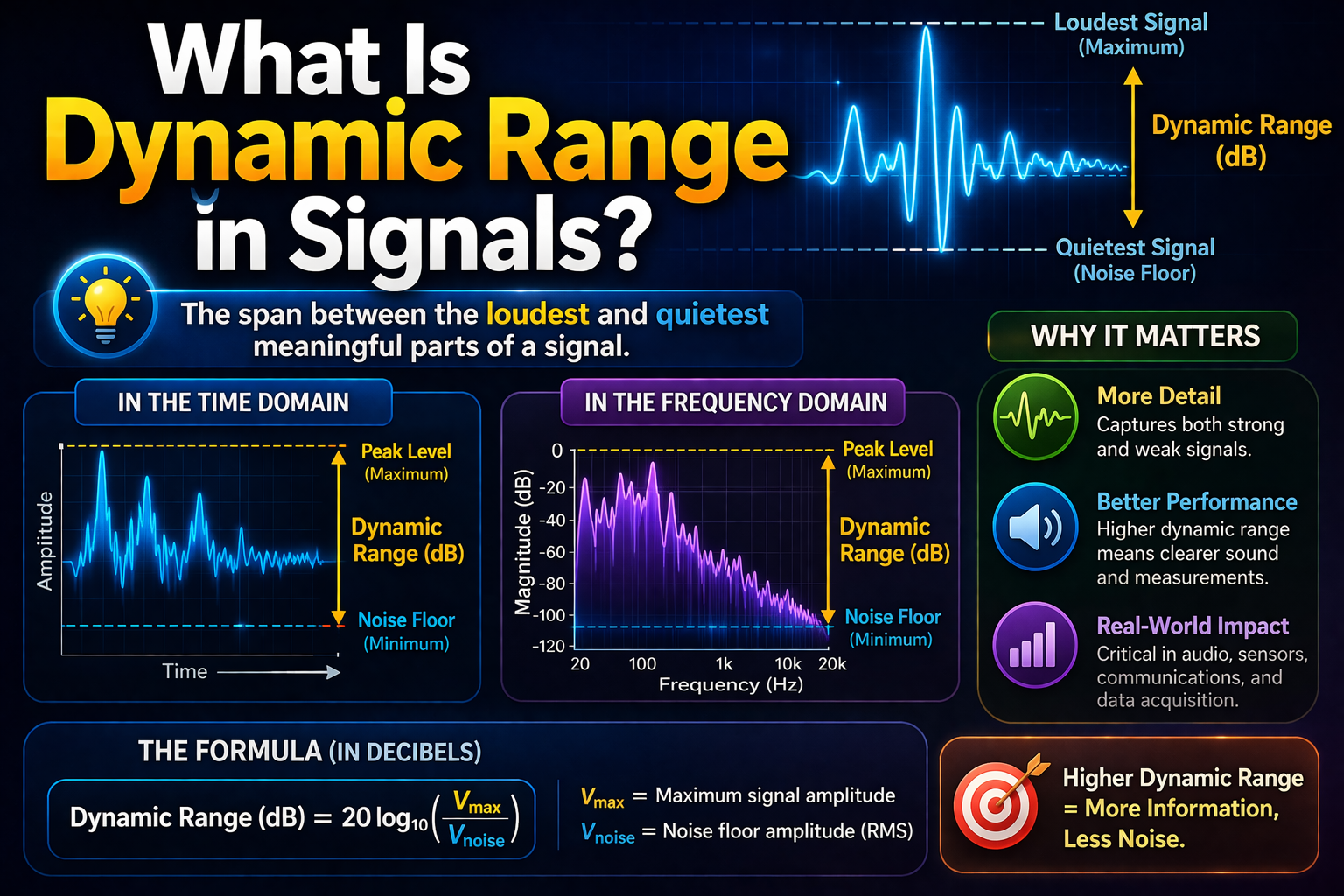

Dynamic range is the ratio between the strongest and weakest signals.
Mathematical Idea (in dB)
Intuition
โHow wide the signal strength range isโ
Simple Example
Case 1: Low Dynamic Ranges
- Values: 1 to 10
small range
Case 2: High Dynamic Ranges
- Values: 1 to 1,000,000
huge range
Why Dynamic Range Matters
Dynamic range determines
- Signal clarity
- Ability to detect weak signals
- System performance
Key Insight
If dynamic range is too small
- weak signals are lost
- noise dominates
Dynamic Range in Real Systems
Audio
- Quiet sounds vs loud sounds
Communication
- Weak signals vs interference
Sensors
- Small vibrations vs large impacts
Dynamic Range vs Noise Floor
Dynamic range depends on
Noise floor (minimum detectable signal)
Concept
- Maximum signal โ system limit
- Minimum signal โ noise level
Dynamic range = difference between them
Dynamic Range in FFT
In frequency analysis
- Strong peaks โ high amplitude
- Weak components โ low amplitude
Log scale (dB) is used to visualize dynamic range
MALMIJAL Workflow
Dynamic Range Analysis
- Make sine (Amax = 1, 100Hz) and very weak (Amin = 0.001, 300Hz) signal
- Apply FFT
- Convert to dB scale
- Check Dynamic Range (dB) = 20log10(1 / 0.001) = 60dB

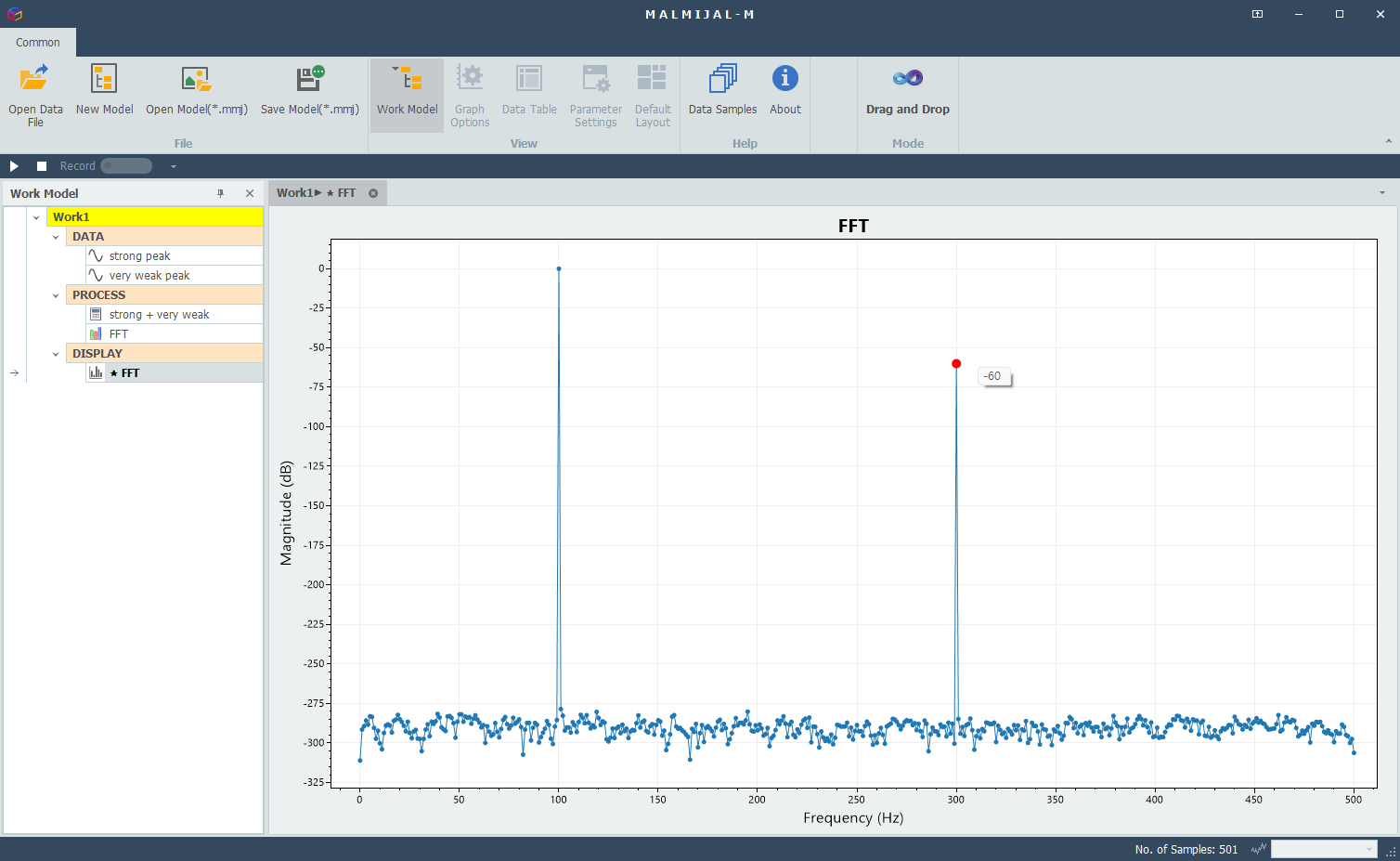

Check dynamic range (strong and very weak signal mixed)
- Make sine (A = 1, 100Hz) and additive Gaussian white noise signal
- Apply FFT
- Convert to dB scale
- Check Dynamic Range (dB) = Peak - Noise Floor

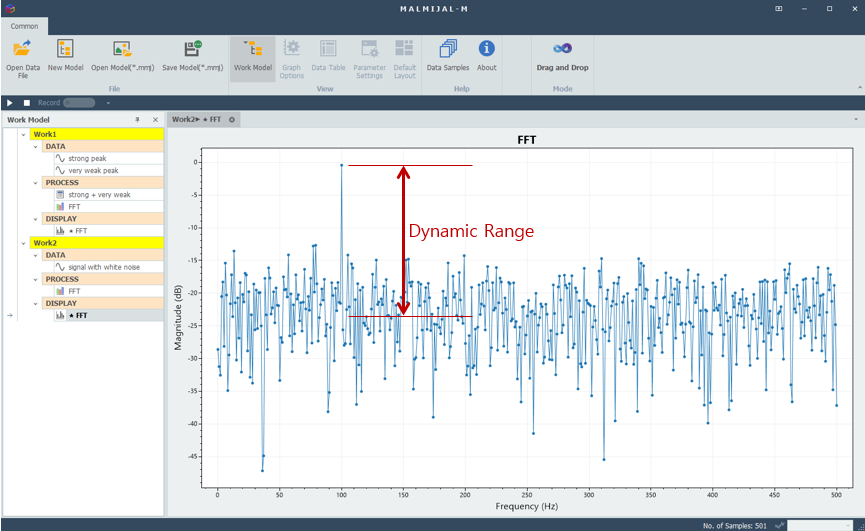

Check dynamic range (peak and noise floor)
How to Improve Dynamic Range
- Reduce noise
- Increase signal strength
- Use better sensors
- Increase bit depth
Key Takeaways
- Dynamic range = max vs min signal
- Measured in dB
- Determines signal quality
- Essential for detecting weak signals
Conclusion
Dynamic range represents the difference between the strongest and weakest signals a system can handle, and is a key factor in signal quality.
- It determines how well a system can detect weak signals in the presence of strong signals and noise.
- A limited dynamic range can cause weak signals to be lost or masked by noise, reducing analysis accuracy.
- In practice, dynamic range is closely tied to the noise floor and system limits, and is commonly visualized using log scale (dB) in frequency analysis.
In summary,
dynamic range is essential for accurate signal detection and analysis, and improving it requires reducing noise, enhancing signal strength, and optimizing system design.
