Power Spectrum vs PSD: What’s the Difference?
In signal processing, two terms often appear together
Power Spectrum
Power Spectral Density (PSD)
They look very similar, and in many cases, their graphs even appear almost identical. But if you try to explain the difference clearly, it quickly becomes confusing.
In this article, we’ll go through the difference step by step, using simple examples and a small amount of math—just enough to make things clear without making it complicated.
Starting with a Simple Signal
Let’s begin with a sine wave.

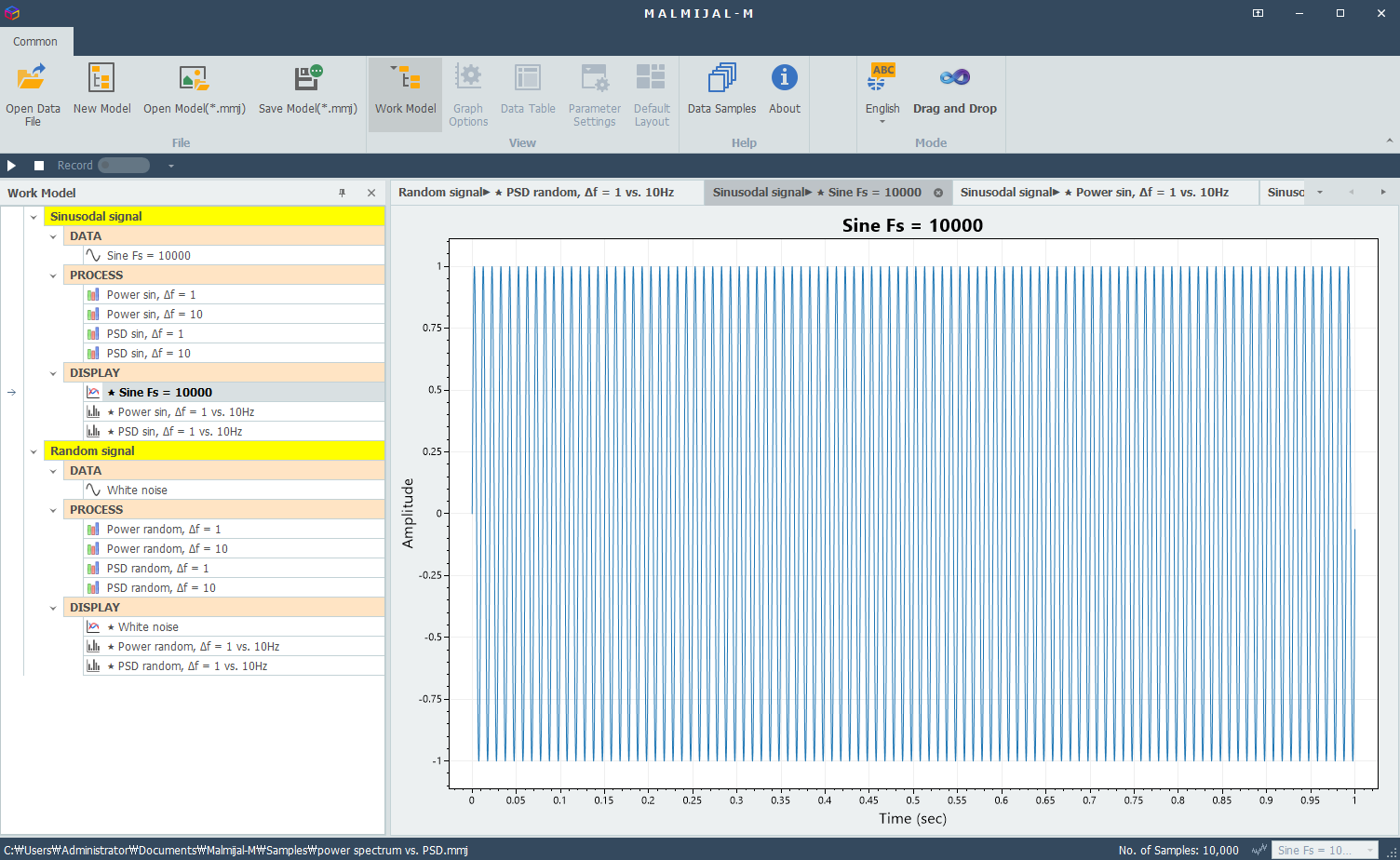

Time-domain sinusoidal signal (refer to Samples/power spectrum vs. PSD.mmj)
This signal contains only one frequency.
So naturally, we expect its energy to be concentrated at that frequency.
Power Spectrum: Power at Each Frequency
When we compute the power spectrum, we are essentially looking at
where X(f) is the FFT result.

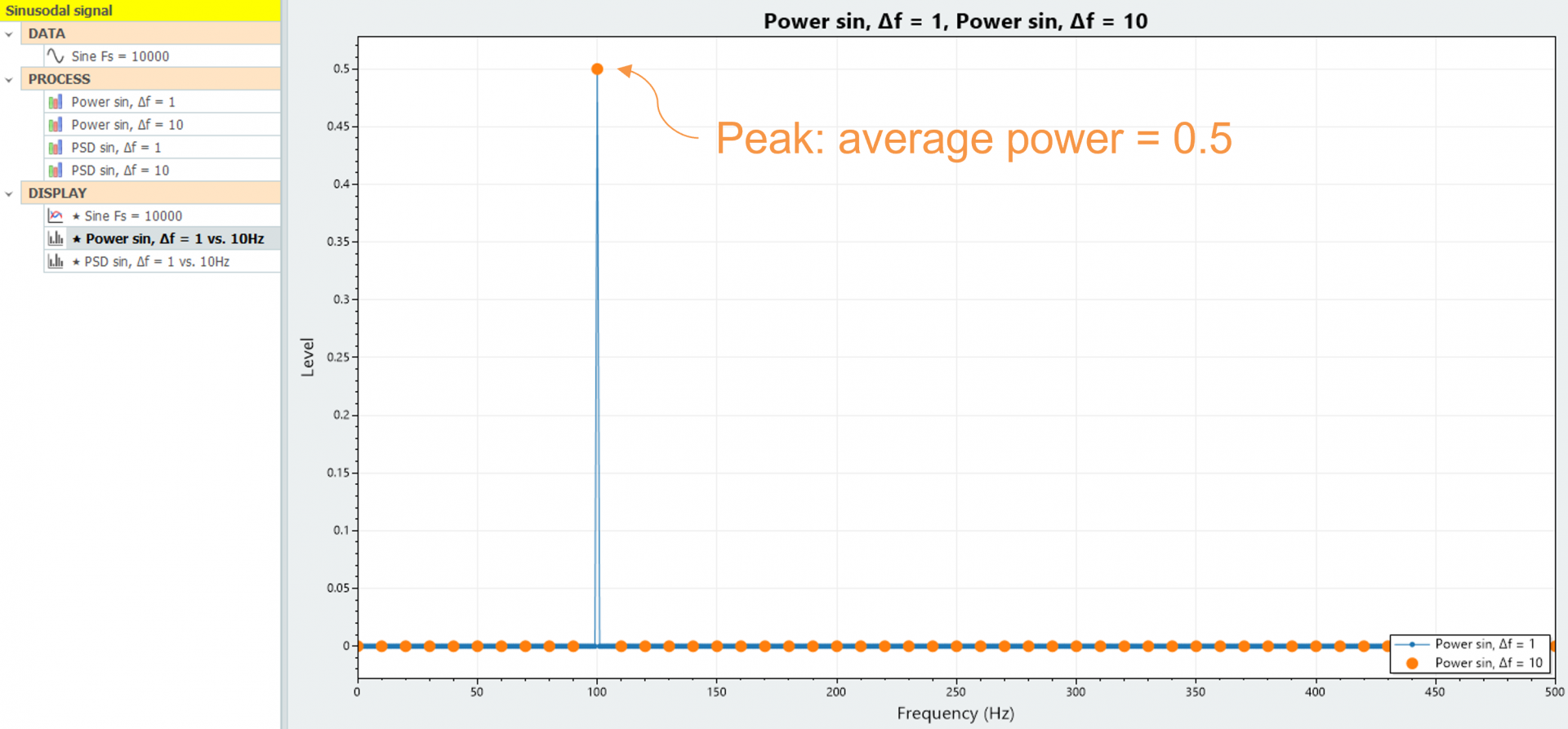

Power spectrum showing energy concentrated at a single frequency: invariant to frequency resolution

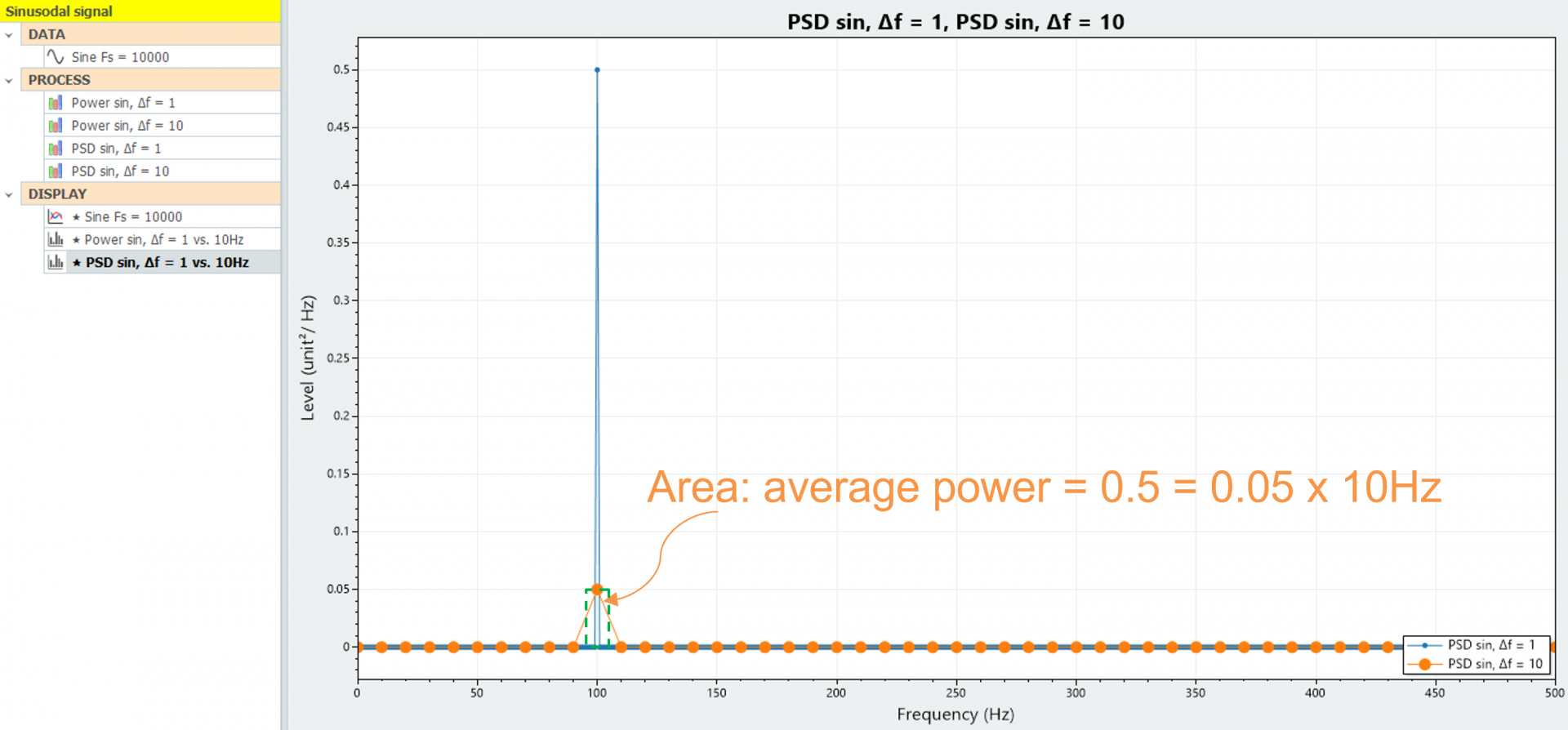

For periodic signals, PSD is spread over multiple frequency bins (Hz), resulting in reduced peak amplitude (Δf = 10Hz)
We can clearly see
A sharp peak at one frequency
Almost zero elsewhere
This means
The signal’s energy is concentrated at that frequency.
Power Spectrum is suitable for discrete or periodic signals.
The Subtle Problem: Dependence on Δf
Here’s where things get tricky.
The power spectrum depends on frequency resolution in case of random signals
Fs : sampling frequency
N : number of samples
If Δf changes, the height of the spectral peak also changes.
Even though the signal itself hasn’t changed this is what makes interpretation confusing.
PSD: Power per Unit Frequency
To fix this issue, we use PSD.
Now instead of “total power,” we get
power per Hz
This makes the result independent of Δf.
Key Idea (Simple Way to Think About It)
Power Spectrum → total energy in each bin
PSD → energy per unit frequency
Another way to think about it
Power Spectrum = total amount
PSD = density of that amount
Why PSD Is More Useful for Random Signals?
Now let’s look at white noise.

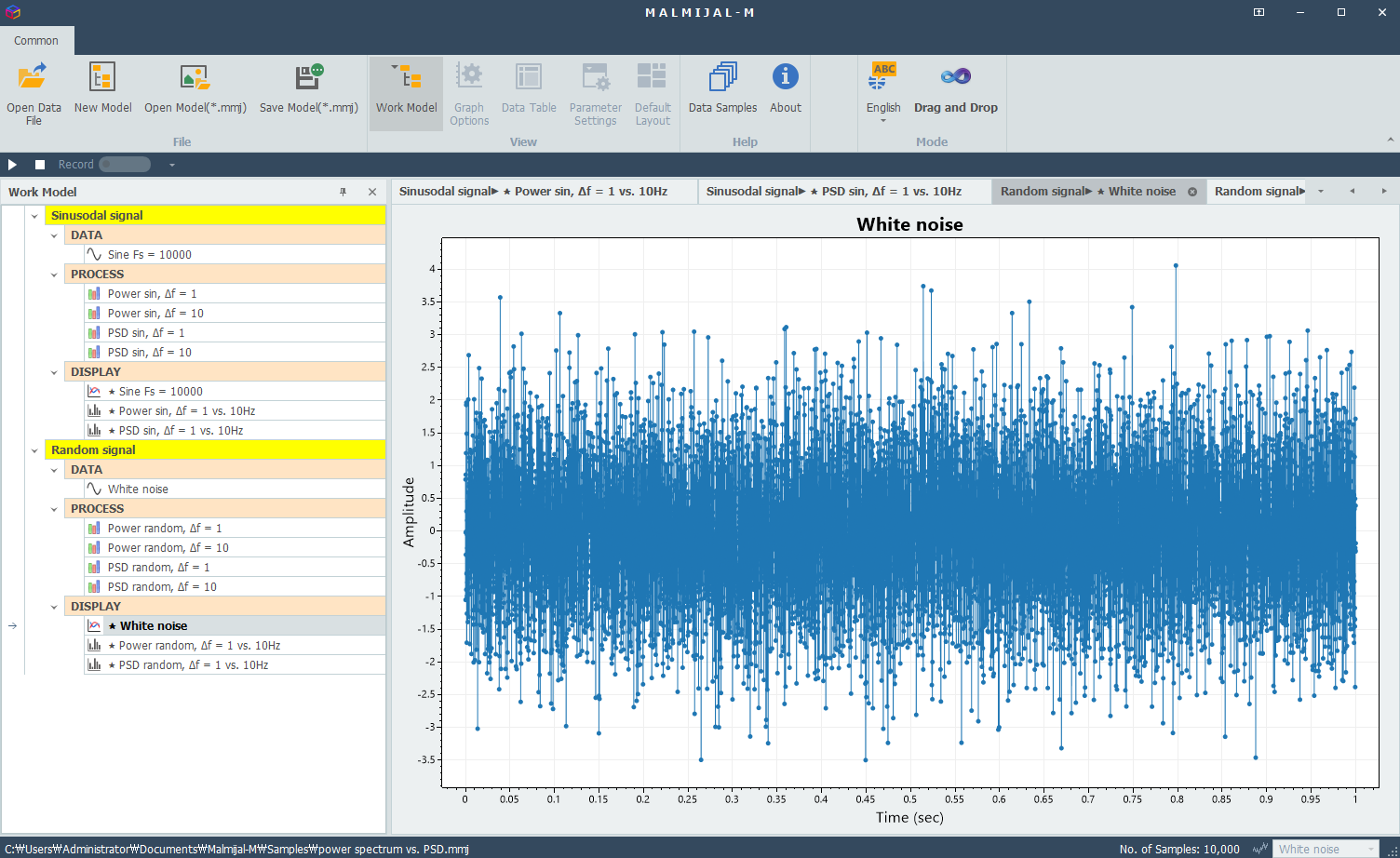

Time-domain white noise signal (refer to Samples/power spectrum vs. PSD.mmj)
Power Spectrum of Random Noise

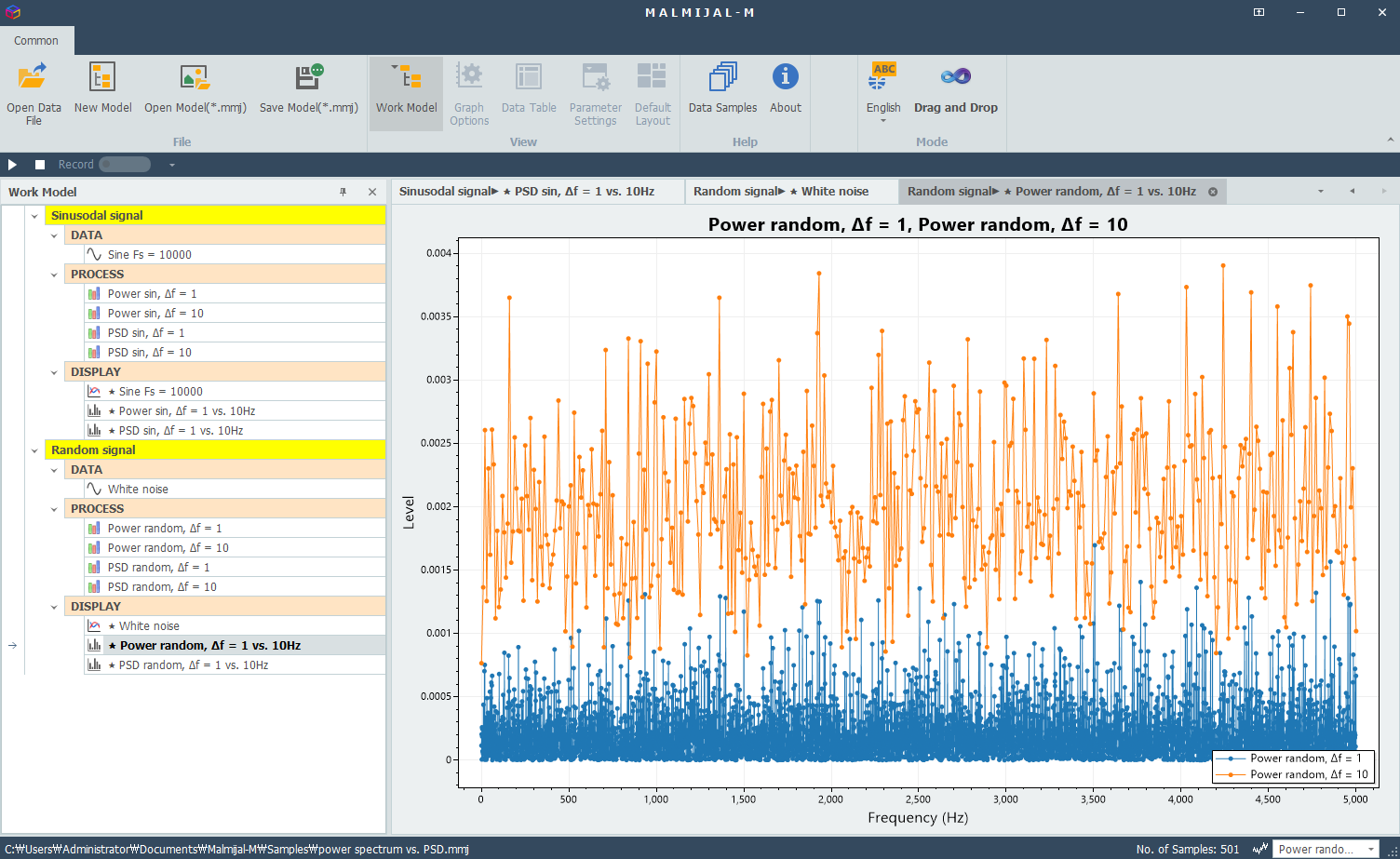

Power spectrum of random signal (refer to Samples/power spectrum vs. PSD.mmj)
The values fluctuate significantly depending on resolution.
PSD of Random Noise

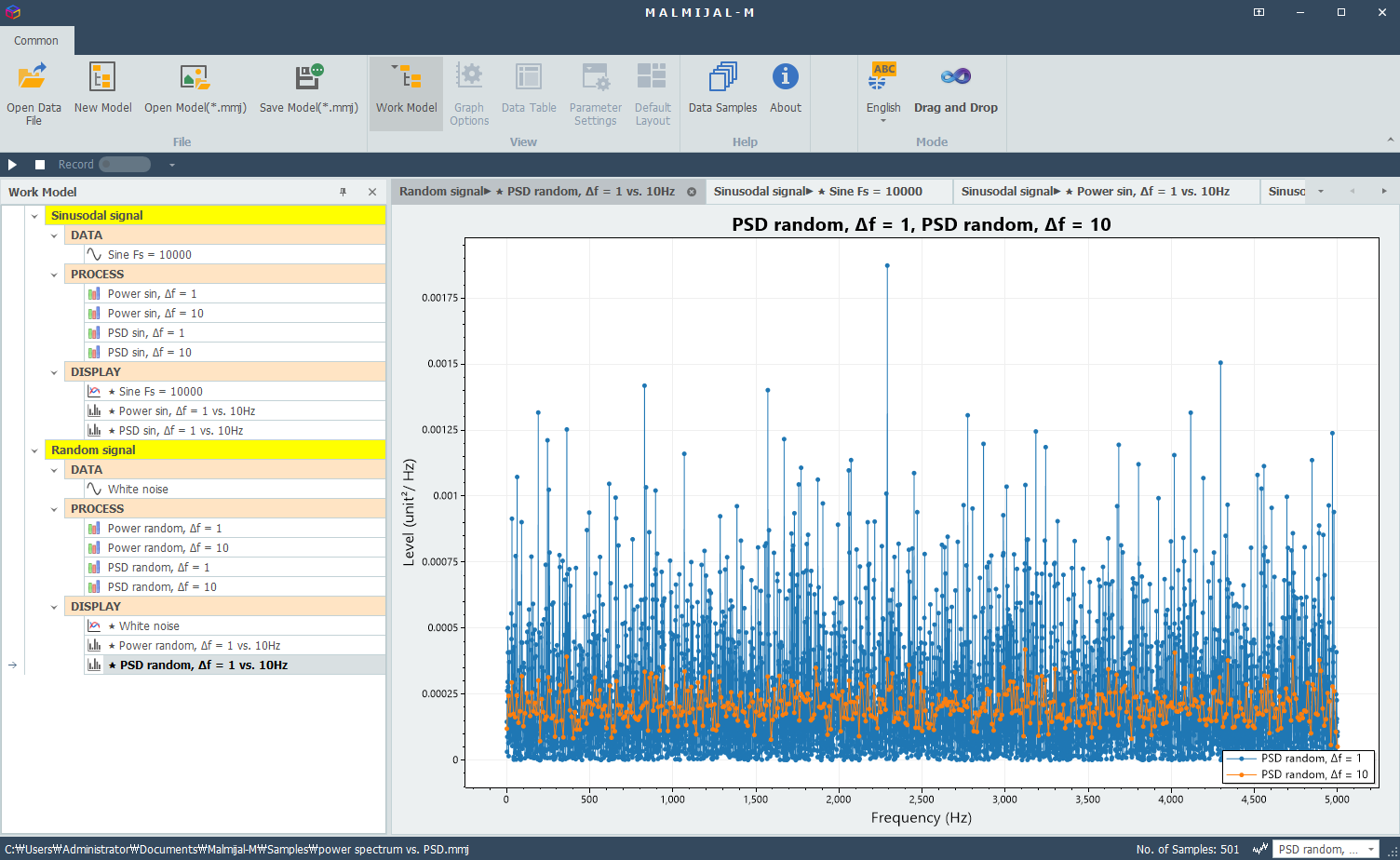

PSD of random signal (refer to Samples/power spectrum vs. PSD.mmj)
Now the distribution looks much more stable.
This is why PSD is commonly used for noise analysis.
When Should You Use Each?
Power Spectrum
When total energy matters
When analyzing simple signals
PSD
When comparing signals
When analyzing noise
When consistency is important

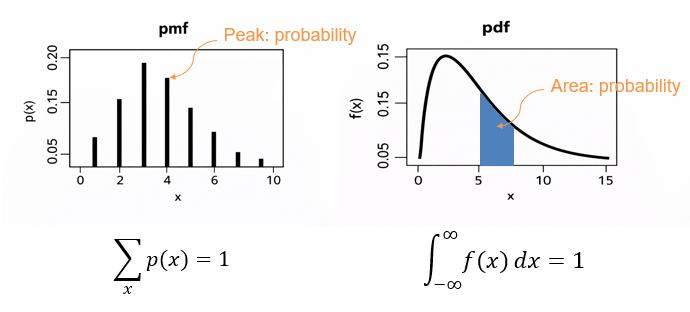

Similarity to probability functions
Power Spectrum
Analogies of (Discrete)Probability Mass Function (PMF)
PSD
Analogies of (Continuous) Probability Density Function (PDF)
Similarity
Conclusions
Power Spectrum and PSD describe the same signal, but in slightly different ways.
Power Spectrum shows total energy
PSD shows energy per frequency
Once you understand how Δf affects the result, the difference becomes much clearer.
In practice, being able to change parameters like sampling rate or resolution and immediately compare power spectrum and PSD side by side makes this concept much easier to grasp.
Tools like MALMIJAL allow you to explore these differences visually by adjusting parameters and instantly seeing how the results change.
Suggested Further Reading
You may also find these topics helpful:
How FFT Works: Understanding the Fast Fourier Transform
Common Mistakes When Interpreting FFT Results
What Is Spectral Estimation? Periodogram and Welch
Spectral Leakage in FFT: Why It Happens and How Window Functions Fix It
Signal Processing Without MATLAB: Is It Possible?
