Systems, Filters & ModelingWhat Does FRF Really Mean? (Not Just a Ratio)

What Does FRF Really Mean? (Not Just a Ratio)

The Frequency Response Function (FRF) is often introduced in a very simple way

“It’s just output divided by input.”

While this is technically correct, it doesn’t really explain what FRF actually means. If you stop there, it feels like just another formula. But in reality, FRF is much more than a ratio. It is a map of how a system responds to different frequencies.

In this post, we’ll walk through that idea step by step using simple intuition.

Visual explanation of FRF showing relationship between input X(f), output Y(f), and frequency response with resonance peak

Everything Starts with Two Signals

To understand FRF, we first need two things

  • An input signal x(t)
  • An output signal y(t)


Input signal x(t)

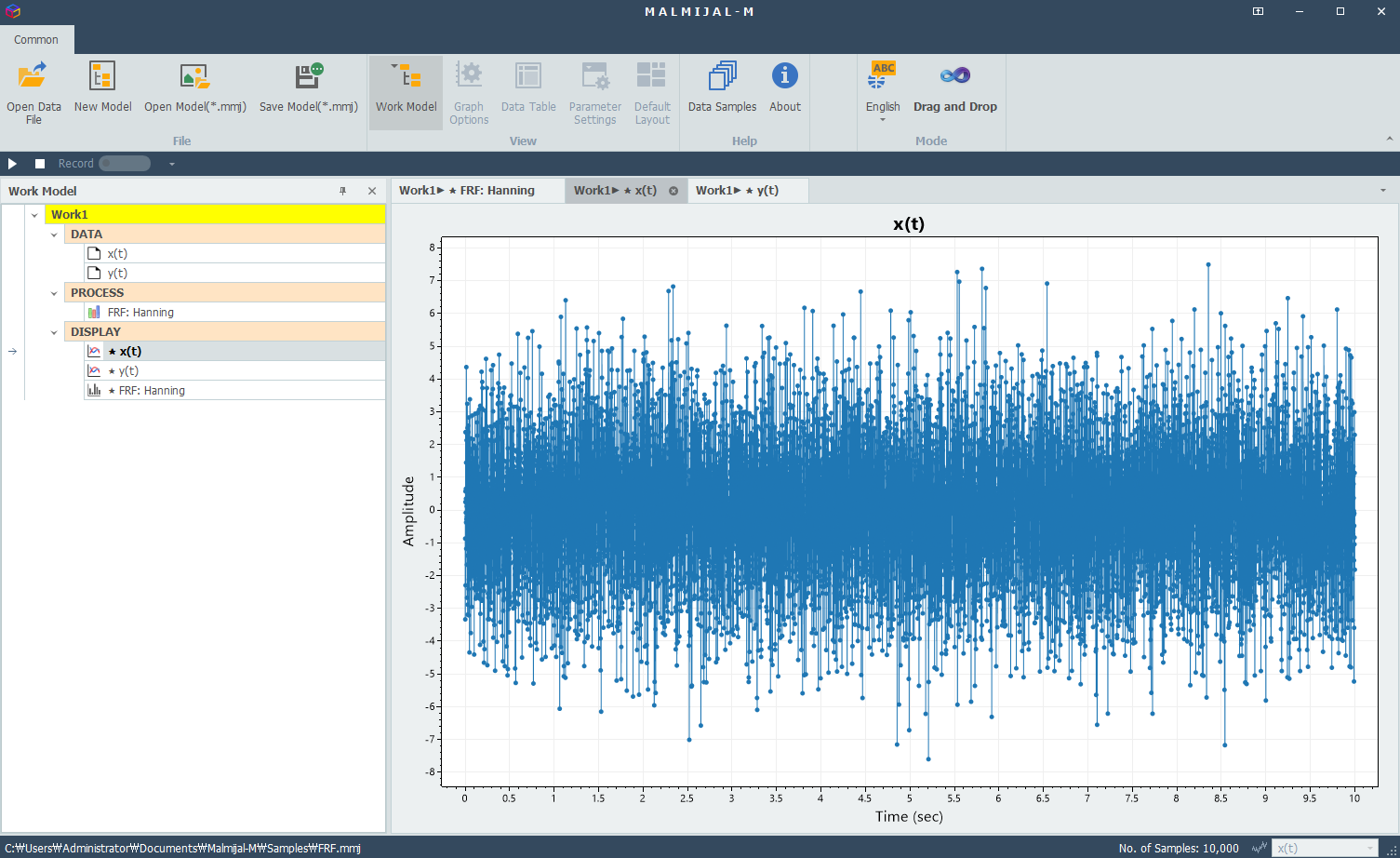

Random input signal x(t) used to excite the system across a wide range of frequencies

Random input x(t) used to excite the system across a wide range of frequencies (refer to Samples/frf.mmj)


This signal looks random, but that’s actually useful.
It contains many different frequency components.


Output signal y(t)

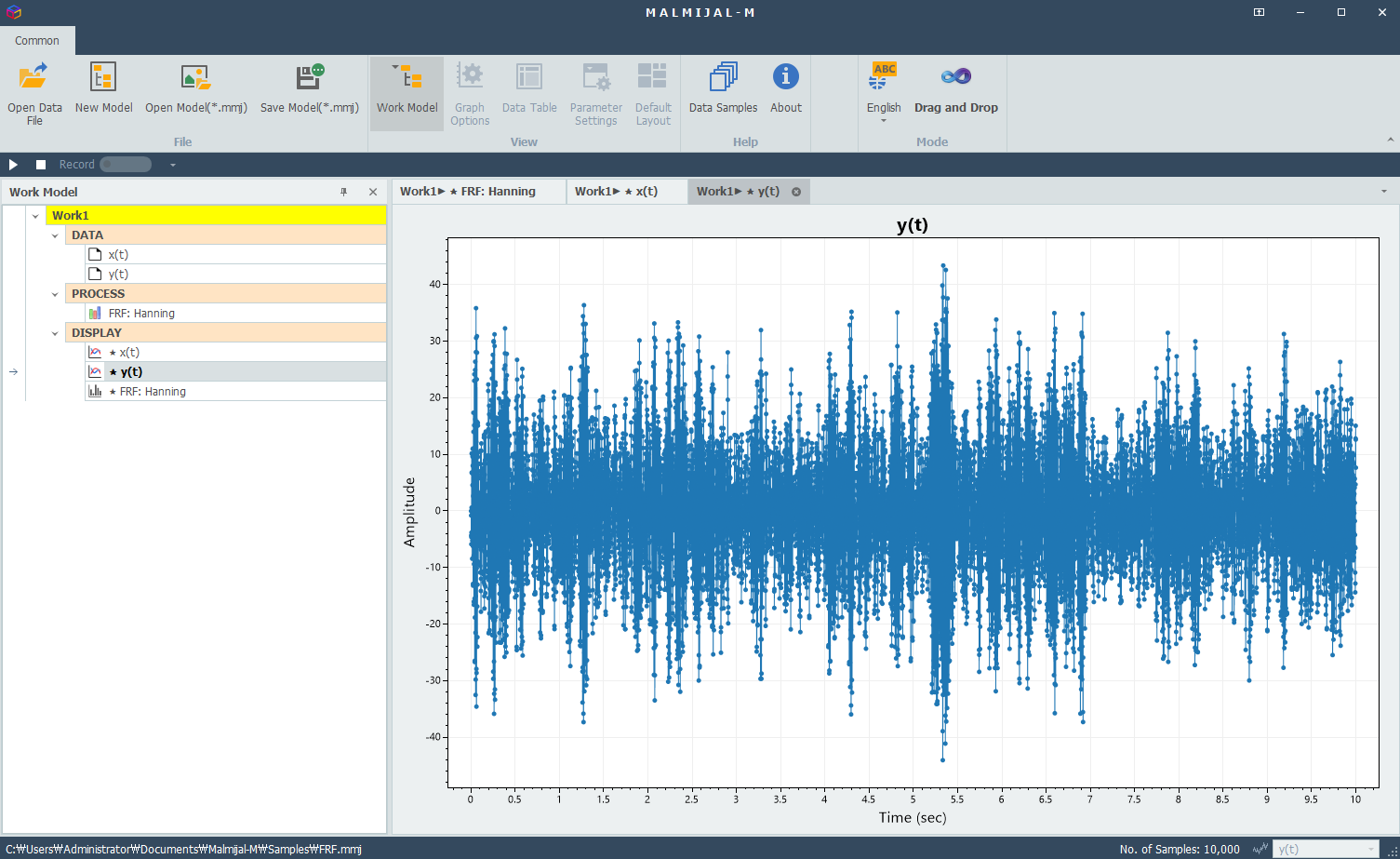

Time-domain plot of output signal y(t) showing amplified and altered response compared to input

Output y(t) after passing through the system (refer to Samples/frf.mmj)


This is what comes out after passing through a system.


Key Question

Why does the output look different from the input?

Because the system does not treat all frequencies equally.


Systems Respond Differently at Each Frequency

Every physical system behaves like this

  • Some frequencies are amplified
  • Some are decreased
  • Some are delayed

In the frequency domain, this relationship is written as

In the frequency domain, this relationship is written

Where,

  • X(f) : Frequency components of the input signal
  • Y(f) : Frequency components of the output signal
  • H(f) : System response in the frequency domain (FRF)


Rearranging

Rearranging


At first glance, this looks like a simple ratio. But the meaning is much deeper.

It describes how the system transforms each frequency component.


FRF Reveals the “Personality” of the System

Now let’s look at the FRF.

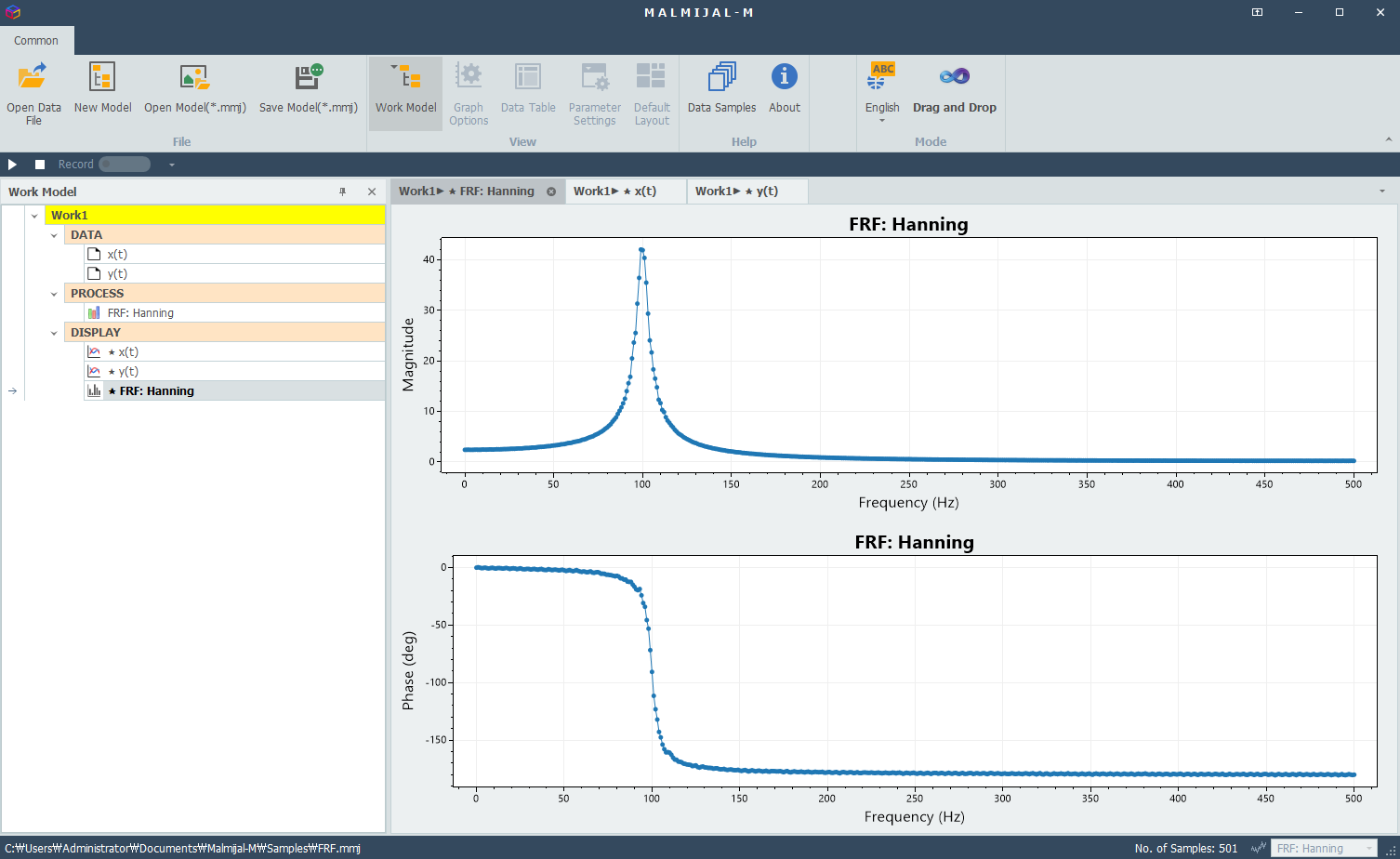

Frequency Response Function (FRF) showing a strong resonance peak and phase shift around a specific frequency

FRF showing a strong resonance peak and phase shift around a specific frequency (refer to Samples/frf.mmj)


You’ll notice

  • A clear peak at a certain frequency
  • Smooth decays around it


What does that mean?

The system strongly responds at that frequency. This is often called a resonance.

Depending on the system, this could represent

  • A vibrating structure
  • An acoustic response
  • A mechanical mode


One-line takeaway

FRF shows which frequencies the system “likes” or “reacts to”.


Magnitude and Phase: Two Sides of the Same Story

FRF is not just one curve. It has two parts.

Magnitude
Magnitude

  • How much the signal is amplified or reduced


Phase angle

Phase

  • How much the signal is delayed


Together, they describe “how much” + “when” the system responds


Why You Can’t See This in Time Domain

If you only look at

  • x(t)
  • y(t)


It’s very hard to tell

  • Which frequencies changed
  • Where the system reacts strongly


But FRF makes it obvious

  • Each frequency is separated
  • The system behavior becomes visible


Comparison

Domain viewWhat you see
Time DomainEverything mixed together
Frequency Domain (FRF)Frequency-by-frequency behavior



FRF Is Not Just a Ratio

Mathematically

FRF expression in output/input form


Conceptually

It is a frequency-dependent system response


In other words

  • At each frequency
  • The system applies a different “gain” and “delay”


Why FRF Matters in Practice

FRF is widely used because it lets you understand a system without opening it.


Real-world applications

  • Vibration analysis → find resonances
  • Automotive NVH → noise transfer path analysis (TPA)
  • Structural testing → identify stiffness and damping
  • Audio systems → tune frequency response

In general, FRFs are used to identify resonance frequencies and damping characteristics in vibration-related fields such as vibration analysis, automotive NVH, and structural testing.


Key idea

You don’t need to know the internal structure.
The response tells you everything.


Conclusions

FRF is often introduced as a simple ratio, but that’s only the surface.

In reality, it represents

  • The relationship between input and output
  • The behavior of a system across frequencies
  • The physical characteristics of that system


Final takeaway

FRF is a map of how a system responds to frequency.
