What Is Octave Band Analysis?
When analyzing real-world signals—especially noise, vibration, or acoustic data—FFT is not always the most practical representation.
Instead of looking at hundreds or thousands of frequency bins (narrow band), engineers often group frequencies into bands (octave band).
we group frequencies into bands that better reflect
- Human hearing (log-scale frequency, A-weighting level)
- Engineering standards
This is where Octave Band Analysis comes in.
In this article, we will explore
- What octave bands actually mean
- Why engineers use them instead of FFT
- The difference between 1-octave and 1/3-octave bands
- How this appears in MALMIJAL
What Is an Octave Band?

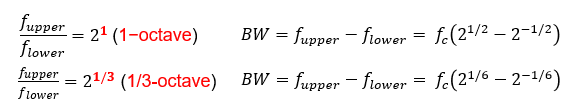

An octave band groups frequencies so that in case of 1-octave, each band’s upper frequency is twice (fupper = 2flower) its lower frequency.
The center frequency fc of a frequency band is defined as the geometric mean of the lower frequency flower and the upper frequency fupper.
This relationship comes from averaging the logarithms of the lower and upper band-edge frequencies.
Therefore, the center frequency is not the arithmetic mean in the linear scale, but the geometric mean.
This definition is commonly used in octave and fractional-octave band analysis because frequency bands are equally spaced on a logarithmic frequency scale, not on a linear frequency scale.
Bandwidth is proportional to the center frequency.
For example, 1-octave band range
| Center Frequency (Hz) | Lower frequency (Hz) | Upper frequency (Hz) | Bandwidth (Hz) |
|---|
| 31.5 | 22.4 | 44.7 | 22.3 |
| 63 | 44.7 | 89.1 | 44.4 |
| 125 | 89.1 | 178 | 88.9 |
| 250 | 178 | 355 | 177 |
| 500 | 355 | 710 | 355 |
| 1,000 (1k) | 710 | 1420 | 710 |
| 2,000 (2k) | 1,420 | 2,840 | 1,420 |
| 4,000 (4k) | 2,840 | 5,680 | 2,840 |
| 8,000 (8k) | 5,680 | 11,300 | 5,620 |
This means
- Low frequencies → wider bands
- High frequencies → even wider bands
So instead of analyzing exact frequency peaks, you analyze energy distribution across bands.
Why Not Just Use FFT?
FFT gives you maximum resolution, but
- Too many data points
- Hard to interpret trends
- Not aligned with human perception
Octave bands solve this by
| FFT | Octave Band |
|---|
| High resolution | Reduced resolution |
| Complicated | Easy to interpret |
| Engineering raw data | Perceptual / practical |
How Is It Computed?

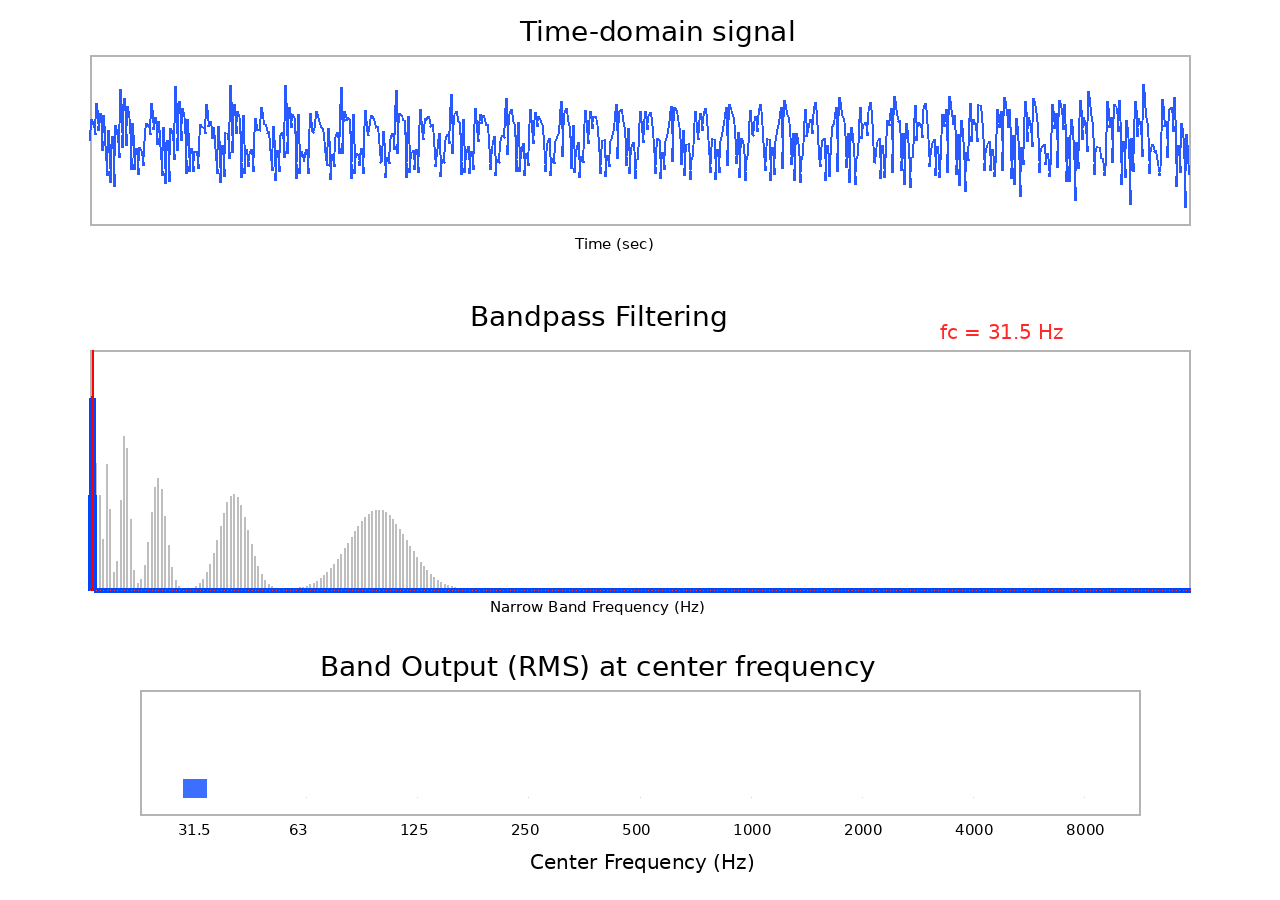

Method 1: Filter-Based
- Apply band-pass filters
- Each filter corresponds to an octave band
- Compute the RMS value of the filtered time signal.
- The squared RMS corresponds to the signal power within that octave band according to Parseval’s theorem
Physically meaningful (standard method) → MALMIJAL uses this method
Method 2: FFT-Based
- Compute FFT
- Sum energy within band limits
Faster and commonly used in software
Example Signal in MALMIJAL
Below is a time-domain noise signal.

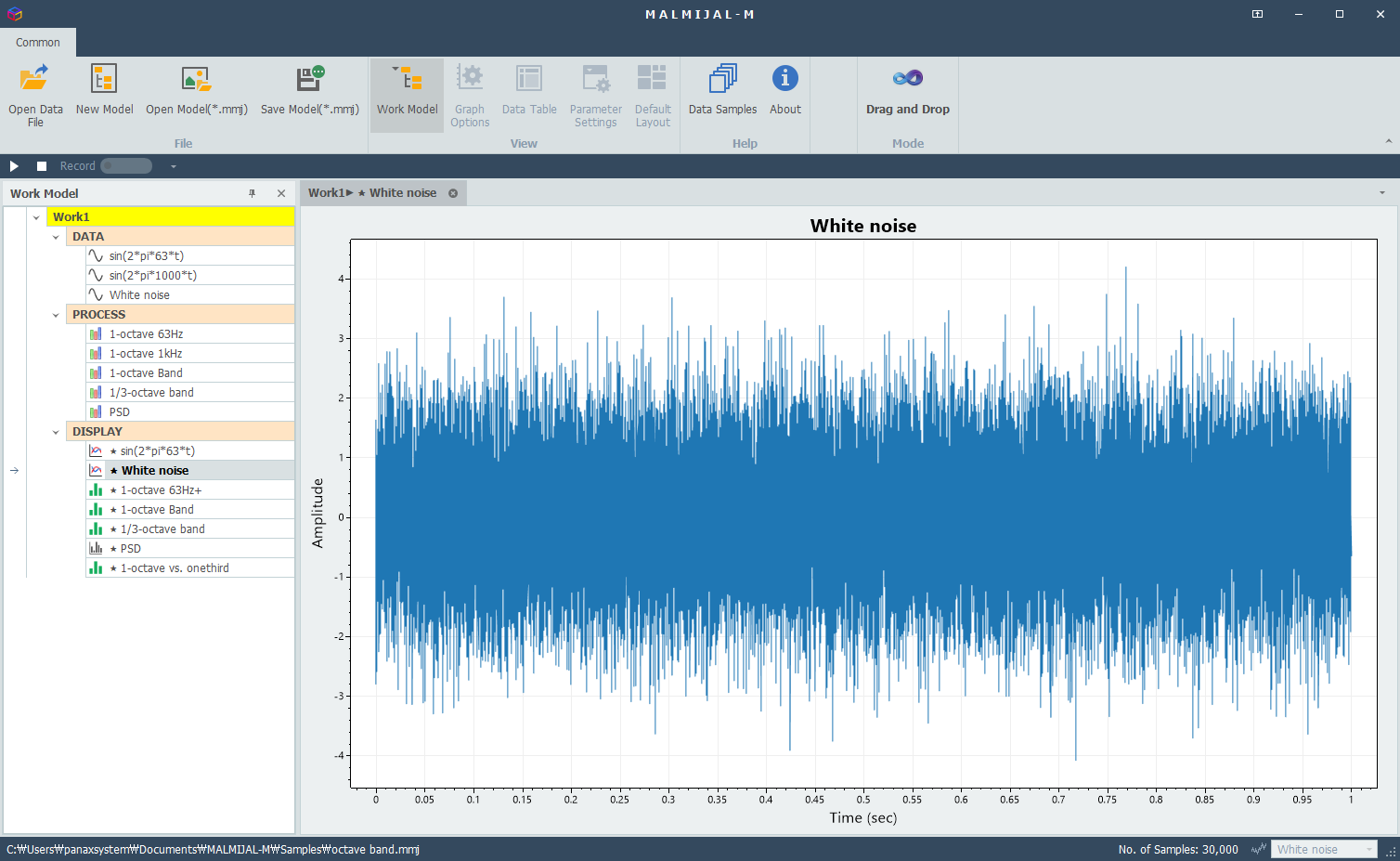

White noise (refer to Samples/octave band.mmj)
This signal doesn’t tell us how energy is distributed across frequencies.
Octave Band Analysis in MALMIJAL
MALMIJAL provides built-in Octave Band Analysis inside the PROCESS Spectra module.

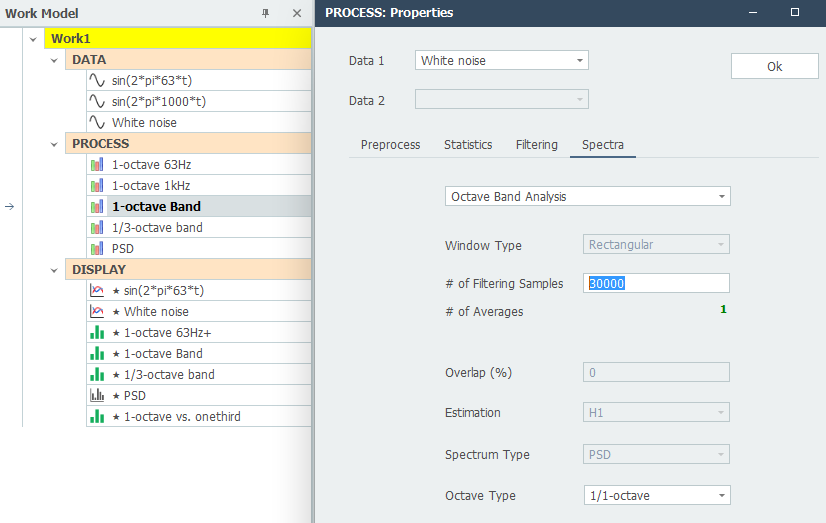

Octave Band Analysis configuration in MALMIJAL PROCESS module
Key parameters
- Number of filtering samples
- Averaging
- Octave type (1/1 or 1/3)
This is fundamentally different from FFT
It uses band-pass filtering from narrow band data, not discrete frequency bins.
1-Octave Band Result

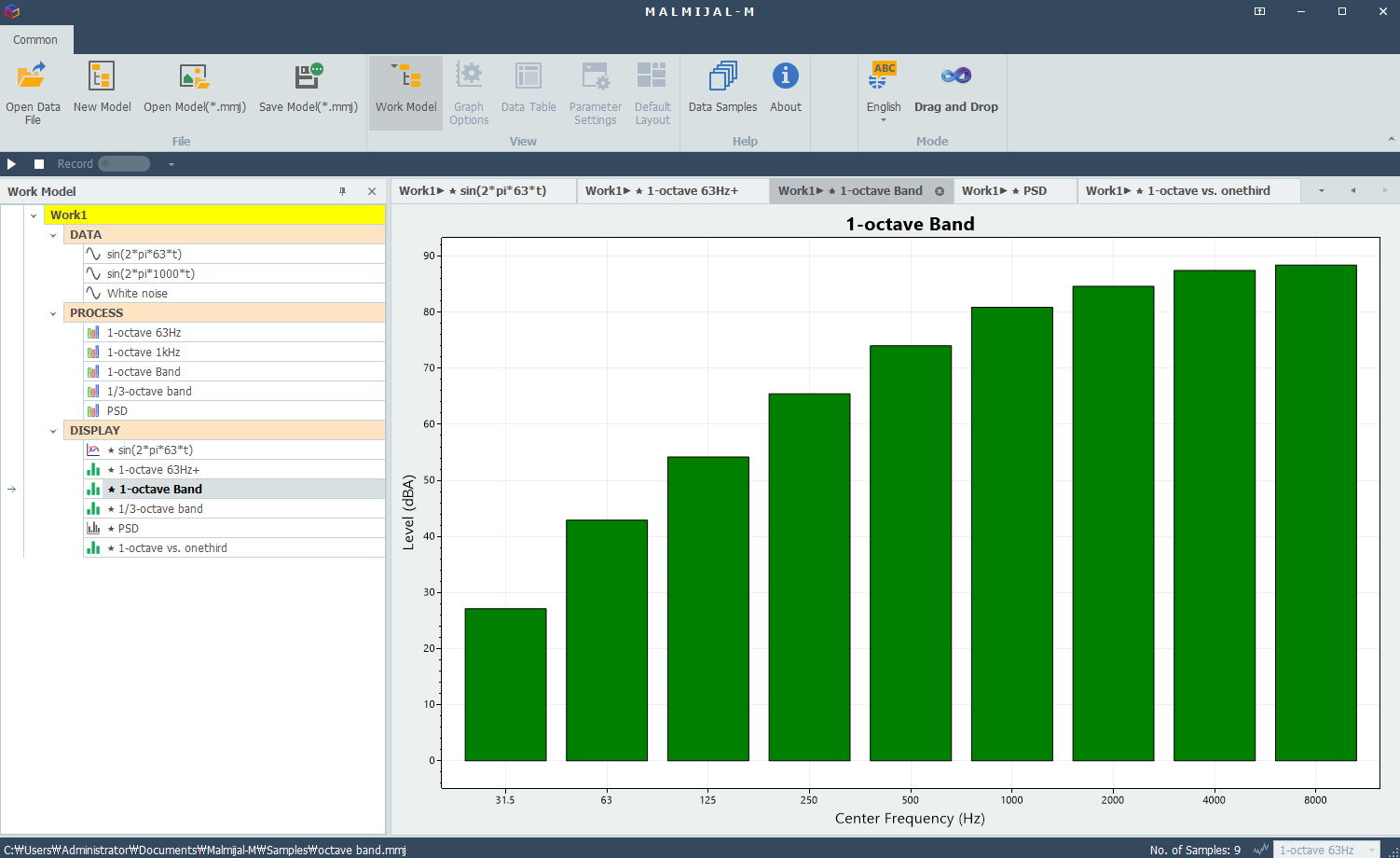

A-weighting 1-octave band analysis result showing energy distribution across frequency bands
(refer to Samples/octave band.mmj)
Here, the signal is grouped into wide bands.
Key Feature
- Smooth representation
- Clear dominant frequency region
- Easy to interpret trend
This is commonly used in
- Noise standards (ISO 266, IEC 61260, ANSI S1.11)
- Environmental noise analysis
1/3-Octave Band Result

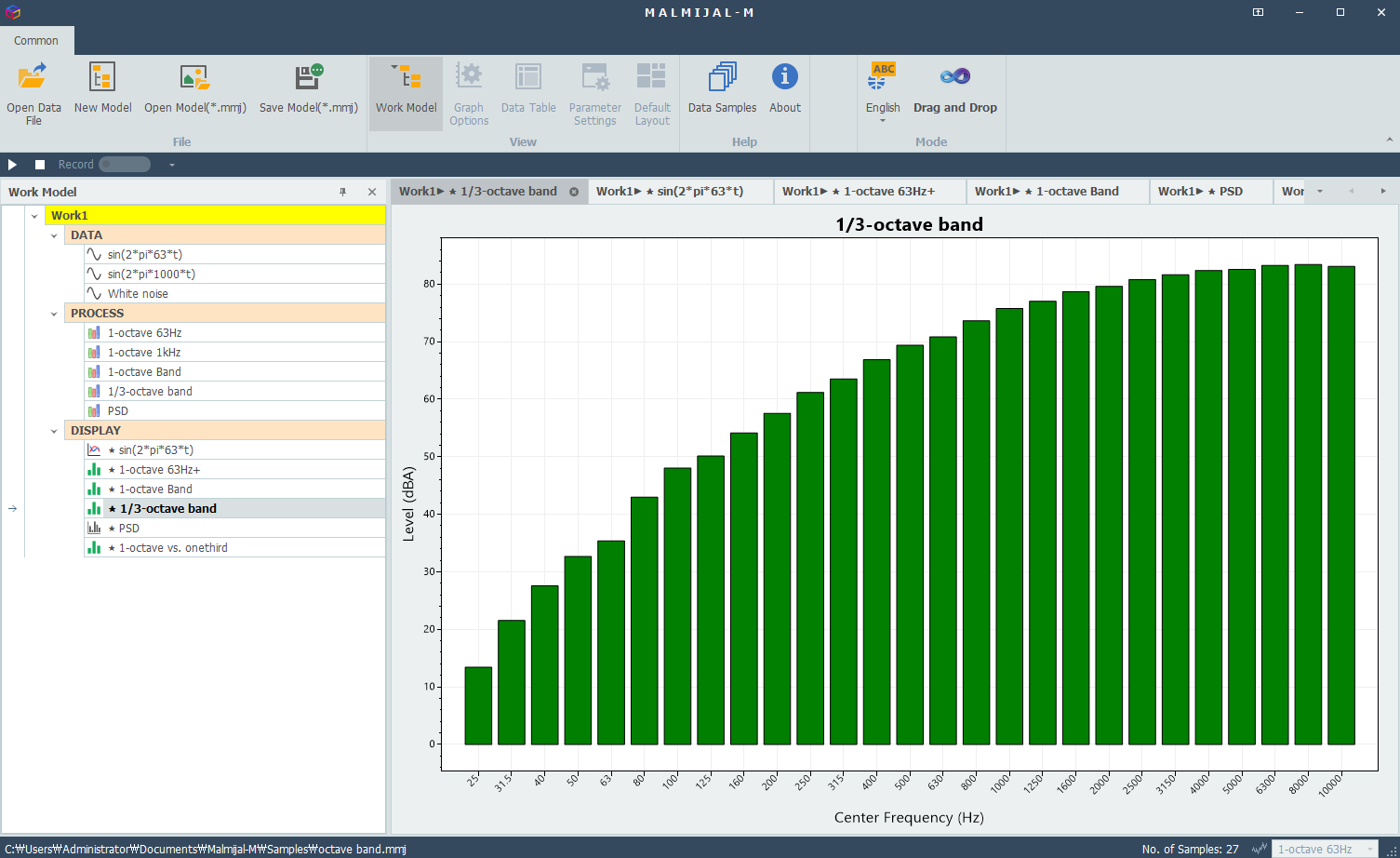

A-weighting 1/3-octave band analysis providing finer frequency resolution (refer to Samples/octave band.mmj)
Compared to 1-octave
- More bands
- Higher resolution
- Still much simpler than FFT
Key difference
| Type | Feature |
|---|
| 1-Octave | Fast and simple |
| 1/3-Octave | More precise analysis |
Comparing 1-Octave vs 1/3-Octave

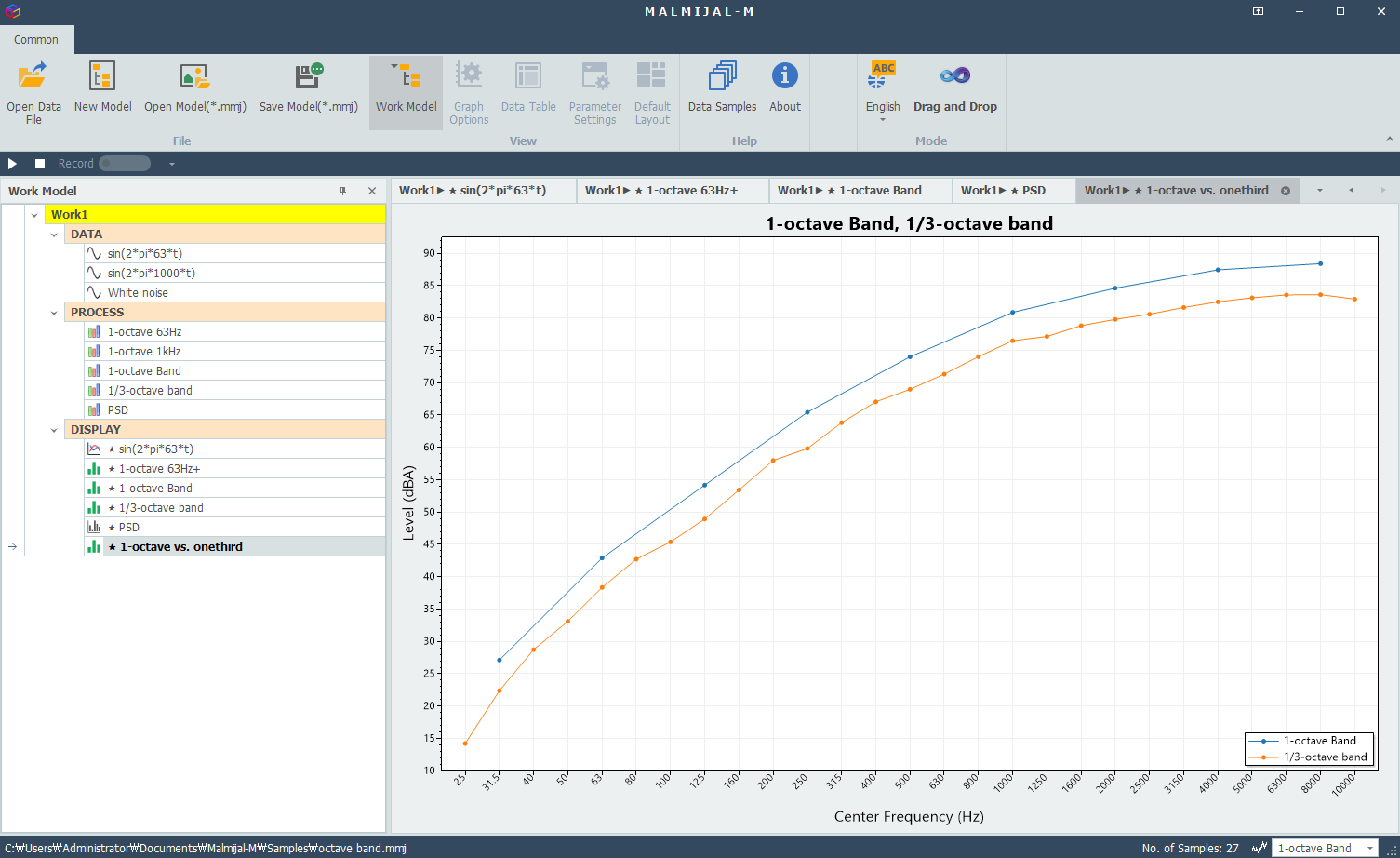

Comparison between 1-octave and 1/3-octave band analysis results (refer to Samples/octave band.mmj)
This comparison shows
- 1/3-octave reveals more detailed structure
- 1-octave emphasizes overall energy distribution
In practice
- Use 1-octave for overview
- Use 1/3-octave for detailed analysis
What About PSD: narrow band analysis?
MALMIJAL also provides PSD (Power Spectral Density) for narrow band analysis.

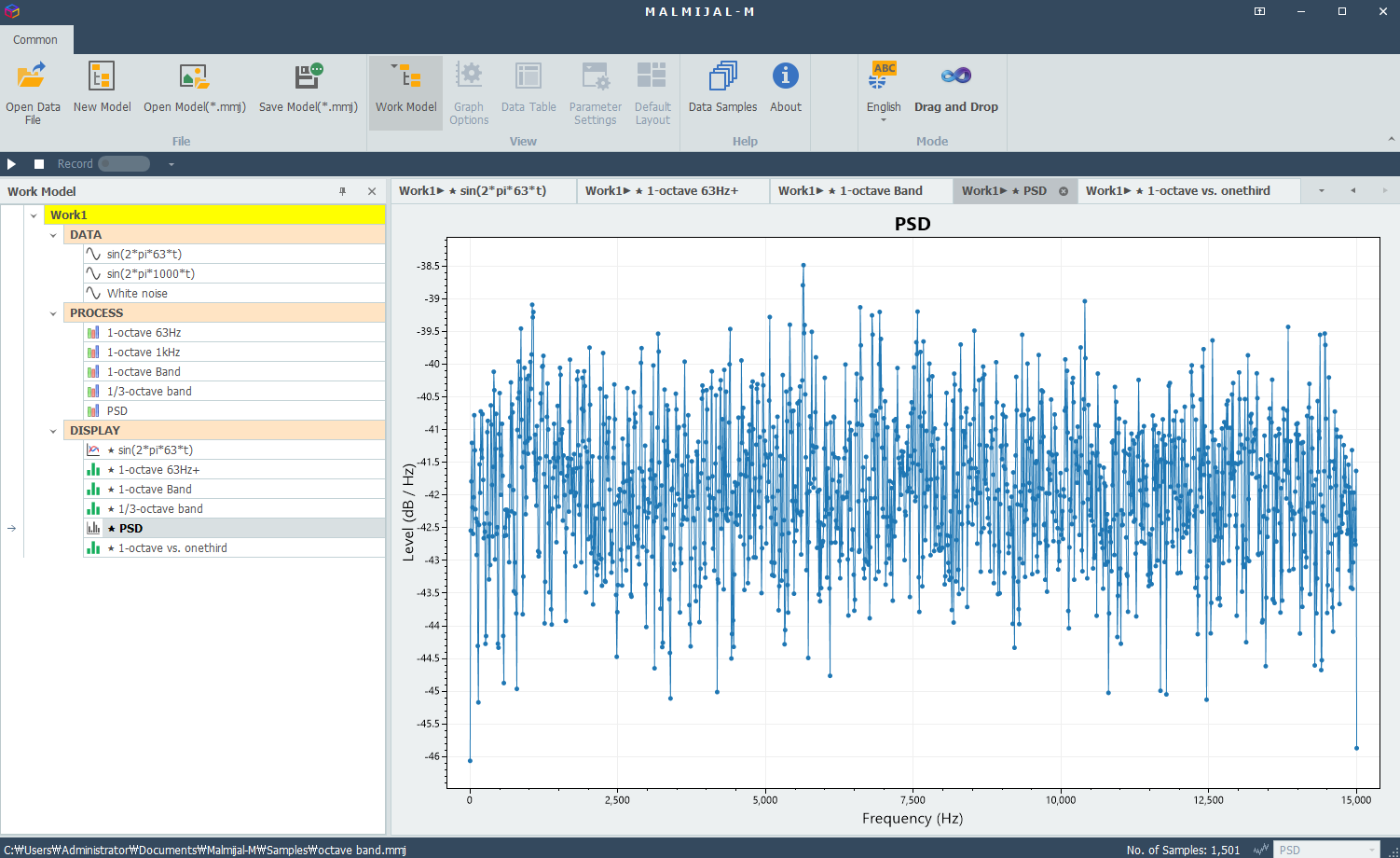

PSD showing continuous frequency energy distribution (refer to Samples/octave band.mmj)
PSD shows
- Energy per Hz
- Continuous spectrum
In case of octave bands
- Integral of energy over frequency ranges, it means power spectrum instead of PSD
Key difference
| PSD | Octave Band |
|---|
| Continuous-based | Band-based |
| Narrowband analysis | Wideband analysis |
| Uniform narrowband bins (Δf ) | Variable bandwidth |
| High resolution | Perceptual grouping |
| Linear(Hz) scaled frequency | Log scaled frequency |
Key Insights
Octave band analysis is not just a simplified FFT. In other words, FFT reveals detailed spectral information, while octave bands provide a more meaningful interpretation.
It is a different way of representing energy, designed for
- Human interpretation
- Engineering standards
- Noise and vibration (NVH) analysis
When Should You Use Octave Bands?
Use octave bands when
- You care about energy distribution, not exact frequency
- You need standardized results
- You want readable graphs for reporting
Use FFT when
- You need precise frequency components
- You are debugging signals
- You need spectral accuracy
Conclusions
Octave band analysis transforms complex spectral data into something interpretable and meaningful.
Instead of asking as follows
“What frequencies exist?”
You are asking
“Where is the energy concentrated?”
And that difference is exactly why engineers rely on octave bands in real-world applications.
