Exploring Signal Generation with MALMIJAL: From Step Functions to Sinc Signals
In signal processing, understanding how different types of signals behave is just as important as analyzing them. While many tools focus heavily on FFT and spectral analysis, the ability to generate and visualize fundamental signals is equally critical—especially for building intuition about system behavior, filtering, and time-frequency relationships.
In this article, we explore how MALMIJAL can be used not just as an analysis tool, but as a signal generation platform, allowing us to create and inspect
- Step function
- Delayed step function
- Impulse-like signals (one-shot pulse)
- Delayed pulse
- Sinc function
- Their corresponding frequency-domain representations
Step Function and Time Delay
A step function is one of the most fundamental signals in DSP
MALMIJAL allows us to easily generate both an unit step and a delayed step function.
Key Insight
- The delayed version of step function is simply
- Time shifting does not change the shape, only its position
- This concept is essential for understanding system response and causality
Visualize

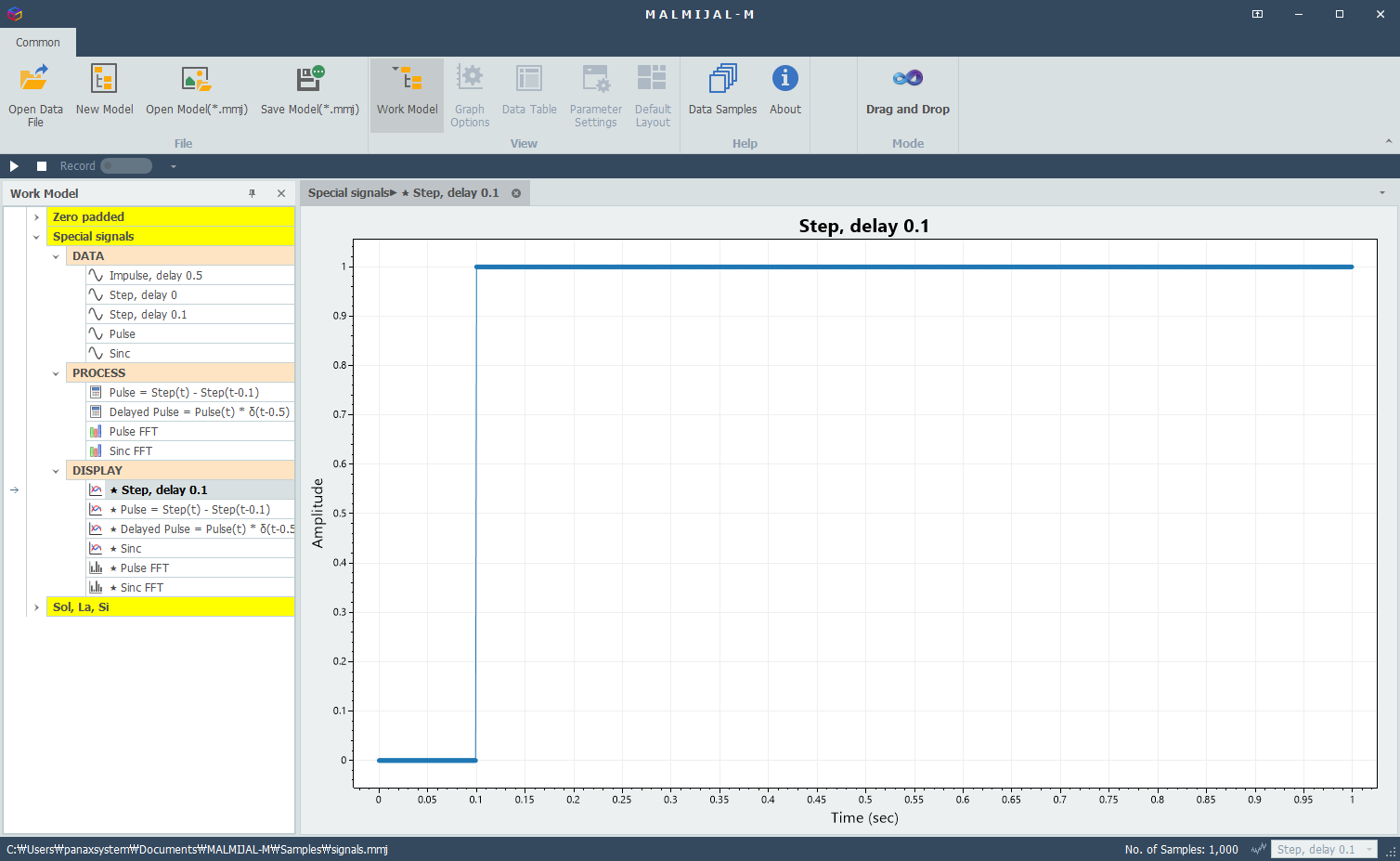

Step signal with 0.1 second delay (refer to Samples/signals.mmj)
Pulse Signal (Unit impulse-like Behavior)
The “Pulse” signal behaves like a finite-duration impulse
- High amplitude for a short duration
- Zero elsewhere
Visualize

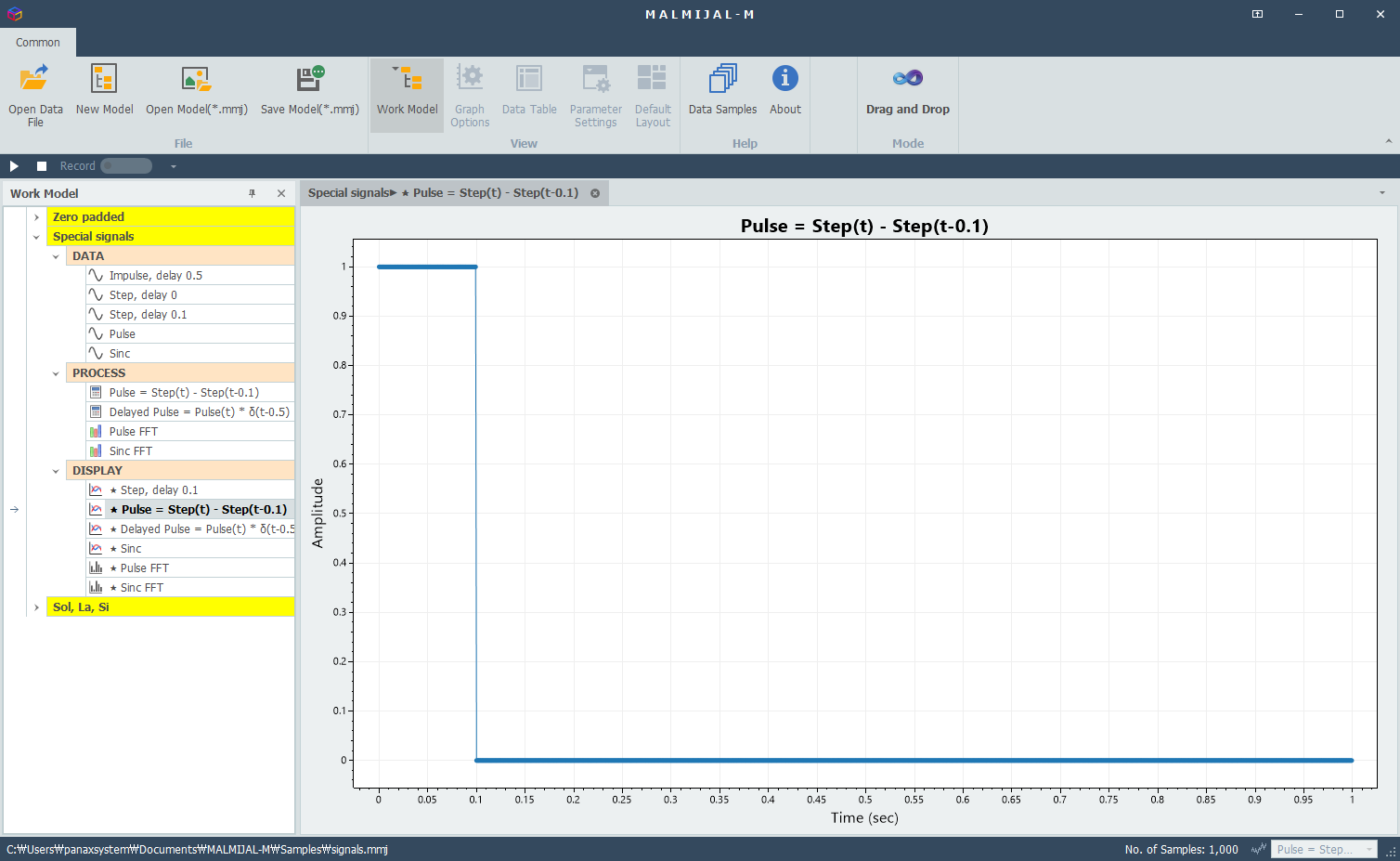

One-shot pulse signal representing a short-duration impulse

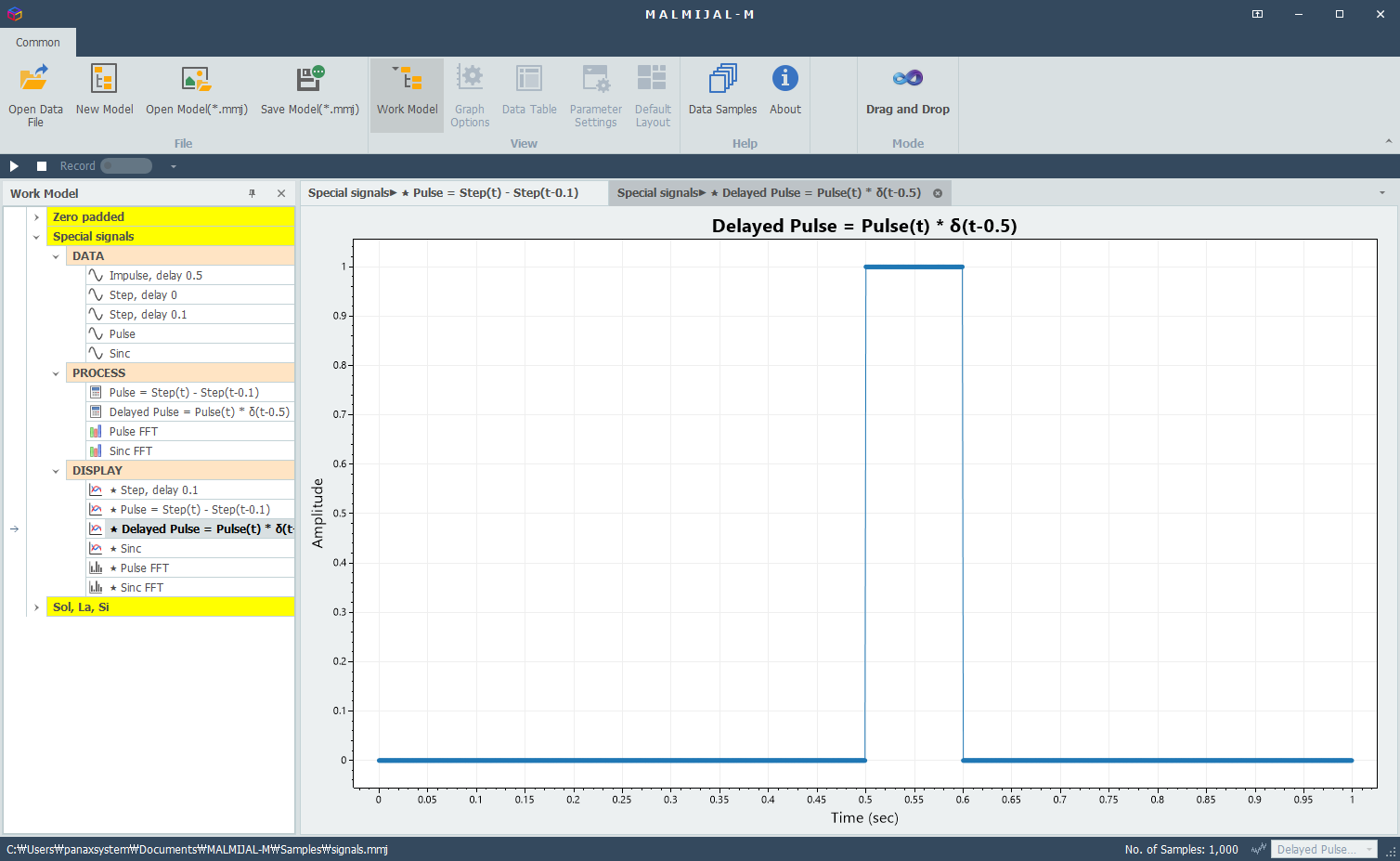

Delayed pulse = convolution of pulse and delayed impulse
Key Insight
This is a practical approximation of the Dirac delta function
δ(t)
- In real systems, we cannot represent true unit impulse
- Instead, we use short-duration pulses
- This is critical for
- System identification
- Impulse response analysis
Sinc Function — The Foundation of Ideal Filtering
The sinc function is one of the most important signals in DSP
Visualize

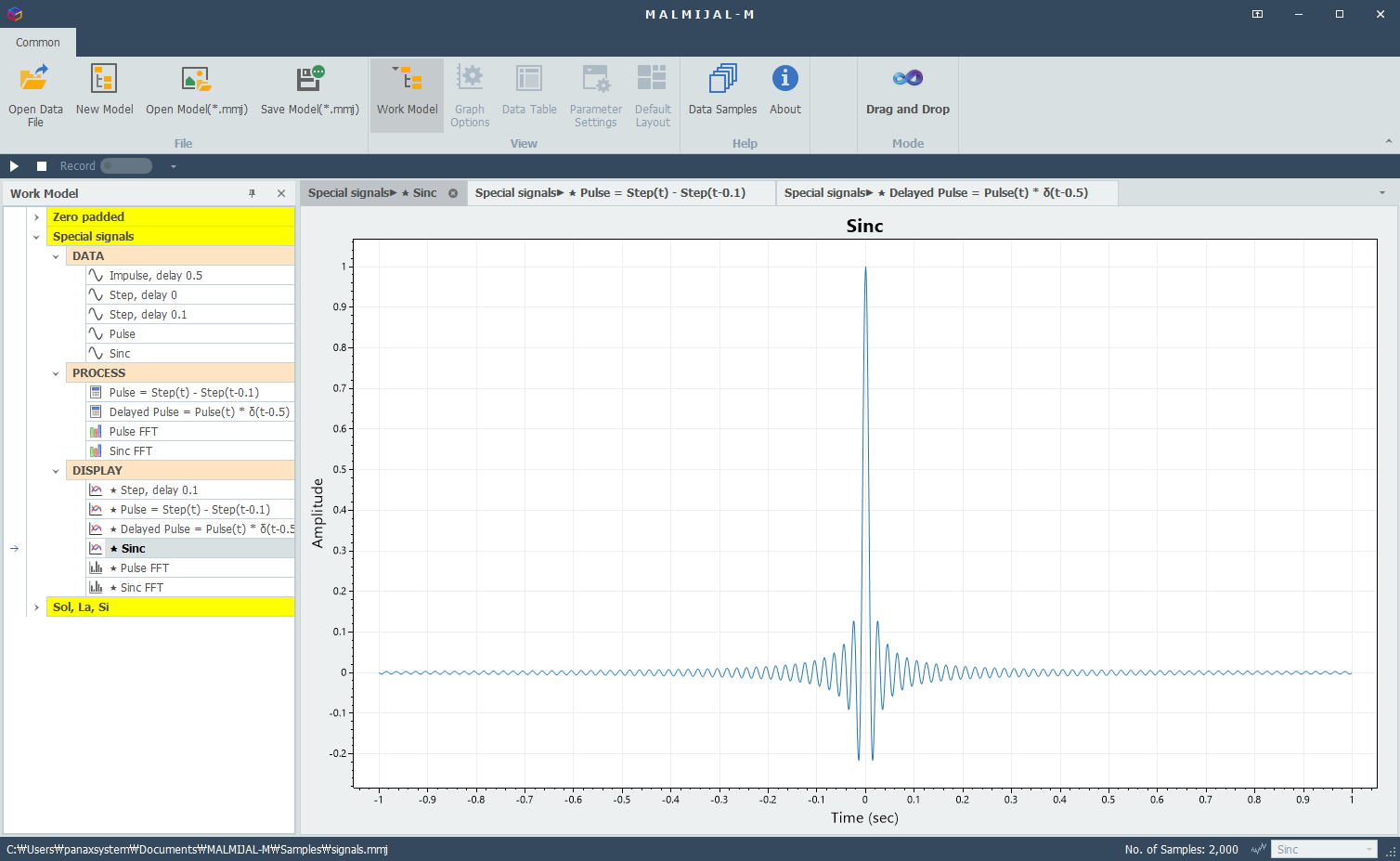

Sinc function showing oscillatory decay
Key Insight
- The sinc function is the impulse response of an ideal low-pass filter
- It extends infinitely in time
- Exhibits oscillatory decay
Important Interpretation
- Sharp transitions in frequency → long tails in time
- This is a manifestation of the time-frequency trade-off
Step Function in Frequency Domain
Visualize

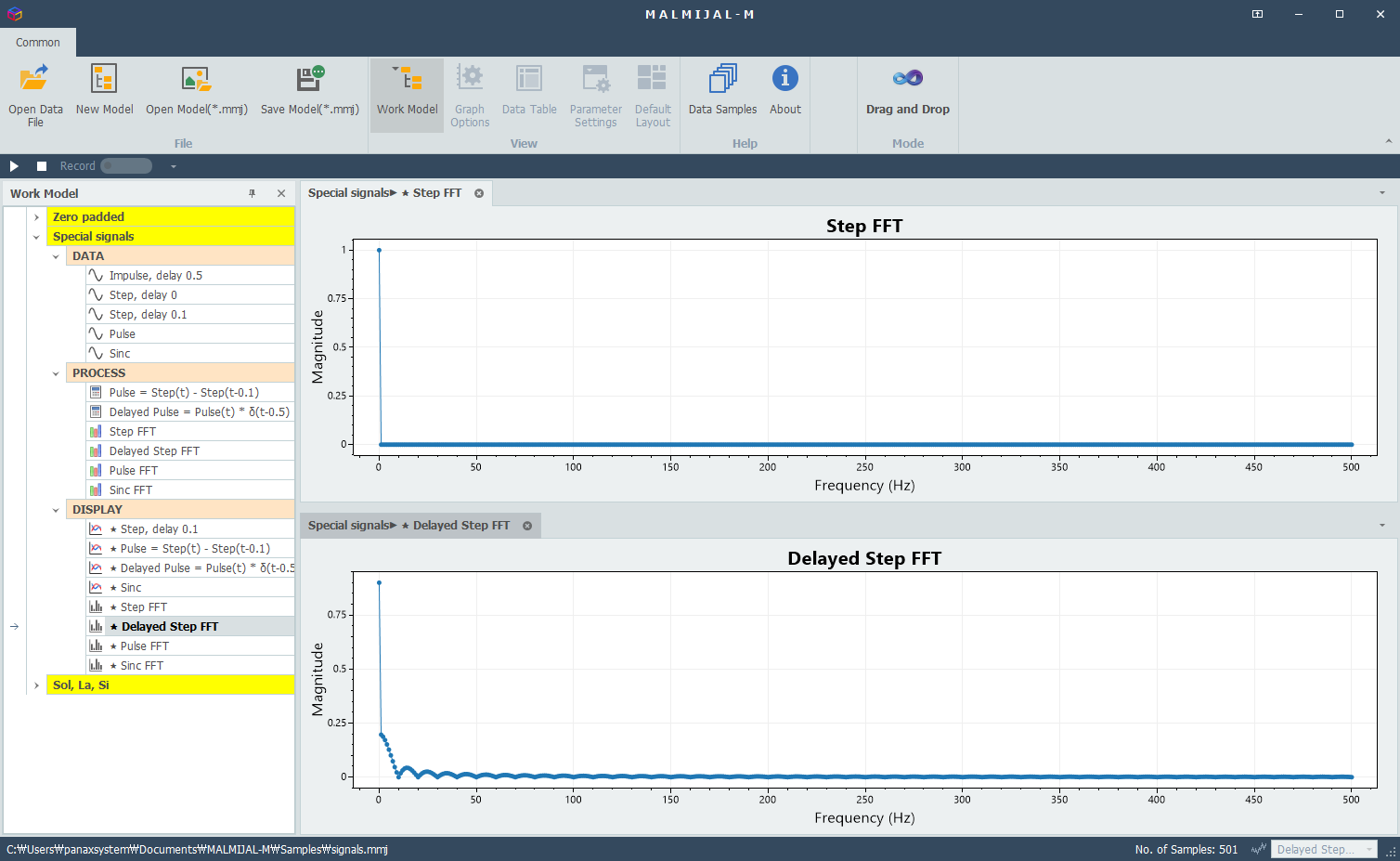

Frequency spectrum of a step and a delayed step function (why do they differ?)
Pulse and Delayed Pulse Signal in Frequency Domain
Visualize

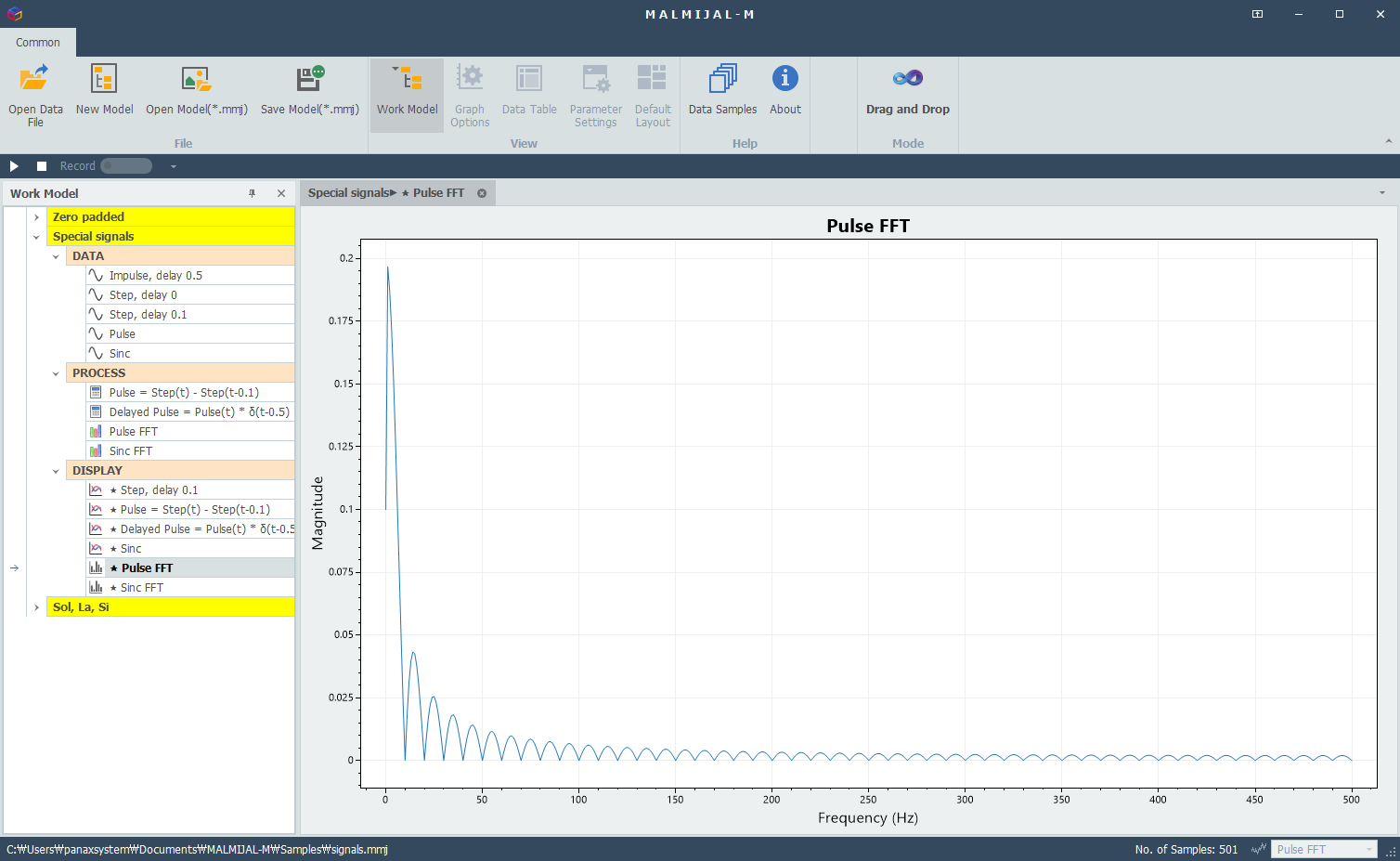

Frequency spectrum of a pulse or a delayed pulse signal (delay does not affect magnitude spectrum)
Sinc Function in Frequency Domain
Visualize

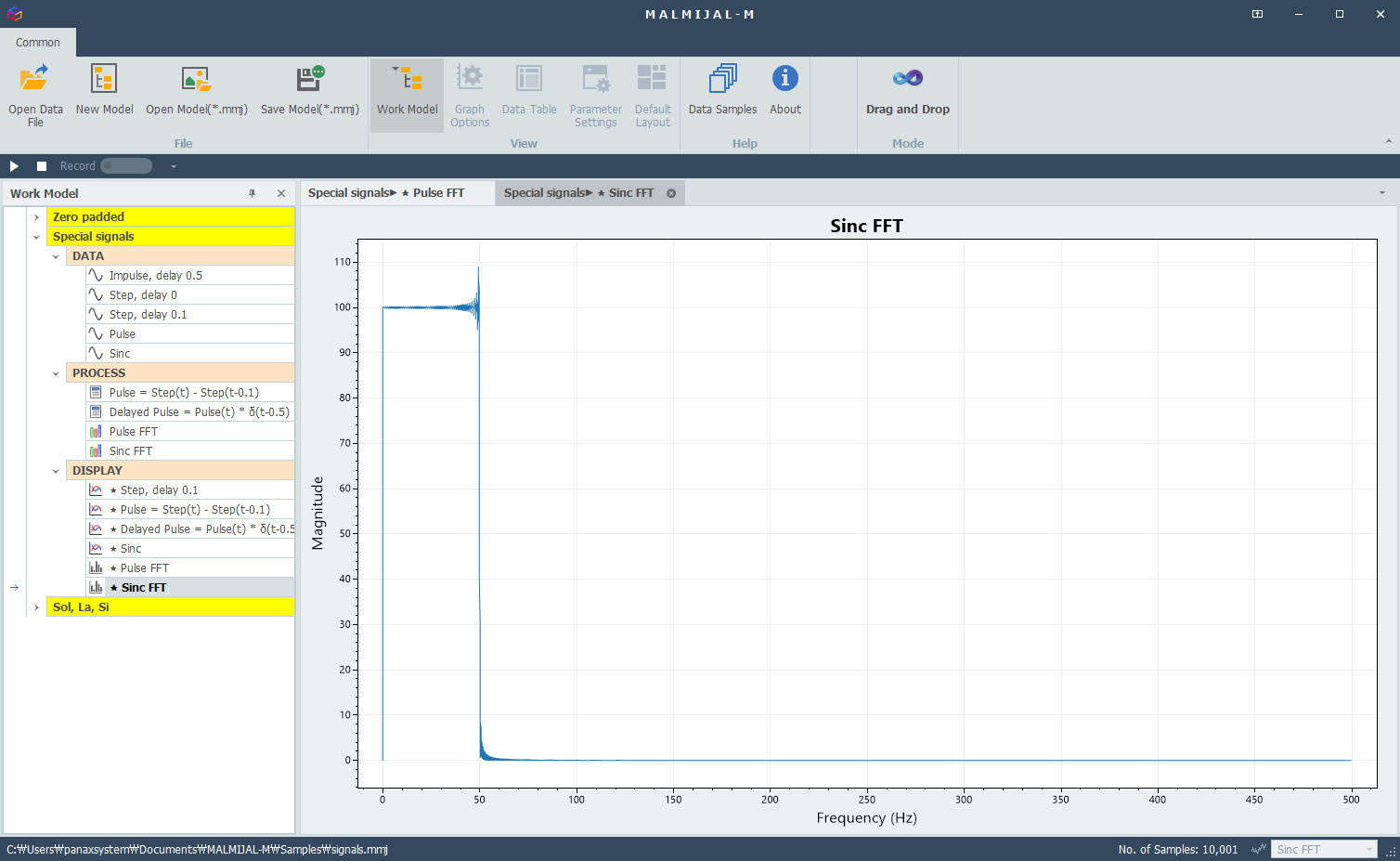

Frequency spectrum of a sinc function
Key Insight
This demonstrates a fundamental principle
Short signals in time → wide signals in frequency
- The shorter the signal duration, the broader its spectrum
- This is directly related to the uncertainty principle in signal processing
Why This Matters in Practice
Using MALMIJAL as a signal generation tool enables
Rapid Prototyping
- Create test signals instantly
- Validate DSP algorithms quickly
Intuition Building
- Understand time-frequency relationships visually
- See theoretical concepts in action
Debugging Systems
- Test system response with controlled inputs
- Identify unexpected behavior
Practical Implications
| Signal Type | Real-World Meaning |
|---|
| Step function | System input / activation |
| One-shot pulse | Impact / impulse events |
| Sinc function | Ideal filter response |
| Delayed signal input | Propagation / latency |
Key Takeaways
- MALMIJAL is not just an analysis tool—it is also a signal generation platform.
- Time-domain operations (shift, truncation) directly impact frequency behavior.
- Understanding basic signals is essential before interpreting complex spectra.
- Visualization accelerates intuition far more than equations alone.
