Convolution Theorem Explained with Real Examples
The Convolution Theorem is one of the most powerful ideas in signal processing.
It connects time domain and frequency domain in a simple way.
What Is Convolution?
Convolution is a process of combining two signals, one signal is ‘slid’ over another, multiplied, and accumulated, similar to a weighted averaging process.
Mathematical Form
For continuous-time LTI system
For discrete-time LTI system
What Is the Convolution Theorem?
Theorem
Meaning
MALMIJAL Example (Samples/convolution theorem.mmj)

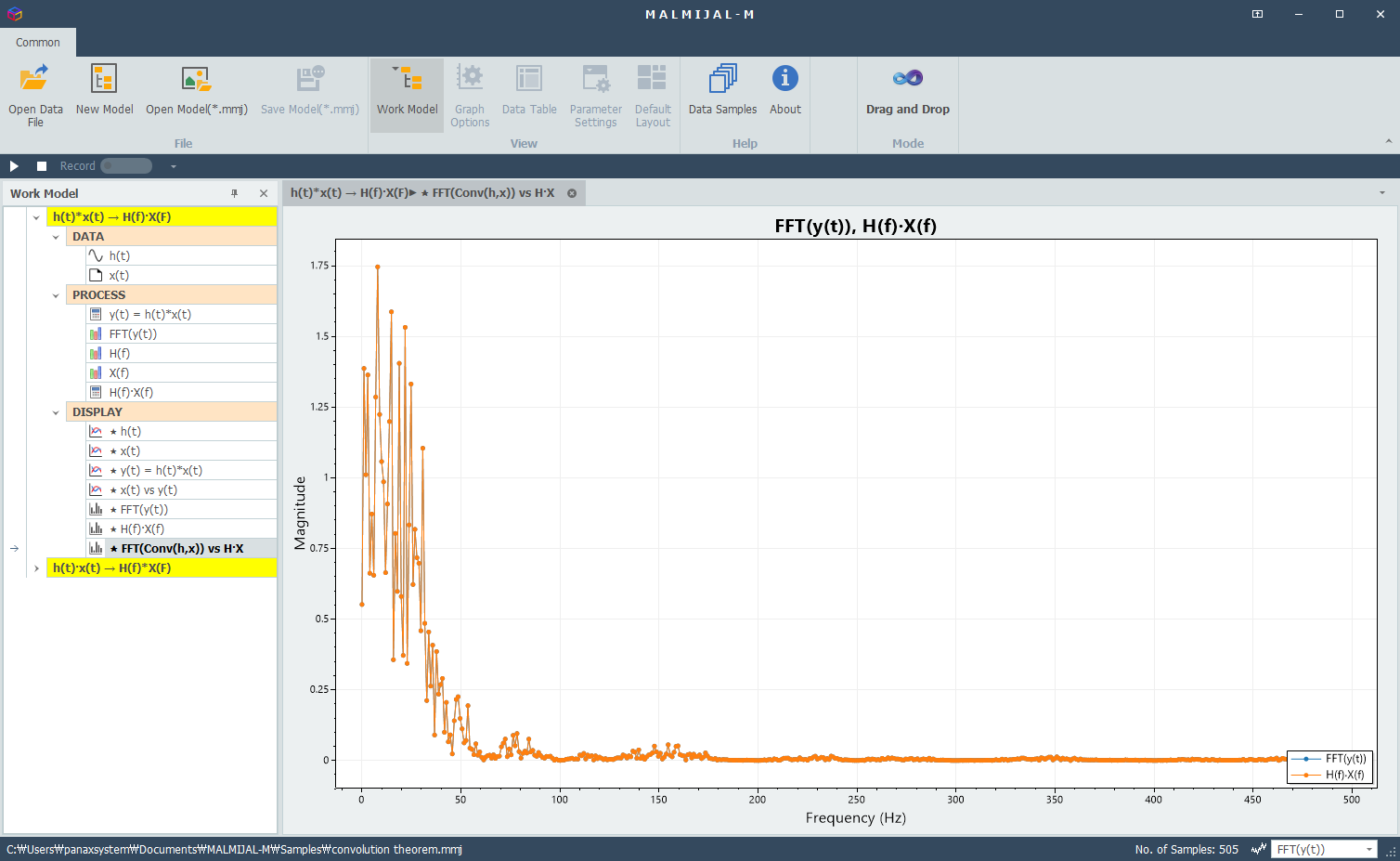

Example showing FFT{ h(t) * x(t) } = H(f)X(f)

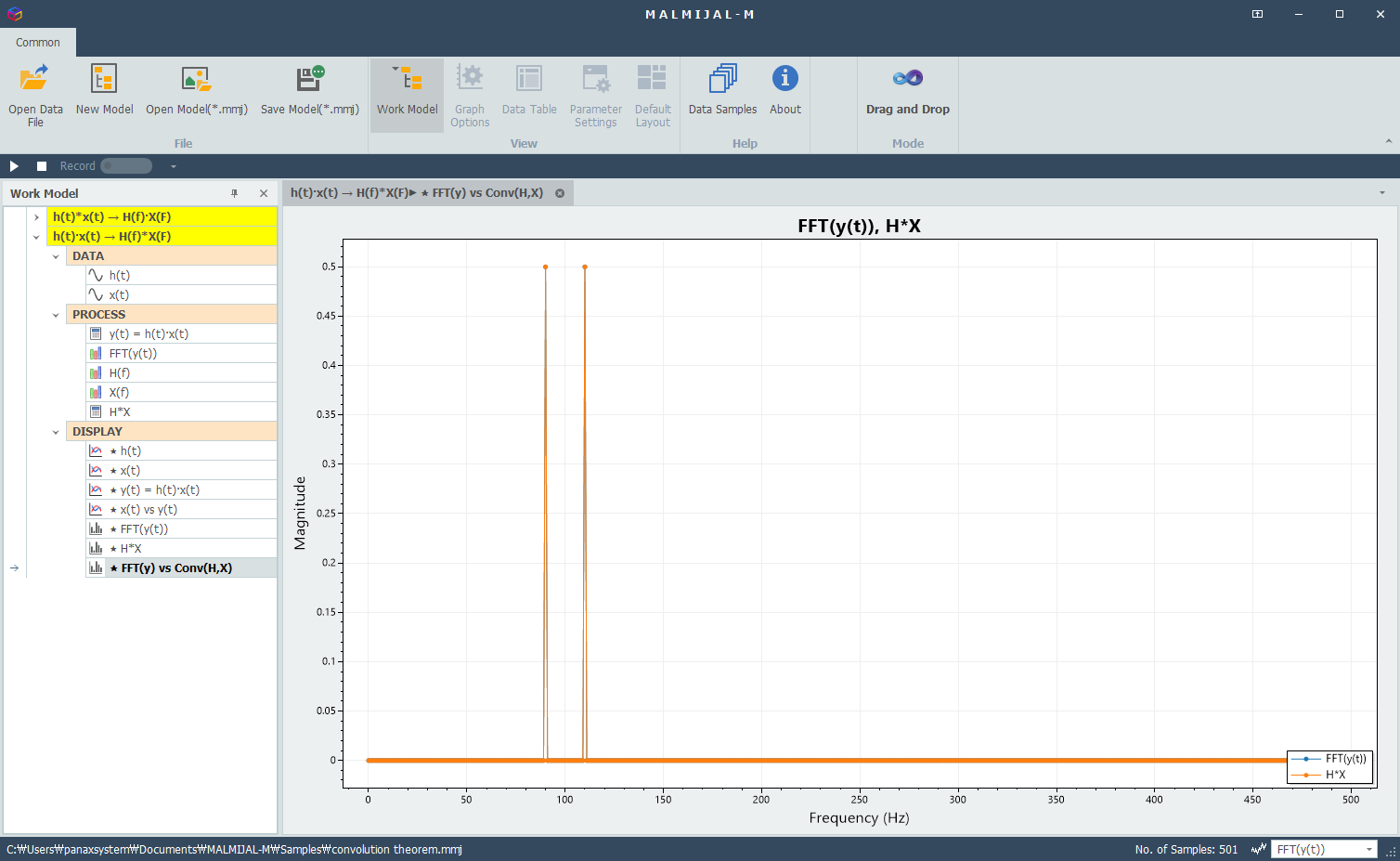

Example showing FFT{ h(t)x(t) } = H(f) * X(f)
Why This Is Important
Convolution in time domain is
But in frequency domain
- Reduced to simple multiplication
- Much faster: O (N log N)
Key Insight
- The convolution theorem is powerful not only because it is computationally efficient, but because it makes signal processing conceptually intuitive

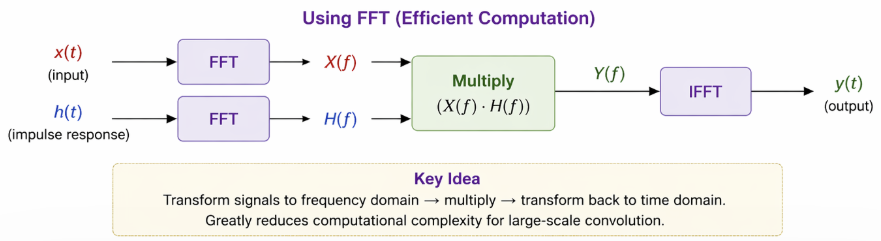

- Time-domain convolution → FFT → multiplication in the frequency domain → inverse FFT → output
Explanation of Truncation Effect
Explanation of Filtering
Time Domain View

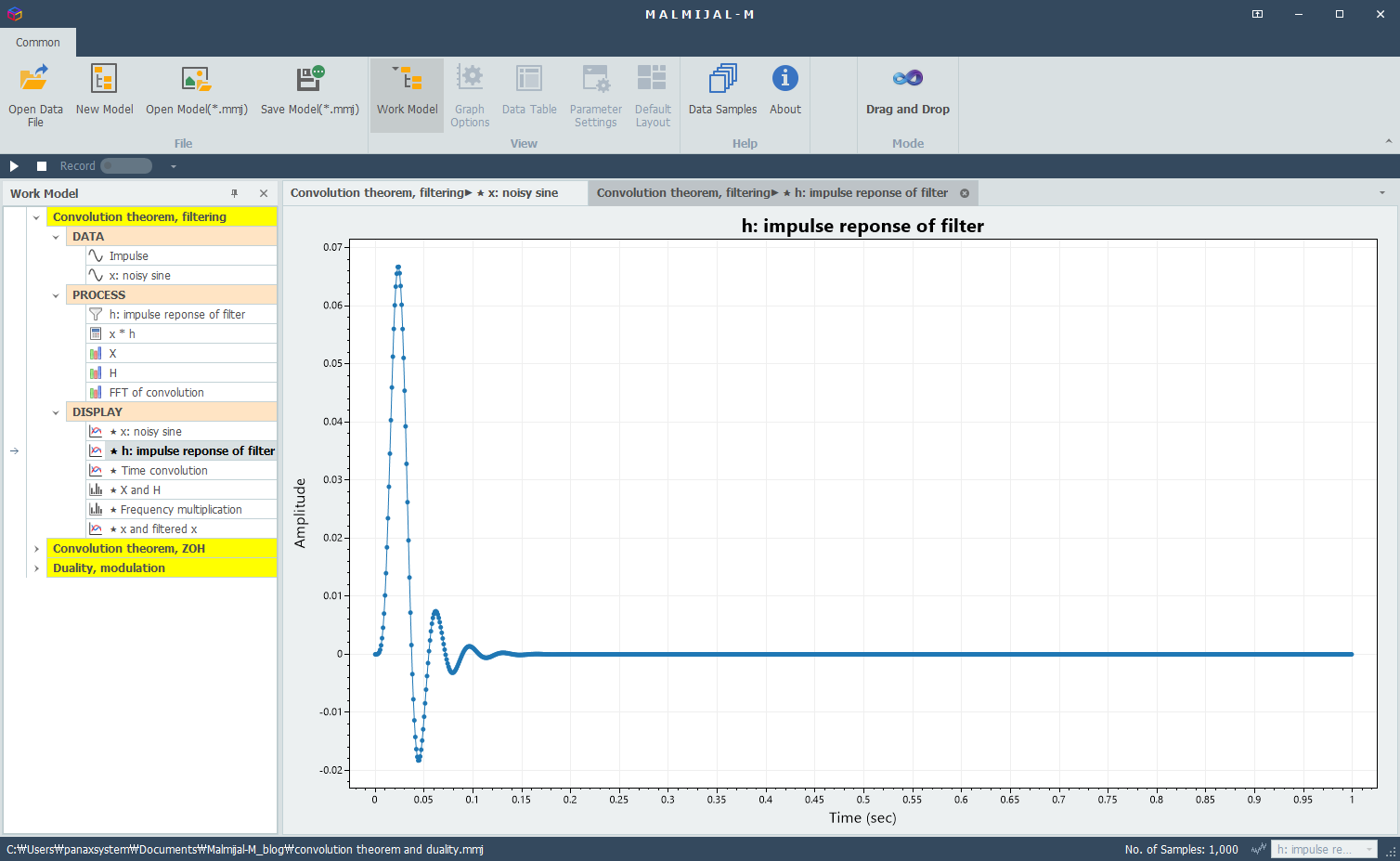

- Impulse response of filter * Input signal (convolution)
Frequency Domain View
- Frequency response of filter x Input signal spectrum (multiplication)

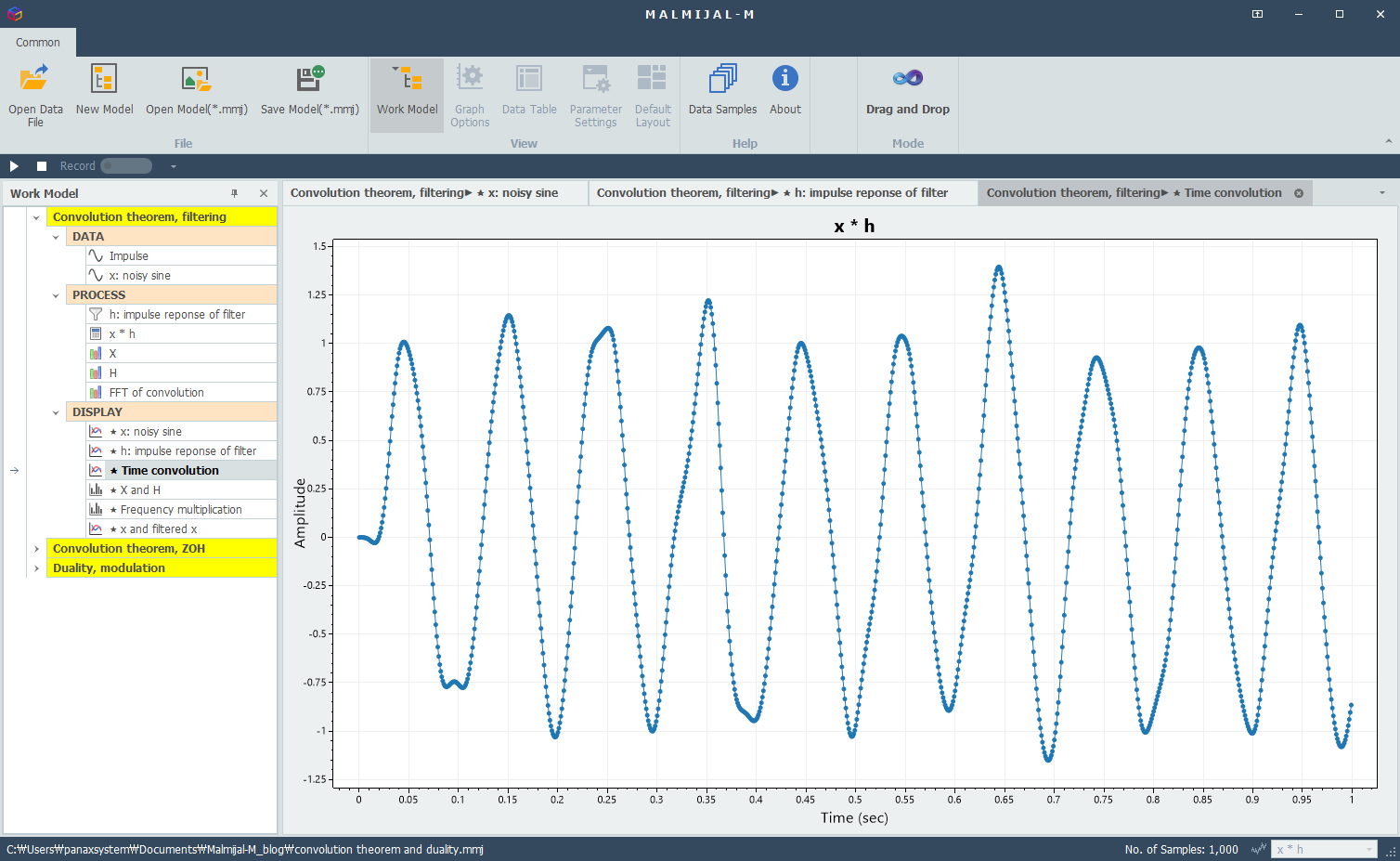

Convolution in the time domain (x * h) produces the filtered output

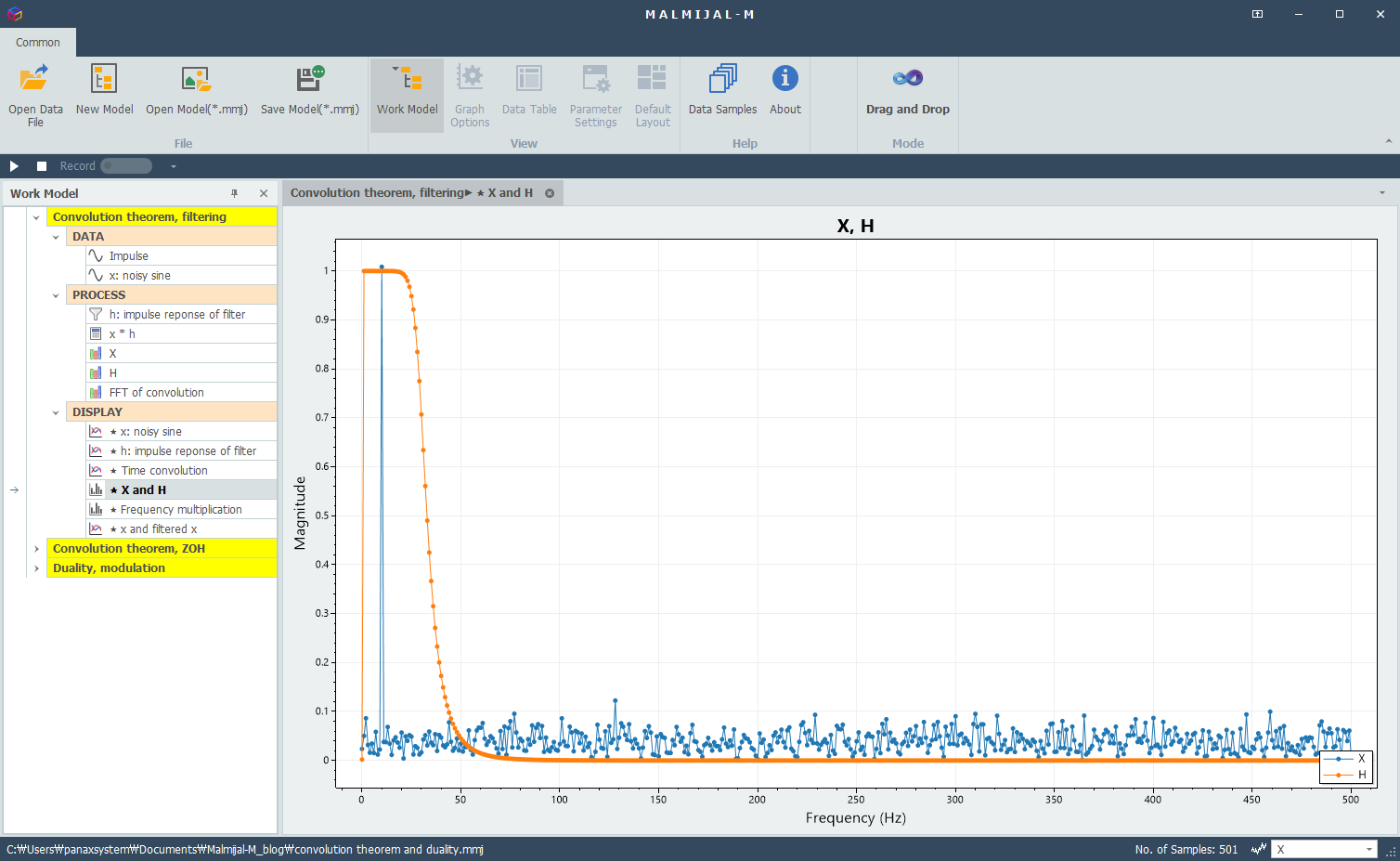

H(f) means frequency response of low-pass filter, cutoff frequency 30Hz

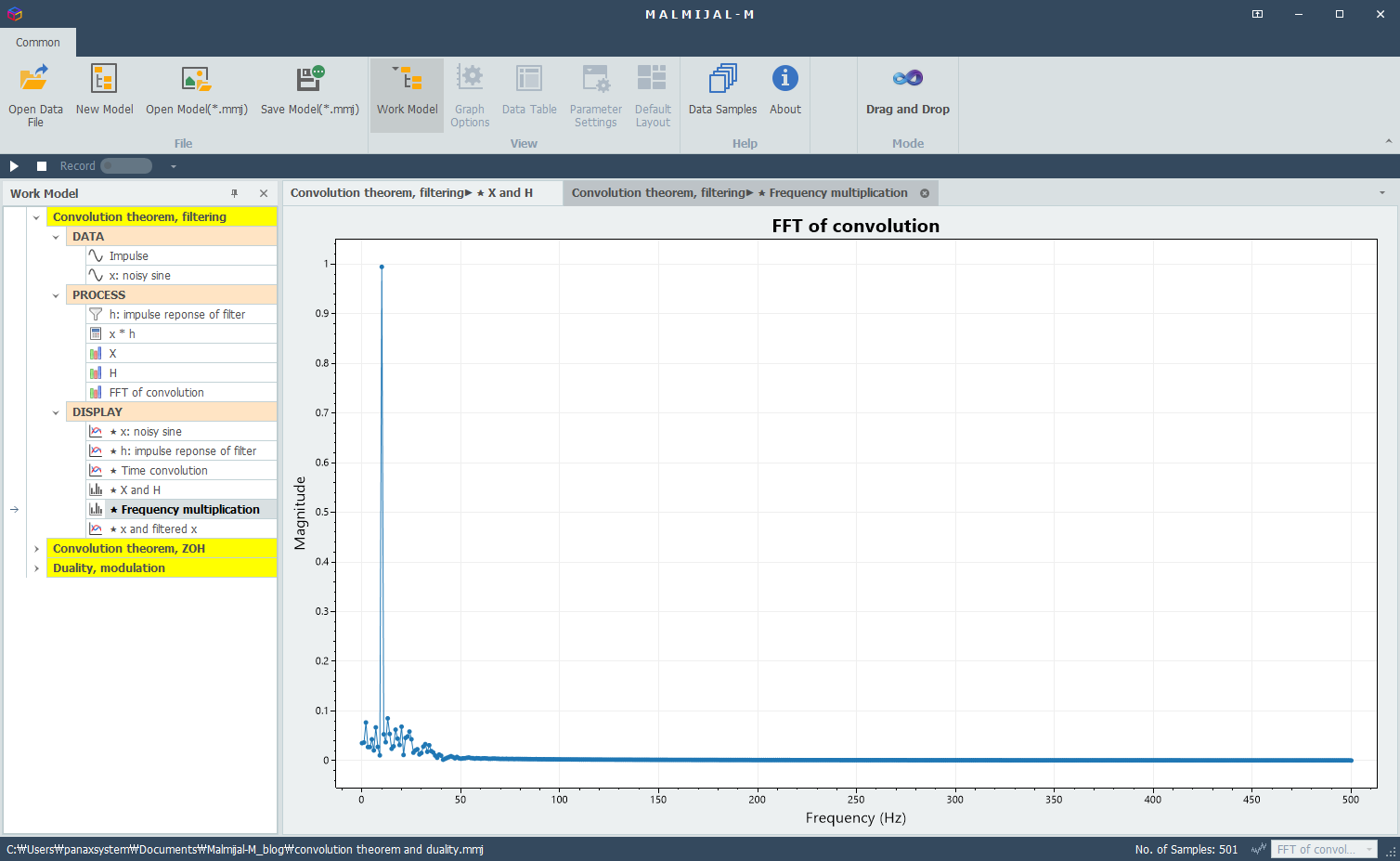

Multiplication in the frequency domain
Only the 10 Hz component remains dominant (cutoff frequency:30Hz)

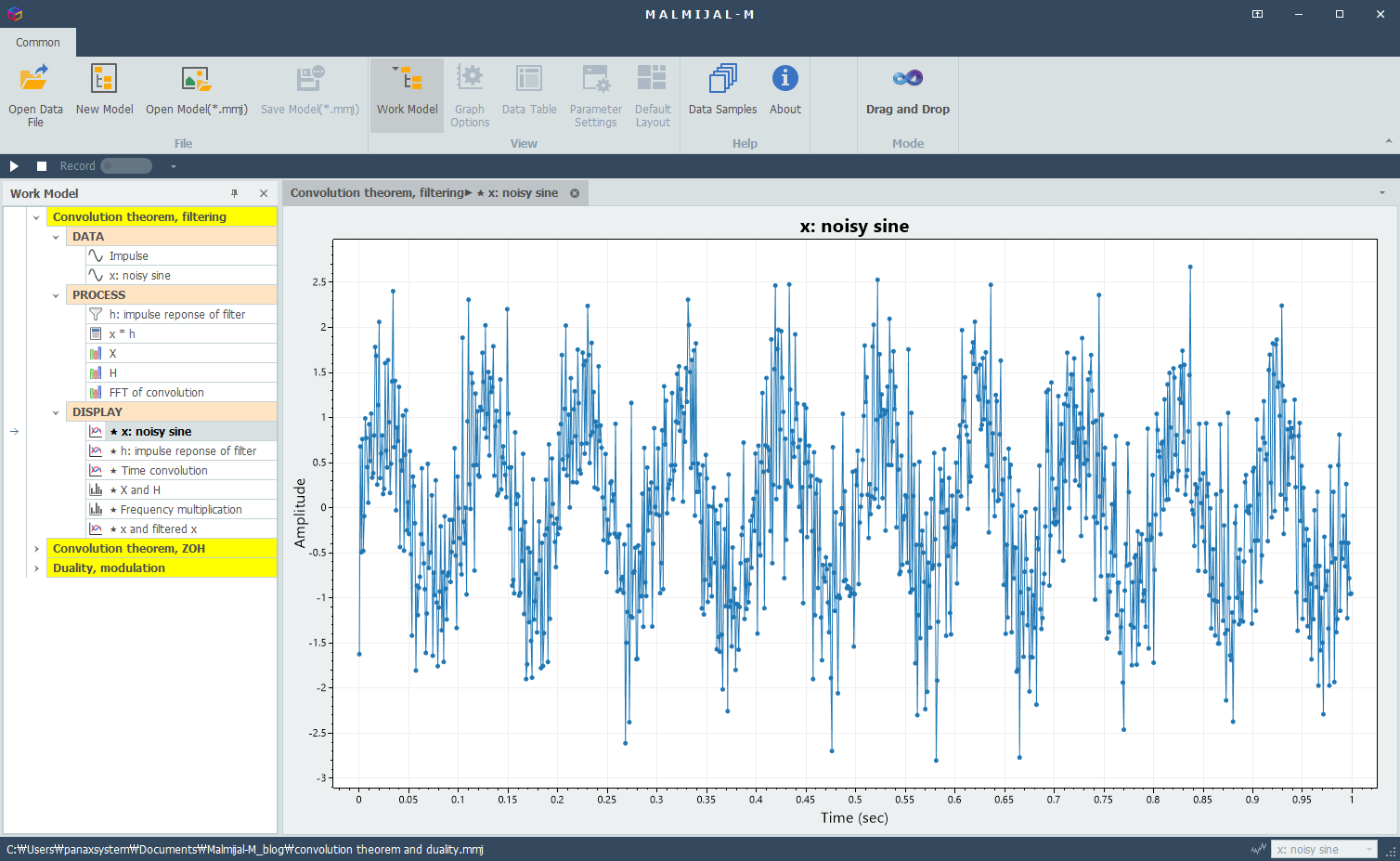

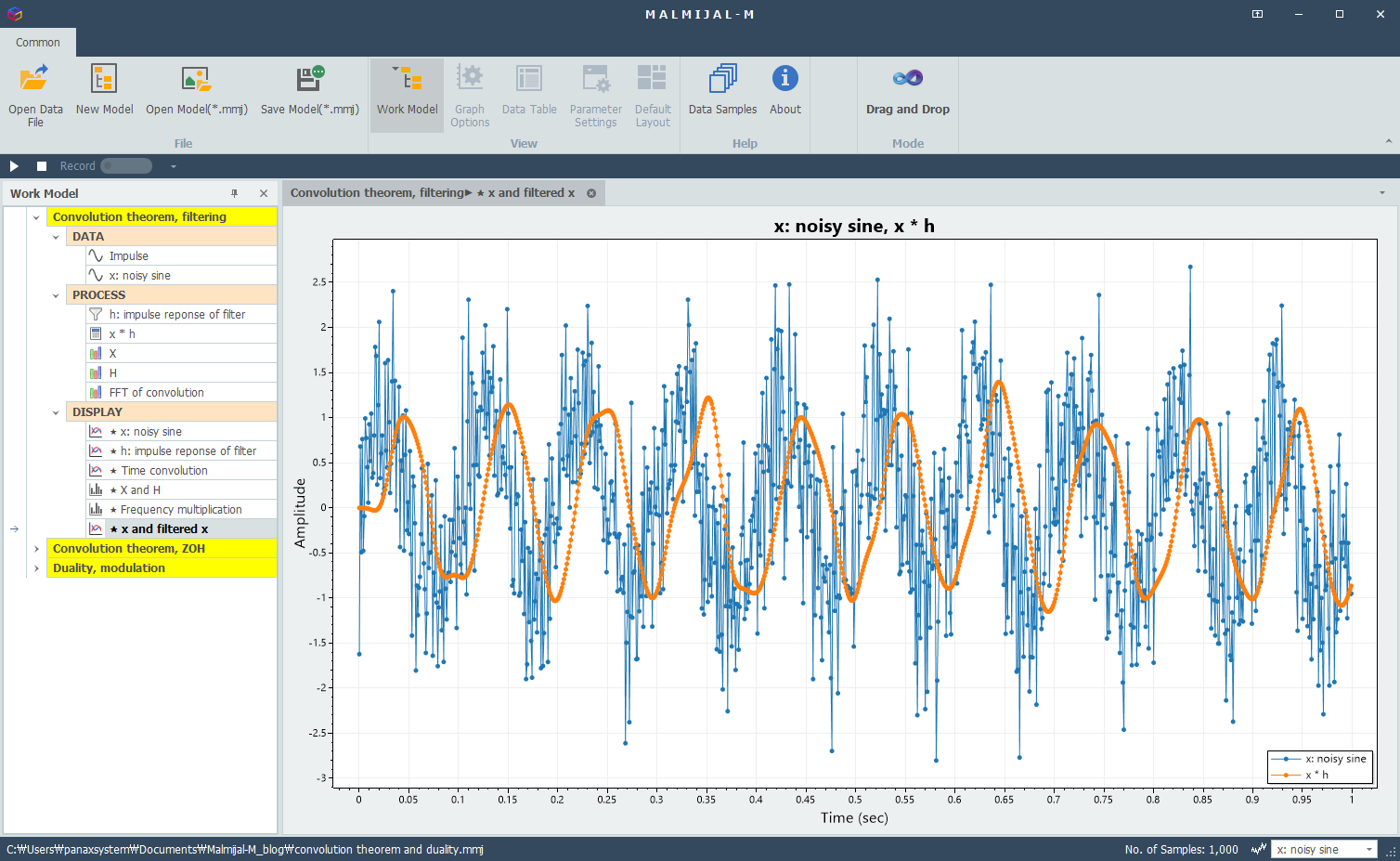

Comparison of noisy sine wave and filtered output

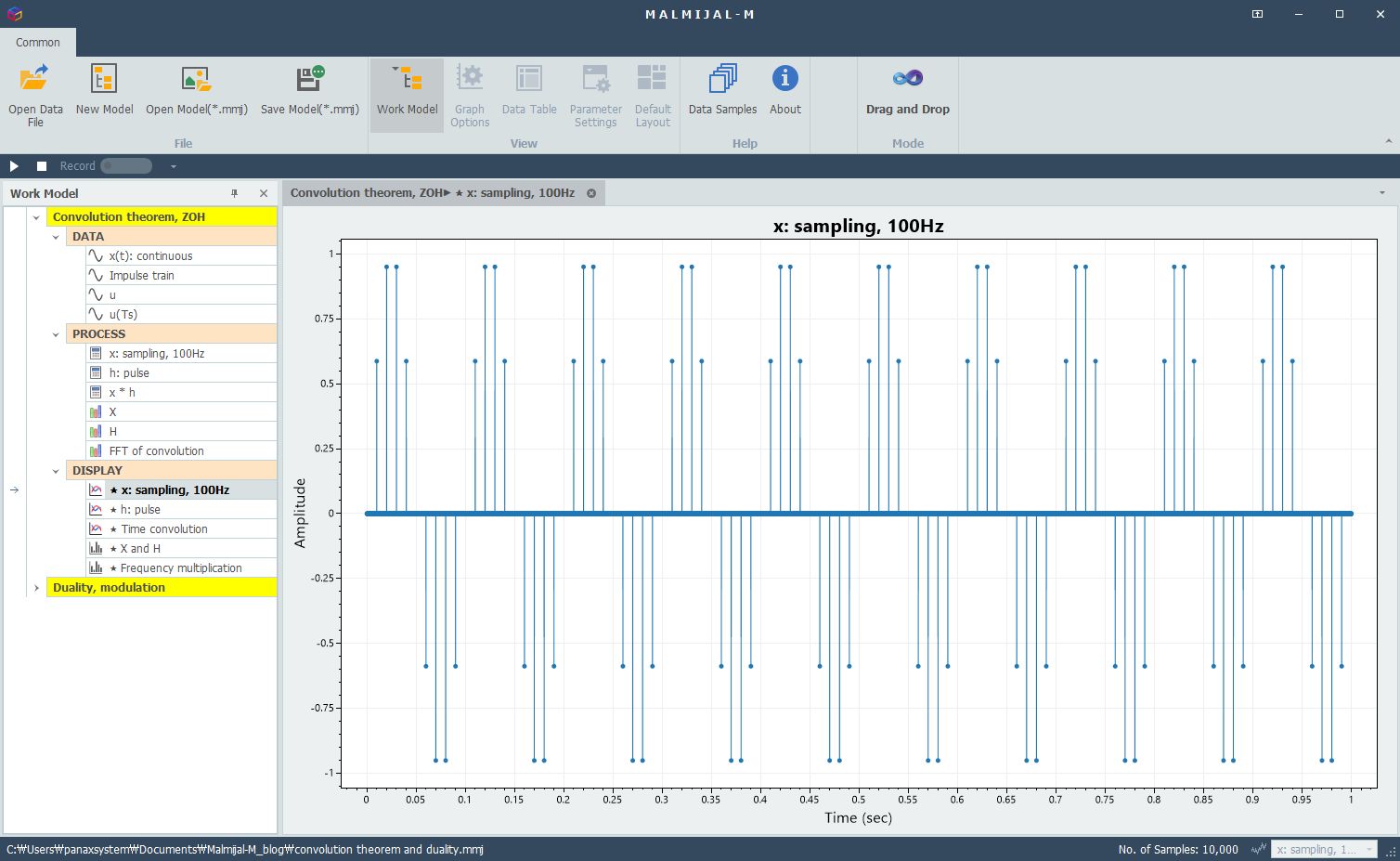

Explanation of ZOH (Zero-Order Hold)
Convolution in the time domain (x * h) produces the system output
Convolution with a rectangular pulse (ZOH kernel) results in a piecewise constant (zero-order hold) signal

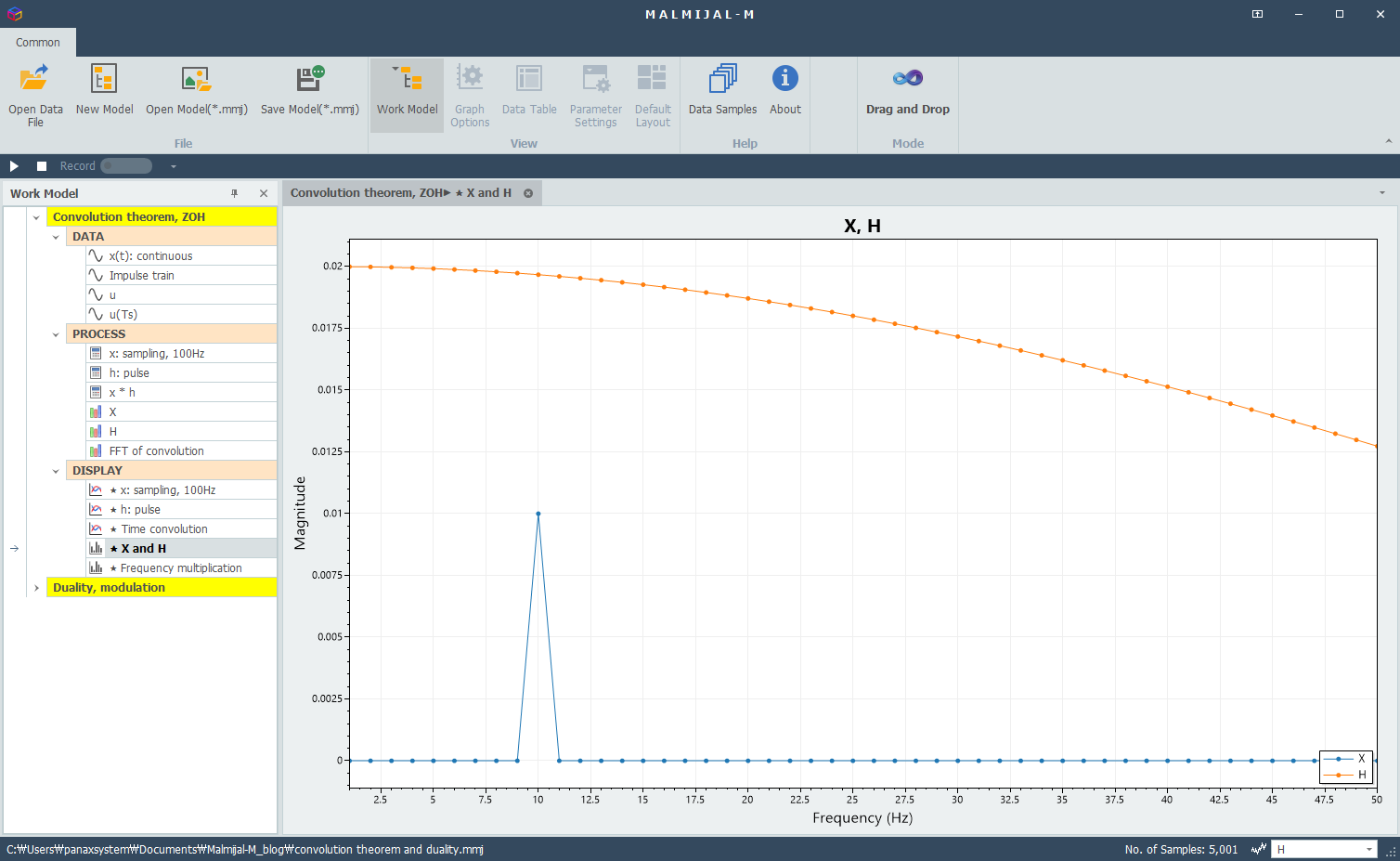

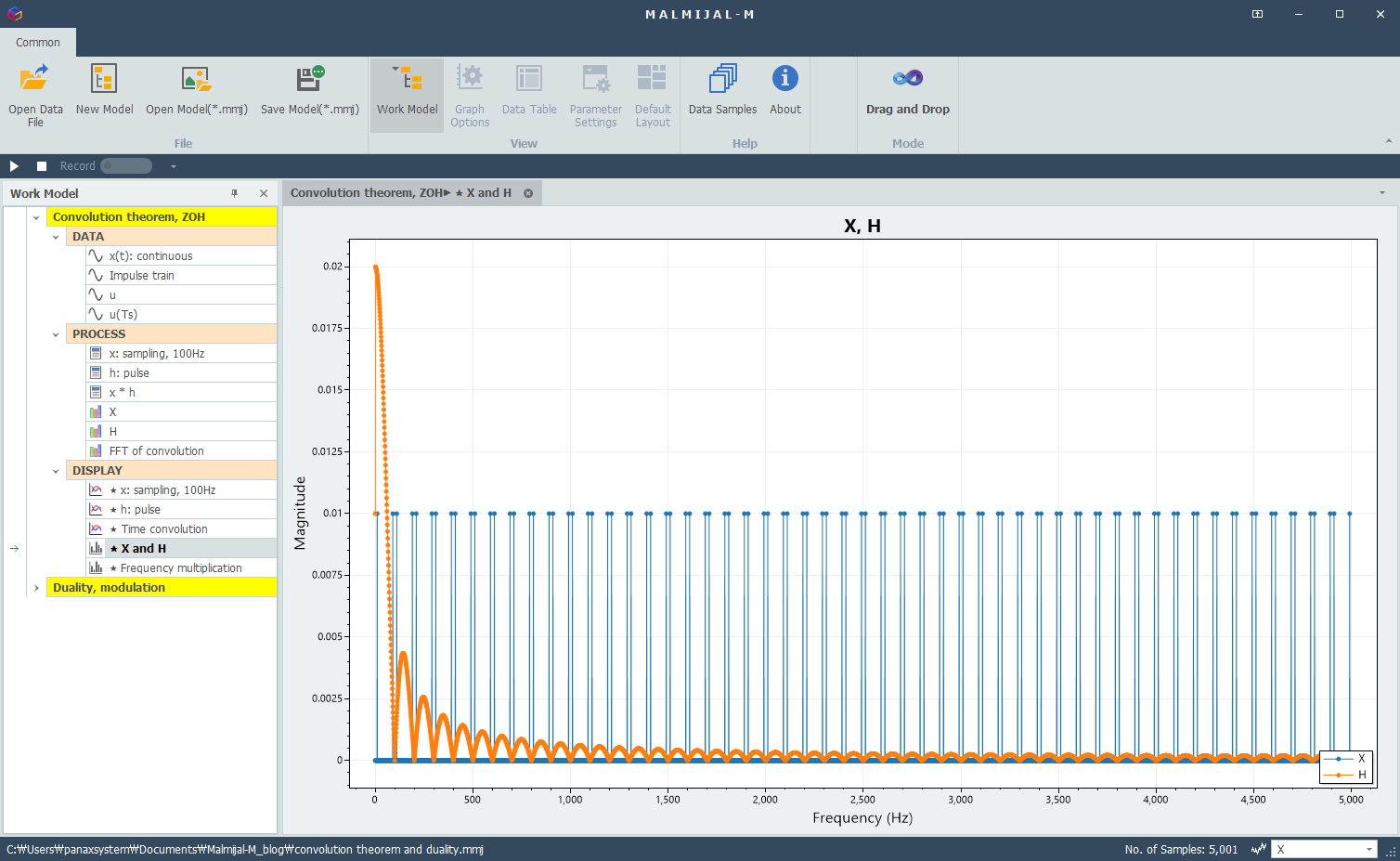

ZOH frequency response(H) behaves like a low-pass filter (set axis limit to Nyquist frequency 50Hz)

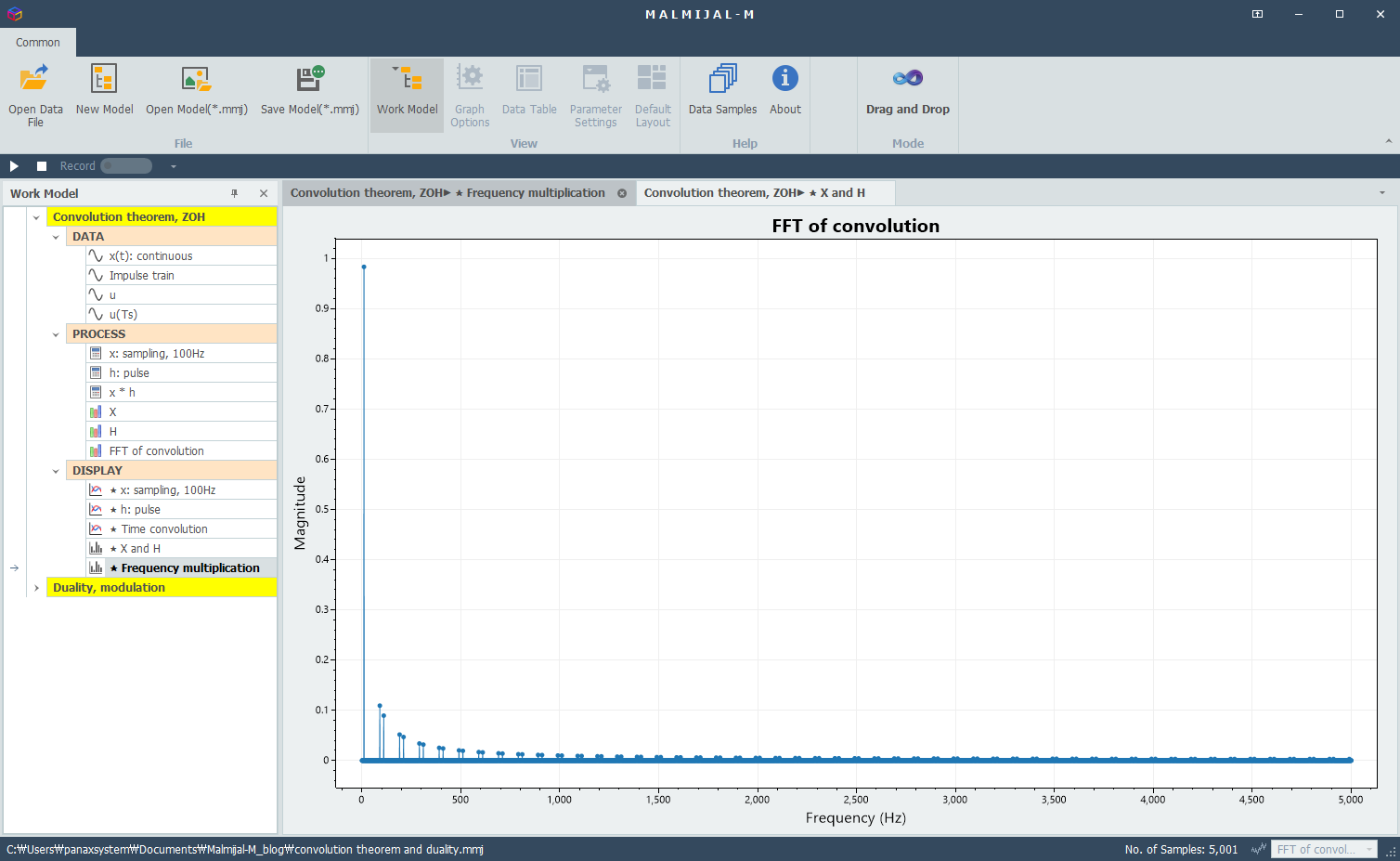

Multiplication in the frequency domain (set axis limit to 50Hz)

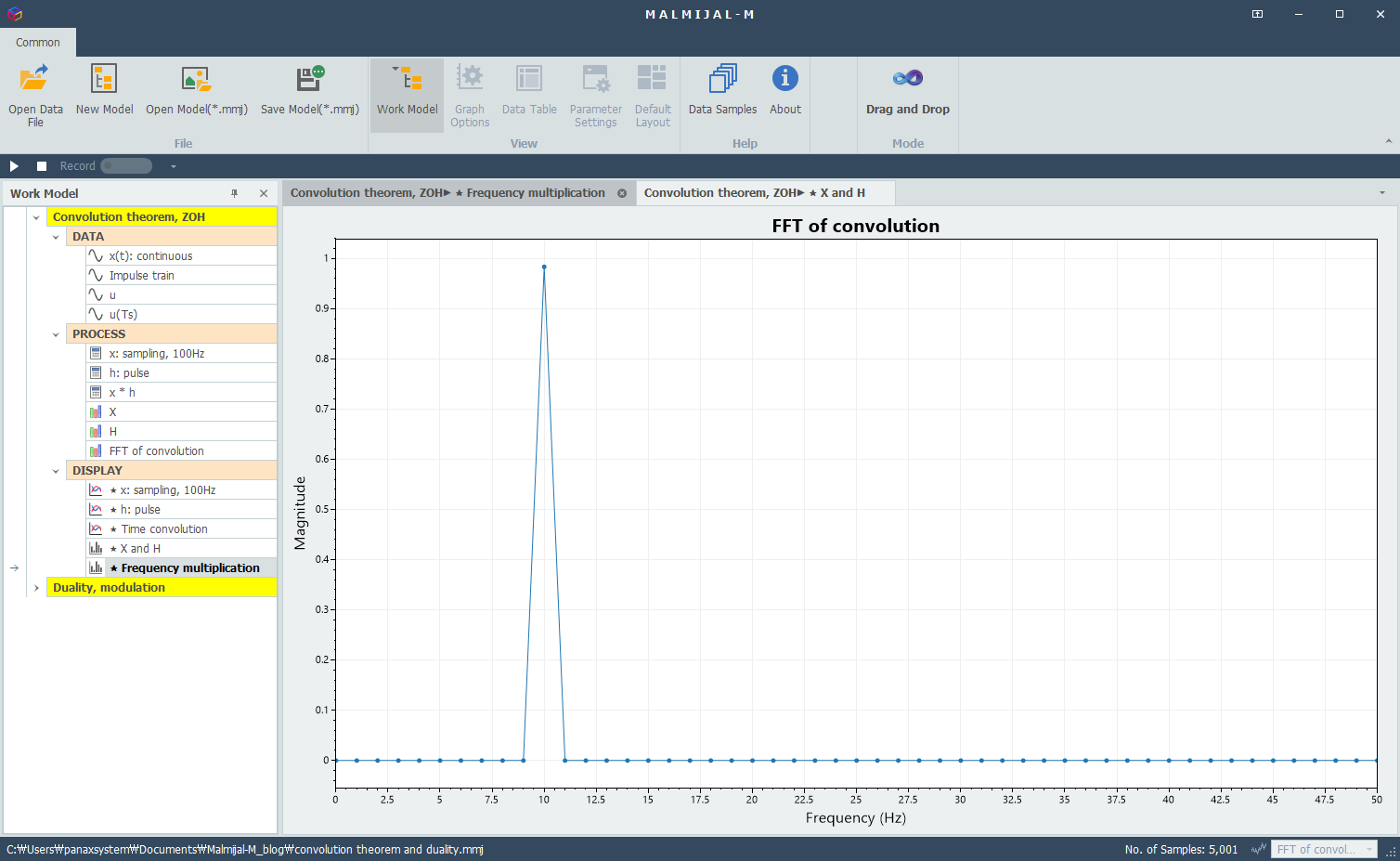

Only the 10 Hz component remains within the Nyquist frequency range (0 ~ Fs/2 = 50Hz)
Key Takeaways
- Convolution = filtering
- Time convolution = frequency multiplication
- FFT makes it efficient
- Core of signal processing
Conclusions
The Convolution Theorem establishes a powerful connection between the time and frequency domains.
- Convolution in time domain corresponds to multiplication in the frequency domain, greatly simplifying complex operations
- This relationship makes signal processing more efficient, especially when using FFT for fast computation
- It explains how filtering operates by shaping a signal through modification of its frequency components
In summary,
the Convolution Theorem is a fundamental principle that enables efficient signal processing, forming the basis of filtering, audio processing, and many real-world applications.
