Frequency & Spectral ProcessingHow Frequency Resolution Really Works Beyond Δf

How Frequency Resolution Really Works Beyond Δf

Most people learn frequency resolution as

“Δf = sampling rate / N”

But this is only part of the story.

True frequency resolution depends on more than just Δf.

How Frequency Resolution Really Works Beyond Δf

The Basic Formula (Δf)

frequency resolution is equal to sampling rate over number of samples


Meaning

  • Fs → sampling frequency
  • N → number of samples


Intuition

“Spacing between FFT bins”


Why Δf Is NOT the Whole Story

Even if Δf is small, you may still NOT separate two close frequencies.


Example

  • Signal contains 50 Hz and 52 Hz
  • Δf = 1 Hz

Still might look like one spectral peak!


Why? → Spectral leakage & window effects


Practical Frequency Resolution = Ability to Separate Peaks

Real resolution means

“Can you distinguish two nearby frequencies?”


Key Practical Insight

  • Resolution ≠ bin spacing
  • Resolution = peak separability


Role of Signal Length (Time Duration)

Practical frequency resolution improves with

Longer observation time


Relationship

frequency resolution is about one over record time

Where

  • T = total signal duration


Intuition

“Longer listening → better frequency clarity”


Windowing Effect (Critical!)

Windowing controls

  • Peak width
  • Leakage


Key Idea

  • Rectangular window → sharp but noisy
  • Hanning/Hamming window → wider but cleaner


Trade-off

  • Narrow peak → good resolution
  • Low leakage → clean spectrum


Spectral Leakage (Why Peaks Spread)

If signal is NOT perfectly periodic, energy spreads across frequency bins.


Result

  • Spectral peaks become wider
  • Harder to distinguish frequencies if sevel frequencies exist

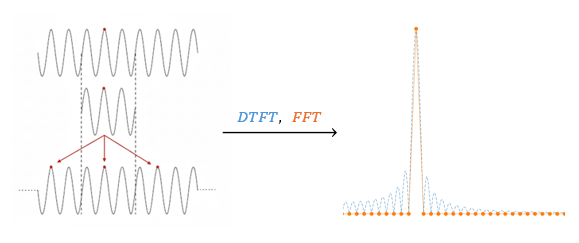

When the truncation matches an integer number of periods (coherent sampling)

When the truncation matches an integer number of periods (coherent sampling),

the DTFT exhibits a sinc-shaped spectrum due to the windowing effect,

while the FFT places energy only at discrete frequency bins corresponding to the main-lobe, with no leakage

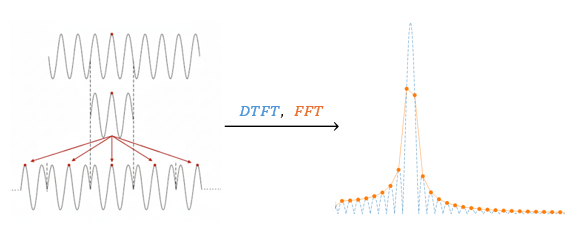

When truncation does not align with an integer number of periods

When truncation does not align with an integer number of periods (non-coherent sampling),

the DTFT remains sinc-shaped spectrum due to the windowing effect,

while the FFT distributes energy beyond the main-lobe into neighboring frequency bins, resulting in spectral leakage


Zero Padding Myth

Important misconception

  • Zero padding does NOT increase resolution


What it actually does

  • Adds more points between bins
  • Makes plot denser
  • Zero padding provides a denser sampling of the DTFT, making the FFT appear closer to the continuous spectrum


Key Insight

“Interpolation, not resolution improvement”

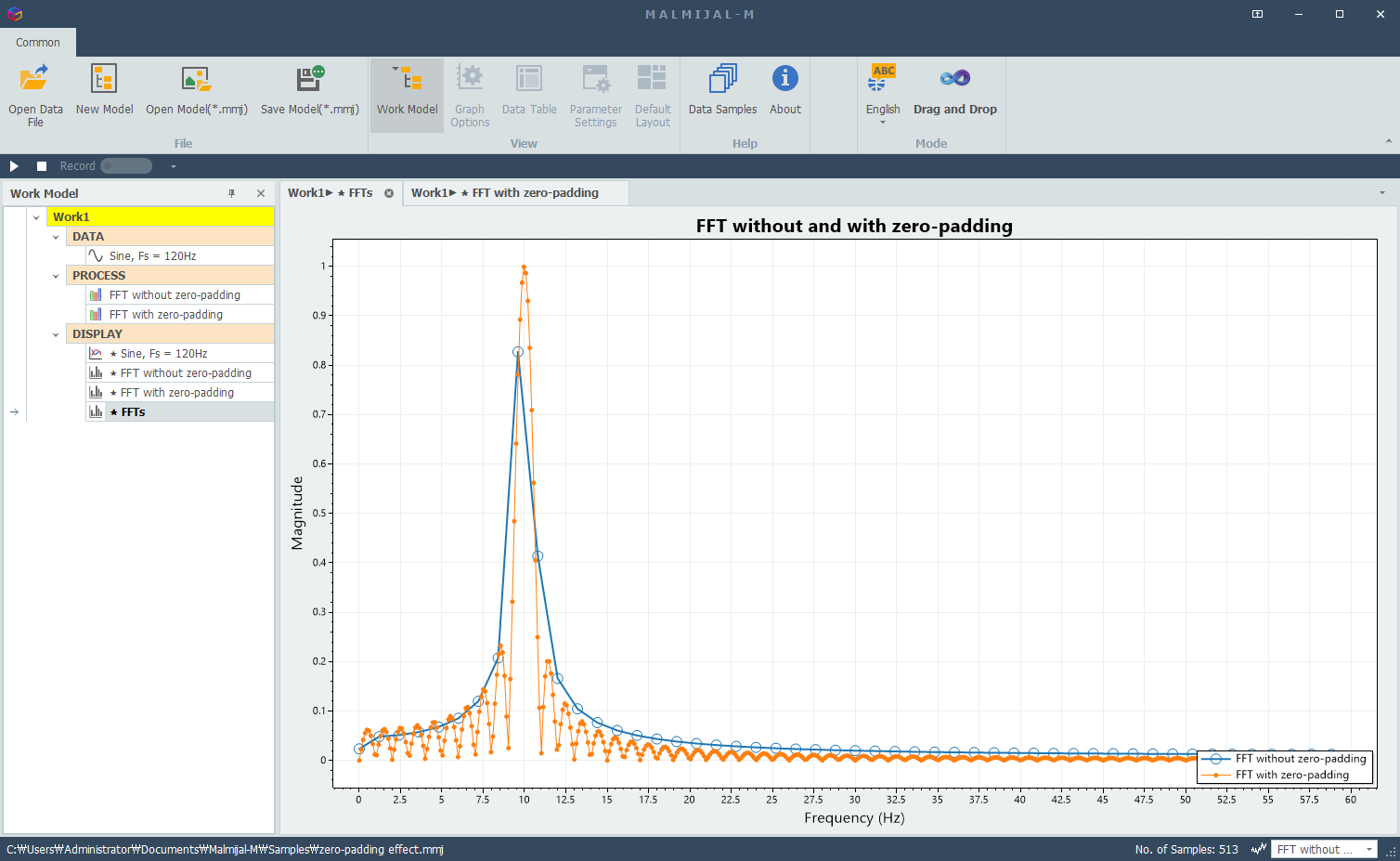

FFT with zero-padding vs FFT without zero-padding,  just plot smoother

FFT with zero-padding vs FFT without zero-padding, just plot denser (refer to Samples/zero-padding effect.mmj)


What REALLY Improves Resolution?

Increase signal duration
  • More data → better separation, It'll describe MALMIJAL example below


Proper window selection
  • Balance of leakage vs sharpness


Higher SNR
  • Less noise → clearer peaks


Averaging (PSD)
  • Stabilizes spectrum


MALMIJAL Workflow

Can't distinguish adjacent frequency
  1. Fs = 1000Hz, T = 0.1sec, Sine 50Hz and Sine 52Hz
  2. # of FFT = 100, Δf = Fs/NFFT = 10Hz
  3. Apply FFT
  4. Can't distinguish 50Hz from 52Hz by spectral leakage & smearing

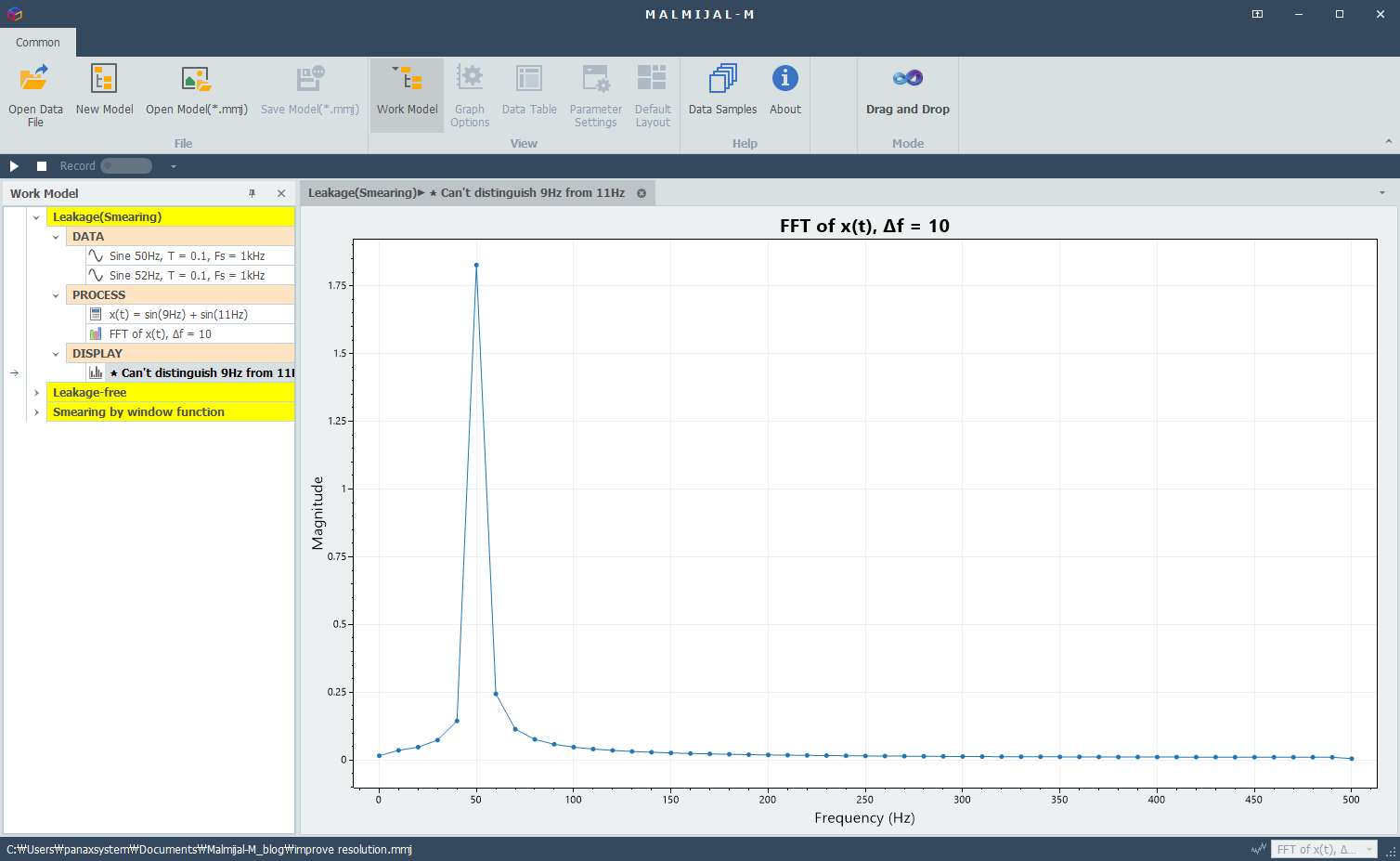

Can't distingush 50Hz from 52Hz by smearing (lack of freqeuncy resolution)

Can't distingush 50Hz from 52Hz by smearing (lack of freqeuncy resolution)


Improving Frequency Resolution
  1. Fs = 1000Hz, T = 1sec, Sine 50Hz and Sine 52Hz
  2. # of FFT = 1000, Δf = Fs/NFFT = 1Hz
  3. Apply FFT
  4. Distinguish 50Hz from 52Hz by improving frequency resolution

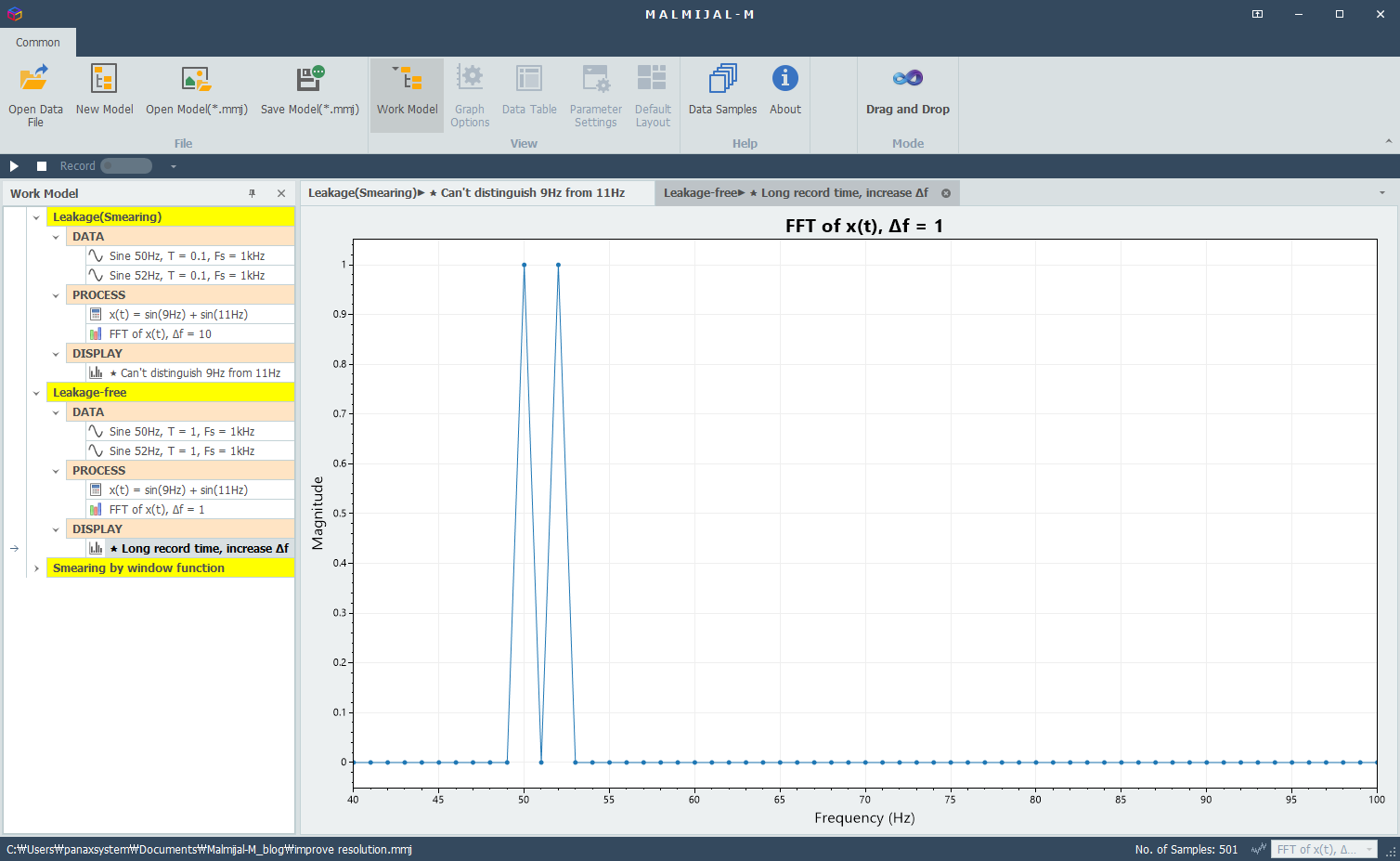

Distingush 50Hz from 52Hz by improving frequency resolution (long record length)

Distingush 50Hz from 52Hz by improving frequency resolution (long record length)


Can't distinguish adjacent frequency by windowing
  1. Fs = 1000Hz, T = 1sec, Sine 50Hz and Sine 52Hz
  2. # of FFT = 1000, Δf = Fs/NFFT = 1Hz
  3. Apply the Power Spectrum with a Blackman window, whose main-lobe width is approximately 6Δf
  4. Even with the above frequency resolution, the two frequencies can't be distinguishable due to windowing effects

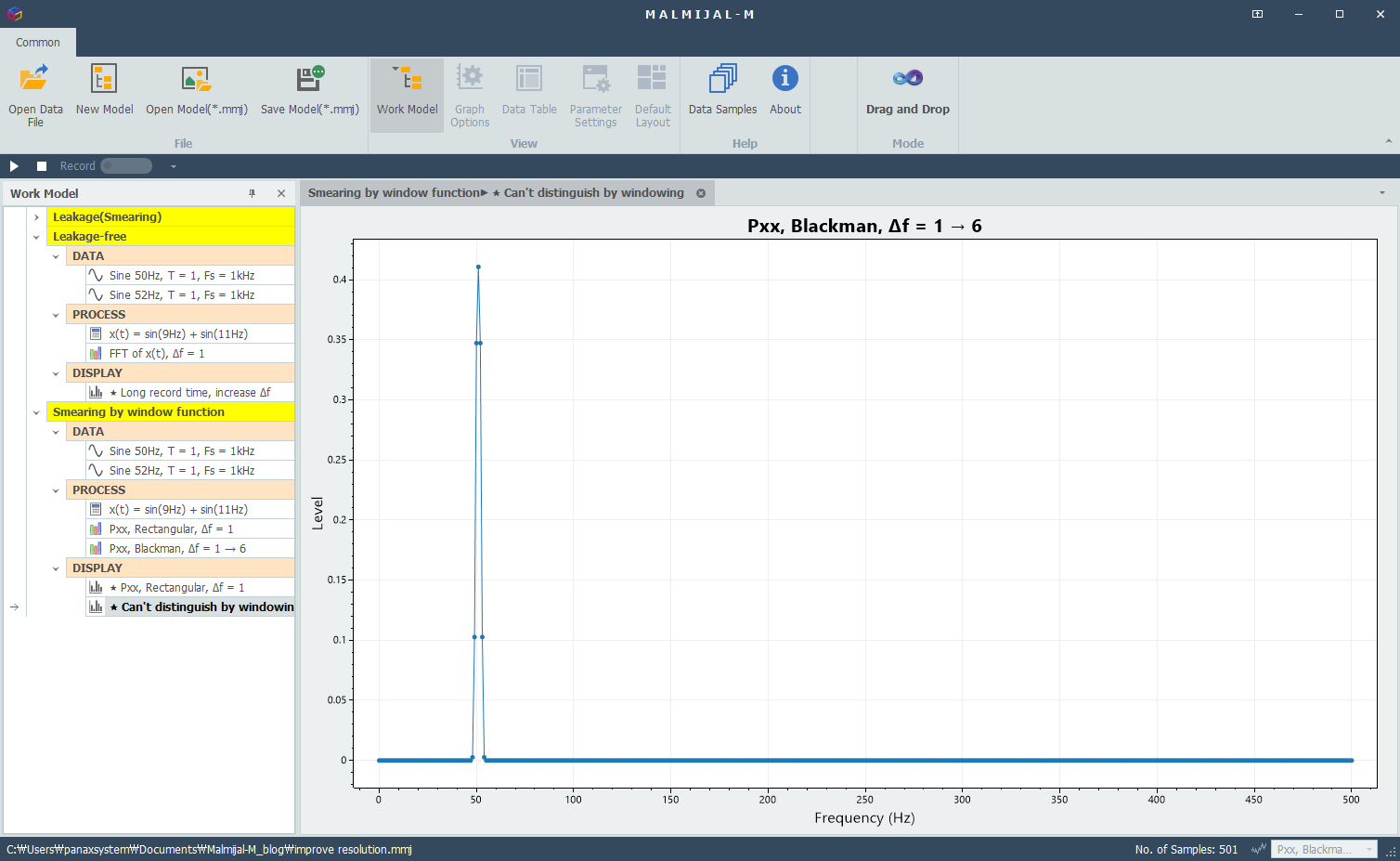

Can't distingush 50Hz from 52Hz by smearing (windowing effect)

Can't distingush 50Hz from 52Hz by smearing (windowing effect)


Key Takeaways

  • Δf = bin spacing, NOT true resolution
  • Practical resolution = ability to separate frequencies
  • Controlled by time length, window, leakage
  • Zero padding ≠ real resolution improvement


Conclusions

Frequency resolution is often misunderstood as simply Δf = fs / N, but practical resolution goes beyond bin spacing.

  • Δf only represents FFT bin spacing, not the actual ability to distinguish close frequencies.
  • True frequency resolution depends on the ability to separate nearby spectral peaks, which is influenced by signal duration, windowing, and spectral leakage.
  • Longer observation time improves resolution, while window choice and noise level affect how clearly peaks can be identified.
  • Zero padding only interpolates the spectrum and does not improve real resolution.

In summary,
practical frequency resolution is determined by peak separability, not just Δf, and requires careful control of signal length, windowing, and noise conditions.
