What Does an Equalizer Really Do? Frequency Shaping Explained
Modern signal processing is not just about capturing signals — it is about shaping them.
An equalizer (EQ) is one of the most fundamental tools used to control how a signal behaves across different frequencies. Whether you are listening to music, analyzing vibration data, or processing communication signals, equalization plays a central role.
At a simple level, EQ is often described as
“boosting bass” or “reducing treble”
But that description only scratches the surface. In reality, an equalizer is a system that shapes how signals respond to frequency, and understanding it properly opens the door to deeper insight into signal processing as a whole.
What Does an Equalizer Do?
An equalizer does not directly “change sound” or “adjust volume.” Instead, it applies filters to a signal. Each filter modifies a specific part of the frequency spectrum, resulting in a new signal that behaves differently. A useful way to think about EQ is
EQ = shaping how different frequency components are treated
A simple mental picture
Imagine a signal as a mixture of many frequencies
- Low frequencies → bass / slow variations
- Mid frequencies → main content / structure
- High frequencies → details / sharp changes
An equalizer allows you to
- Emphasize certain parts
- Reduce unwanted components
- reshape the overall balance
Everyday analogy
Think of EQ like a lighting system:
- Instead of one brightness control
- you have multiple sliders for different colors
You are not changing the entire image —
you are controlling how each component contributes.
The Core Idea: EQ as Filtering
At its core, an equalizer is a collection of filters.
Each filter answers three questions
1. Which frequency?
2. How much change?
3. How wide is the affected region?
Why filtering matters
Instead of manipulating signals arbitrarily, filtering provides a structured and predictable way to shape signals. This is why EQ is not just an audio tool. it is a fundamental signal processing operation.
Frequency Domain Perspective
Equalizers are easiest to understand in the frequency domain. Instead of looking at the signal over time, we look at "how much of each frequency exists".
Intuitive explanation
- A signal contains many frequency components
- EQ modifies those components differently
What actually changes
When EQ is applied
- Some frequencies are amplified
- Some are reduced
- Others are left unchanged
Key insight
EQ is not about changing the signal randomly. It is about shaping the frequency response.
Types of Equalizers (Structure-Based)
There are different types of EQ depending on how they are controlled.
1. Graphic Equalizer
- Fixed frequency bands
- Each band has a slider
- Simple and intuitive
→ You adjust predefined regions (e.g., bass, mid, treble)

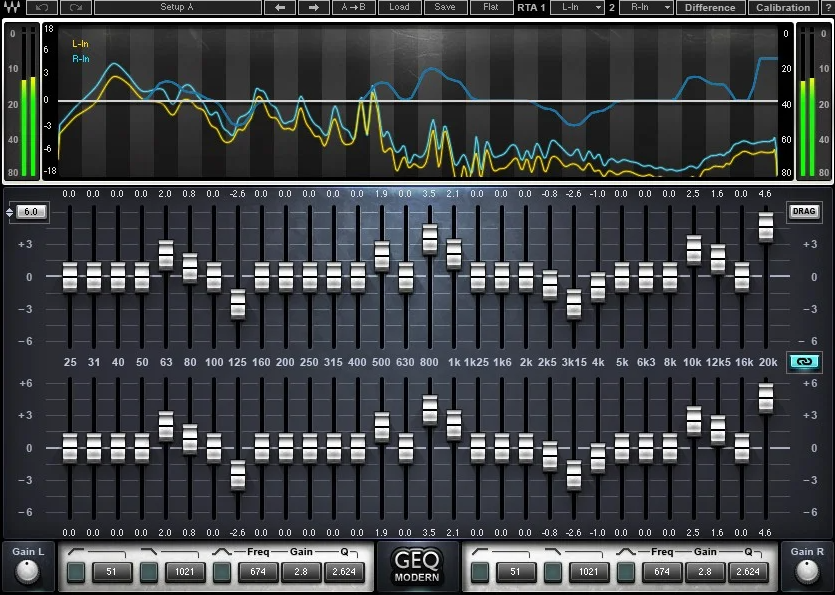

Software Graphic Equalizer - Waves Audio GEQ

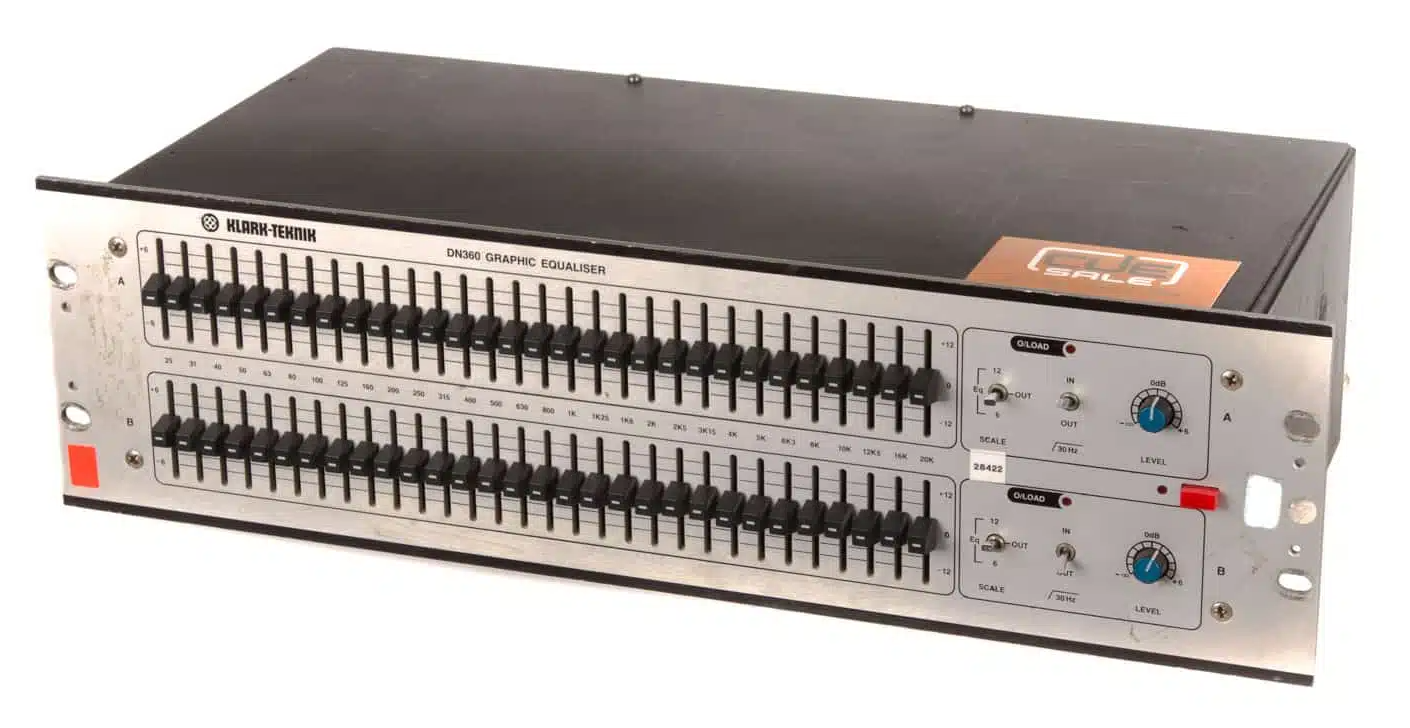

Hardware Graphic Equalizer - Klark Teknik DN 360
2. Parametric Equalizer
- Adjustable frequency
- Adjustable gain
- Adjustable bandwidth
→ Much more precise control
This is the most commonly used EQ in engineering.

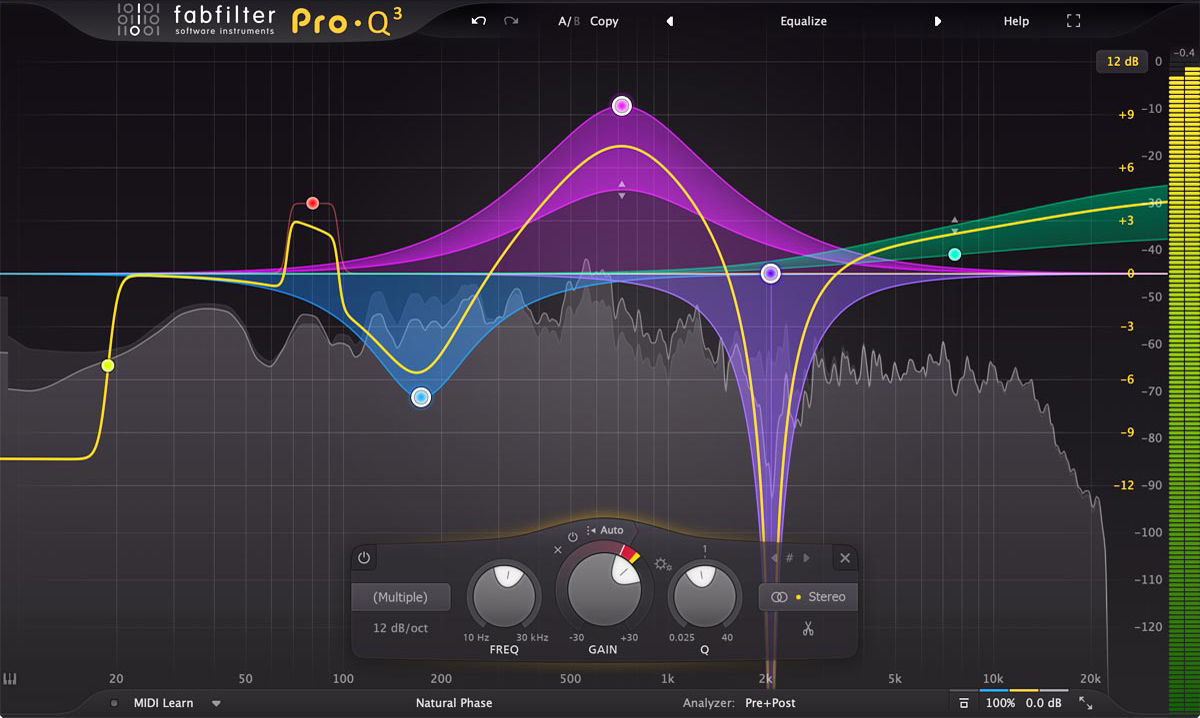

Software Parametric Equalizer - FabFilter Pro-Q3

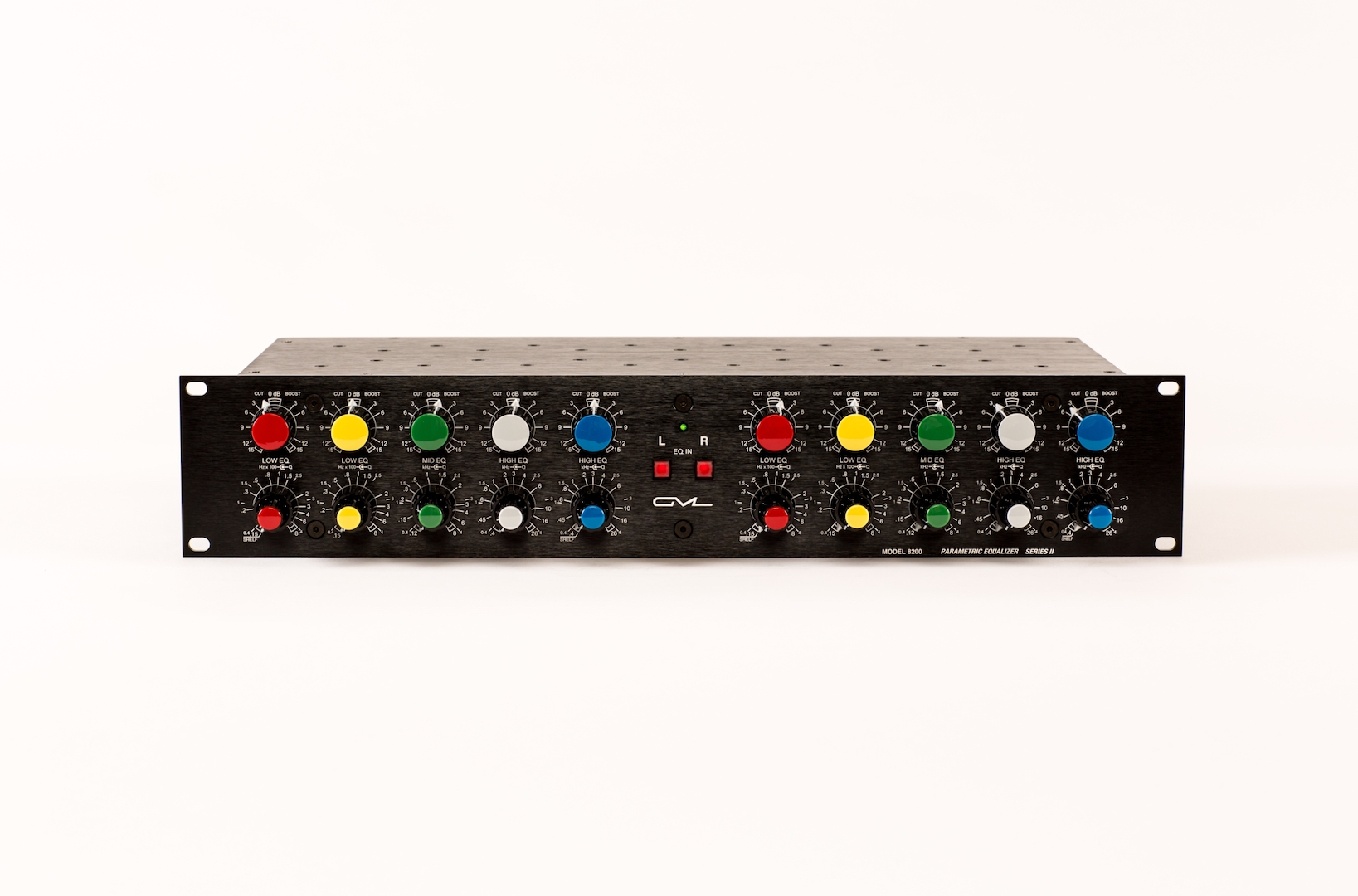

Hardwere Parametric Equalizer - GML (George Massenburg Labs) 8200
Why parametric EQ is powerful
Because it lets you control
- where to act
- how strongly to act
- how broadly to act
Filter Types Used in Equalizers
Equalizers are built using different filter shapes.
1. Peaking (Bell) Filter
- Boosts or cuts around a center frequency
- Most commonly used
2. Shelving Filters
- Affects everything above or below a cutoff
Types:
- Low shelf → affects low frequencies
- High shelf → affects high frequencies
3. Low-Pass Filter (LPF)
- Keeps low frequencies
- removes high frequencies
4. High-Pass Filter (HPF)
- Keeps high frequencies
- removes low frequencies
5. Notch Filter
- Removes a very narrow frequency range
- used for eliminating specific noise
Bandwidth and Q Factor
One of the most important concepts in EQ is bandwidth.
What is bandwidth?
It defines how wide a frequency region is affected.
Q Factor (intuitive view)
- High Q → narrow, sharp adjustment
- Low Q → wide, gentle adjustment
Why this matters
Two EQs can boost the same frequency
- One affects only a tiny region
- another affects a wide range
→ This dramatically changes the result
Time vs Frequency: The Hidden Side of EQ
EQ is usually explained in the frequency domain. But in reality, EQ is implemented in the time domain.
What this means
Applying EQ does not only change amplitude.
It can also affect
- signal timing
- transient response
- phase relationships
Important implication
EQ is not purely "volume control by frequency". It also changes how signals evolve over time
Real-World Applications
Equalization is used far beyond audio.
Audio Processing
- tone shaping
- removing harsh frequencies
- improving clarity
Vibration / NVH Analysis
- identifying resonance peaks
- isolating fault frequencies
Communication Systems
- removing interference
- channel equalization
Measurement Systems
- compensating sensor response
- correcting system bias
Common Misconception
“EQ just boosts or cuts frequencies”
→ This is incomplete.
Better interpretation
EQ designs how a system responds to frequency
Why this matters
Instead of thinking
"I am changing the signal"
Think
"I am shaping the system's response"
Trade-Offs of Equalization
EQ is powerful, but not free.
1. Over-adjustment
- excessive boosting can distort signals
- may amplify noise
2. Phase effects
- filtering can introduce phase shifts
3. Loss of natural balance
- too much correction can make signals unnatural
The Big Picture
Equalization is one of the clearest examples of how signal processing works
Signal → Filter → Modified Signal
But more importantly
EQ is system design, not just signal editing
Final Summary
- Equalizers shape signals using filters
- They modify frequency response, not just amplitude
- Parametric EQ offers precise control using frequency, gain, and bandwidth
- Shelving, notch, and bell filters define how adjustments are applied
- EQ operates in both frequency and time domains
- It is used in audio, engineering, communication, and measurement systems
Conclusion
An equalizer is not a tool for adjusting sound. It is a tool for designing how signals behave.
