What Is Dynamic Range Compression? A Practical Guide to Consistent and Punchy Audio
In real-world audio, sound levels are rarely consistent. A vocalist may whisper one moment and sing loudly the next.
A drum hit may produce sudden peaks. Even simple instrument recordings contain natural variations in loudness. This variation is called dynamic range.
While it is essential for expression, it can make audio difficult to control, mix, and listen to. This is where Dynamic Range Compression (DRC) becomes essential.
What Is Dynamic Range Compression?
Dynamic Range Compression is the process of reducing the difference between the loudest and quietest parts of a signal.
Instead of treating all parts equally, a compressor behaves selectively
- Quiet signals → mostly unchanged
- Loud signals → reduced
The result is a more controlled and consistent output.

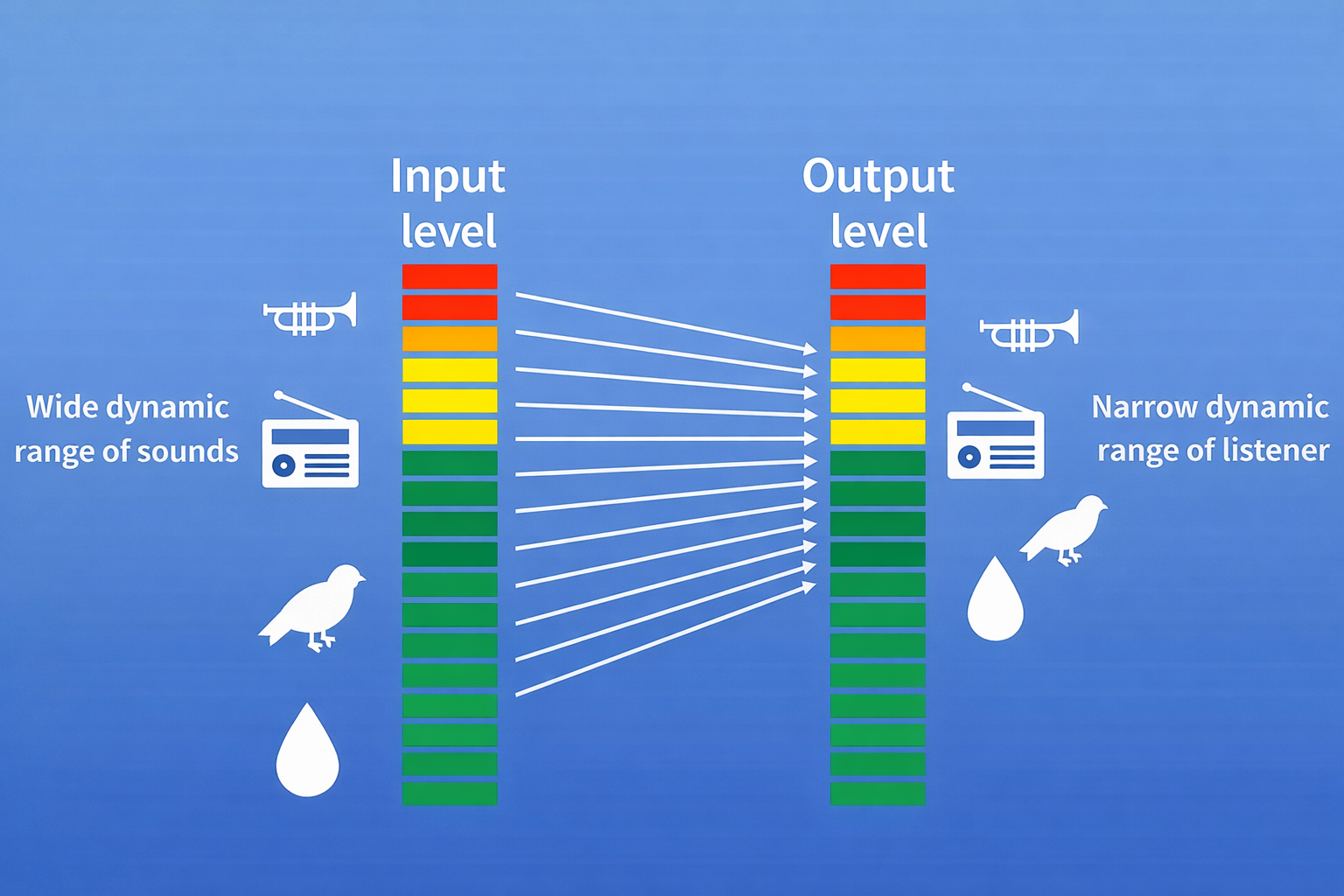

This illustration shows the core idea of compression.
Real-world audio signals contain a wide dynamic range, from very quiet to very loud sounds. Compression reduces this range, making the output easier to manage and more consistent. Instead of boosting quiet sounds directly, compressors mainly reduce loud peaks, allowing the overall level to be increased afterward.
Why Compression Is Needed
In real audio scenarios
- Performances do not maintain consistent volume
- Loud peaks can dominate the mix
- Quiet details can be lost
For example
- A singer may suddenly hit a loud note
- A bass line may fluctuate in intensity
- A snare drum may produce sharp transients
Without compression
- The listener must constantly adjust volume
- Loud peaks may cause distortion
- Mixing becomes difficult
How a Compressor Works
At its core, a compressor sets a target level. Any signal that exceeds this level is reduced.
Threshold
The threshold defines when compression begins.
- Below threshold → unchanged
- Above threshold → reduced
Ratio
The ratio determines how strongly the signal is reduced.
- 2:1 → moderate compression
- 4:1 → stronger compression
- ∞:1 → limiting

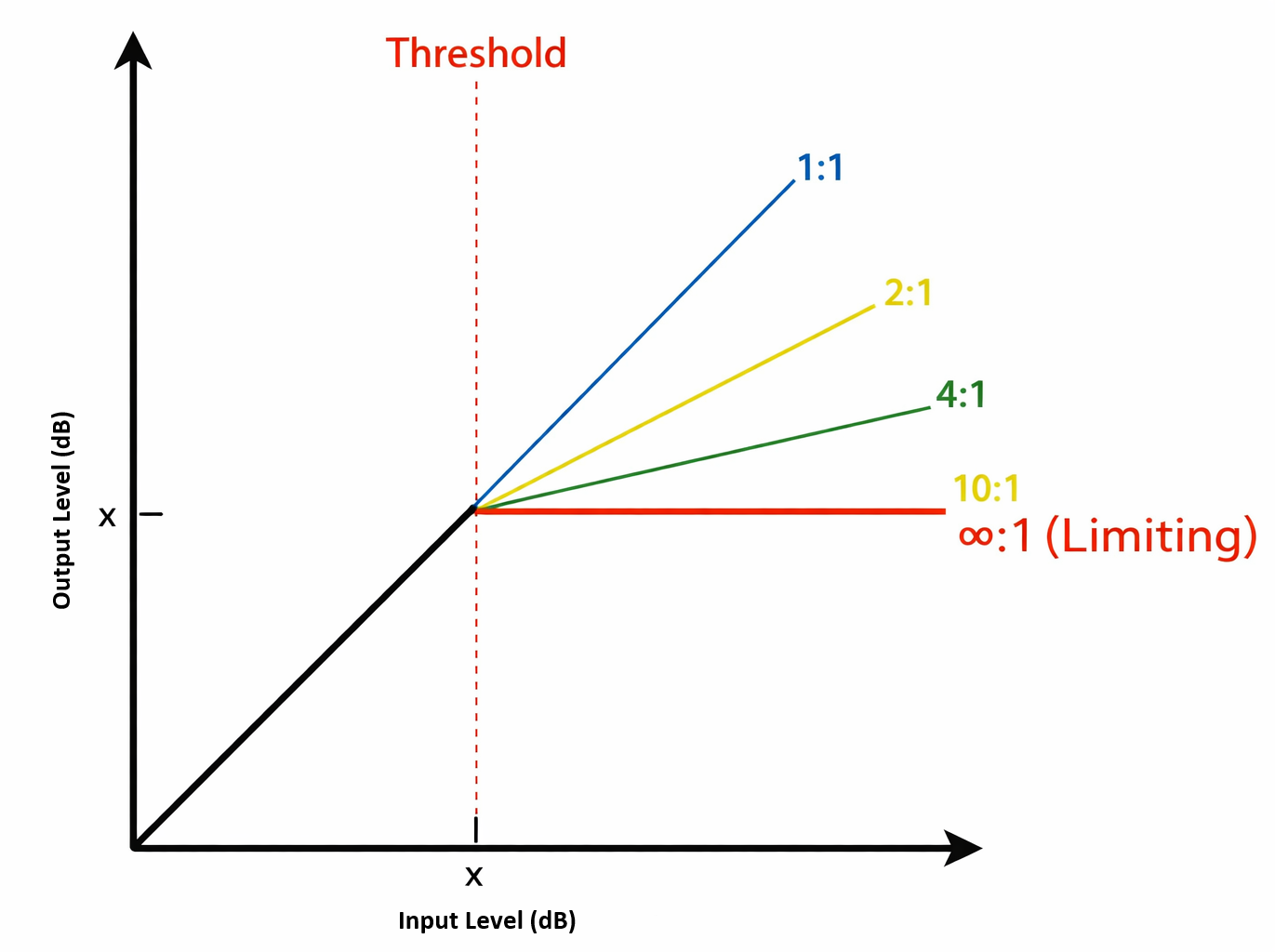

This graph illustrates how input level is transformed into output level.
Below the threshold, the signal follows a linear relationship (1:1).
Above the threshold, the slope changes depending on the ratio.
At extreme ratios, the output becomes nearly constant — this is known as limiting.
Output Gain (Make-up Gain)
After compression reduces peaks, the overall signal may become quieter. Output gain is applied to raise the overall level.

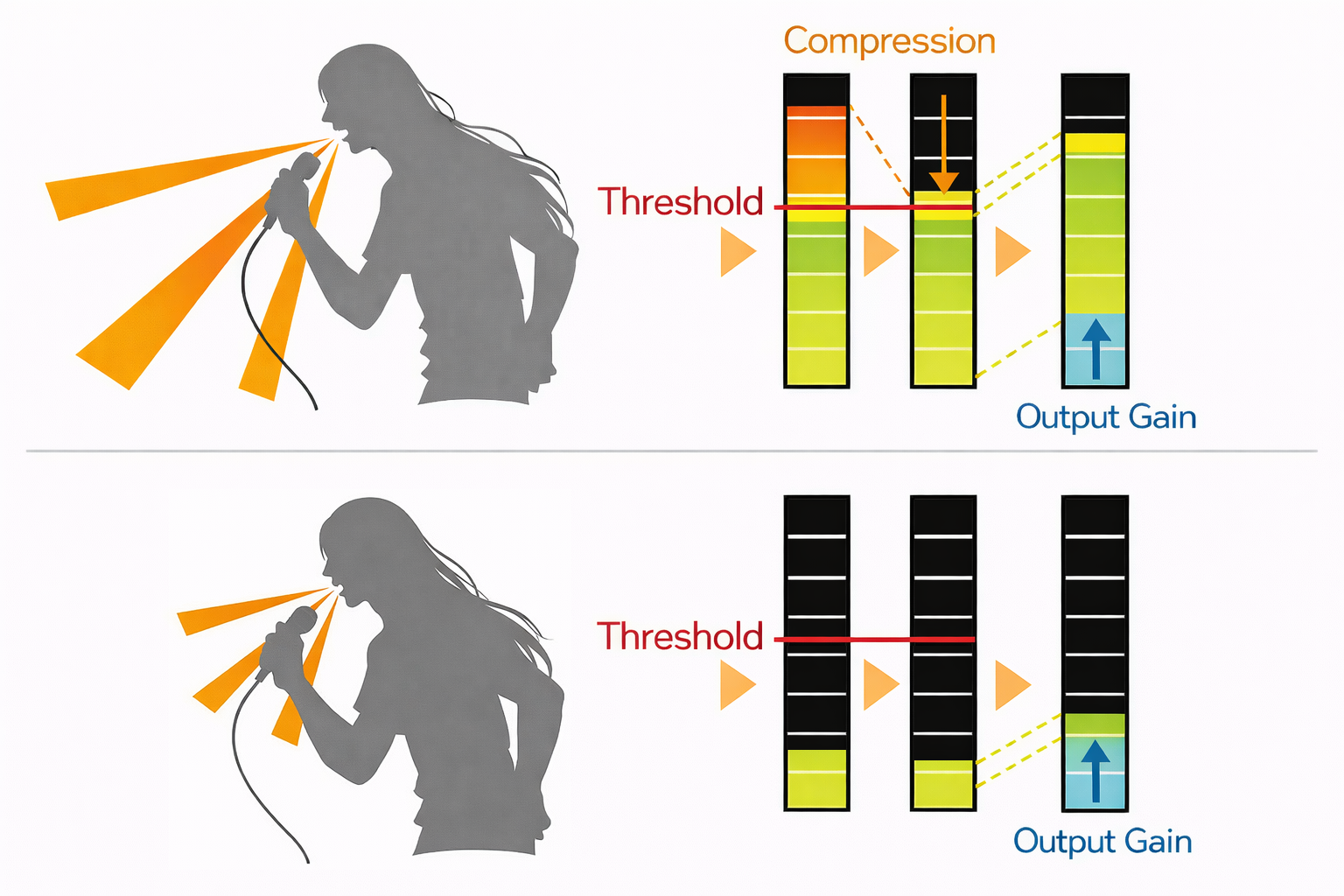

This example shows how compression is applied in practice.
When a vocal signal exceeds the threshold, the loudest parts are reduced.
Afterward, output gain raises the entire signal level.
This makes quieter parts more audible while preventing peaks from overpowering the mix.

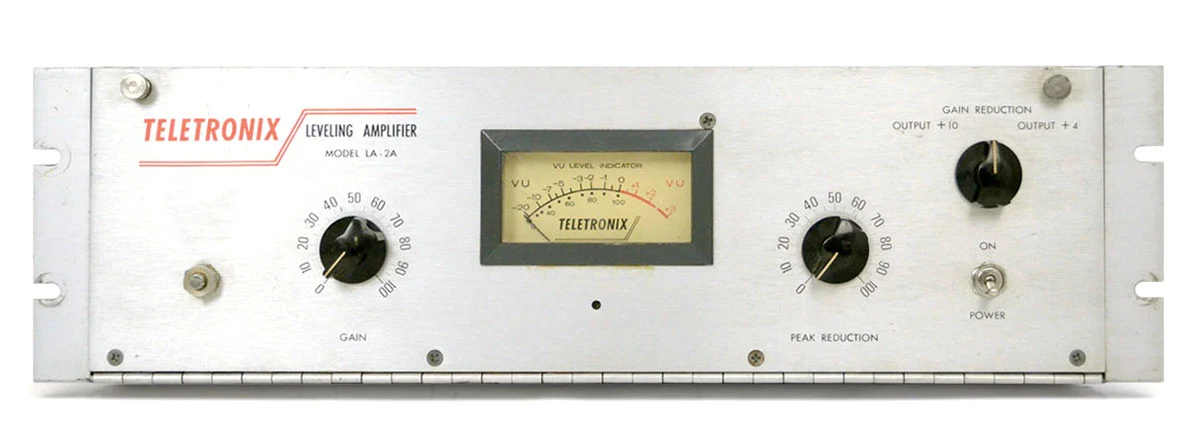

Optical Tube Compressor - TELETRONIX MODEL LA-2A
What Compression Does to Sound
Compression affects how audio is perceived.
1. More Consistent Volume
Sudden changes in loudness are reduced.
2. Improved Clarity
Important elements like vocals stay present.
3. Easier Mixing
Signals become easier to balance.
4. Added Punch and Impact
Proper settings can enhance transients and energy.
Threshold(Knee): How Compression Begins
Compression does not always start abruptly.
Hard Knee
- Immediate compression at threshold
- More aggressive
Soft Knee
- Gradual compression
- More natural and musical

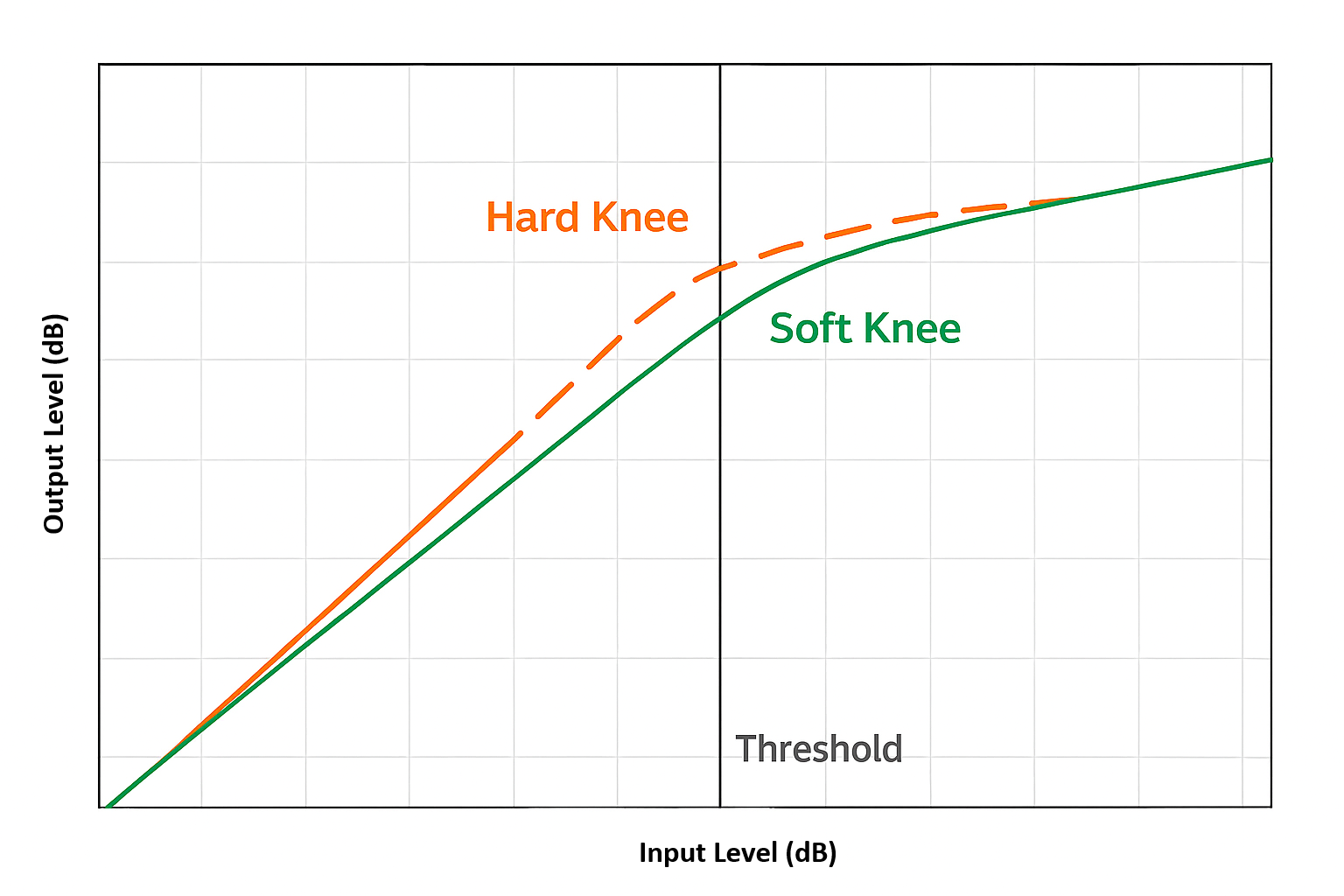

The threshold(knee) controls how smoothly compression is applied.
A hard knee applies compression instantly at the threshold. A soft knee introduces compression gradually, resulting in a smoother sound. Soft knee settings are commonly used in music for a more natural feel.
Time Behavior: Attack and Release
Compression operates over time, not just amplitude.
Attack
How quickly compression reacts?
- Fast → reduces peaks immediately
- Slow → preserves initial impact
Release
How quickly compression stops?
- Fast → quick recovery
- Slow → smoother response
Signal Envelope and Dynamic Behavior
Real-world signals evolve over time and follow an envelope.

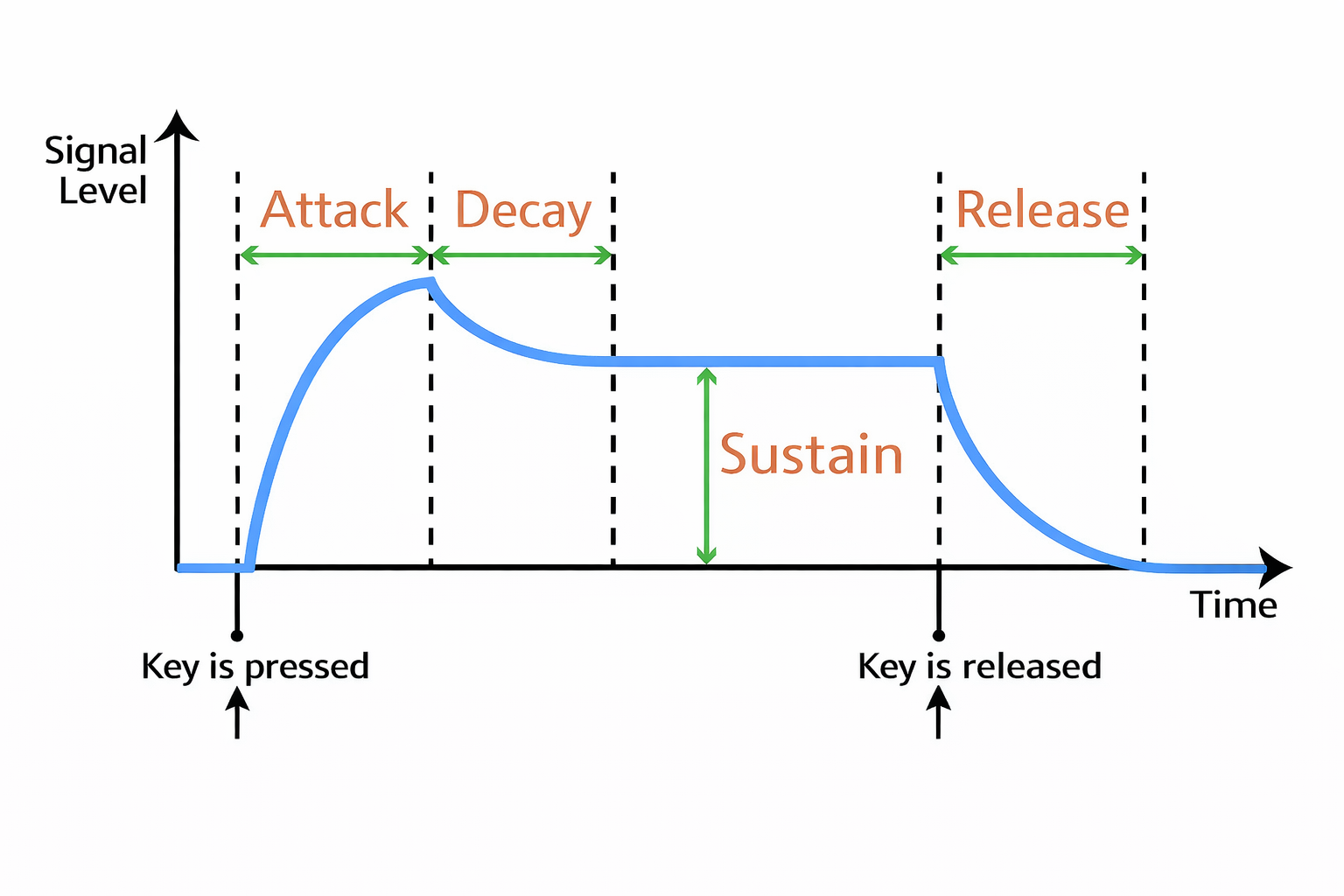

A signal typically follows an ADSR structure
- Attack → rise to peak
- Decay → drop from peak
- Sustain → steady level
- Release → fade out
A compressor interacts with this structure.
Compression does not just reduce volume — it reshapes the signal over time.
Practical Applications
Vocals
- Keeps volume consistent
- Prevents overload
- Improves clarity
Instruments
- Bass → smoother
- Guitar → controlled
- Drums → more punch
Live Sound
- Prevents sudden spikes
- Protects equipment
- Maintains stability
Conclusions
Dynamic Range Compression is one of the most essential tools in audio engineering.
It allows us to
- Control signal levels
- Improve clarity
- Enhance impact
- Create a consistent listening experience
Ultimately, compression is not just about reducing differences.
It is about shaping sound into something more usable, controlled, and expressive.
