Fundamental Frequency vs Frequency Resolution: What’s the Difference?
In spectral analysis, two terms are often confused:
- Fundamental Frequency
- Frequency Resolution
Although both are related to frequency, they describe completely different concepts.
Fundamental Frequency
Definition
The fundamental frequency is the lowest frequency component of a periodic signal.
Meaning
- Determines the signal’s pitch or repetition rate
- All other frequencies are integer multiples:
Key Insight
Fundamental frequency describes the signal itself
Definition
Frequency resolution is the smallest frequency difference that can be distinguished.
Meaning
- Determines how finely the frequency axis is divided
- Controlled by
- Sampling frequency Fs
- Number of samples N
- Record length Trecord
Key Insight
Frequency resolution describes the measurement capability
Core Difference
| Concept | Fundamental Frequency | Frequency Resolution |
|---|
| Meaning | Property of signal | Property of analysis |
| Depends on | Signal period | Sampling & record length |
| Role | Defines harmonics | Defines FFT bin spacing |
| How to get | GCD of several frequencies | Fs / N or 1 / Trecord |
| Limitations | Periodic signals | Δf < | f1 - f2 | for resolving frequencies |
Practical Interpretation
Let sinusoidal signal having 52Hz and 54Hz
Fundamental Frequency (periodically repeating signal)
- GCD (Greatest Common Divisor): GCD (50, 54) = 2 → 2Hz = f0
- 26 f0 = 26 x 2Hz = 52Hz
- 27 f0 = 27 x 2Hz = 54Hz
Frequency Resolution (Δf < | f1 - f2 | )
- Δf = 5Hz → Can't distinguish between 52 and 54Hz → appears as one peak (smearing)
- Δf = 1Hz → Good resolution
Leakage-free vs Leakage Harmonic Spectra

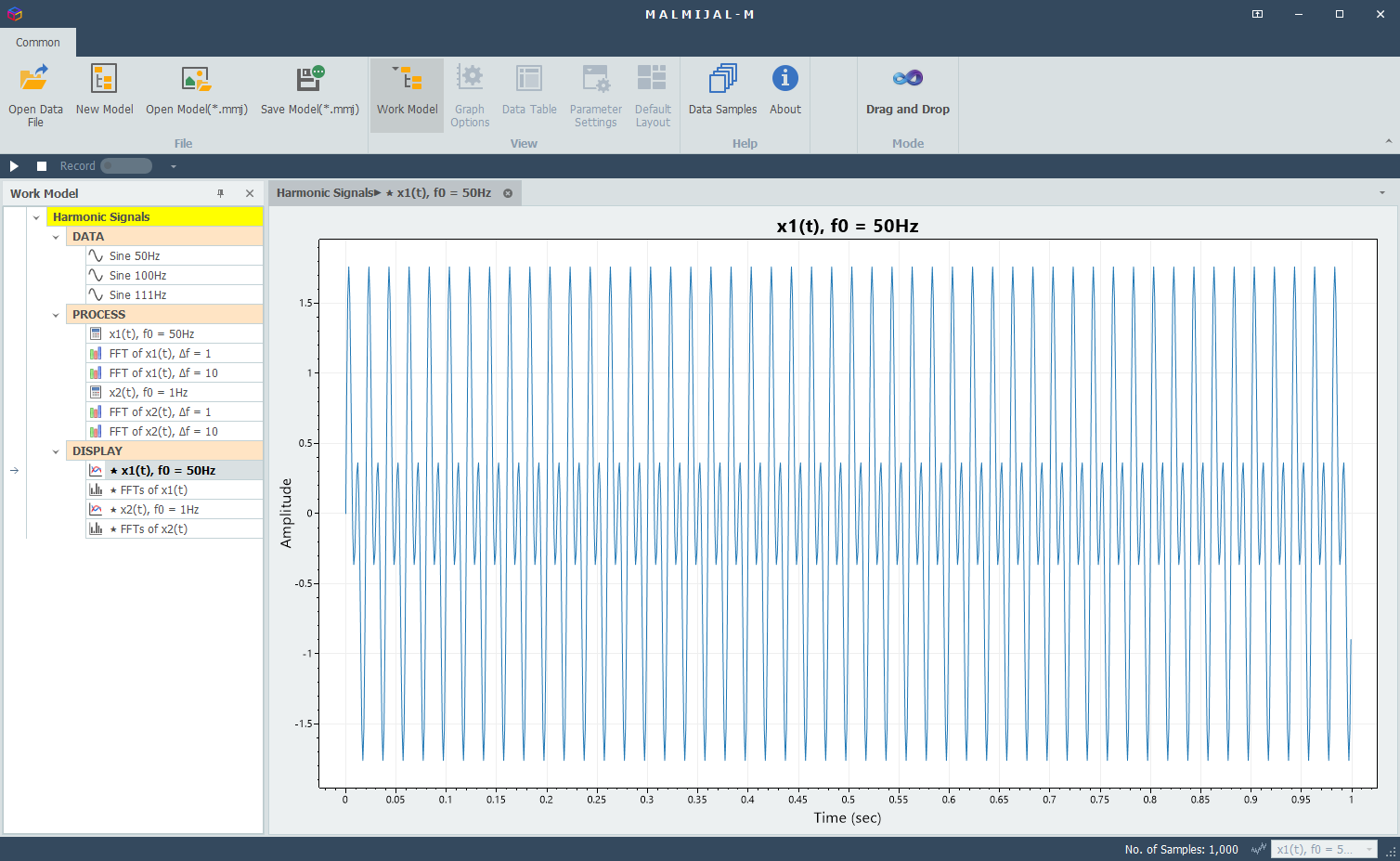

x1 (t) = sin(2π*50*t) + sin(2π *100*t), f0 = 50Hz
Harmonic signal(2nd harmonic) having fundamental frequency 50Hz from GCD(50, 100)

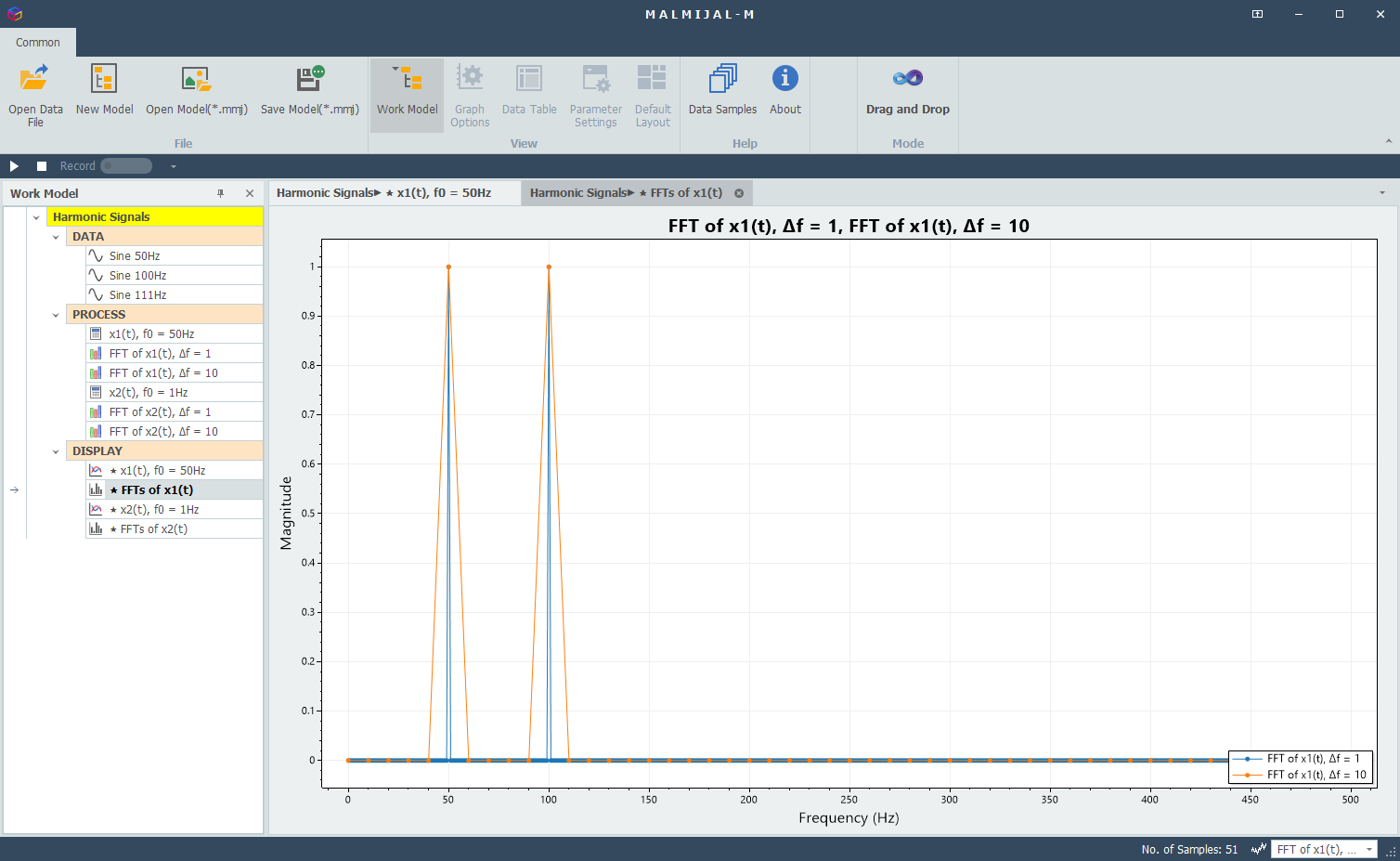

When Δf = 1, f0 = 50*Δf and Δf ≤ f0 → Leakage-free
When Δf = 10, f0 = 5*Δf and Δf ≤ f0 → Leakage-free

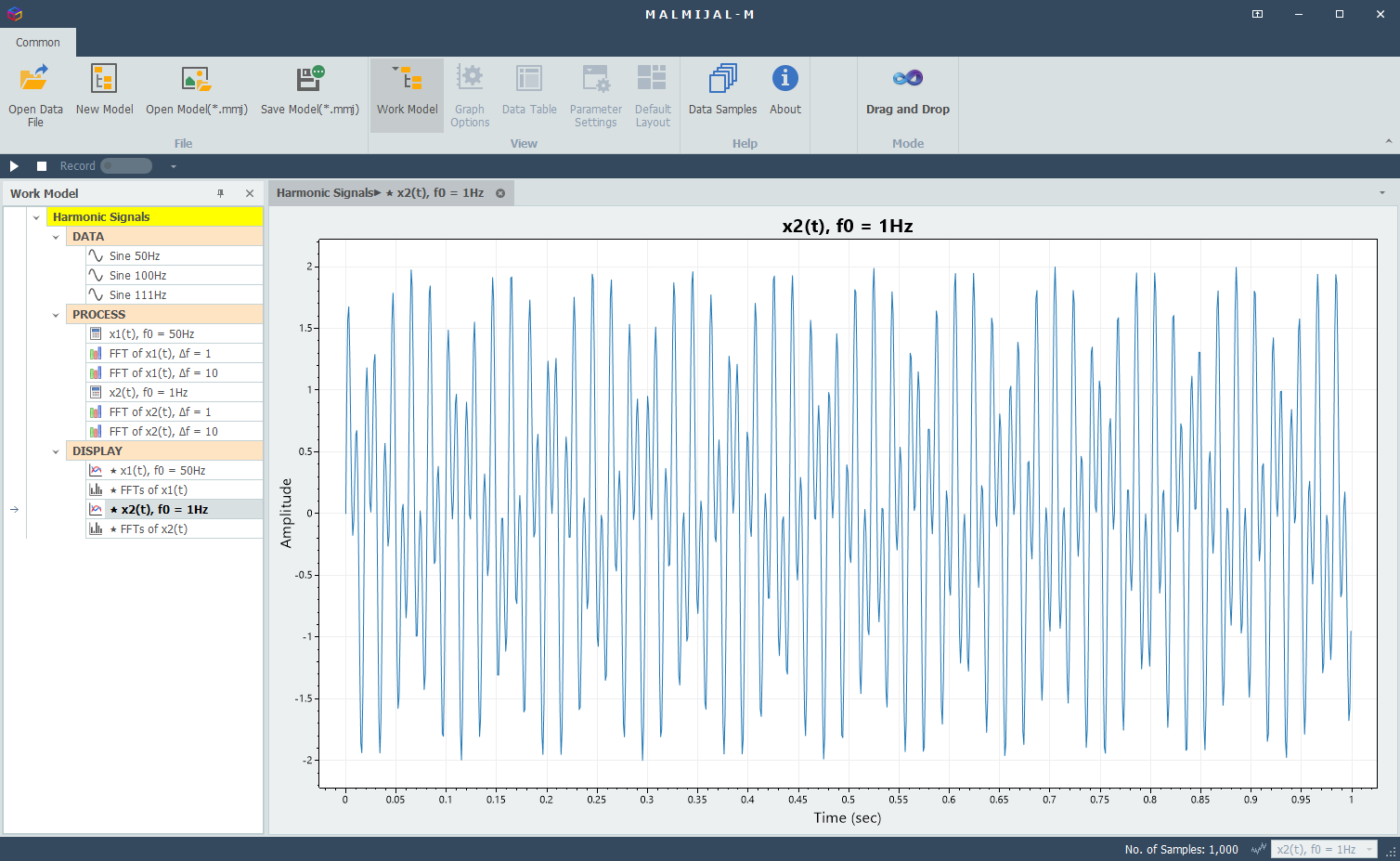

x2 (t) = sin(2π*50*t) + sin(2π *111*t), f0 = 1Hz
Mathematically harmonic signal(two tone signals) having fundamental frequency 1Hz from GCD(50, 111)
When Δf = 1, f0 = 1*Δf and Δf ≤ f0 → Leakage-free
When Δf = 10, f0 ≠ m*Δf and Δf > f0 → Leakage occurs
Key Insights
- Fundamental frequency defines what is in the signal, while frequency resolution defines what you can observe.
- For harmonic signals, coherent sampling is guaranteed by f0 = mΔf, and resolvability is ensured when Δf ≤ f0; together they produce clean, leakage-free harmonic spectra.
- Although the signal is mathematically periodic with f0 = 1 Hz, it is not considered a practical harmonic signal because it lacks a meaningful harmonic structure.
Conclusion
Fundamental frequency is a property of the signal, whereas frequency resolution is a property of the measurement system
