Undersampling vs Bandpass Sampling Explained

Sampling is usually explained using the Nyquist rule. Sample at least 2× the highest frequency, but in practice, things are more interesting.

Sometimes we intentionally sample below Nyquist!

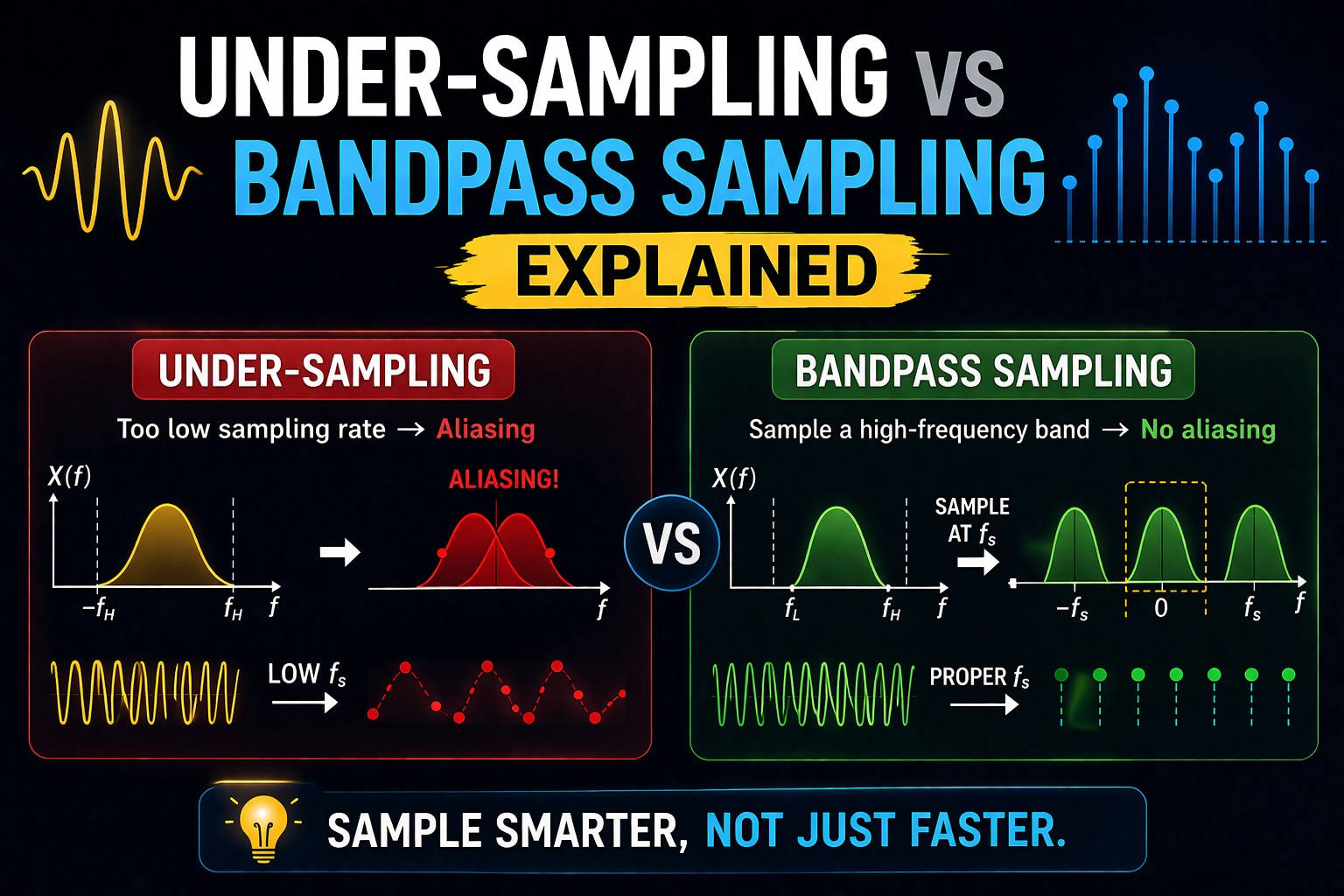

Under-sampling vs Bandpass Sampling Explained

What Is Undersampling?

Undersampling happens when sampling rate is less than 2× the highest frequency


Result

  • Aliasing occurs
  • Signal gets distorted


Key Idea


Intuition

“Sampling too slow → information overlaps”

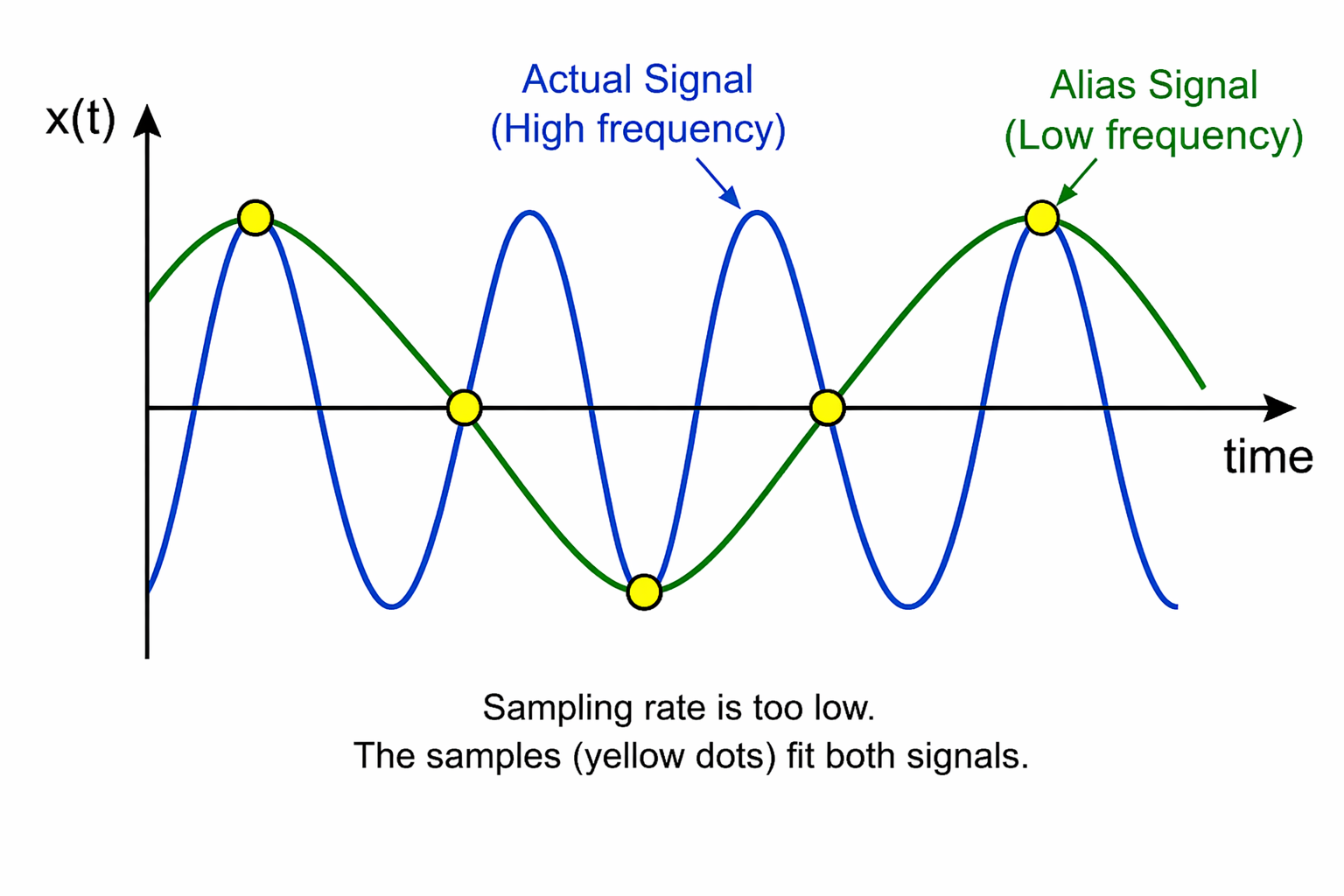

actual vs. aliasing signal


What Is Bandpass Sampling?

Bandpass sampling is a controlled form of undersampling.

Done intentionally!


Key Idea

If the signal is band-limited (not from 0 Hz)

You can sample below Nyquist without losing information


How Bandpass Sampling Works

Bandpass signals can be shifted (aliased) into baseband.


Concept

  • Sampling causes frequency-folding
  • But if controlled → no overlap


Key Conditions

  • Aliased bands must NOT overlap, bandpass filtering required for sure
  • Bandpass sampling rate must be greater than 2 x bandwidth(B)
  • Unlike standard baseband sampling, the sampling condition here is not based on 2fmax.practically Fs > 2B is reasonable


Frequency Folding (Aliasing)

When sampling, frequencies fold into lower range.


Relationship

Alias Frequency = | Signal frequency - Closest sampling frequency Harmonic |



Meaning
  • Original frequency shifts
  • Appears at new location


MALMIJAL Example

  • Signal range: 95 ~ 100Hz with white noise, Fs = 3000Hz higher than Nyquist frequency (200Hz)
  • You don’t need 3000 Hz sampling, instead 30Hz ( > 2B = 10) downsampling to make intentional aliasing
  • Falias= | f - nFs |
    • 95 → | 95 - 3*30 | = 5Hz
    • 100 → | 100 - 3*30 | = 10Hz

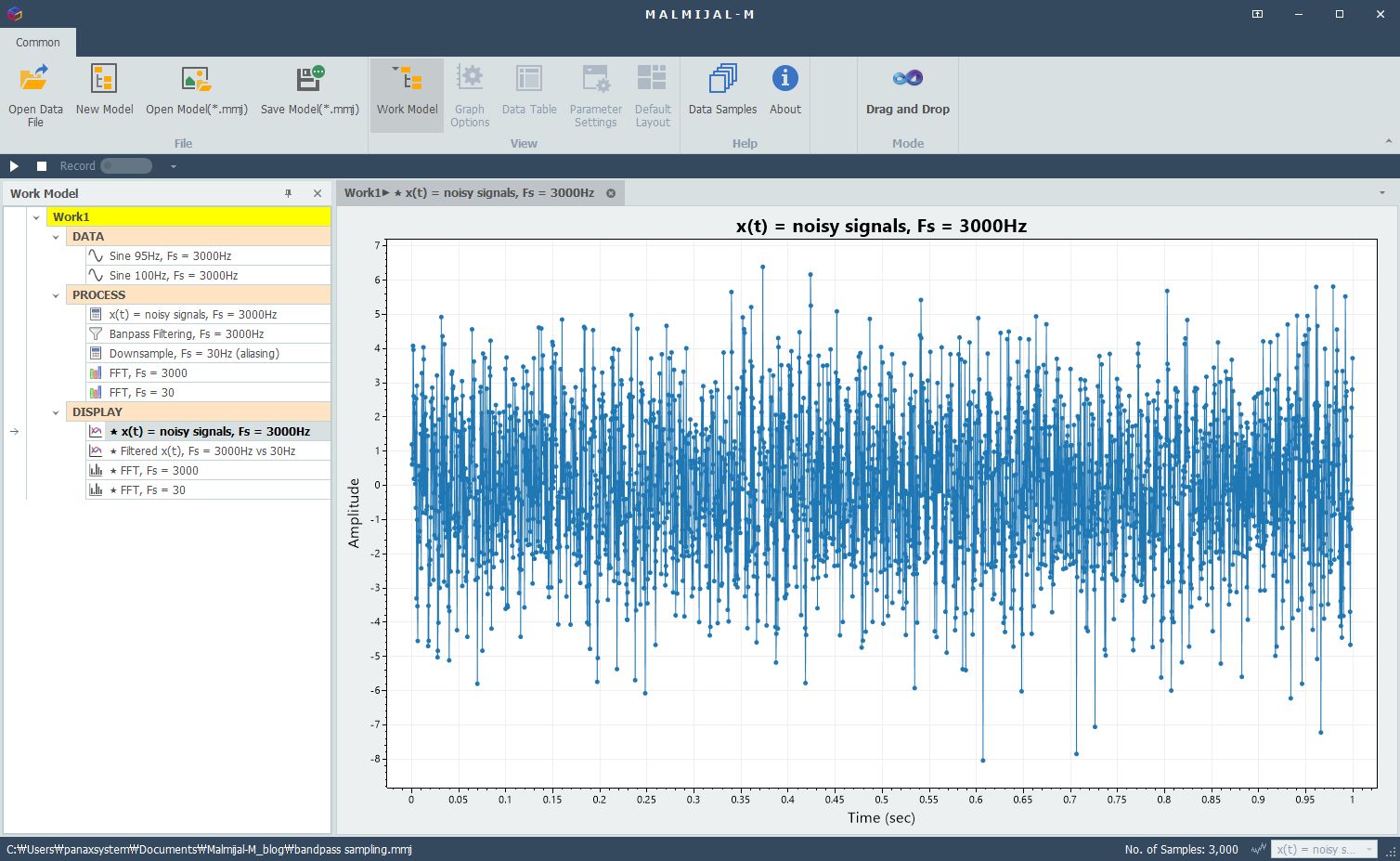

x(t) = sin(2π 95 t) + 0.8sin(2π 100 t) + white noise with Fs = 3000Hz (no alliasing)x(t) = sin(2π 95 t) + 0.8sin(2π 100 t) + white noise with Fs = 3000Hz (no alliasing)

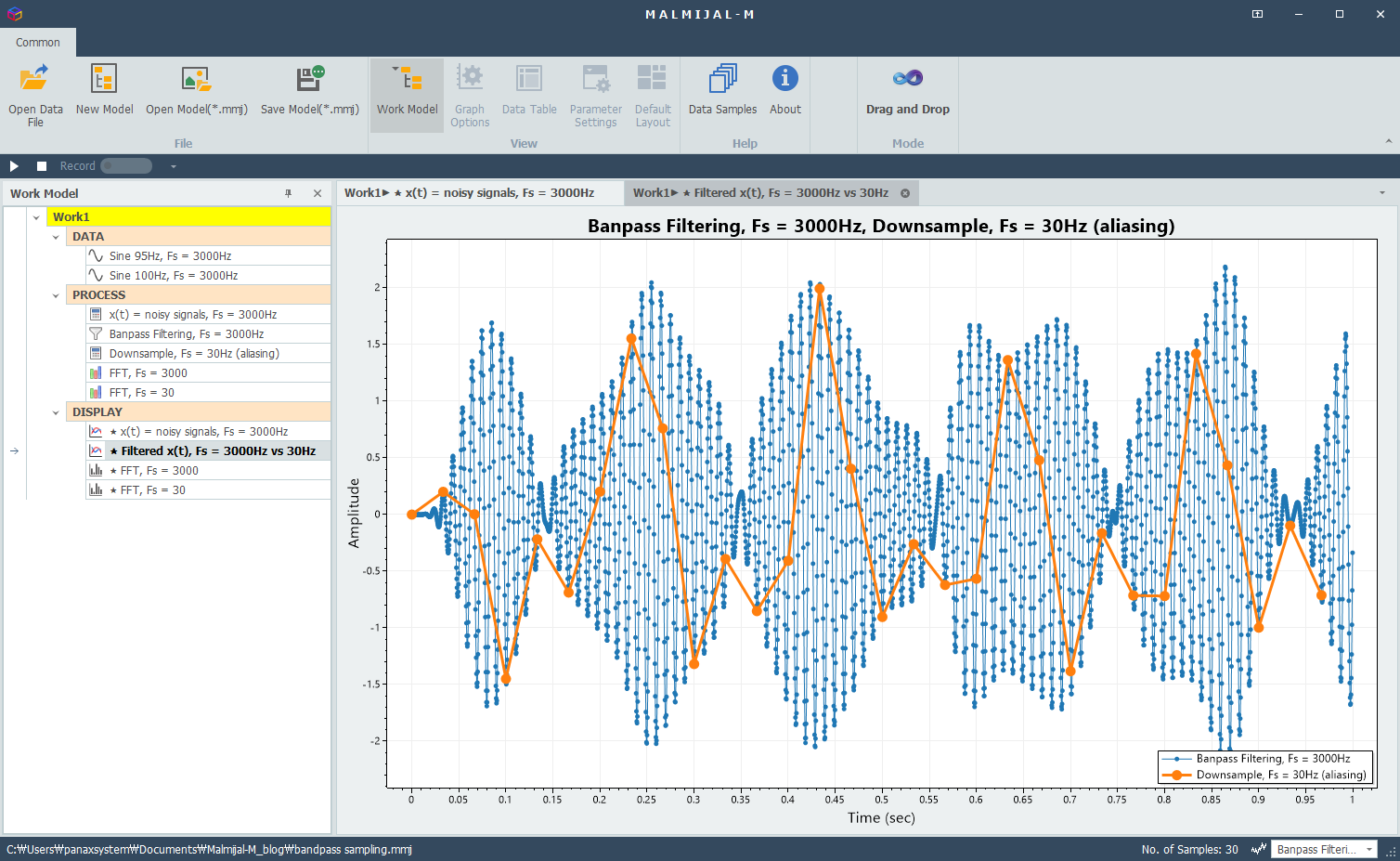

Apply bandpass filter (85 ~ 110Hz band) to prevent aliasing overlap caused by white noise,  then downsampling to 30Hz for intentional aliasing (folding or frequency shift), then under-samplingApply bandpass filter (85 ~ 110Hz band) to prevent aliasing overlap caused by white noise,

then downsampling to 30Hz for intentional aliasing (frequency folding or shifted into baseband)

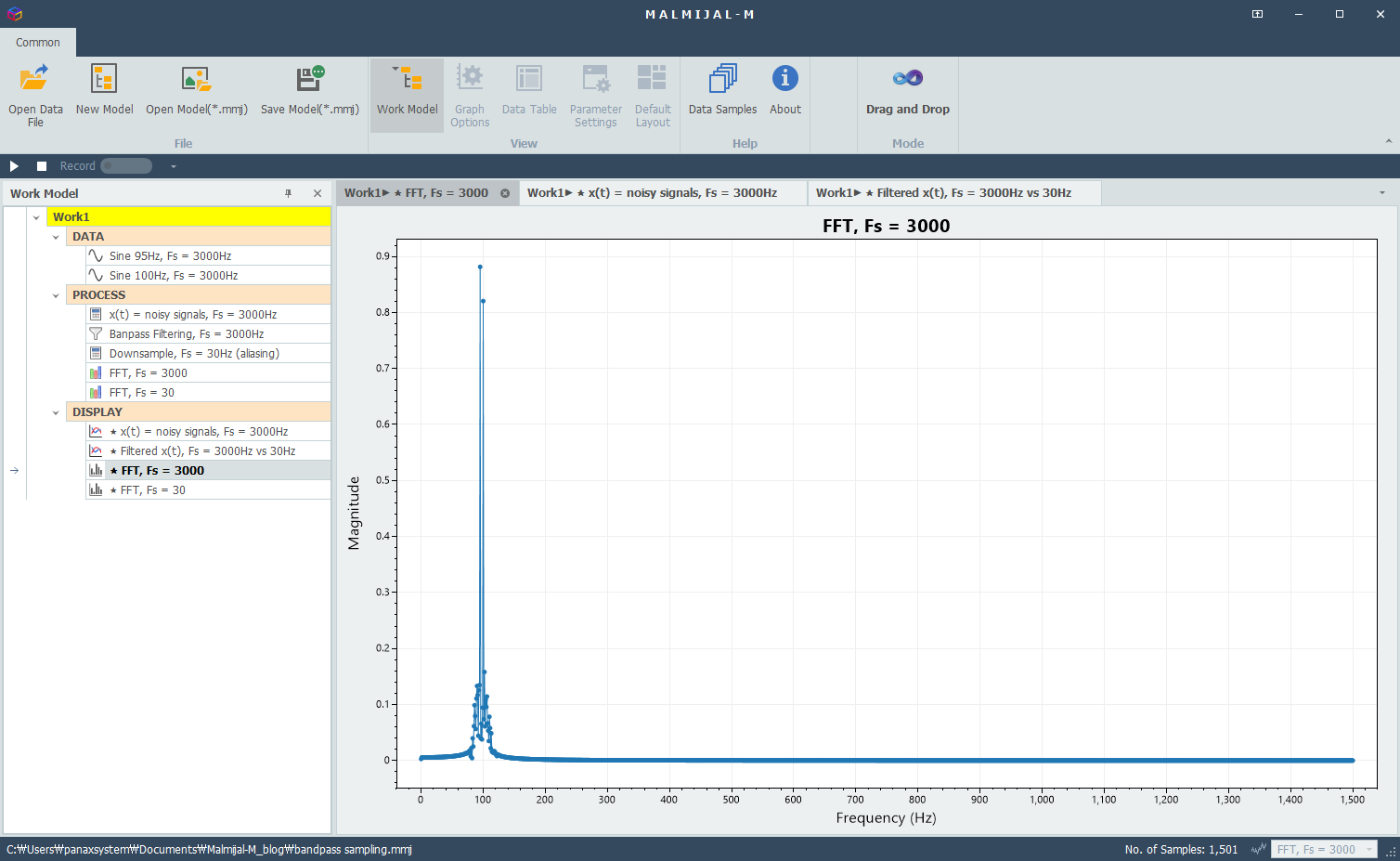

FFT of Noisy signal with 3000Hz sample rate (95 and 100Hz peaks)

FFT of Noisy signal with 3000Hz sample rate (95 and 100Hz peaks)

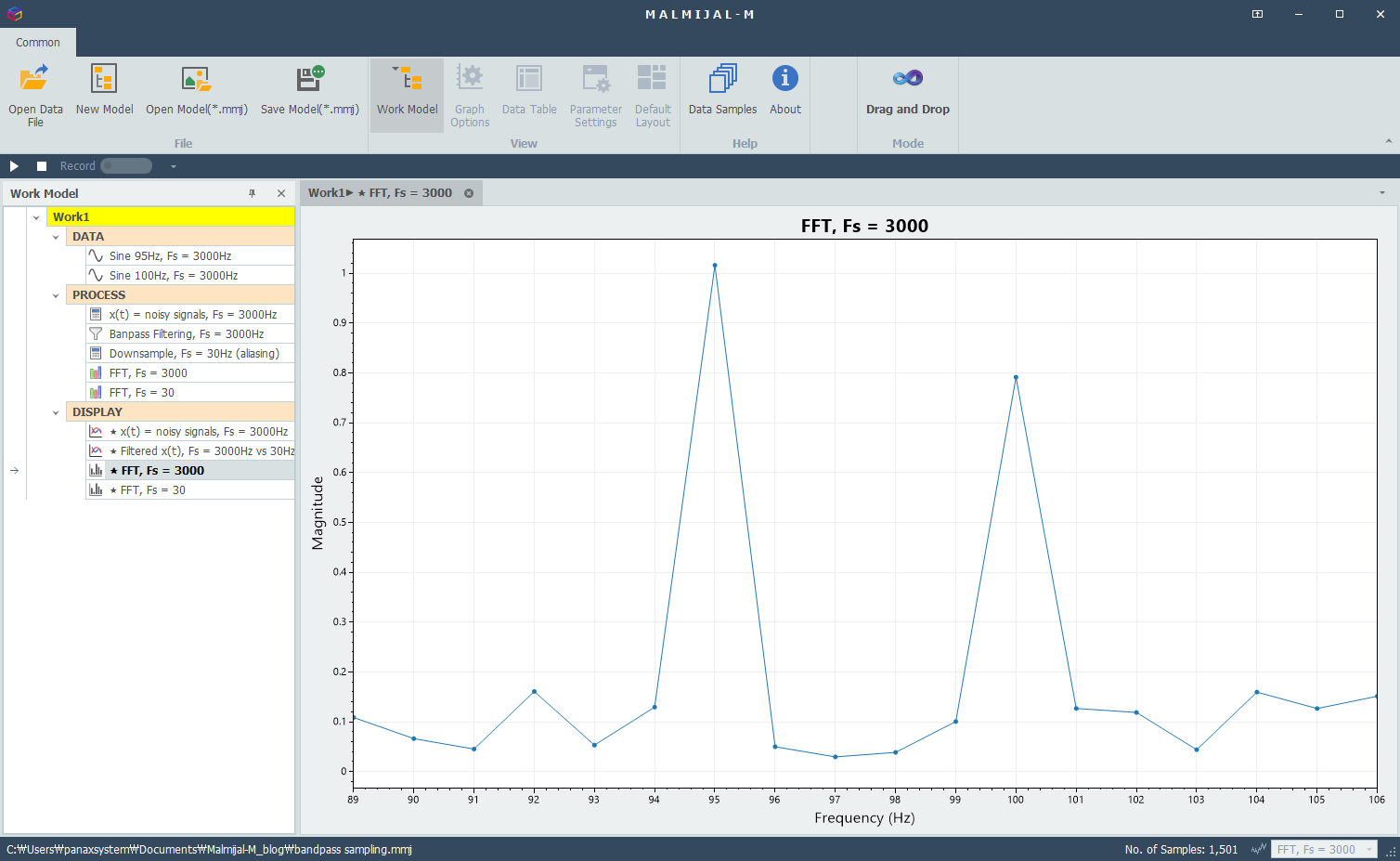

FFT of Noisy signal with 3000Hz sample rate (95 and 100Hz peaks, frequency axis limited)FFT of Noisy signal with 3000Hz sample rate (95 and 100Hz peaks, frequency axis limited)

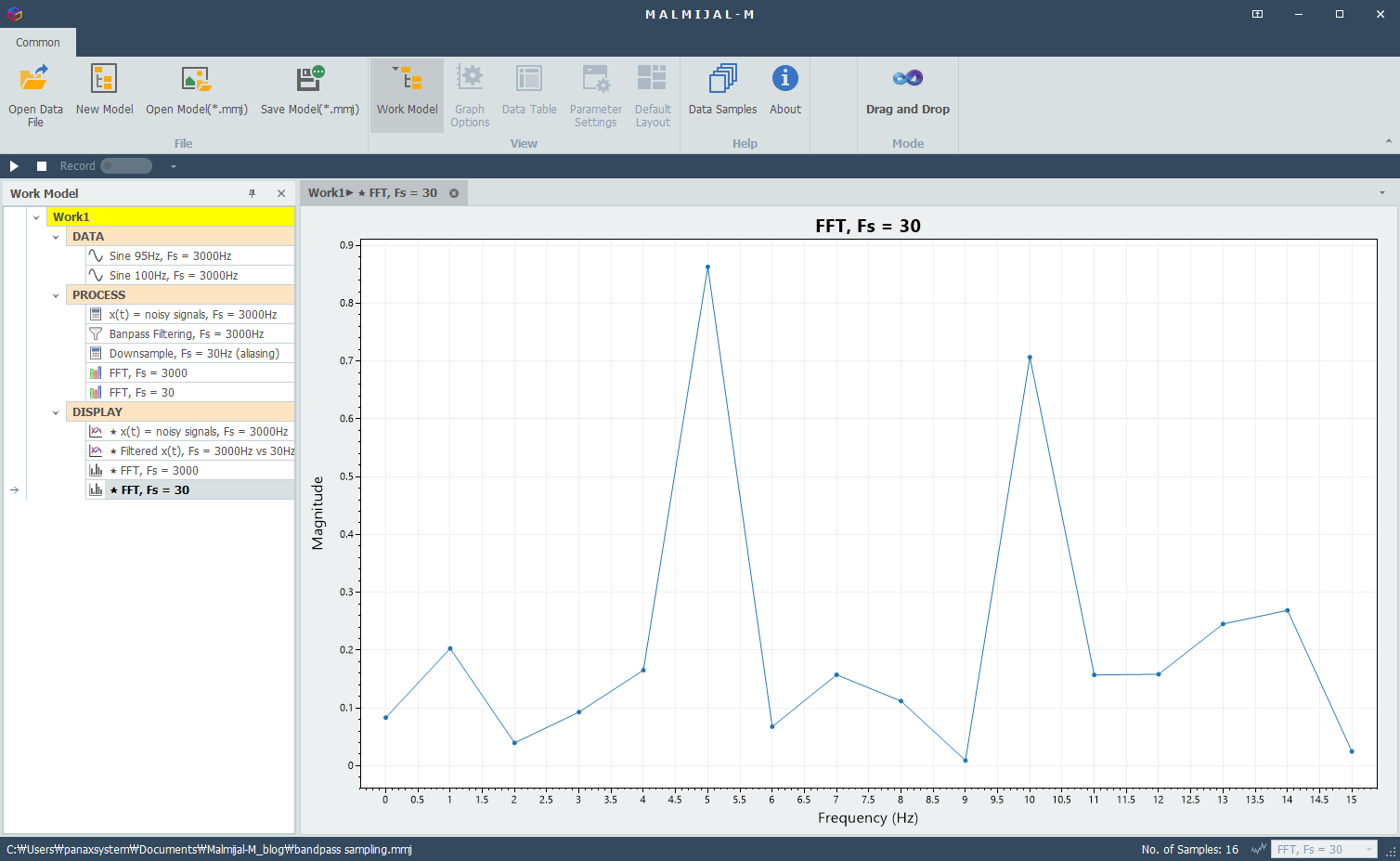

FFT of intentional aliasing with 30Hz sample rate (5 and 10Hz peaks), almost same information as above

FFT of intentional aliasing with 30Hz sample rate (5 and 10Hz peaks), almost same information as above


No information lost when bandpass filtering, showed without noise for clarity
  • uncheck Added Noise of sine wave nodes
  • ignore bandpass filtering (select Ignore of light coral node property)

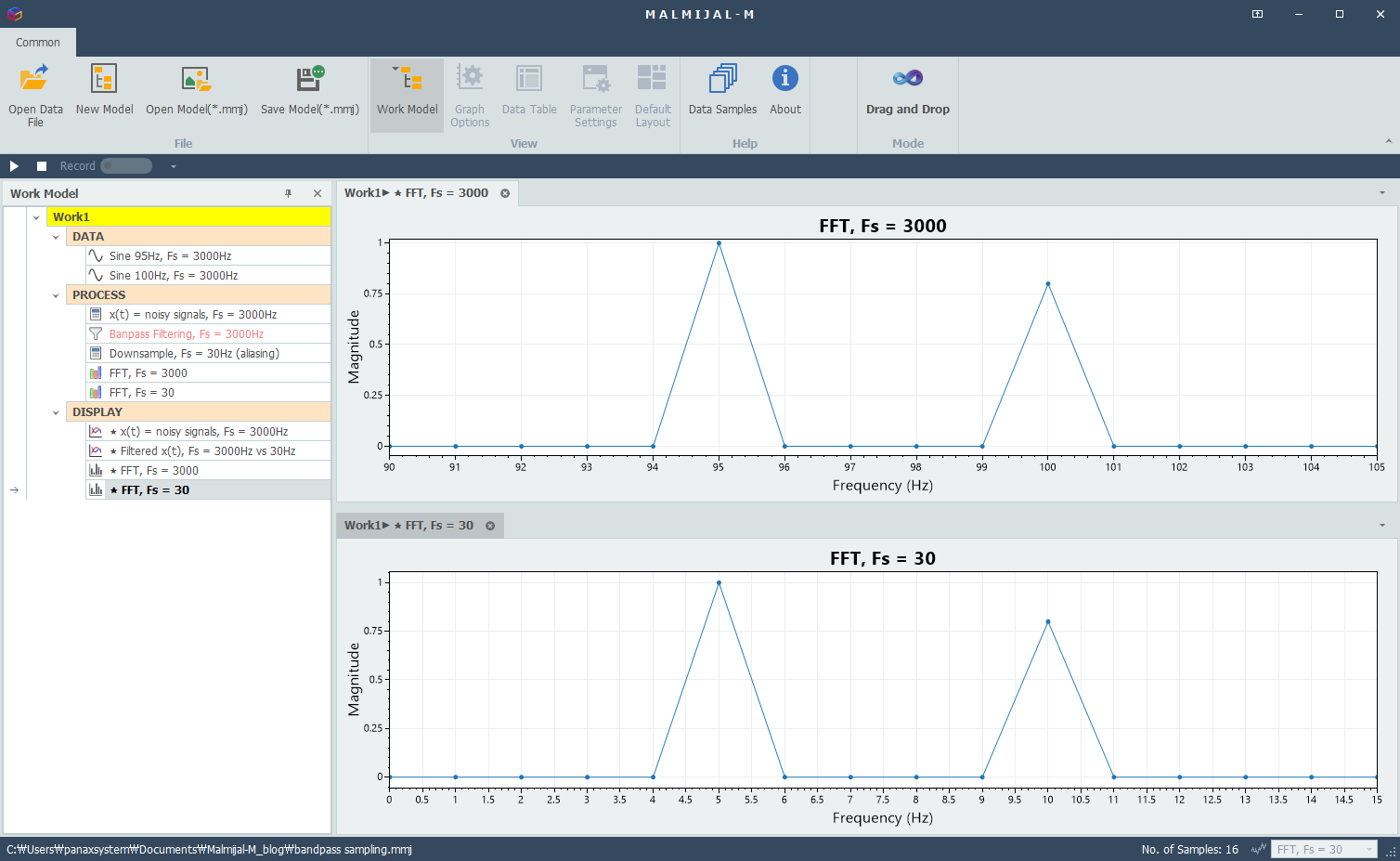

Bandpass filtering does not cause information loss if the signal is within the passbandBandpass filtering does not cause information loss if the signal is clearly within the passband


Key Difference

FeaturesUndersamplingBandpass Sampling
Intentional or notOccurs unintentionallyIntentionally performed
ResultDistortion/aliasingDesired signal translation
ControlNot controlledCarefully controlled
Typical usageUsually avoidCommonly used in RF systems



Real-World Applications

RF Communication
  • High-frequency signals sampled at lower rate → Reduced cost, power, data rate
  • Sample a high-frequency RF signal at a much lower rate and let aliasing shift it to baseband
  • “Select only the desired channel and reject everything else”

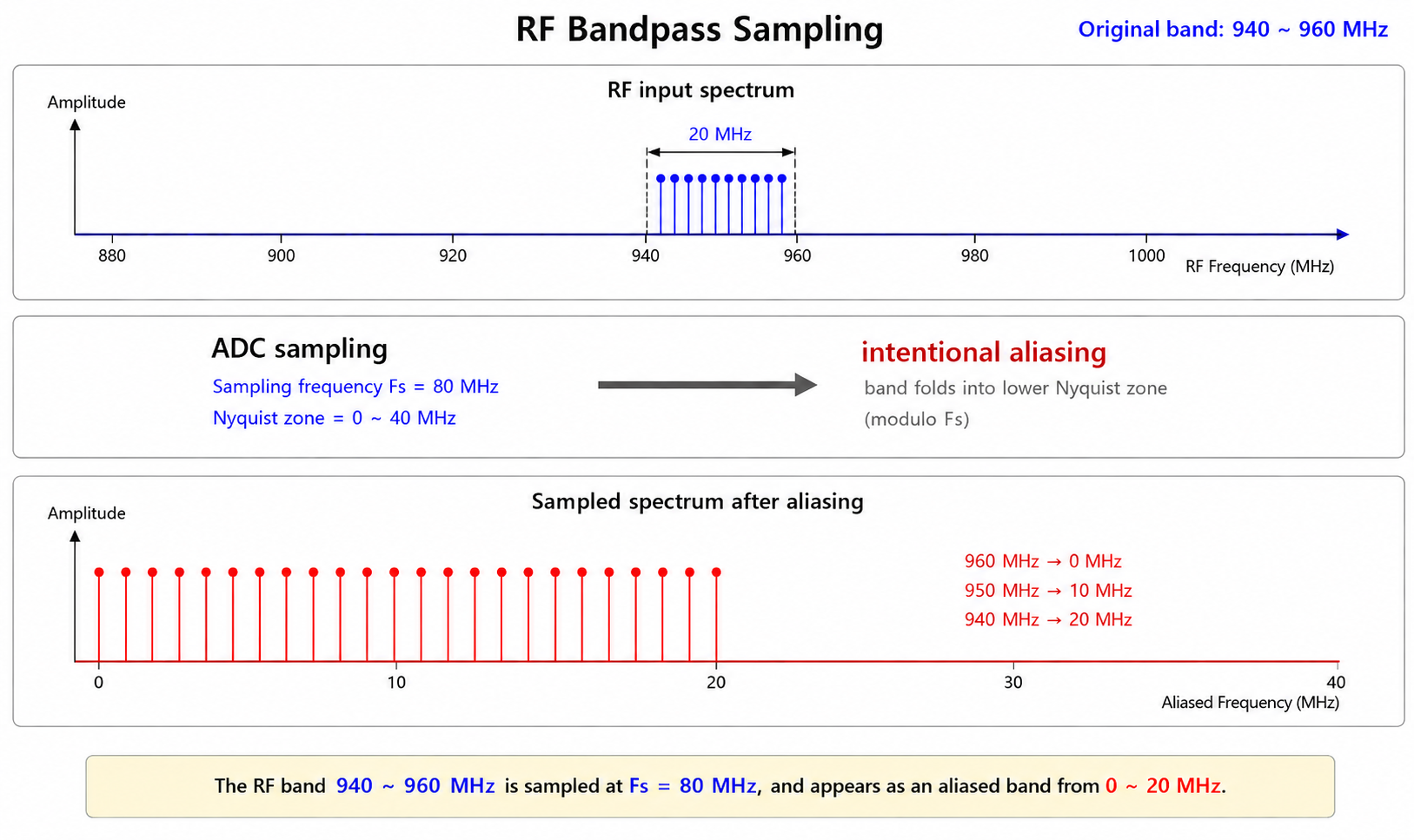

RF Bandpass Sampling

Falias = | 960 - 12*80 | = 0MHz | 950 - 12*80 | = 10MHz | 940 - 12*80 | = 20MHz


Vibration Analysis
  • In vibration analysis, many physical phenomena appear in very narrow frequency bands
  • “Keep only the meaningful signal components”


Spectrum Analysis
  • Efficient data acquisition
  • “Sample only what is necessary”


Key Takeaways

  • Undersampling → unwanted aliasing
  • Bandpass sampling → controlled aliasing
    • Key condition → no overlap
    • Useful for narrowband signals


Conclusions

Undersampling normally causes aliasing and distortion because the sampling rate is lower than twice the highest frequency component.

  • In most cases, undersampling is undesirable because different frequency components overlap and the original signal cannot be recovered correctly.
  • However, bandpass sampling is a special and intentional use of undersampling for band-limited signals, where aliasing is controlled rather than avoided completely.
  • The key requirement is that the aliased frequency bands must not overlap, allowing the original information to remain intact.

In summary,
undersampling is usually a source of error, but when carefully designed for narrowband signals, it becomes bandpass sampling—a practical and efficient technique used in real-world systems such as RF signal processing.
