Sample-and-Hold and Zero-Order Hold: From Sampling to System Modeling
Sample-and-hold (S/H) circuits are fundamental components in modern signal processing systems, particularly in analog-to-digital conversion (ADC).
Their primary role is to
- Capture the value of a continuous-time signal at a specific instant
- Hold that value long enough for accurate conversion
Without S/H circuits, the input signal would continue changing during ADC conversion, leading to significant errors.
However, in signal processing theory, the behavior of sampled signals is often described using a Zero-Order Hold (ZOH) model, which extends the concept of holding into a system-level representation.
Operation Principle of Sample-and-Hold (Hardware Perspective)
A sample-and-hold circuit operates in two distinct phases.
1. Sampling Phase (Track Mode)
- The circuit continuously follows the input signal
- The capacitor charges to match the input voltage
2. Hold Phase
- The input is disconnected
- The sampled value is held constant
- This value is maintained only during the ADC conversion time
Key Insight
The hold operation in real hardware is
- Temporary
- Internal to the ADC
- Not intended to generate a continuous-time output waveform
Mathematical Model of Ideal Sampling
Sampling can be described mathematically as
This represents
- Sampling at discrete time intervals Ts
- Multiplication by an impulse-train
The result is a continuous-time signal composed of impulses, not a staircase waveform.
From Sampling to System Representation: Why ZOH is Introduced
At this stage, we face a modeling issue.
- The sampled signal exists as impulses
- But real systems often require a continuous-time representation
To bridge this gap, we introduce Zero-Order Hold (ZOH)
Zero-Order Hold (ZOH) Model
Concept
ZOH is not the physical hold operation inside an ADC.
Instead, it is a system-level model that assumes. Each sampled value is held constant until the next sample arrives.
ZOH impulse response
ZOH output via convolution
This produces a piecewise constant (staircase) waveform.
Time-Domain Behavior (ZOH Representation)
When the sampled signal is modeled using ZOH,
- The signal becomes piecewise constant
- Flat segments exist between sampling instants
- Discontinuities occur at sampling points
Important Clarification
The staircase waveform is not the direct output of the S/H circuit, but the result of applying a ZOH model to the sampled signal.
Frequency-Domain Effect of ZOH
ZOH introduces a characteristic frequency response.
Implications
- High-frequency components are attenuated
- The response follows a sinc-shaped
- This leads to amplitude distortion in reconstructed signals
Key Point
The commonly observed high-frequency roll-off is a property of the ZOH model, not the instantaneous sampling itself.
Step by step Signal Transformation
Continuous-Time Signal

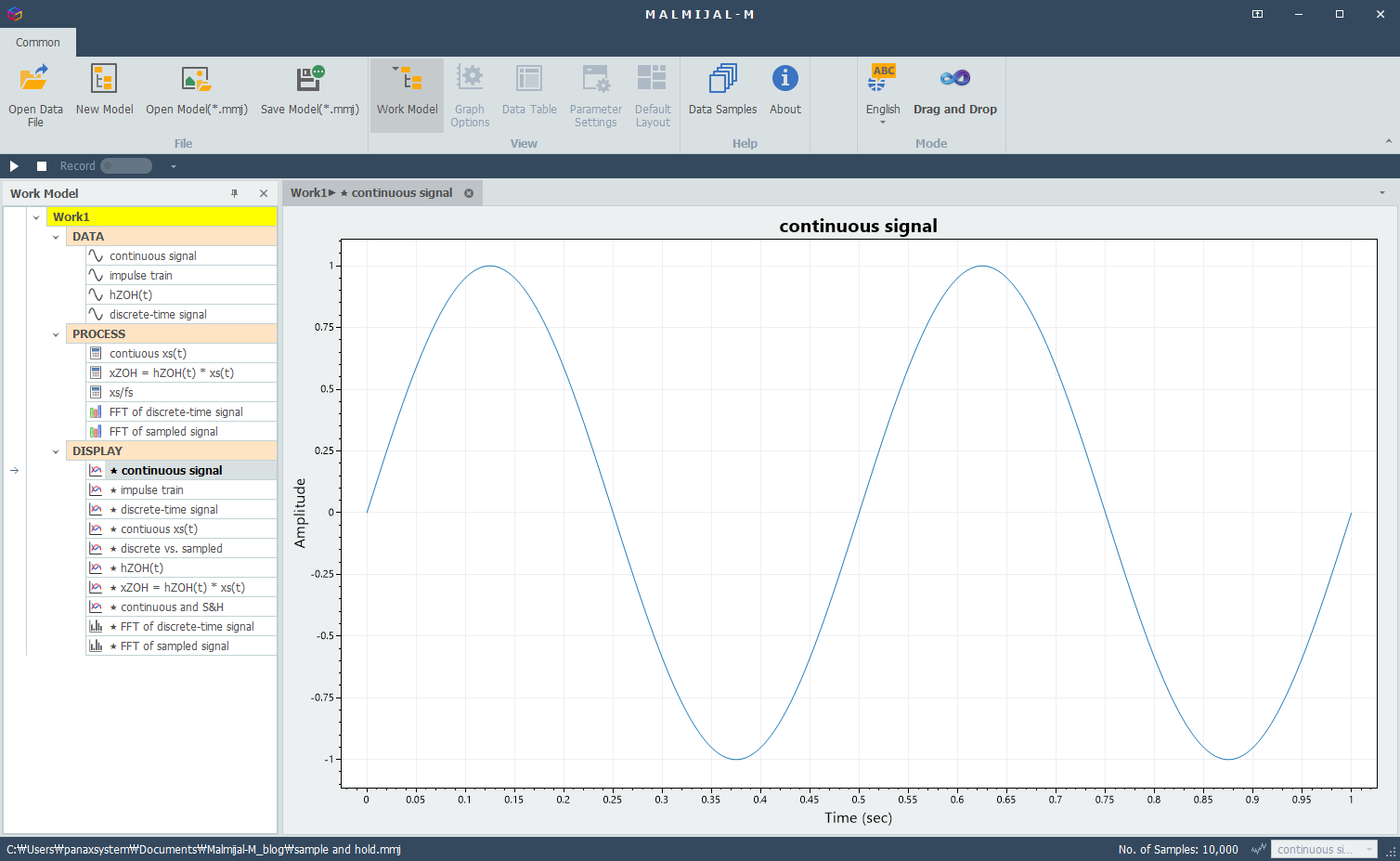

Assume continuous-time 2Hz Sine Wave having sample rate 10kHz
Ideal Sampling

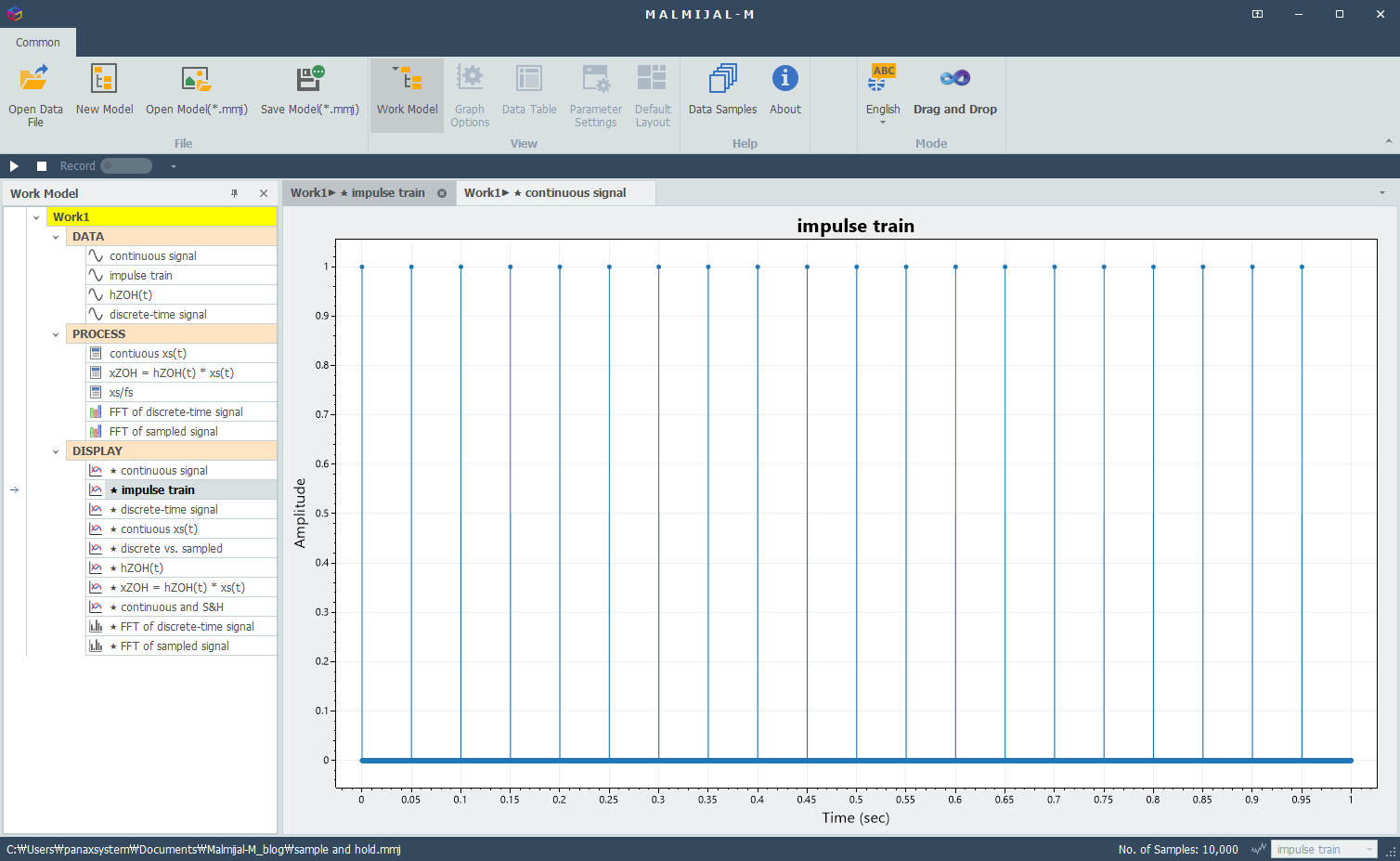

Impulse Train with Ts = 0.05sec for sampling

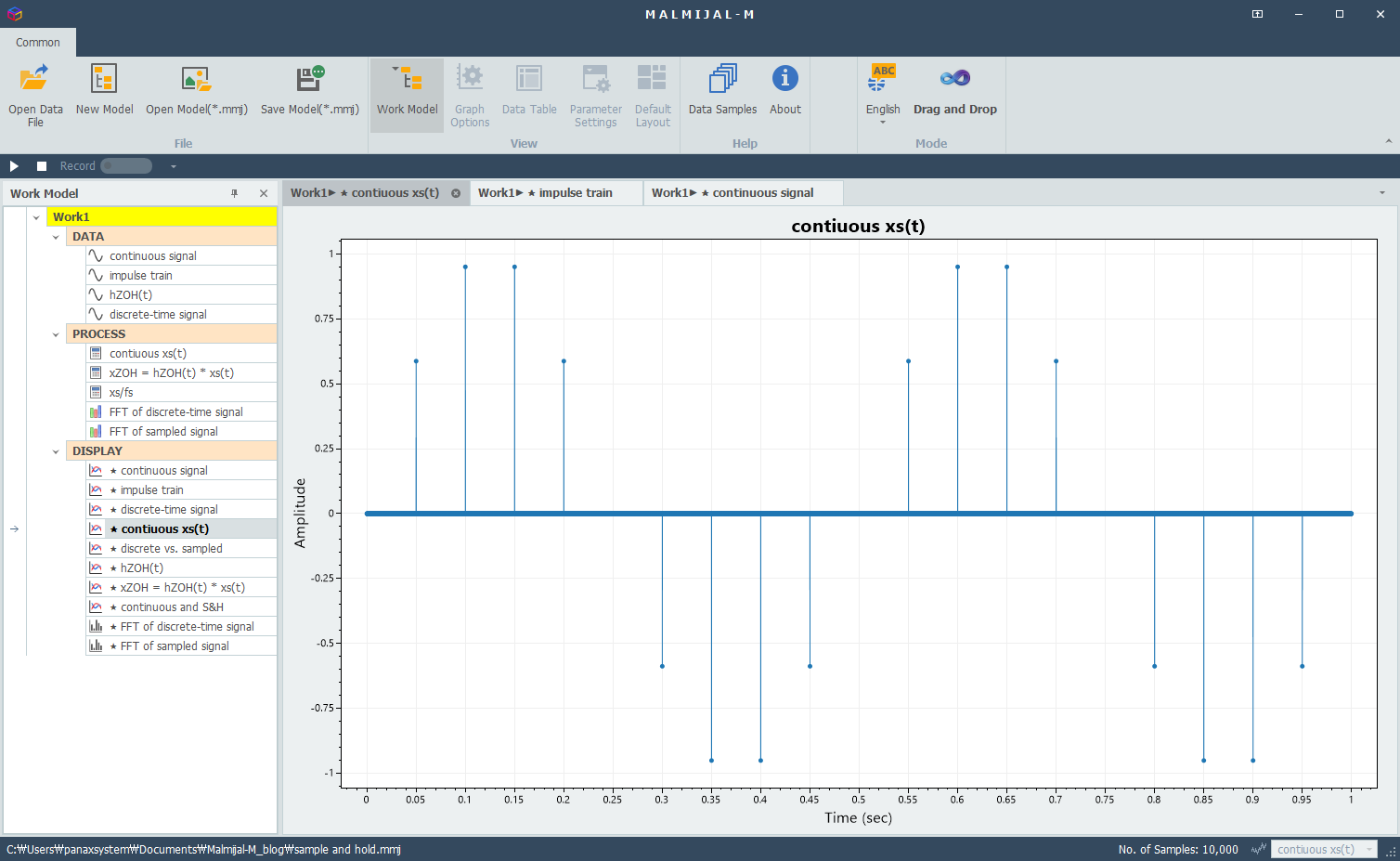

Discretization of continous-time signal by sampling (impulse modulation), xs(t)

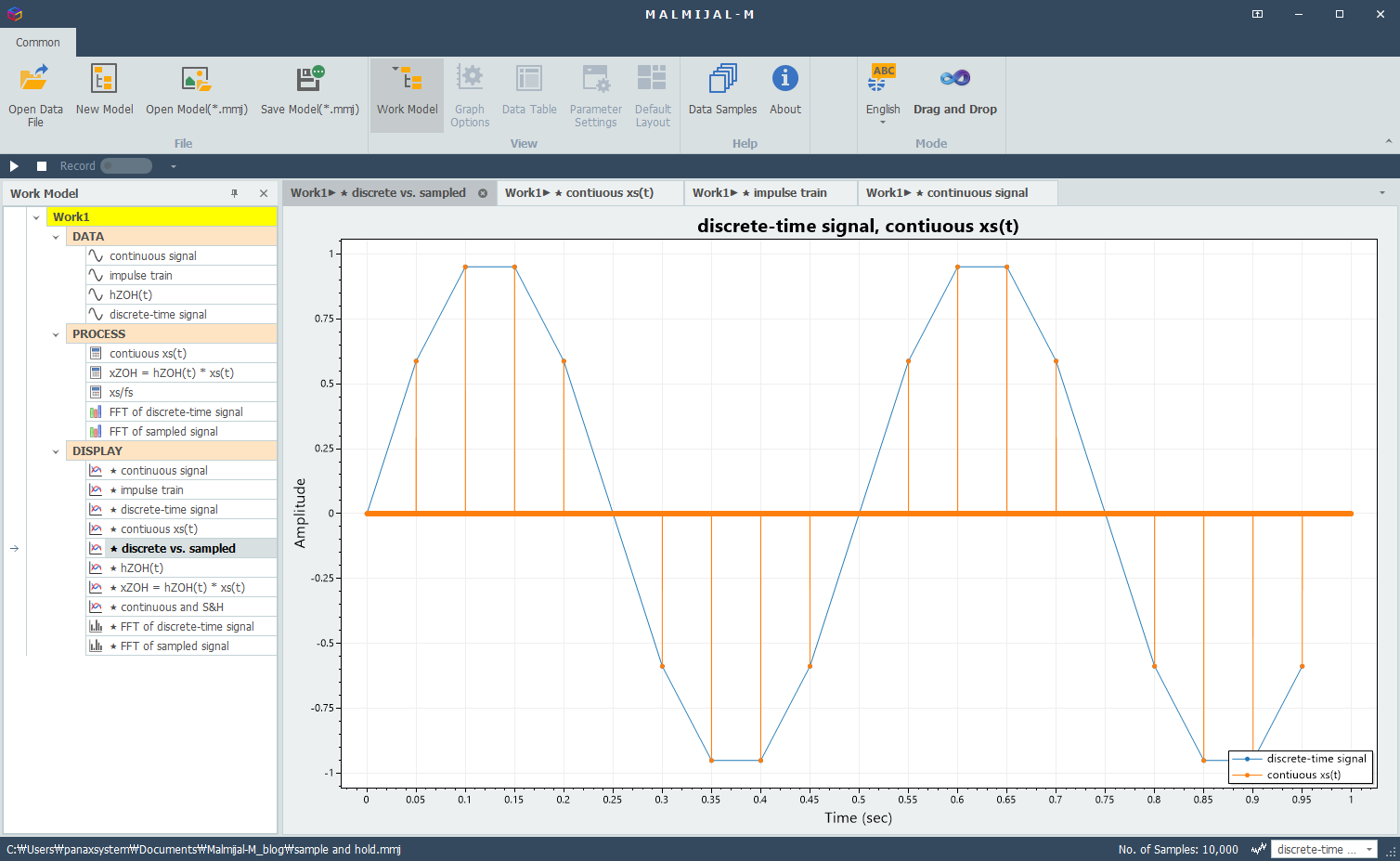

Comparison of pure discrete-time signal (f = 2Hz, Fs = 20Hz) and discretized signal by sampling
Zero-Order Hold (ZOH) Modeling

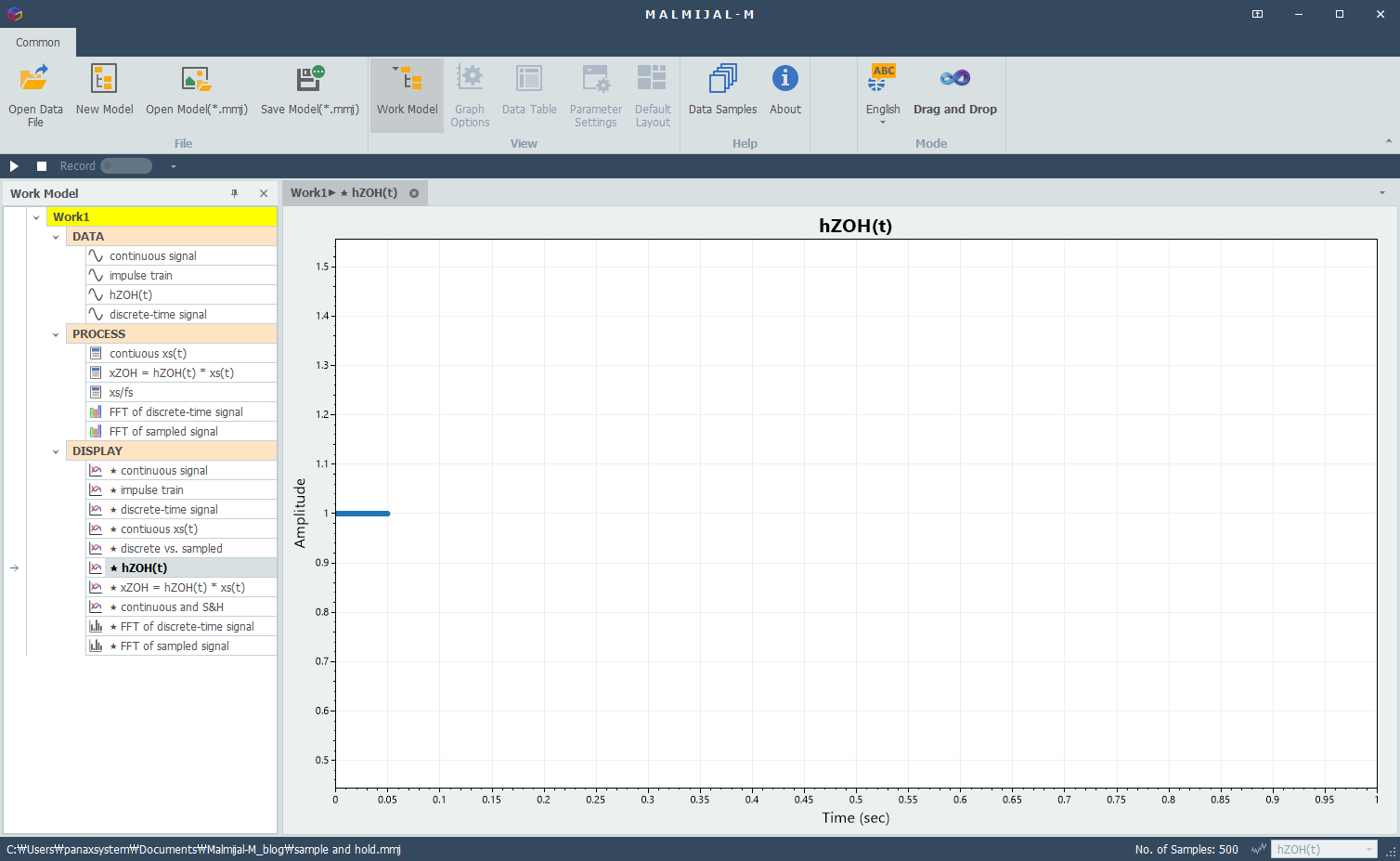

Impulse response of ZOH, h(t)

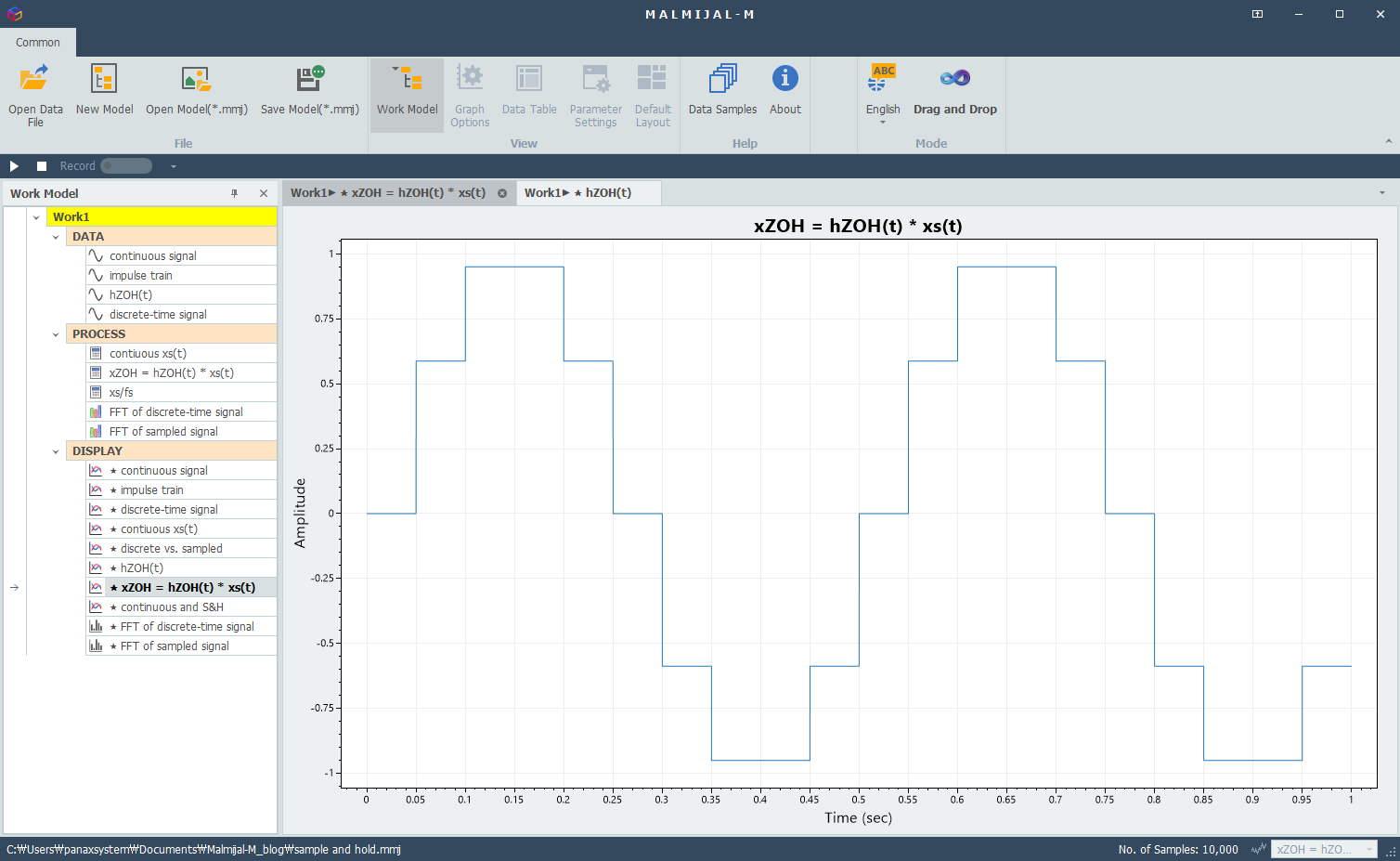

Convolution of impulse response of ZOH and sampled signal, xZOH (t) = h(t) * xs(t)

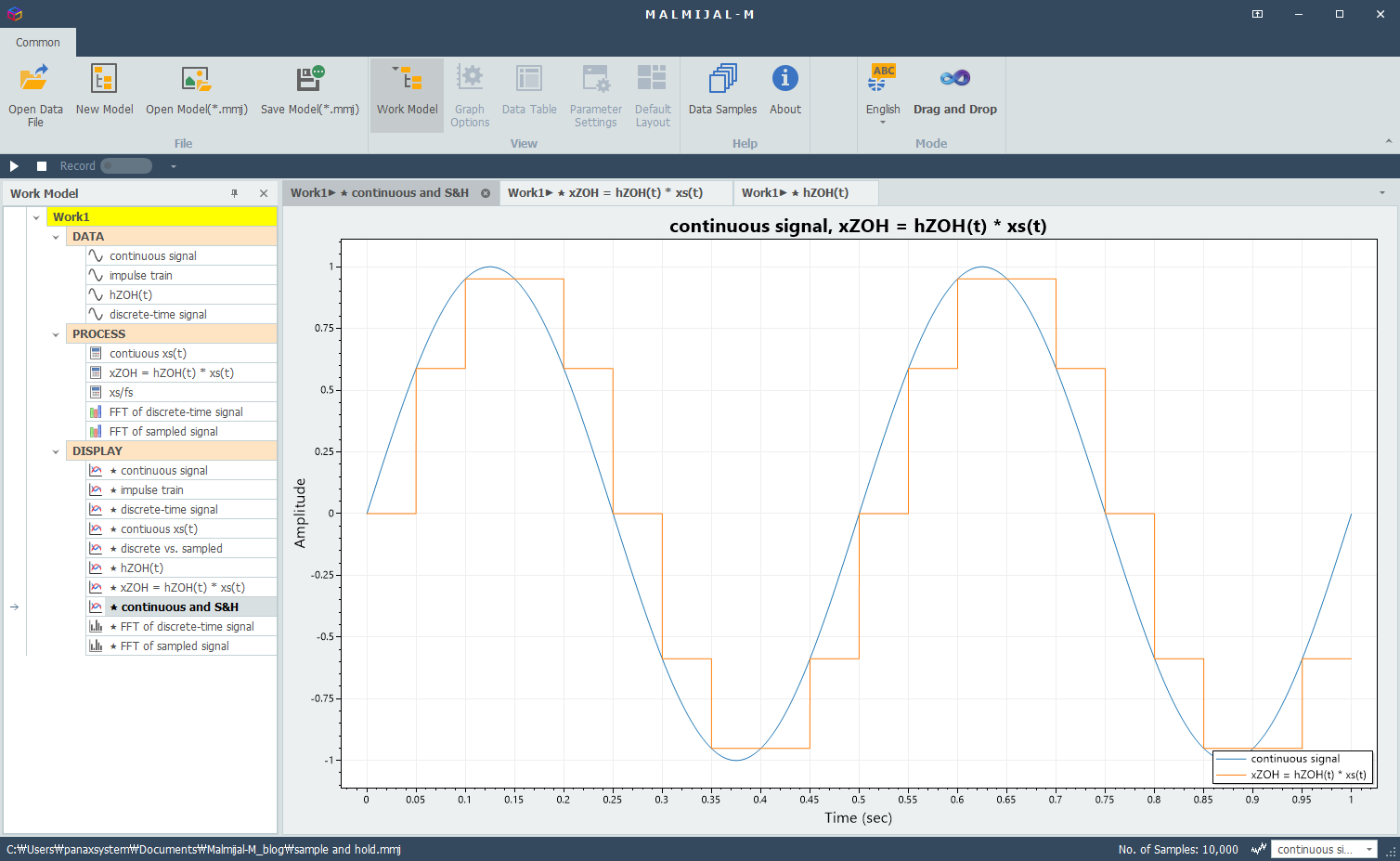

Comparison of continous-time signal and ZOH staircase waveform
Frequency Analysis at Different Signal Representations

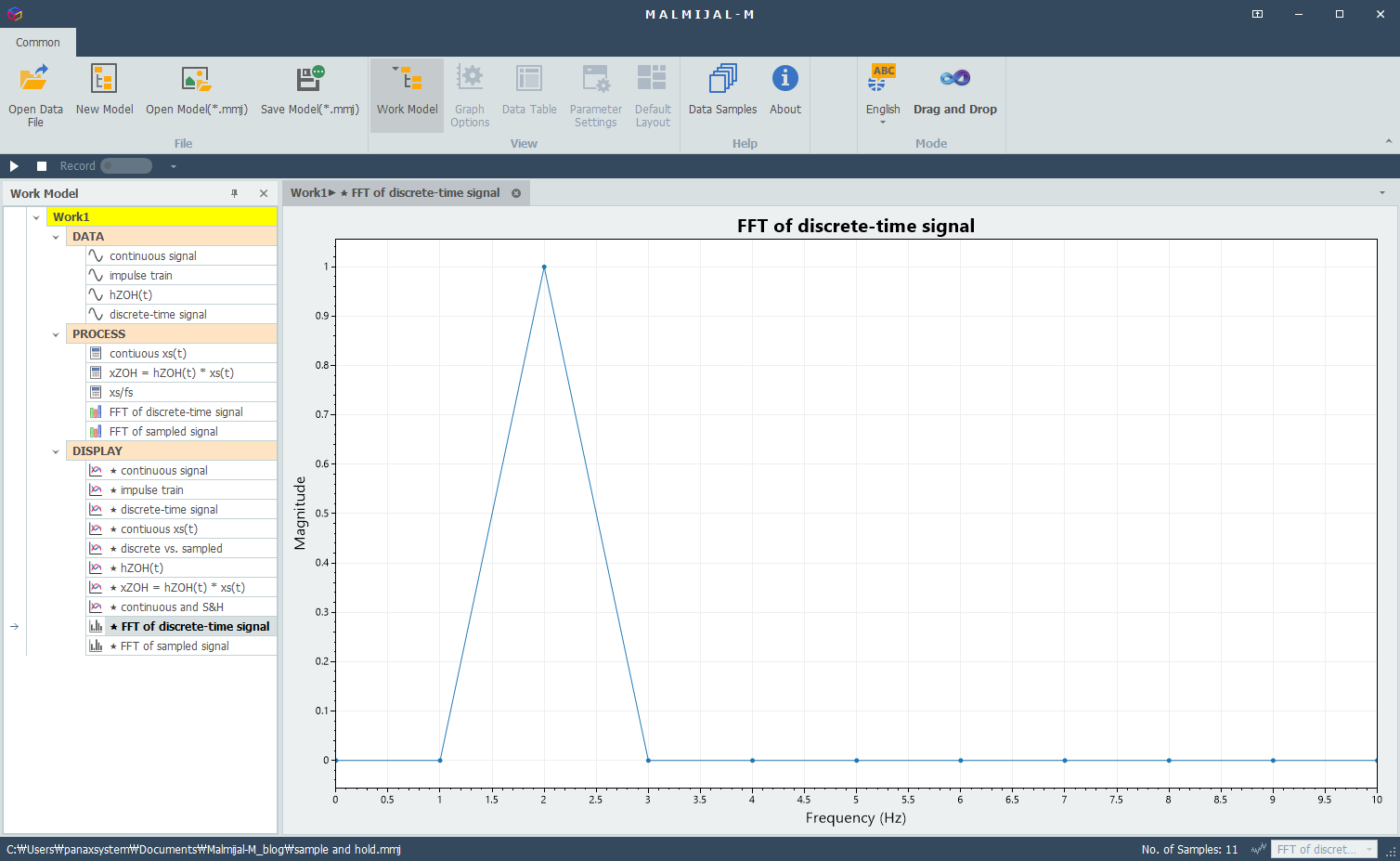

FFT of a pure discrete-time signal (f = 2Hz, Fs = 20Hz)

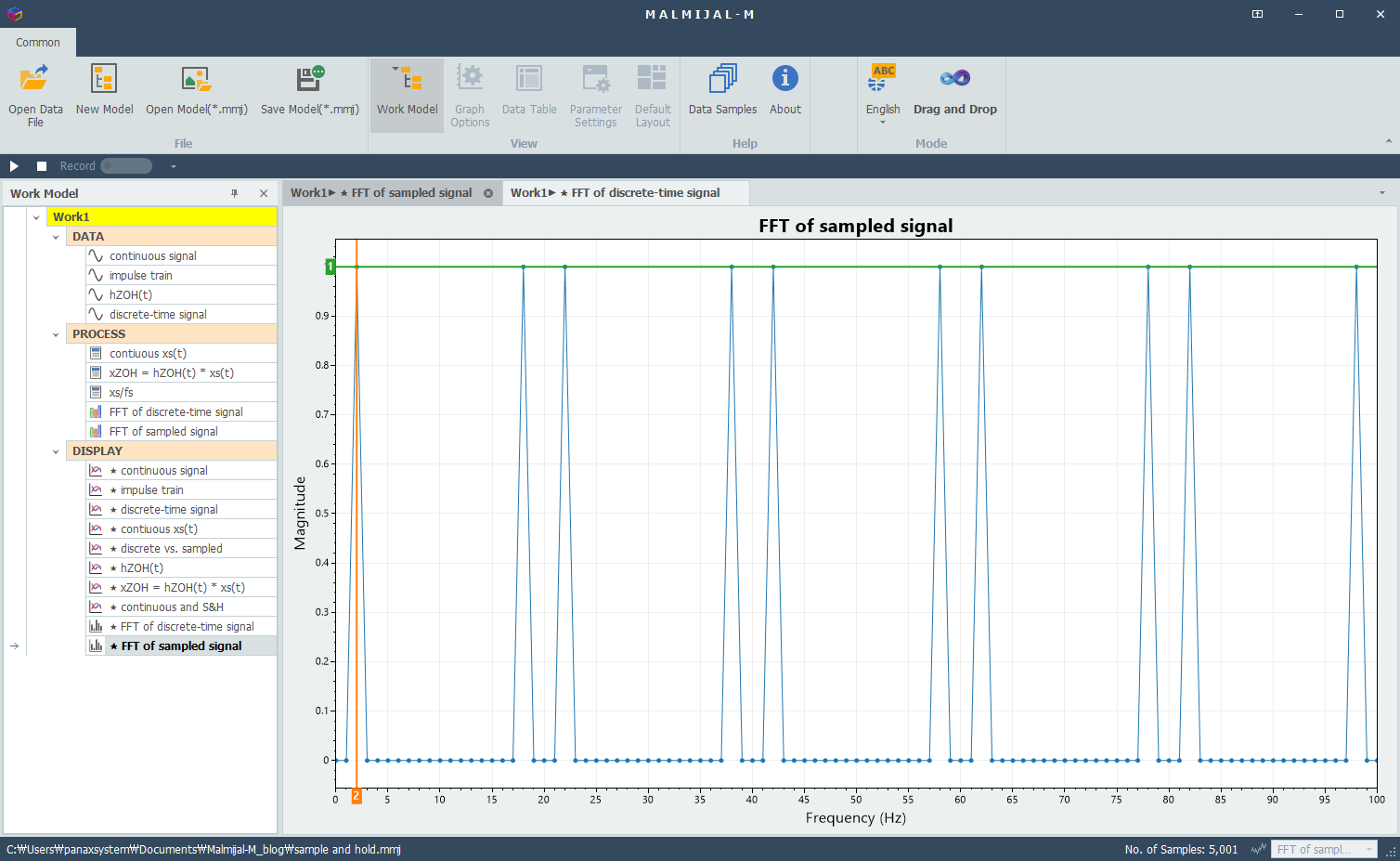

Spectrum of the ideally sampled continuous-time signal, periodic spectral replication at multiples of Fs

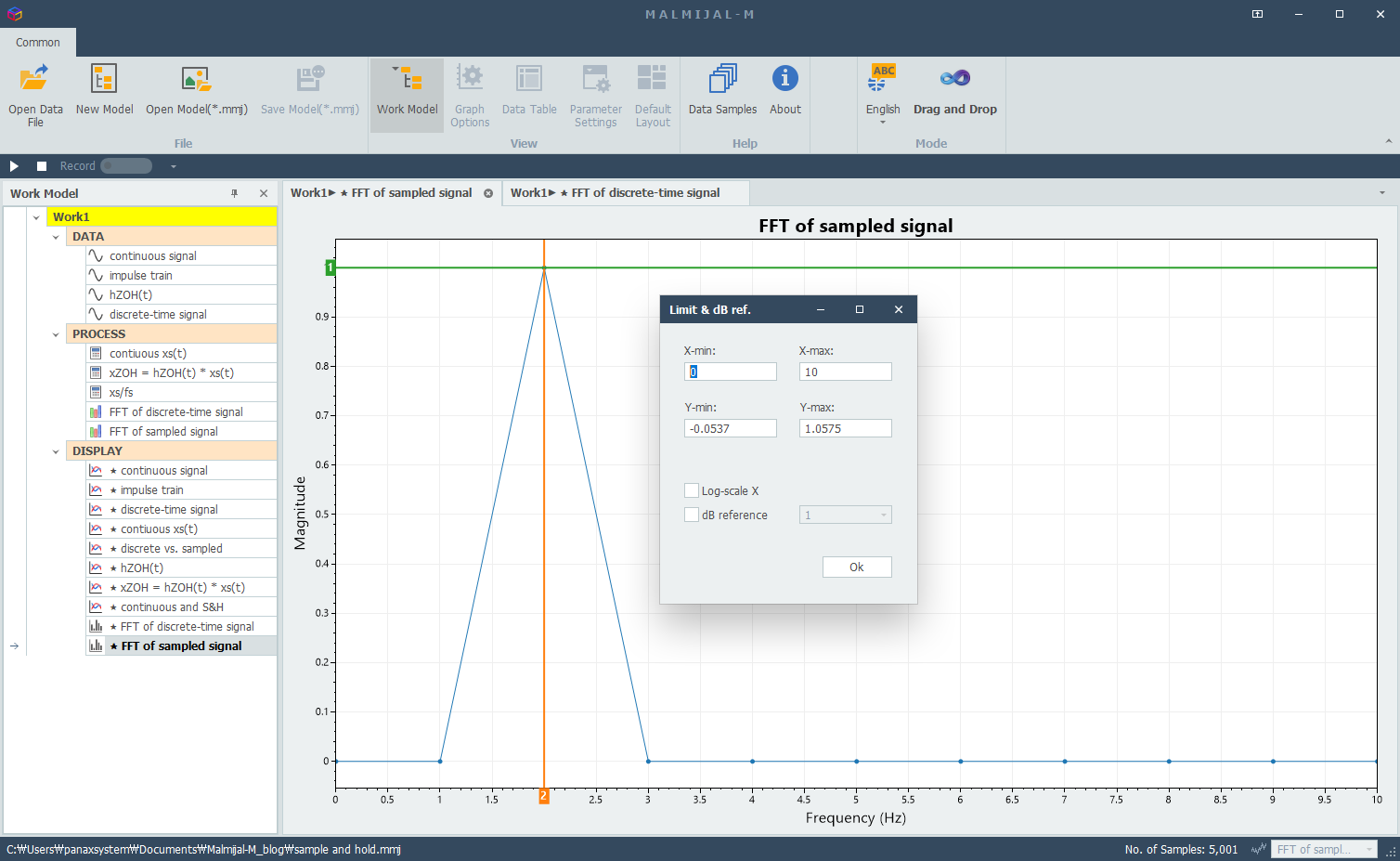

Spectrum of the ideally sampled continuous-time signal (frequency axis limited) = FFT of a pure discrete-time signal
- sinc-shaped magnitude
- high-frequency attenuation
Practical Limitations of Real Sample-and-Hold Circuits
Real S/H circuits are non-ideal and introduce additional effects.
Aperture Error
- Sampling does not occur at an exact instant
- Timing uncertainty introduces distortion
Droop
- Held voltage decreases over time
- Caused by capacitor leakage
Noise and Switching Effects
- Thermal noise
- Charge injection and switching transients
Applications in Real Systems
Sample-and-hold circuits are widely used in
ADC Front-End
- Ensures stable input during conversion
Measurement Systems
- Captures precise signal values
Data Acquisition Systems
- Enables synchronized multi-channel sampling
Engineering Perspective
Sample-and-hold circuits serve as a bridge between analog and digital domains.
From a system viewpoint,
- Sampling introduces discrete-time representation
- ZOH introduces time-domain discontinuities
- ZOH also introduces frequency-domain distortion
Key Insight
The hold operation in a real Sample-and-Hold circuit is a temporary stabilization mechanism, whereas the Zero-Order Hold is a mathematical model used to represent sampled signals in continuous time.
Understanding this distinction is essential for
- Accurate signal reconstruction
- ADC design
- High-frequency signal analysis
