What Is Dithering and Why Do We Add Noise Intentionally?
At first glance, adding noise to a signal seems counterproductive. In most engineering contexts, noise is something to be minimized or eliminated. However, in digital signal processing—particularly in quantization—noise can play a surprisingly beneficial role.
This technique, known as dithering, is widely used in audio processing, imaging, and digital communication systems. It addresses one of the fundamental problems in digital representation: quantization distortion.
To understand why dithering works, we must first examine what happens when a signal is represented with limited resolution.
Quantization and Its Consequences
In digital systems, continuous amplitude values are mapped to discrete levels. This process is called quantization.
For a signal x[n], quantization can be modeled as
where e[n] is the quantization error.
The Problem: Structured Distortion
When no dithering is applied,
Quantization error is correlated with the signal
This leads to nonlinear distortion
In audio, this appears as:
harsh tones
metallic distortion
low-level buzzing
This is exactly what happens when reducing bit depth—for example, from 16-bit to 8-bit.
Visualizing Bit Depth Reduction
The effect of quantization becomes much clearer when observed in the time domain.

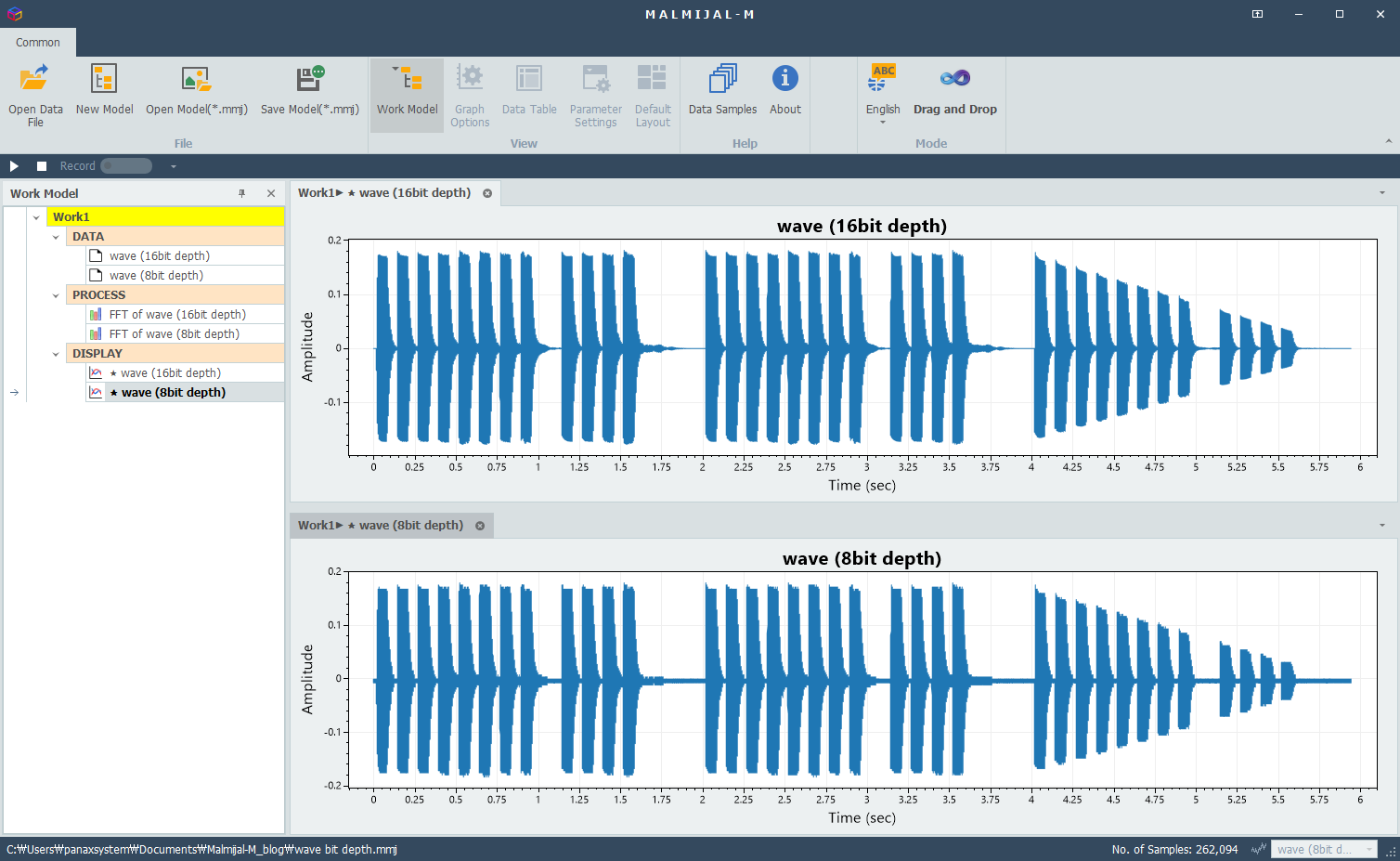

Comparison of the same audio signal at 16-bit and 8-bit resolution. The lower bit-depth signal exhibits visible amplitude quantization, resulting in distortion

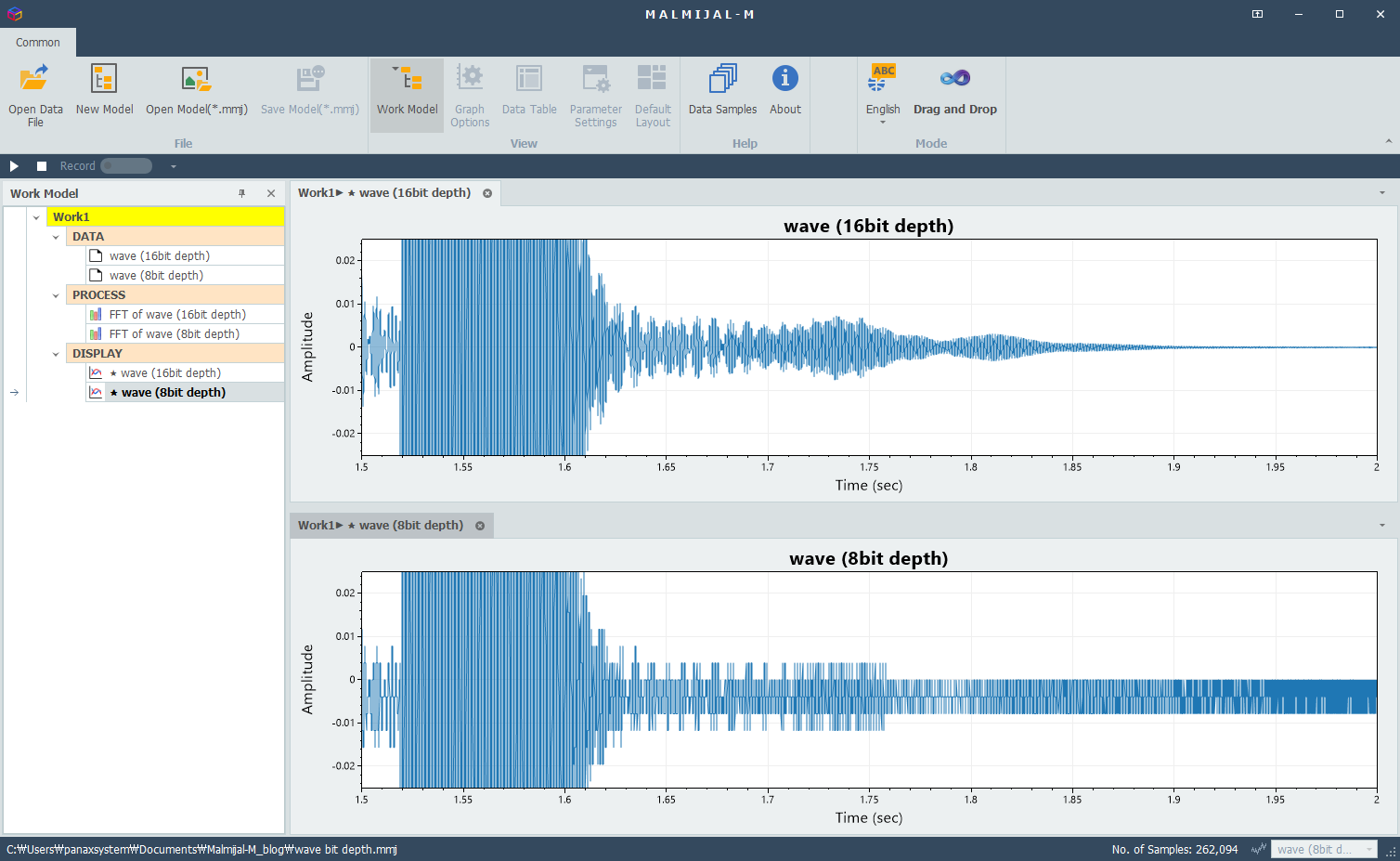

Zoom in for the difference of waves
16bit wave sample
8bit wave sample
Interpretation
From the figure,
The 16-bit signal appears smooth and continuous
The 8-bit signal shows clear “staircase” behavior
This staircase effect is not just visual—it directly translates into audible distortion.
What Dithering Actually Does
Dithering modifies the quantization process by introducing noise before quantization
where,
d [n] is the dither noise
Q (⋅) is the quantization operator
Key Effect
Dithering changes the nature of quantization error:
Without Dither
With Dither
Error correlated with signal
Error becomes uncorrelated
Harmonic distortion
Noise-like behavior
Tonal artifacts
Broadband noise
Important Clarification
Dithering does not increase resolution. It changes distortion into noise.
Why the Effect Is Subtle
In practical listening tests, especially with real-world signals:
The difference between
8-bit
8-bit with dither
can be surprisingly small.
This is because:
The added noise is intentionally very low amplitude
The human ear is less sensitive to:
broadband noise
compared to structured distortion
Practical Insight
Even when the audible difference is subtle:
Dithering improves statistical properties of the signal
It prevents patterned distortion artifacts
It ensures more linear system behavior
Why Adding Noise After Quantization Is Not Dithering
A common misconception is that simply adding noise to a quantized signal achieves dithering.
However:
This is not dithering.
Why It Fails
Quantization error has already been introduced
The distortion remains embedded in the signal
Noise is merely layered on top
Correct Interpretation
True dithering must occur before quantization, not after.
Practical Applications
Dithering is essential in several domains:
Audio Engineering
Bit depth reduction (e.g., 24-bit → 16-bit mastering)
Preventing low-level distortion
Image Processing
Reducing banding artifacts
Improving perceived gradients
Digital Systems
Linearizing quantization behavior
Improving statistical signal properties
Key Insight
Quantization is inherently nonlinear. Dithering introduces randomness to restore statistical linearity.
