Eigenvalues and Eigenvectors in Signal Processing
Eigenvalues and eigenvectors arise naturally in many signal processing problems, particularly those involving linear transformations, system analysis, and statistical signal modeling.
In essence, they provide a way to decompose complex operations into simpler, independent components. This property makes them indispensable in areas such as spectral analysis, filtering, system stability, and dimensionality reduction.
Rather than treating eigenvalues and eigenvectors as purely abstract linear algebra concepts, this article focuses on their physical meaning and practical role in signal processing systems.
Mathematical Definition
For a linear transformation represented by matrix A, an eigenvector v and eigenvalue λ satisfy
Av = λv
where,
- v : eigenvector (non-zero vector)
- λ : eigenvalue (scalar)
Interpretation
This equation states that applying the transformation A to v does not change its direction, only its magnitude. Therefore, eigenvectors reveal the principal directions of a system, allowing complex behavior to be decomposed into independent modes.

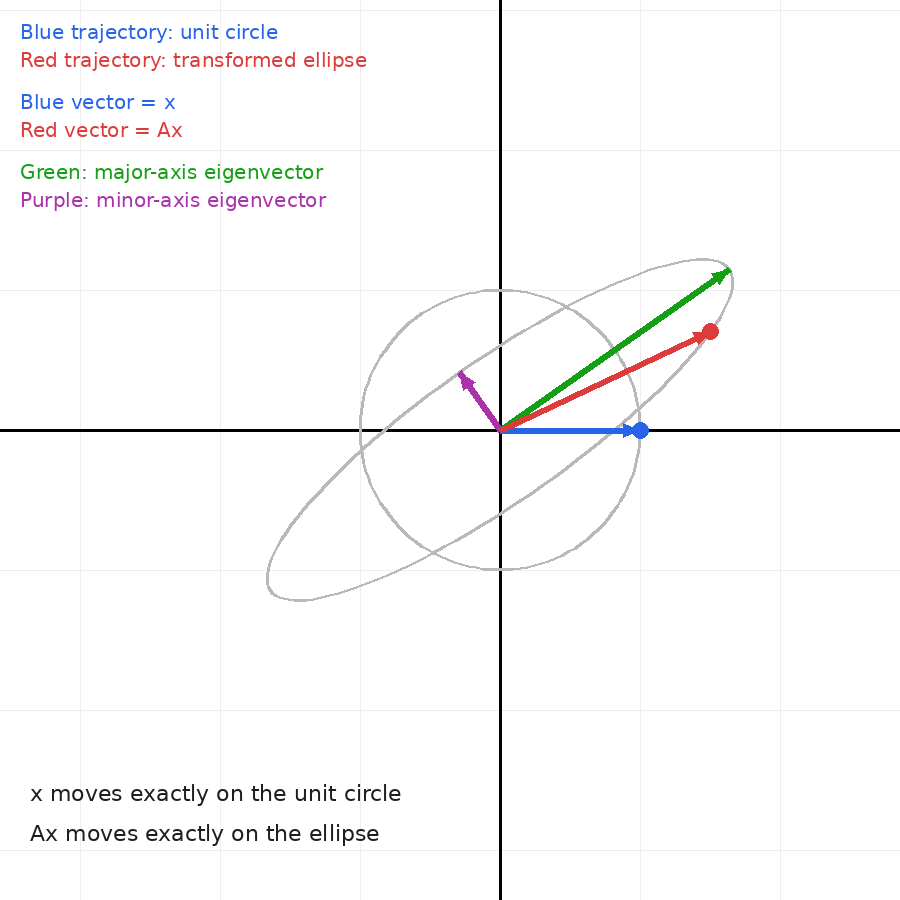

Geometric Meaning
- Eigenvectors → invariant directions (directions of the major and minor axes of an ellipse)
- Eigenvalues → scaling factors along those directions (lengths of the major and minor axes of an ellipse)
Eigen Decomposition
If matrix A has a full set of eigenvectors,
where,
- V : matrix of eigenvectors
- Λ : diagonal matrix of eigenvalues
Why This Matters
Eigen decomposition transforms a system into independent modes that do not interact.
This is extremely powerful in signal processing because
- Complex systems → separable components
- Coupled signals → decoupled representation
Interpretation in Signal Processing
Eigenvectors and eigenvalues provide deep insight into how signals behave under linear operations.
1. Linear Systems Perspective
Consider a system
If x is an eigenvector of A
The system simply scales the signal
Key Insight
Eigenvectors represent natural modes of the system
- No distortion
- No mixing with other components
2. Frequency Domain Connection
A very important special case,
Sinusoids are eigenfunctions of LTI systems
This is essentially the same idea
- Eigenvector → sinusoidal signal
- Eigenvalue → frequency response H (ω)
Interpretation
The Fourier transform is fundamentally an eigen decomposition
Covariance Matrix and PCA
One of the most important applications in DSP
Covariance Matrix
Eigen Decomposition of Covariance
Meaning
- Eigenvectors → principal directions of data
- Eigenvalues → variance along those directions
PCA (Principal Component Analysis)
PCA projects data onto eigenvectors
Why This Matters
- Reduces dimensionality
- Removes redundancy
- Improves noise robustness

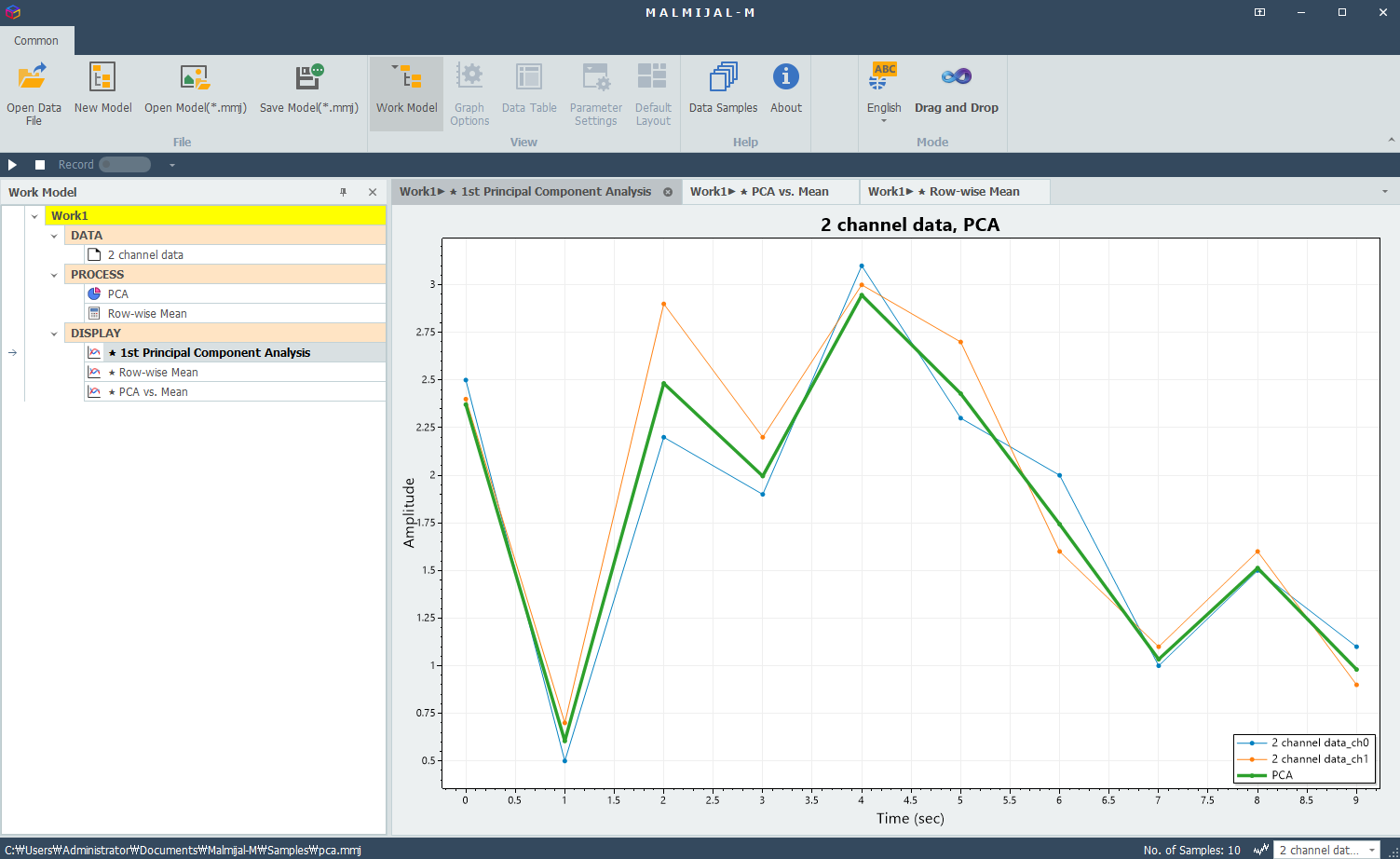

Principal component decomposition showing dominant signal directions (refer to Samples/pca.mmj)
Signal Decorrelation
In many signal processing problems, signals are correlated.
Eigen decomposition allows
Now, correlated signals → independent components
Practical Meaning
- Noise separation
- Feature extraction
- Compression
System Stability Analysis
Eigenvalues play a crucial role in system behavior.
Continuous-Time System
Solution
Stability Condition
- Real(λ) < 0 → stable
- Real(λ) > 0 → unstable
Discrete-Time System
Stability Condition
- |λ| < 1 → stable
- |λ| > 1 → unstable
Interpretation
Eigenvalues determine growth / decay / oscillation of signals.
Singular Value Decomposition (SVD) Connection
Eigen decomposition is closely related to SVD
Why SVD Matters More in DSP
- Works for non-square matrices
- Numerically stable
- Widely used in signal processing
Interpretation
- V : input modes
- U : output modes
- Σ : gain
Essentially a generalized eigen decomposition
Key Insight
Eigen decomposition simplifies complex transformations into independent components.
But more importantly, it reveals the intrinsic structure of signals and systems.
Practical Engineering Perspective
When eigenvalues matter most
- PCA / data analysis
- Noise reduction
- System identification
- Stability analysis
- Modal analysis (mechanical systems)
When eigenvectors matter most
- Feature extraction
- Basis transformation
- Signal compression
Intuition Summary
- Eigenvectors = “natural directions of the system”
- Eigenvalues = “how the system scales those directions”
