Poles and Zeros: The DNA of a System
In signal processing, poles and zeros provide one of the most powerful and compact ways to describe system behavior. While time-domain representations describe what happens, poles and zeros explain why it happens.
They form the structural foundation of linear time-invariant (LTI) systems, determining
- Frequency response
- Stability
- Transient response
- Resonance characteristics
For this reason, poles and zeros are often referred to as the “DNA” of a system
Understanding them allows engineers to design, analyze, and manipulate systems with precision.
Transfer Function Representation
For a discrete-time system, the transfer function is
where,
Interpretation
- Zeros(o) : frequencies where output becomes zero (suppressed)
- Poles(x) : frequencies where system response becomes very large (amplified)
Key insight
Zeros(o) “block” energy, poles(x) “accumulate” energy

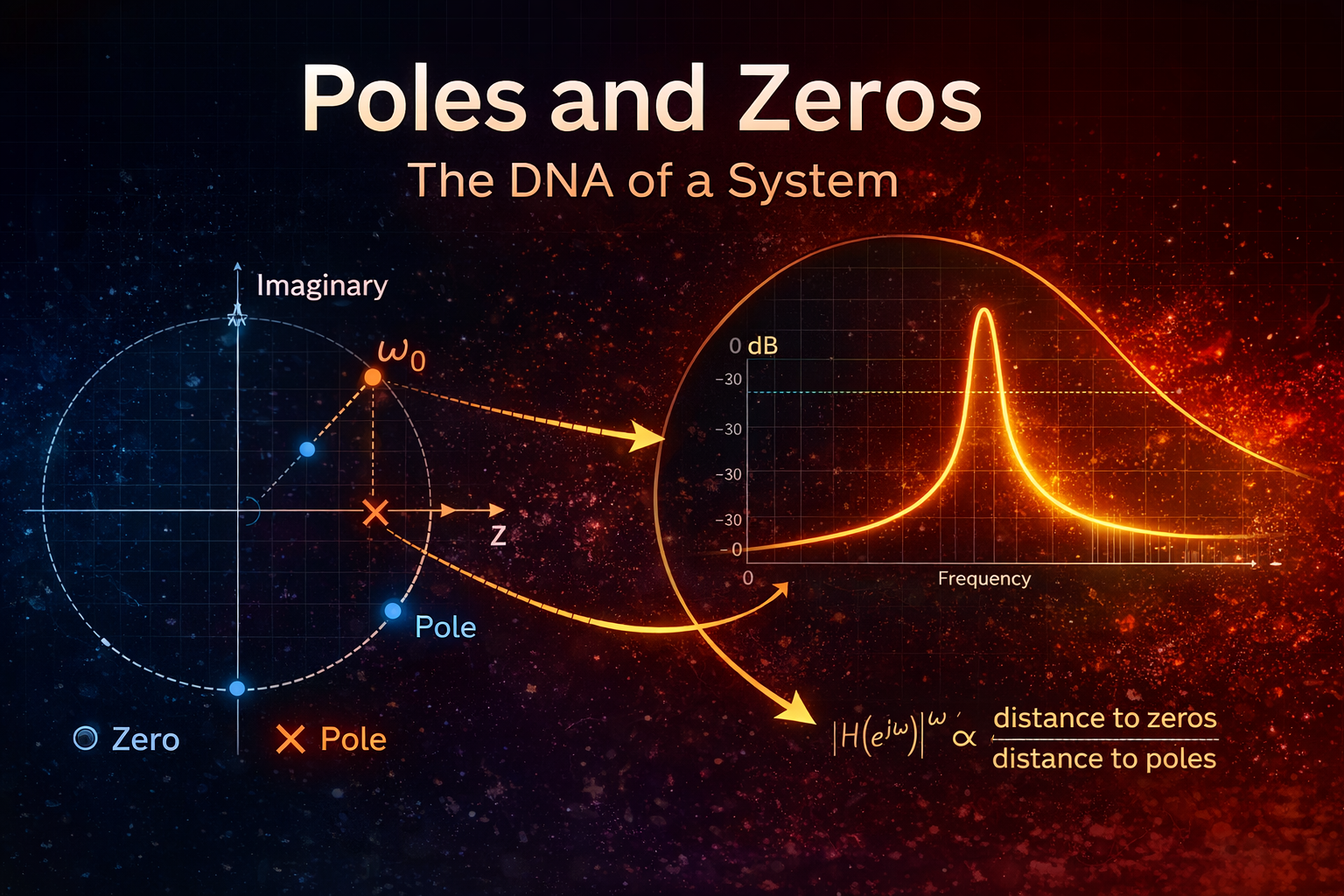

Geometric Interpretation in the z-Plane
The true power of poles and zeros emerges in the complex plane.
Magnitude Response
This means
- The response depends on distance to zeros and poles
- The unit circle represents the frequency axis
Intuition
- poles(x) closer → large gain
- zeros(o) closer → attenuation
Key insight
Frequency response is a geometric problem
Stability and Causality
Stability Condition
A discrete-time system is stable if
That is, all poles must be inside the unit circle.
Why?
Because poles represent exponential terms:
- ∣p∣ → decays
- ∣p∣ → explodes
Insight
Poles control system energy behavior over time
Time-Domain Interpretation
Poles and zeros are not just frequency-domain concepts.
Poles (x) → Natural response
- System dynamics
- Resonance
- Decay rate
Zeros (o) → Forced response shaping
- Cancel specific components
- Shape output structure
Example
- A pole(x) near ej2πf0 → resonance at f0
- A zero(o) at ej2πf0 → notch filter
Relationship to Filters
Poles and zeros directly correspond to filter behavior.
| Filter Type | Poles (x) | Zeros (o) |
|---|
| Low-pass | near DC value | high-frequency region |
| High-pass | near Nyquist | near DC value |
| Band-pass | around target freq | outside band |
| Band-stop (Notch) | - | at target freq |
Key insight
Filter design = pole-zero placement problem
Example: First-Order System
Consider
- Poles (x) at z = a
- Zeros (o) of H(z) does not exist
Behavior
- a ≈ 1 → slow decay, strong low-frequency response
- a ≈ 0 → fast decay
Insight
Pole location directly controls memory and smoothing
Resonance and Q Factor
Poles close to the unit circle produce sharp peak values.
If a pole (x) is
Then
- r → 1 → narrowband resonance
- r < 1 → wider response
That is
- Band-pass filter behavior
- Oscillation characteristics
Phase Response and System Behavior
Poles and zeros also influence phase
- Zeros (o) → phase lead
- Poles (x) → phase lag
Key point
Magnitude alone is not enough — phase matters
Continuous-Time vs Discrete-Time
| Domain | Representation |
|---|
| Continuous domain | H(s) |
| Discrete domain | H(z) |
Domain mapping
Result
- Left half-plane → inside unit circle
- Stability preserved under mapping
Practical Engineering Insights
1. Stability design
- Avoid poles (x) outside unit circle
2. Noise amplification
- Poles near noise frequencies → amplification
3. System identification
- Extract poles/zeros from measured data
4. Control systems
- Pole placement = system tuning

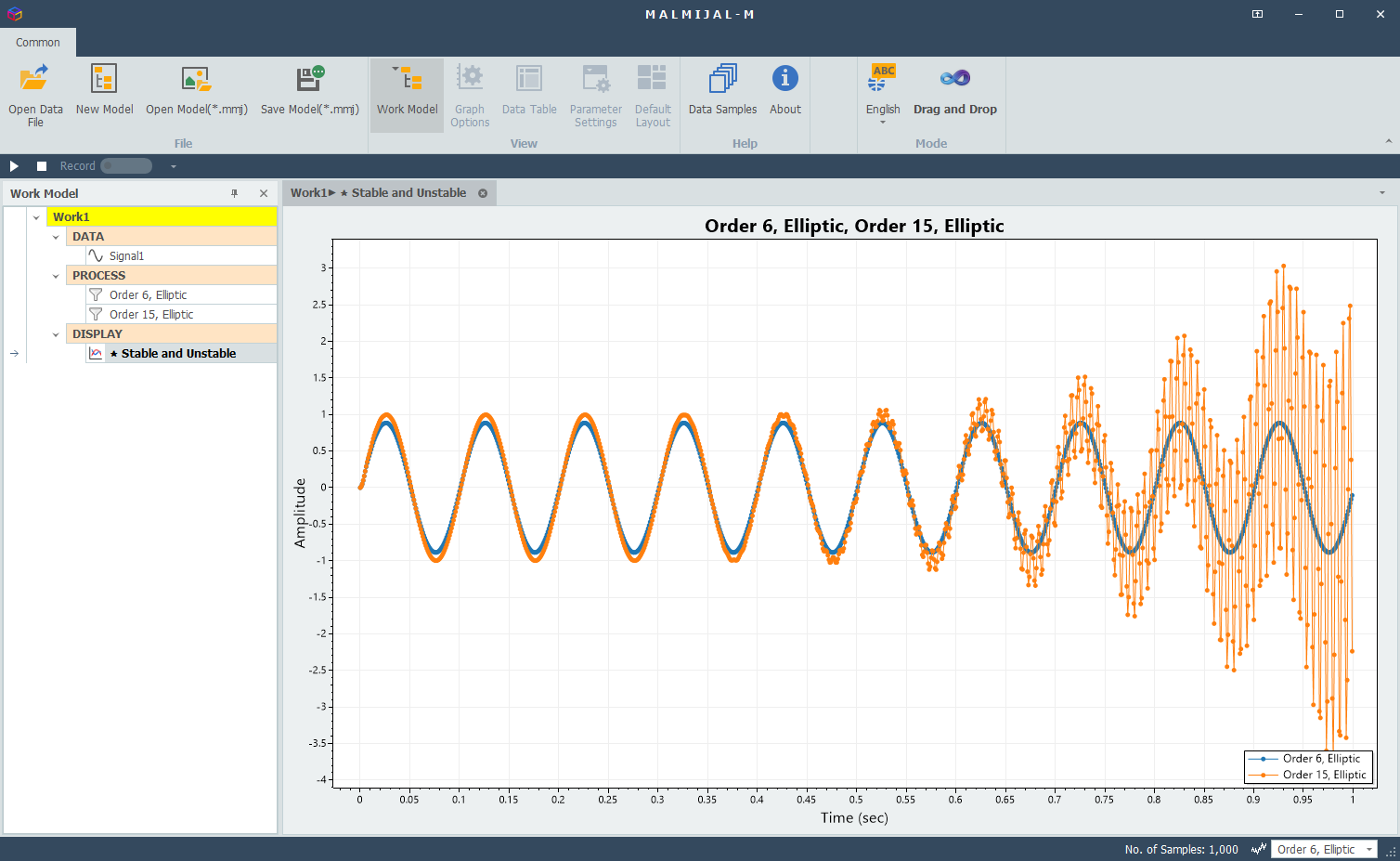

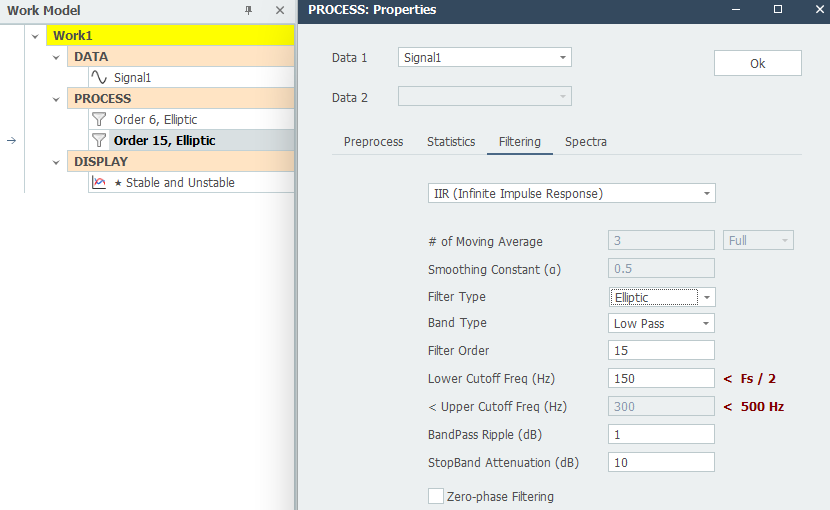

Unstable response on 15 pole locations (order 15, low-pass Elliptic IIR filter)
Key Insight
Poles and zeros are not just mathematical constructs—they are the essence of system behavior.
- Poles(x) define how energy evolves
- Zeros(o) define what gets suppressed
- Their interaction defines everything else
Key point
If you understand poles and zeros, you understand the system.
