What Happens When Poles Move in the Z-plane?
The position of poles in the z-plane directly determines system behavior. Even small changes in pole location can dramatically alter stability, time-domain response, and frequency characteristics.
While poles may initially appear as abstract mathematical objects, they are in fact one of the most intuitive tools for understanding how systems behave.
This article explains
- Why the z-plane is introduced
- What poles(x) physically represent
- How pole(x) movement affects systems
- How to interpret these changes in practice
Why the Z-plane Exists
In discrete-time systems, signals often depend on past values
Analyzing such systems directly in the time domain quickly becomes complex.
The Z-transform simplifies this
Key idea
The z-plane is a space where system behavior becomes algebraically manageable and geometrically interpretable.

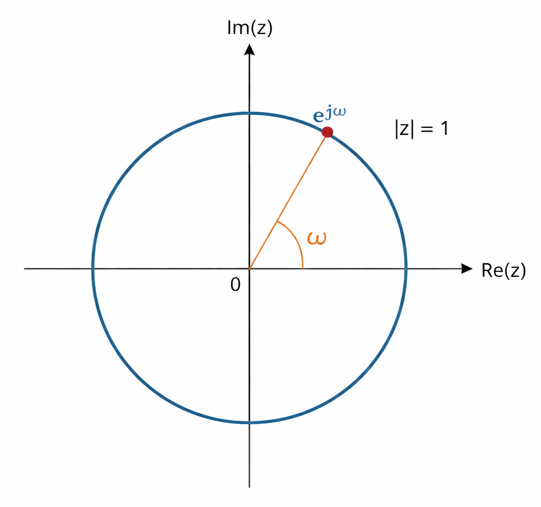

Z-plane representation of the unit circle where each point ejω corresponds to a frequency component, with angle ω indicating the signal frequency.
What Is a Pole?
A pole is a value of z where the system response becomes unbounded.
More importantly, a pole represents a natural mode of the system.
Time-domain meaning
A pole(x) at
corresponds to
- r : decay or growth
- ω : oscillation frequency
Intuition
Poles describe how the system evolves over time without external forcing.
Stability Condition
For discrete-time systems
Interpretation
- Poles inside unit circle → decaying response
- Poles on unit circle → sustained oscillation
- Poles outside → exponential growth
Key insight
Stability is entirely determined by pole(x) location.
The Unit Circle and Frequency
The unit circle is defined as
Meaning
- Frequency response is evaluated on the unit circle
- Pole proximity to this circle determines gain
What Happens When Poles Move?
This is the core of the analysis.
1. Radial Movement (Distance from Origin)
Effect
- Pole near origin → fast decay
- Pole near unit circle → slow decay
Interpretation
The closer a pole is to the unit circle, the longer the system memory.
2. Angular Movement (Rotation)
Pole angle determines frequency
Effect
- Pole angle shifts → resonance frequency shifts
Interpretation
Pole angle directly maps to frequency location.
Frequency Response Impact
When poles approach the unit circle,
- System gain increases
- Resonance becomes sharper
Key point
Poles near the unit circle create strong frequency amplification.

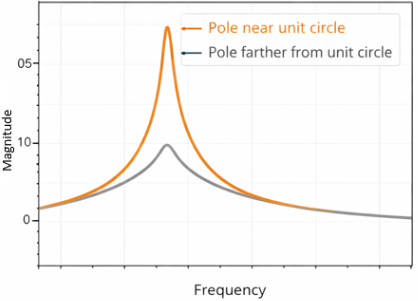

Sharpening of frequency response as pole approaches unit circle
Example
A pole(x) located at
creates a peak near frequency ω0.
Interpretation
- r → 1 → sharp peak value
- r ≪ 1 → weak response
Insight
Pole position defines both location and strength of resonance.
Moving Outside the Unit Circle
When,
Result
- Output value grows exponentially
- System becomes unstable
Practical Insight
- High-Q filters → poles close to unit circle
- Stability risk increases as poles move outward
- Small pole movement → large system change
Key point
Pole(x) placement is extremely sensitive and must be controlled carefully.

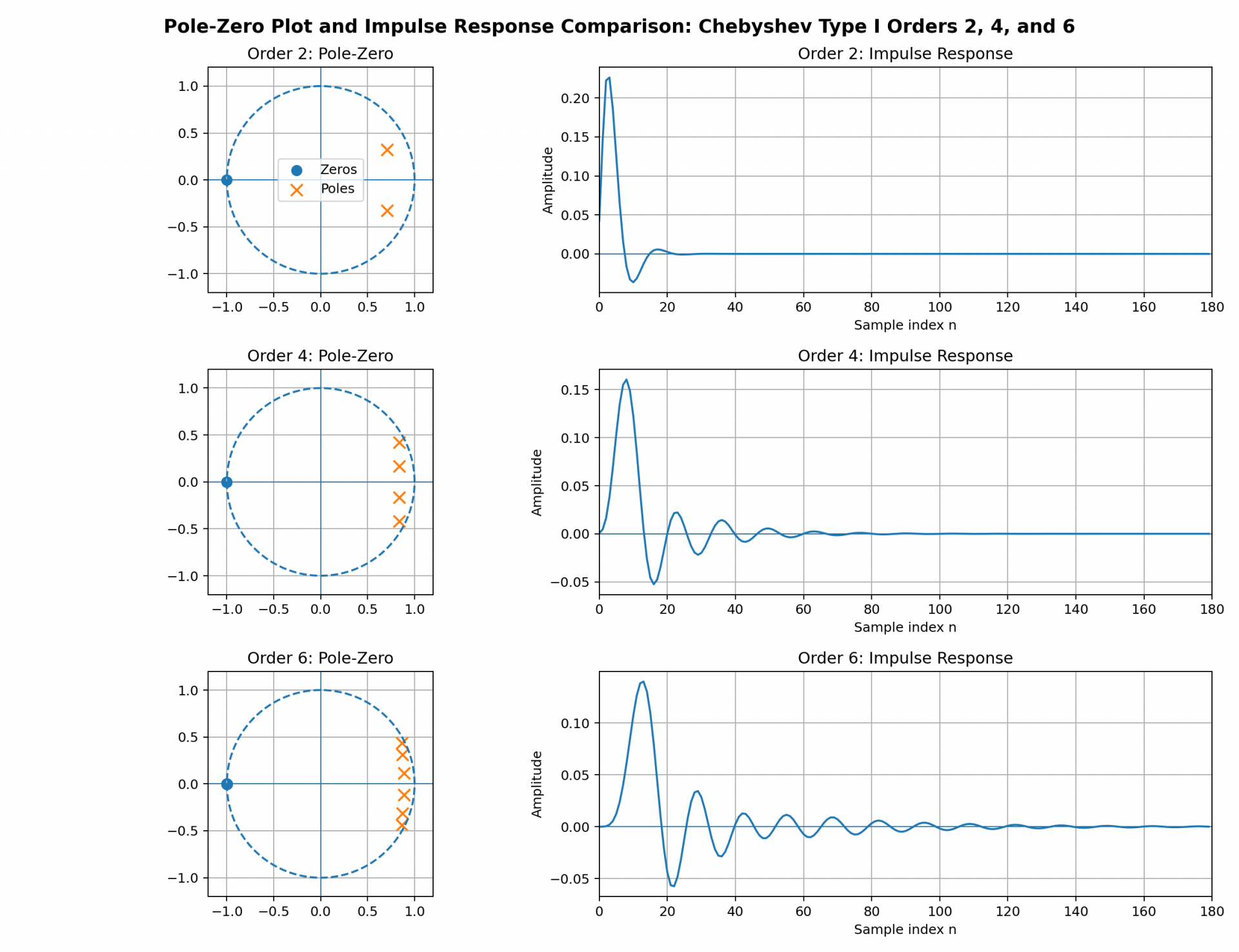

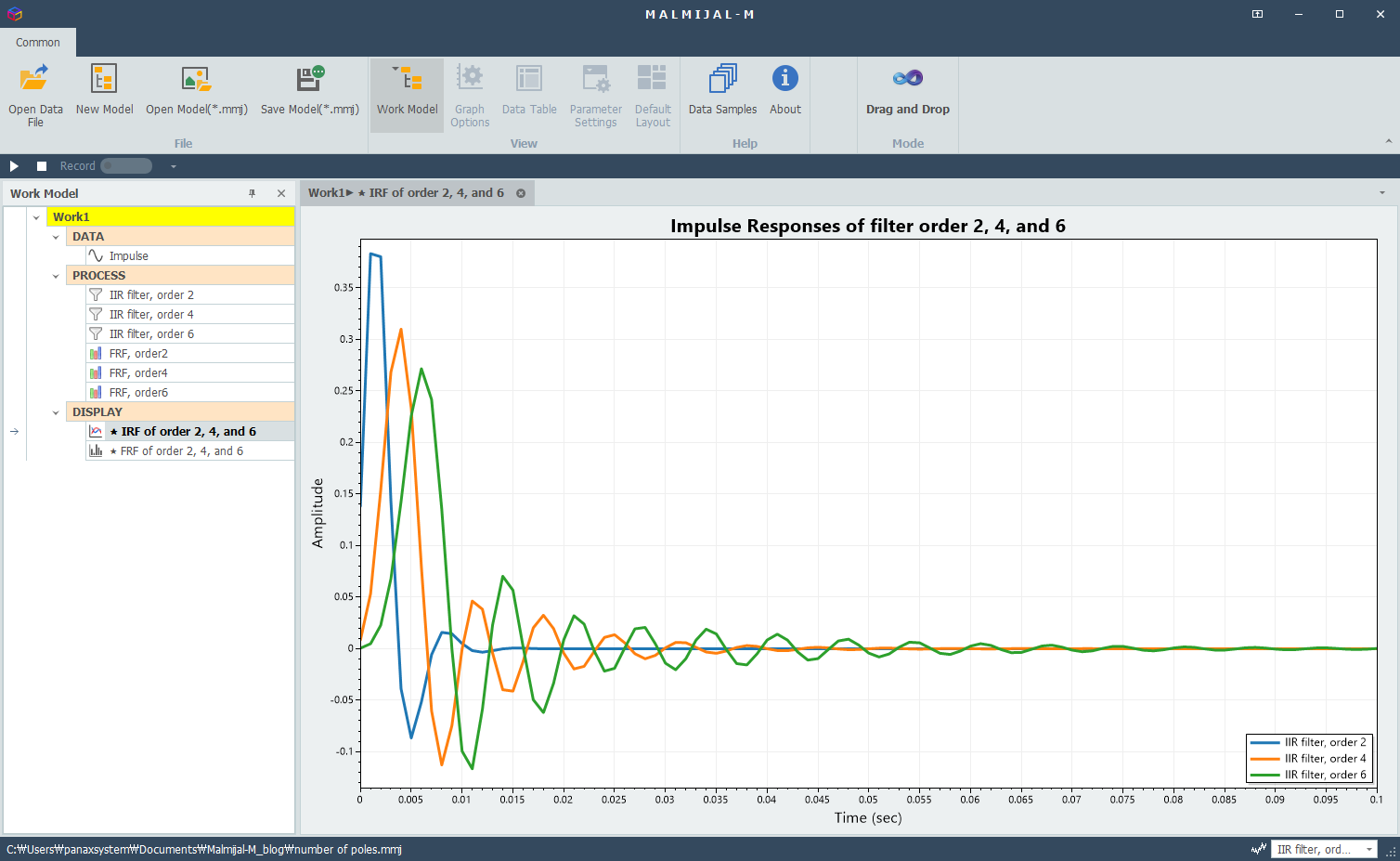

Higher order filter produces long-lasting oscillation (ringing)

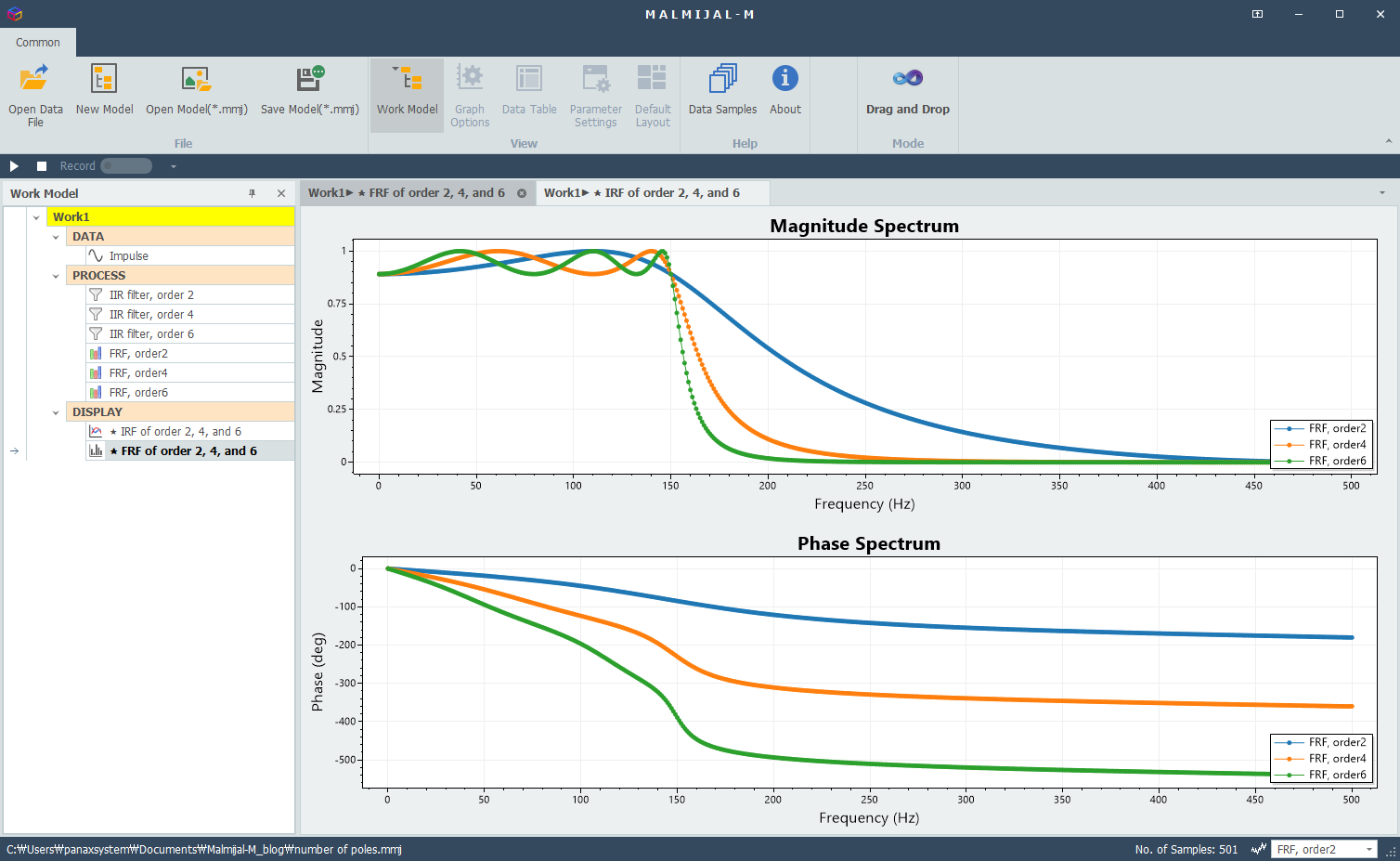

Number of poles is equal to the filter-order, and higher-order filters are more prone to numerical instability
Physical Interpretation
| Domain | Meaning |
|---|
| Mechanical domain | damping & resonance |
| Electrical domain | time constant & cutoff |
| Audio | tone coloration |
Insight
Poles are not abstract — they encode real physical behavior
Key Insight
Pole(x) movement affects
- Stability
- Time decay
- Resonance
- Frequency response
The final point
Moving poles(x) is equivalent to redesigning the system itself.
