Understanding the Region of Convergence (ROC) in z-Transform
The Region of Convergence (ROC) is the set of values in the complex plane for which an integral or summation transform(like Laplace or z-Transform) converges to a finite set value. Essentially, it defines the "territory" where the mathematical conversion actually works: outside this region, the expression typically "blows up" to infinity.
While the z-Transform provides a mathematical representation of a signal, the ROC tells us where that representation is valid. In other words, the ROC determines when the z-Transform actually exists and what it means physically.
Definition of z-Transform
The z-Transform of a discrete-time signal x[n] is
However, this infinite sum does not always converge.
Definition of ROC
The Region of Convergence is the set of all z values for which
The ROC is where the z-Transform is finite and well-defined.
ROC Characteristics
- ROC is typically a ring (annulus) in the complex plane
- It is centered at the origin
- It never includes the poles
- It may extend to infinity or to zero
Three Types of ROC
1. Causal Signal (Right-sided signal)
ROC: outside the outermost pole, extends to infinity
2. Anti-causal Signal (Left-sided signal)
ROC: inside the innermost pole

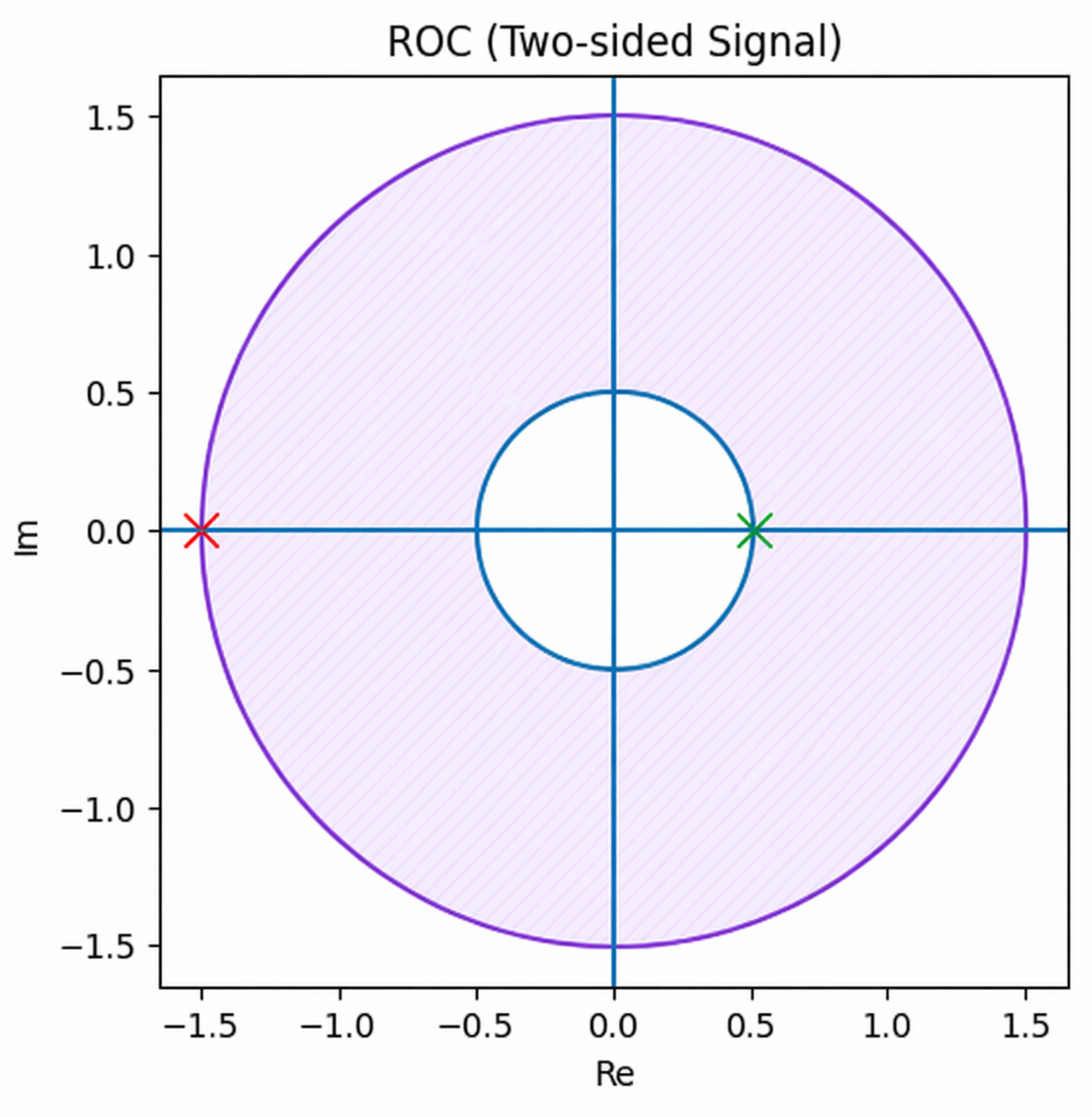

3. Two-sided Signal
ROC: a ring(annulus) between poles
Key Takeaways
ROC determines
- Whether system is stable → ROC includes the unit circle
- Whether system is causal → ROC lies outside the outermost pole and extends to infinity
- Whether DTFT exists → ROC includes the unit circle
Stability Condition
System is stable if
- All poles are inside the unit circle
- ROC includes | z | = 1
Conclusion
z-Transform alone is not enough — ROC is required to uniquely define the signal. The ROC defines where the Z-transform converges and determines stability, causality, and physical meaning of the system.
