Frequency-Domain Representation of Second-Order Statistics for Random Signals
When we first learn about the Fourier Transform or FFT, it is easy to think that spectral analysis is simply a way to “convert a signal from the time domain into the frequency domain.”
However, in many real-world engineering applications, spectral analysis is actually much more than that.
In vibration analysis, acoustics, noise measurement, biomedical signals, and communication systems, signals are often random or partially random. In these cases, spectral analysis becomes closely related to statistics, especially second-order statistics.

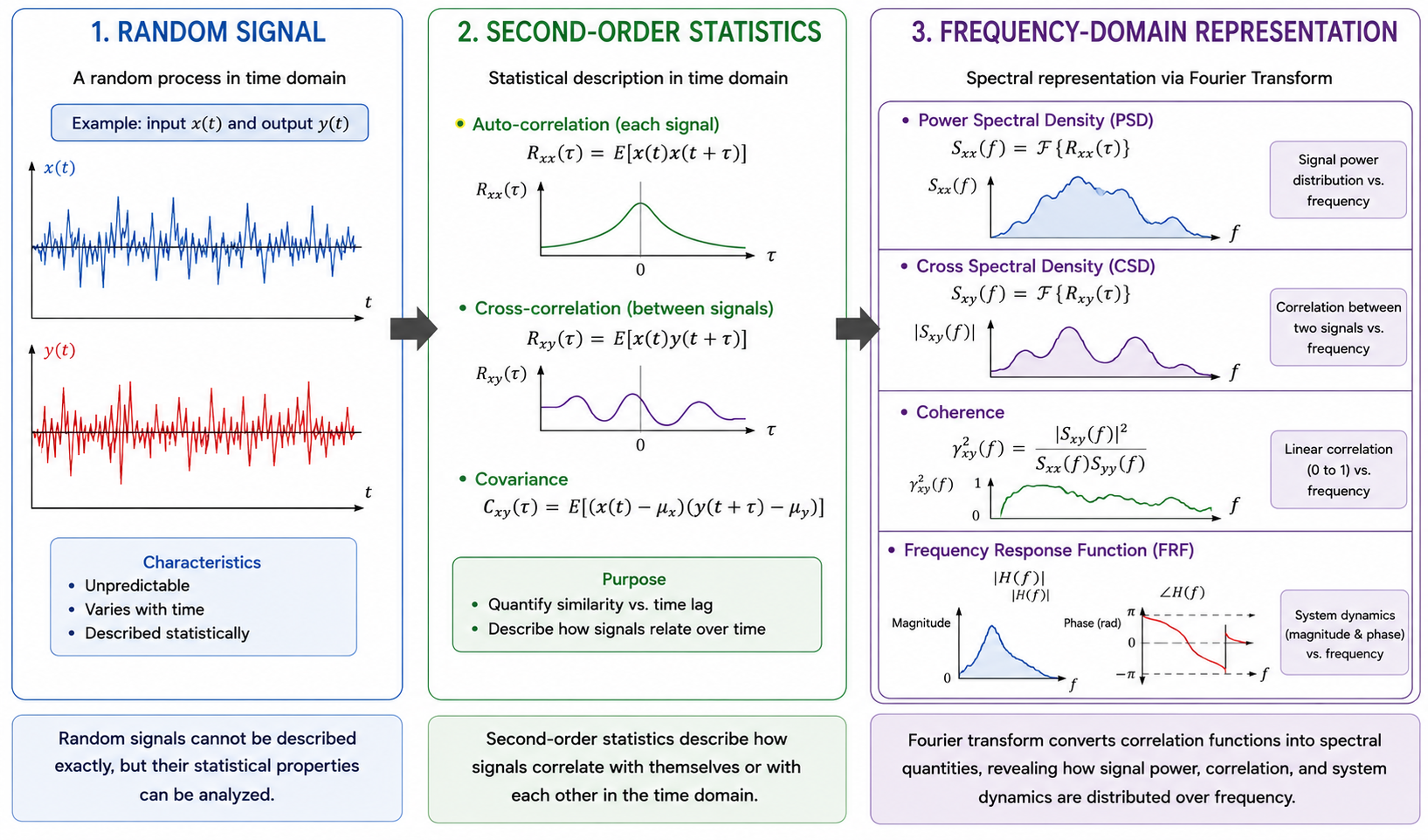

What Are Second-Order Statistics?
Second-order statistics describe how signals fluctuate and how signals are related to each other.
Typical examples include
- Variance
- Covariance
- Auto-correlation
- Cross-correlation
For example, the auto-correlation function is defined as
This equation measures how similar a signal is to a delayed version of itself.
Similarly, the cross-correlation function between two signals is
which describes how strongly two signals are statistically related as a function of delay.
Notice that both equations contain the expectation operator E[⋅], meaning they are fundamentally statistical quantities.
From Correlation to Spectrum
Now comes the important part.
According to the Wiener–Khinchin theorem, the Fourier Transform of the auto-correlation function becomes the Power Spectral Density (PSD)
Likewise, the Fourier Transform of the cross-correlation function becomes the Cross Spectral Density (CSD)
This means that spectral quantities are not merely FFT results. They are frequency-domain representations of statistical relationships.
In other words,
- Correlation describes relationships in time.
- Spectrum describes relationships in frequency.
Why PSD Is Statistical
For deterministic signals, a simple FFT may already provide enough information.
However, many engineering signals are random.
- Noise
- Road vibration
- Wind turbulence
- Machinery vibration
- EEG / ECG signals
- Acoustic background noise
In these cases, the exact waveform changes continuously over time.
Instead of asking “What is the exact waveform?”, we often ask “How is the signal energy statistically distributed over frequency?”
That question is answered by the PSD.
Therefore, PSD is better understood as a statistical energy distribution rather than simply an FFT magnitude.
FRF and Coherence Are Also Statistical
The same idea extends to FRF and coherence.
In theory, the FRF is
But in real measurements, noise and variability make direct division unstable.
For this reason, practical FRF estimators(H1) use averaged spectral quantities.
Similarly, coherence is defined as
Coherence can be interpreted as a frequency-domain correlation coefficient.
It evaluates
- linearity
- repeatability
- signal-to-noise quality
- measurement reliability
at each frequency.
A Different Way to View Spectral Analysis
From this perspective, spectral analysis is not merely “Applying FFT to a signal.”
Instead, it can be viewed as “Interpreting second-order statistical relationships in the frequency domain.”
This is why concepts such as
- PSD (Power Spectral Density)
- CSD (Cross Spectral Density)
- FRF (Frequency Response Function)
- Coherence
are deeply connected to averaging, random processes, estimation theory, and statistical signal processing.
In modern engineering, spectral analysis is fundamentally both a transform problem and a statistical estimation problem.
Conclusion
The frequency-domain representation of second-order statistics is a fundamental concept in modern signal processing. By transforming time-domain statistical relationships into the frequency domain, engineers and researchers can better understand how signal energy, noise, and correlations are distributed across frequencies.
Concepts such as PSD, CSD, FRF, and coherence are therefore more than simple Fourier-based calculations. They are statistical tools that describe the behavior and relationships of random processes in the frequency domain.
For this reason, spectral analysis is often viewed as the frequency-domain interpretation of second-order statistical properties.
