Amplitude vs Magnitude: Are They Really Different?
In signal processing, the terms amplitude and magnitude are often used almost interchangeably. At first glance, they both seem to describe the same idea—“how big something is.”
But if you look more carefully, they are not exactly the same.
To understand the difference clearly, we need to look at what happens when a signal is transformed.
Amplitude: Size of the Signal in Time
Let’s start with a simple sine wave
Here, A is the amplitude.
What does amplitude represent?
So we can say
Amplitude = the size of the signal in time
What Changes in the Frequency Domain?
When we apply the Fourier Transform
Something important happens
The result becomes a complex number
Why Do Complex Numbers Appear?
The goal of the Fourier Transform is to answer this question
“How much of a specific frequency exists in this signal?”
Mathematically, the exponential term can be written as
So each frequency component is evaluated using
A Simple Example
Consider a signal
After applying the Fourier Transform
For example
This tells us
Magnitude: The Length of a Vector
A complex number can be written as
This can be interpreted as a 2D vector
x-axis → real part
y-axis → imaginary part
Magnitude is defined as
In other words,
Magnitude = the length of the vector

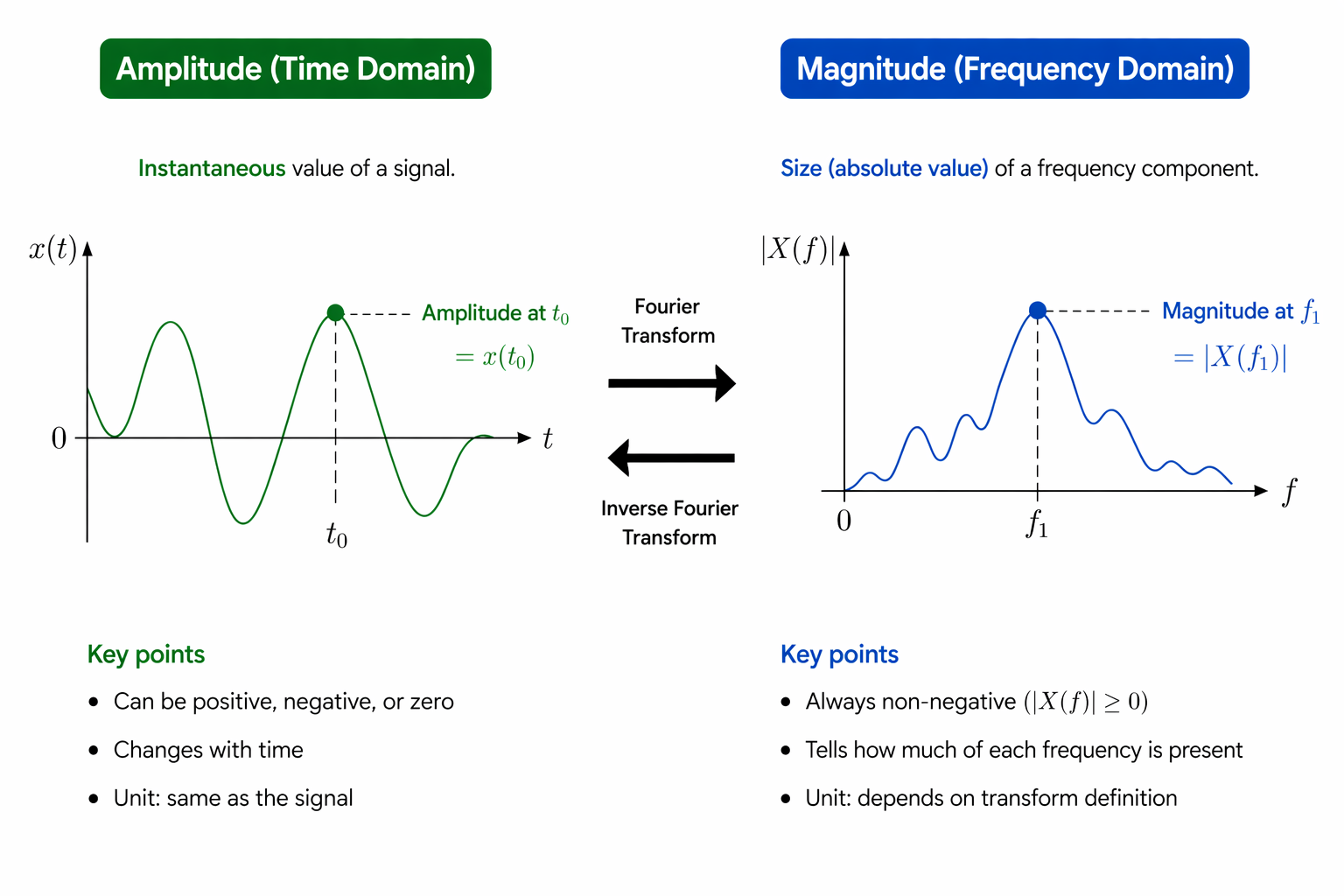

The Real Difference
Now we can clearly compare the two concepts.
Amplitude
Magnitude
Defined in the frequency domain
Derived from complex values
Represents strength of each frequency component

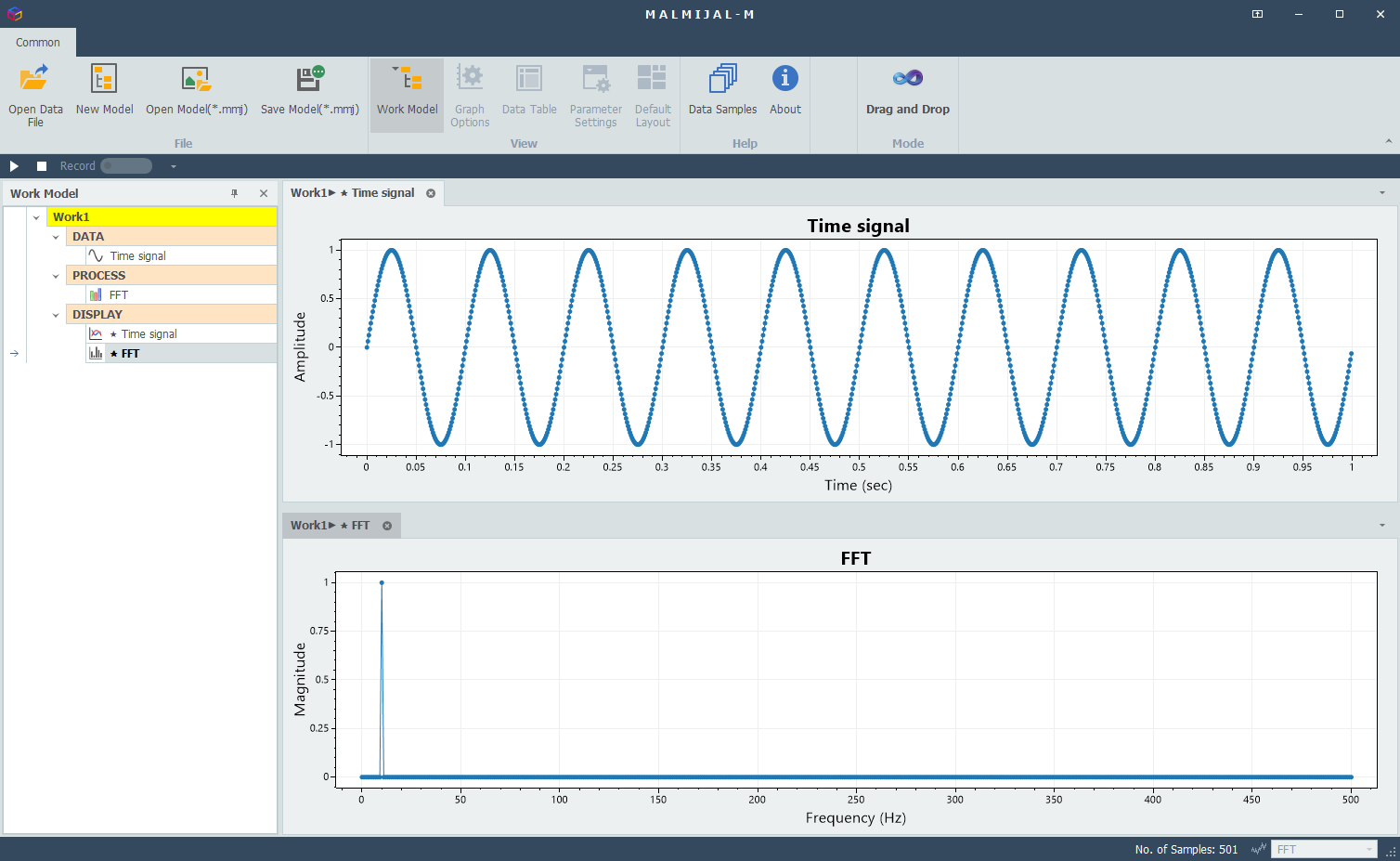

Time signal (Amplitude) vs FFT (Magnitude) in MALMIJAL
How Are They Related?
They are not completely unrelated.
For example
After transformation
So
Amplitude is reflected in the magnitude of the frequency component
Why the Confusion?
There are two main reasons
1. Both describe “size”
2. The graphs look similar
FFT plots often look like standard graphs with peaks.
So it’s easy to assume
“This is just amplitude”
But it’s actually magnitude.
Intuitive Summary
One-Line Summary
Amplitude is the size of the signal in time
Magnitude is the size of frequency components (as vectors)
Conclusion
Amplitude and magnitude both describe “size,” but they belong to different domains.
Once you understand that the Fourier Transform expresses signals as vectors (complex numbers), the meaning of magnitude becomes much clearer.
