Systems, Filters & ModelingWhat Is the Difference between Transfer Function (TF) and Frequency Response Function (FRF)?

What Is the Difference between Transfer Function (TF) and Frequency Response Function (FRF)?

In system analysis, two terms are often used

  • Transfer Function (TF)
  • Frequency Response Function (FRF)

They look very similar and are often used interchangeably. But they are not exactly the same.

What Is the Difference between Transfer Function (TF) and Frequency Response Function (FRF)?

TF (Transfer Function)

Theoretical system model

transfer function

  • Derived from equations (differential for continuous or difference equation for discrete-time system)
  • Ideal (no noise)
  • Exact mathematical description
  • e.g. Digital filter form

z-Transform TF


FRF (Frequency Response Function)

Measured system response

FRF (Frequency Response Function)

  • Computed from real data
  • Includes noise and measurement effects
  • Practical approximation of system behavior
  • Sxy: Cross Power Spectral Density, Sxx: Auto Power Spectral Density, H1 estimator


Key Insights

1. Ideal vs Real World
  • Transfer function → perfect system
  • FRF → real system with
    • Noise
    • Nonlinearities
    • Measurement errors


2. How They Are Obtained
TypeHow Obtained
Transfer Function (TF)Derived from physics / equations
Frequency Response Function (FRF)Measured using input/output signals

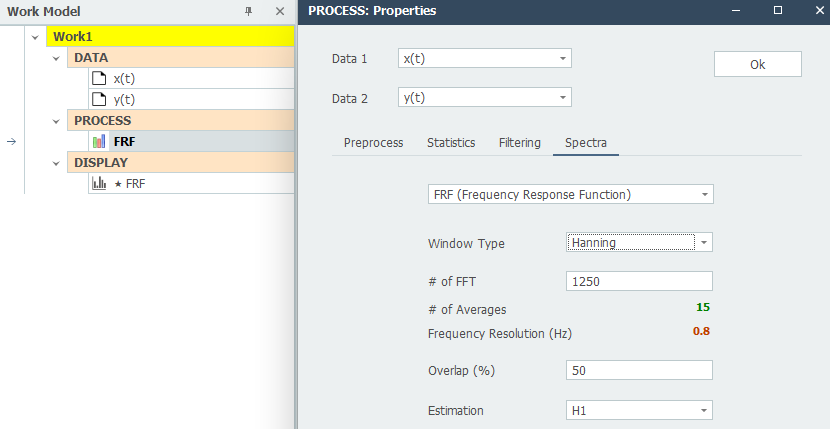

FRF property window


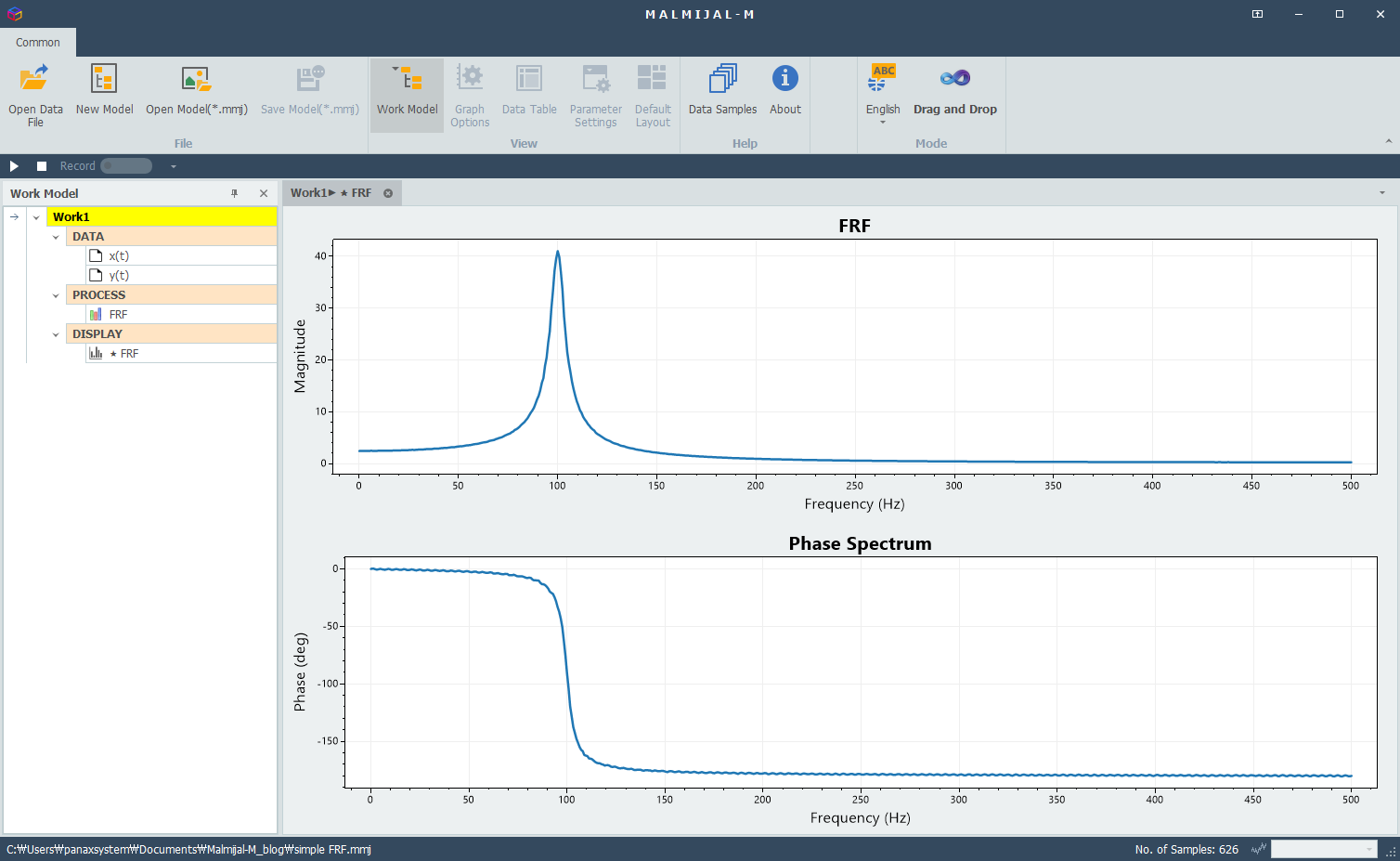

FRF of noisy input and output

FRF of random input and output


3. Practical Equivalence

In ideal conditions, FRF ≈ Transfer Function

But in reality, FRF is an estimate


4. FRF Estimation Methods

In practice, FRF is computed using

  • H1 estimator: minimize output noise → output noise dominant, impact hammer used
  • H2 estimator: minimize input noise → input noise dominant, random excitation used
  • Hv estimator: total least squares form → compromise between H1 and H2, used when both input and output noise are present


Example

H1 estimator of FRF

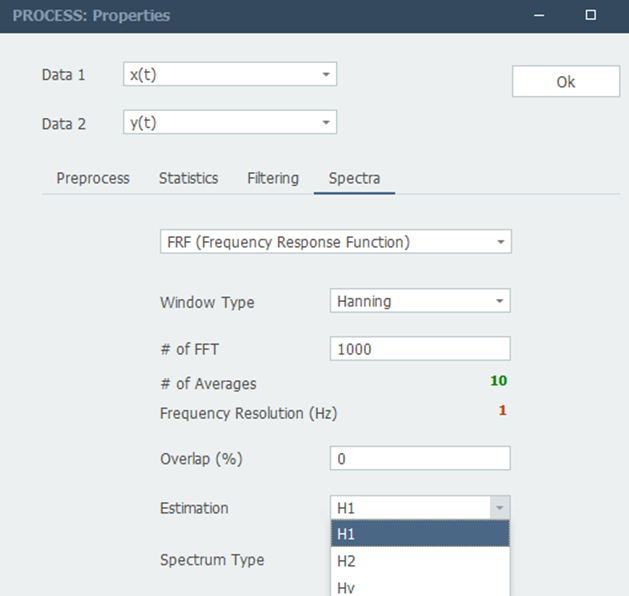

FRF property window

This reduces output noise effects
